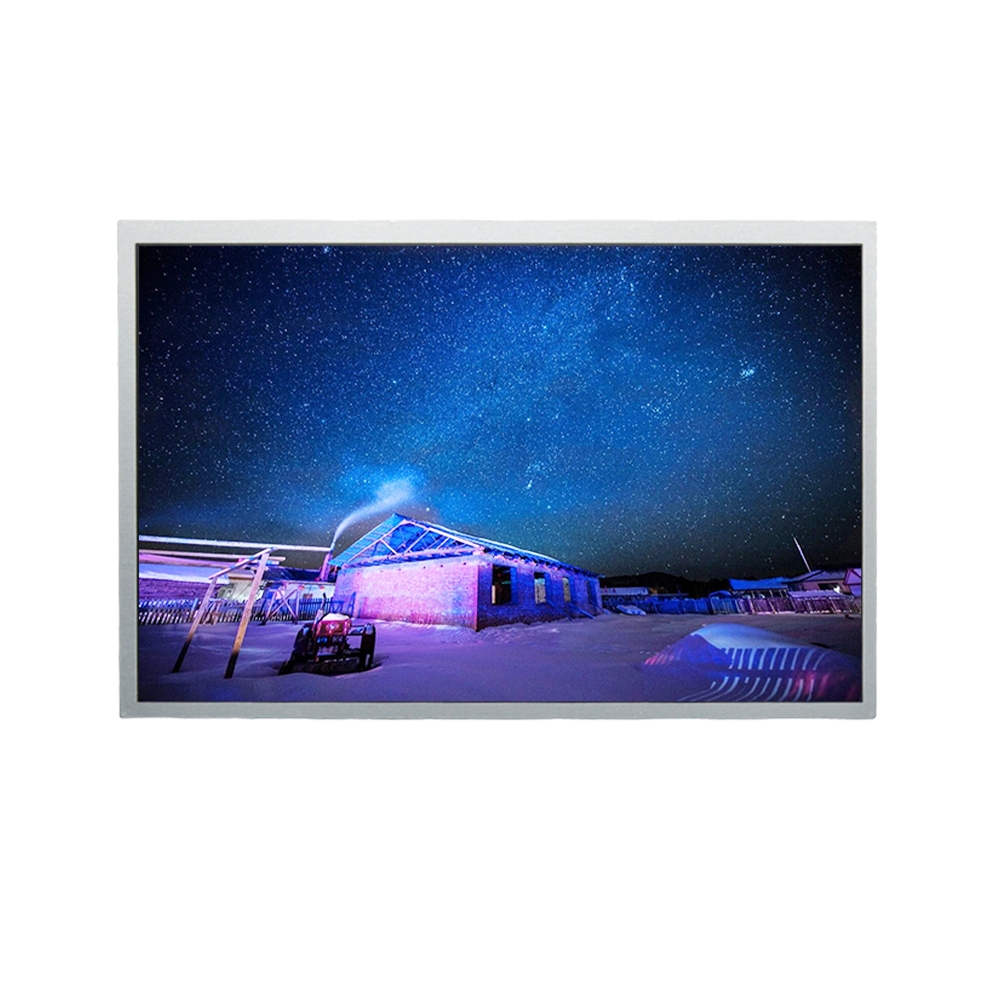

Wide Temperature 12.1 inch LCD Display

Part NO: MX-I121FL30-IY03
► Size: 12.1"
► Resolution: 1280*800 Pixels
► Display Mode: IPS
► Brightness: 600 Nits
► Interface: LVDS 30 PIN
► Touch Screen: Without (Optional)
► Operating Temperature: -30℃~80℃ (Wide Temperature)

Make an inquiry

Datasheet Download

Description

MX-I121FL30-IY03 is a 12.1" TFT Liquid Crystal Display module equipped with an LED backlight unit and LVDS interface. This module supports 1280 x 800 Wide-XGA resolution in AAS mode and can display 262k/16.7M colors, ensuring sharp and vibrant visuals. It comes with a built-in LED converter for backlight control, enhancing its overall performance and user experience. With a brightness of 600 nits, this 12.1" display excels in providing clear and vivid images. Its key feature is its wide-temperature range, with an operating temperature from -30 to 80℃ and a storage temperature from -30 to 85℃, making it well-suited for various demanding environments. In addition, its IPS technology offers full viewing angles, further amplifying its application potential, particularly in the industrial sector.

Product Structure

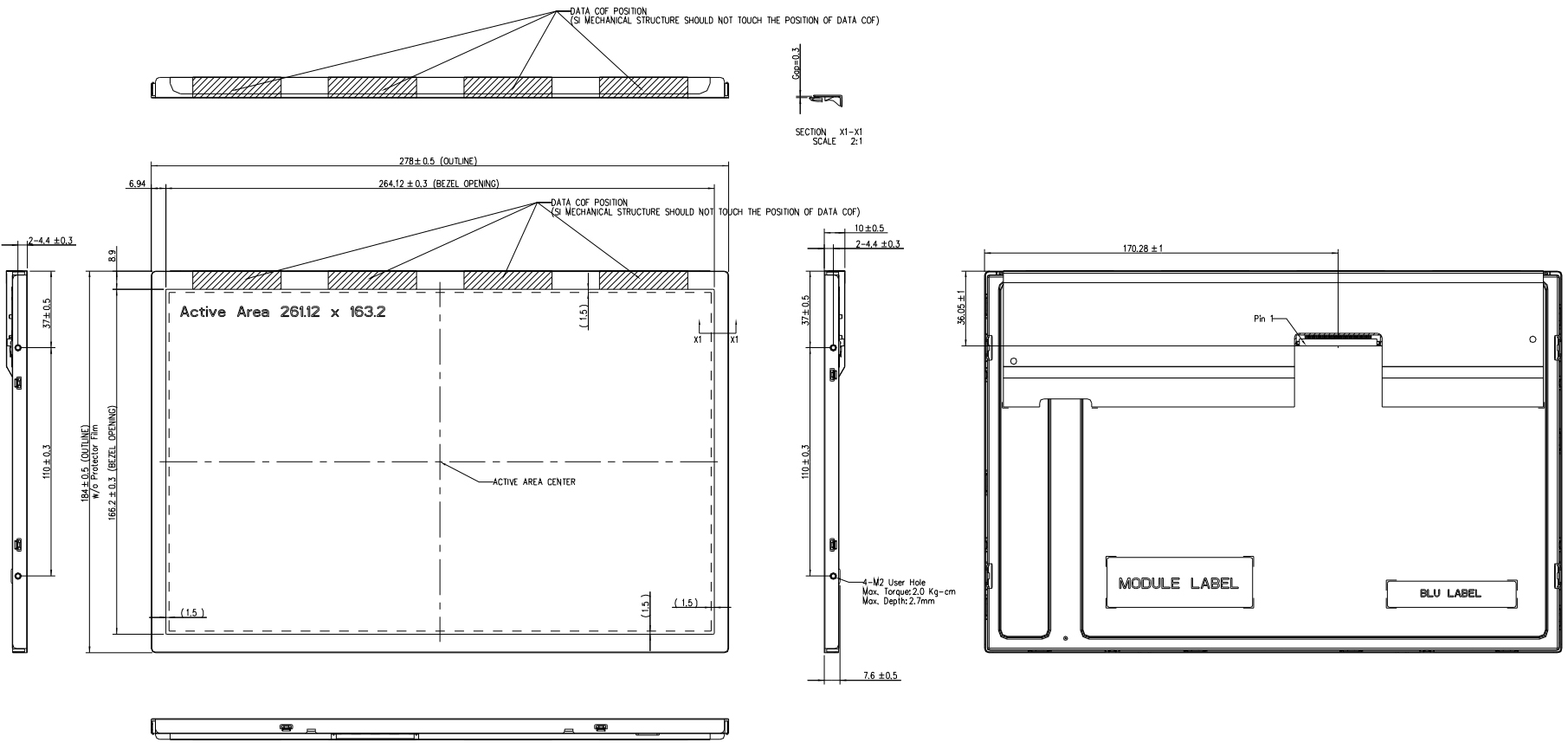

Drawing of Wide Temperature 12.1 inch LCD Display

LCD PIN Function (LVDS 30 PIN)

Pin No.	Symbol	Description
1~4	12V	LED power
5	ENLED	Enable pin
6	Dimming	Backlight Adjust
7~8	NC	No Connection or Ground
9~10	VCC	Power supply: +3.3V
11~12	GND	Ground
13	RX0-	Negative transmission data of pixel 0
14	RX0+	Positive transmission data of pixel 0
15	GND	Ground
16	RX1-	Negative transmission data of pixel 1
17	RX1+	Positive transmission data of pixel 1
18	GND	Ground
19	RX2-	Negative transmission data of pixel 2
20	RX2+	Positive transmission data of pixel 2
21	GND	Ground
22	RXCLK-	Negative of clock
23	RXCLK+	Positive of clock
24	GND	Ground
25	RX3-	Negative transmission data of pixel 3
26	RX3+	Positive transmission data of pixel 3
27	GND	Ground
28	SEL6/8	LVDS 6/8bit select function control Low→6 bit Input Mode High→8 bit Input Mode
29	GND	Ground
30	NC	No Connection or Ground

ABSOLUTE MAXIMUM RATINGS

Item	Symbol	Value		Unit
Item	Symbol	Min.	Max.	Unit
Operating Ambient Temperature	TOP	-30	80	ºC
Storage Temperature	TST	-30	85	ºC

ELETRONICS SPECIFICATION

Parameter		Symbol	Value			Unit
Parameter		Symbol	Min.	Typ	Max.	Unit
Power Supply Voltage		Vcc	3.0	3.3	3.6	V
Permissive Ripple Voltage		V_RP	-	50	-	mV
Rush Current		I_RUSH	1.5			A
Initial Stage Current		I_IS	-	-	1.0	A
Power Supply Current	White	-	400	440	480	mA
Power Supply Current	Black		260	290	320	mA
LVDS Differential Input High Threshold		V_TH(LVDS)	+100	-	-	mV
LVDS Differential Input Low Threshold		V_TL(LVDS)	-	-	-100	mV
LVDS Common Mode Voltage		V_CM	1.125	-	1.375	V
LVDS Differential Input Voltage		\|V_ID\|	100	-	600	mV
Terminating Resistor		R_T	-	100	-	Ohm

BACKLIGHT UNIT

Item	Value			Unit
Item	Min	Typ.	Max.	Unit
LED Converter Input voltage	10.8	12.0	13.2	V_DC
LED Converter Input Current	-	0.8	-	A_DC
Luminance of White (5P)	-	480	600	cd/m²
LED Life Time	50000	-	-	Hrs
