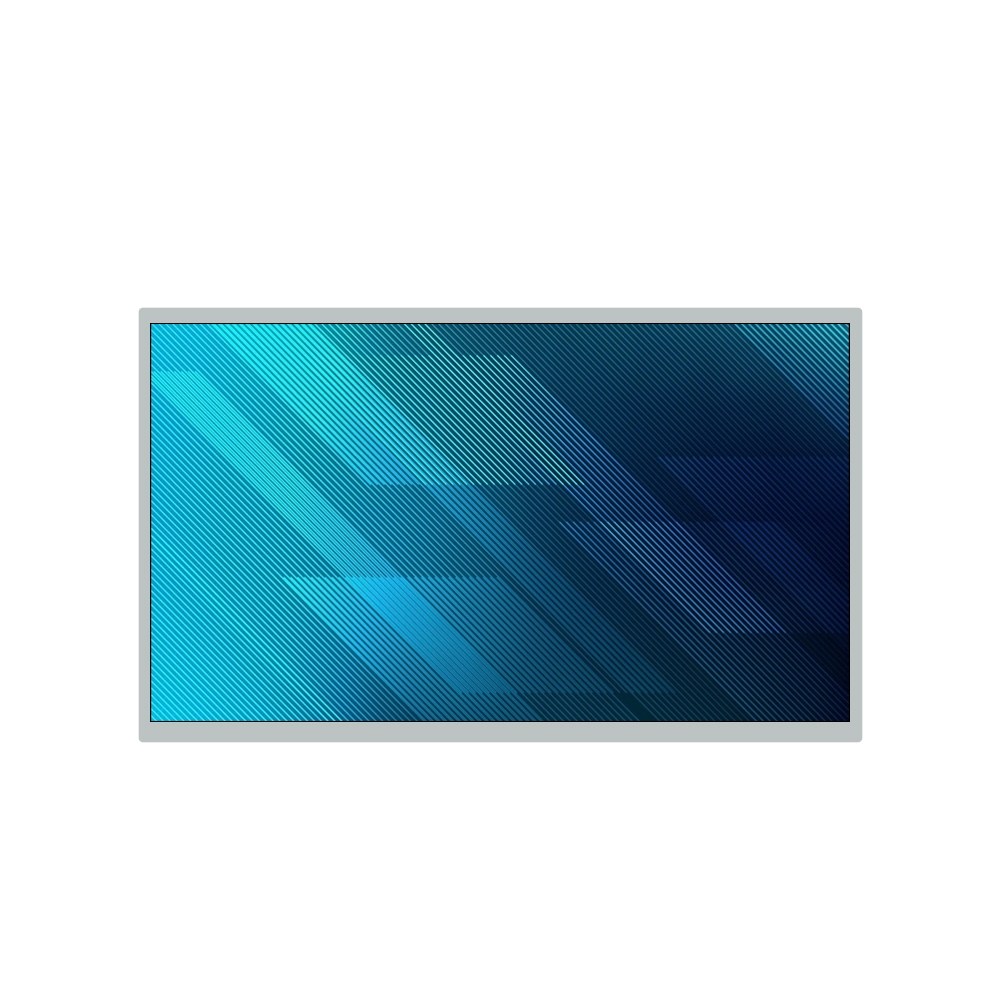

Wide Temperature 21.5 inch LCD Display Panel

Part NO.: MX-215FL30BFH-N07
► Size: 21.5"
► Resolution: 1920*1080 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: LVDS 30 PIN
► Touch Screen: Without (Optional)
► Operating Temperature: -20℃~85℃ (Wide Temperature)

Make an inquiry

Datasheet Download

Description

MX-215FL30BFH-N07 is a superior 21.5 inch Industrial LCD Di是play Panel, delivering Full HD resolution of 1920x1080 pixels, supported by an IPS display. This ensures sharp image quality and expansive viewing angles, making it ideal for multi-operator environments. The display boasts an impressive brightness of 1000 nits, significantly enhancing readability under bright conditions. It also features a dependable LVDS 30 PIN interface, offering reliable connectivity.

Featured with the wide temperature range, the 21.5 inch LCD display can be operated in temperature range from -20℃ to 85℃ and be stored in temperature range from -30℃ to 85℃. This makes it resilient in extreme conditions, reinforcing its suitability for diverse industrial applications. Reach out to Maxen Electronics for all your industrial display requirements.

Product Structure

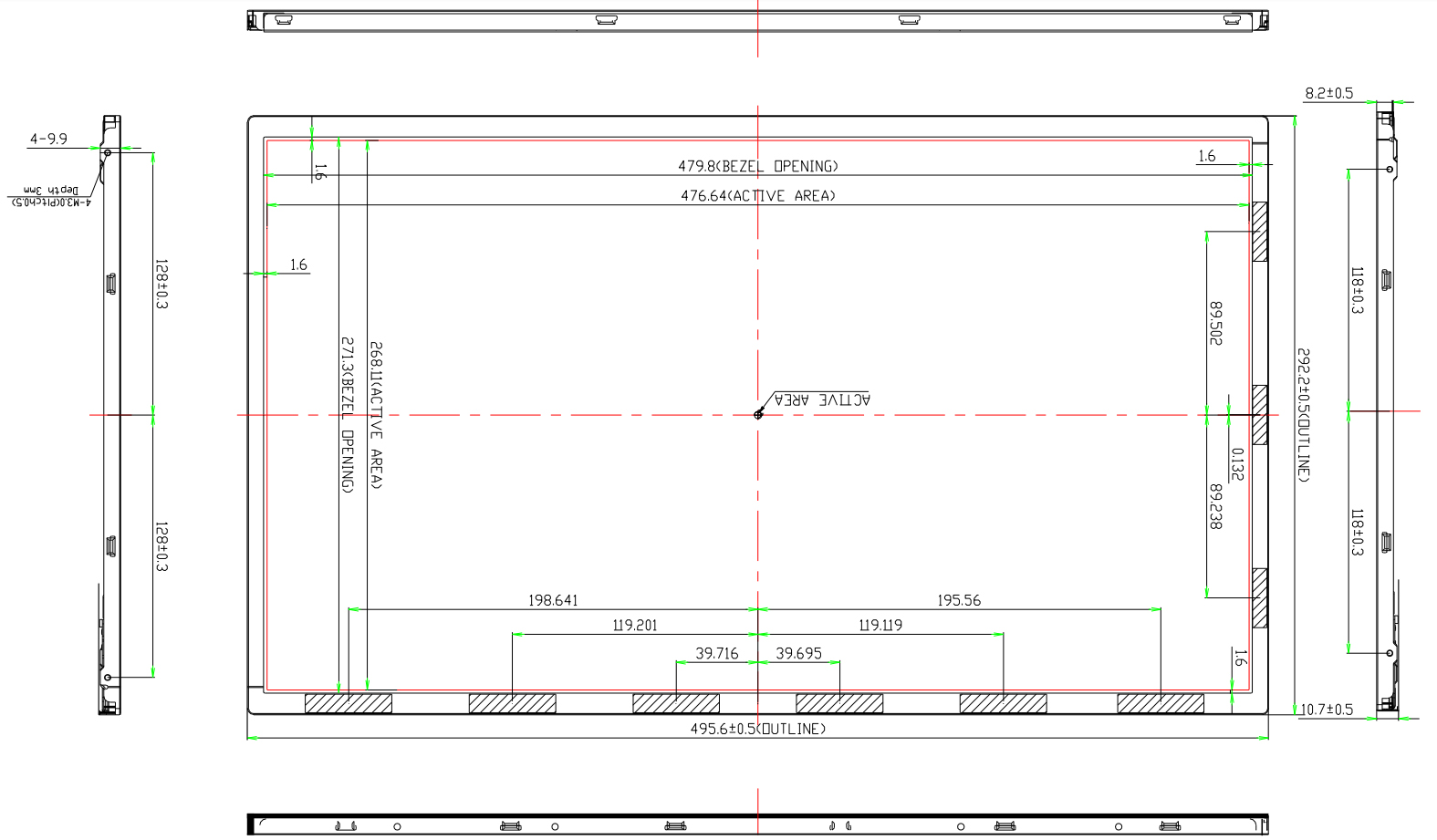

Drawing of 21.5 inch Industrial LCD Panel

LCD PIN Function (LVDS 30 PIN)

Pin No.	Symbol	Function
1	RXO0-	Negative Transmission data of Pixel 0 (ODD)
2	RXO0+	Positive Transmission data of Pixel 0 (ODD)
3	RXO1-	Negative Transmission data of Pixel 1 (ODD)
4	RXO1+	Positive Transmission data of Pixel 1 (ODD)
5	RXO2-	Negative Transmission data of Pixel 2 (ODD)
6	RXO2+	Positive Transmission data of Pixel 2 (ODD)
7	GND	Power Ground
8	RXOC-	Negative Transmission Clock (ODD)
9	RXOC+	Positive Transmission Clock (ODD)
10	RXO3-	Negative Transmission data of Pixel 3 (ODD)
11	RXO3+	Positive Transmission data of Pixel 3 (ODD)
12	RXE0-	Negative Transmission data of Pixel 0 (EVEN)
13	RXE0+	Positive Transmission data of Pixel 0 (EVEN)
14	GND	Power Ground
15	RXE1-	Negative Transmission data of Pixel 1 (EVEN)
16	RXE1+	Positive Transmission data of Pixel 1 (EVEN)
17	GND	Power Ground
18	RXE2-	Negative Transmission data of Pixel 2 (EVEN)
19	RXE2+	Positive Transmission data of Pixel 2 (EVEN)
20	RXEC-	Negative Transmission Clock (EVEN)
21	RXEC+	Positive Transmission Clock (EVEN)
22	RXE3-	Negative Transmission data of Pixel 3 (EVEN)
23	RXE3+	Positive Transmission data of Pixel 3 (EVEN)
24	GND	Power Ground
25	NC	Not connection, this pin should be open
26	NC	Not connection, this pin should be open
27	NC	Not connection
28	VDD	Power Supply: +5V
29	VDD
30	VDD

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Power Supply Voltage	V_DD	-0.3	5.5	V
Logic Supply Voltage	V_IN	VSS-0.3	VDD+0.3	V
Operating Temperature	T_OP	-20	85	℃
Storage Temperature	T_ST	-30	85	℃
Liquid crystal clear point	T_Lc	104.9		℃

Electrical Specifications

Parameter		Min.	Typ.	Max.	Unit
Power Supply Voltage	V_DD	4.5	5.0	5.5	V
Power Supply Current	I_DD	-	700	1200	mA
In-Rush Current	I_RUSH	-	-	3	A
Permissible Input Ripple Voltage	V_RF	-	-	300	mV
High Level Differential Input Threshold Voltage	V_IH	-	-	100	mV
Low Level Differential Input Threshold Voltage	V_IL	-100	-	-	mV
Differential input voltage	\|V_ID\|	200	-	600	mV
Differential input common mode voltage	Vcm	1.0	1.2	1.5
LED Voltage	V_L	-	6	-	V
LED Channel Voltage	V_L	-	54	-	V
LED Channel Current	I_L	-	350	-	mA
Luminance of White	Y	-	1000	-	cd/m²
White luminance uniformity	ΔY	75	80	-	%
LED Life time	-	30000	-	-	Hrs
Power Consumption	P_total	-	38.5		W
