Wide Temperature 3.5 inch TFT LCD Module

Part NO: MX-H35HR541K-IT15
► Size: 3.5"
► Resolution: 320*240 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: 24Bit RGB+SPI 54 PIN
► Operating temperature: -30°C~85°C
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-H35HR541K-IT15 is a high performance 3.5" TFT LCD module that provides exceptional image quality with a resolution of 320x240 pixels. Its IPS display offers vibrant colors from all angles, and its remarkable brightness of 1000 nits ensures optimal visibility in various settings. This LCD module offers a 24-bit RGB+SPI 54 PIN interface, enabling superior color precision. With a compact module size and optional touchscreen capabilities, this 3.5" TFT LCD display is versatile for a wide range of applications. Proven for its reliability and performance, this 3.5-inch LCD screen is ideal for projects that require superior image quality within compact form factors.

Adding to its main features, the 3.5 inch LCD display is a wide temperature range product, capable of operating in temperatures from -30 to 85°C, and can be stored at temperatures ranging from -30 to 85°C. This feature enhances its durability and adaptability in diverse environments, making it an ideal choice for various projects.

Product Structure

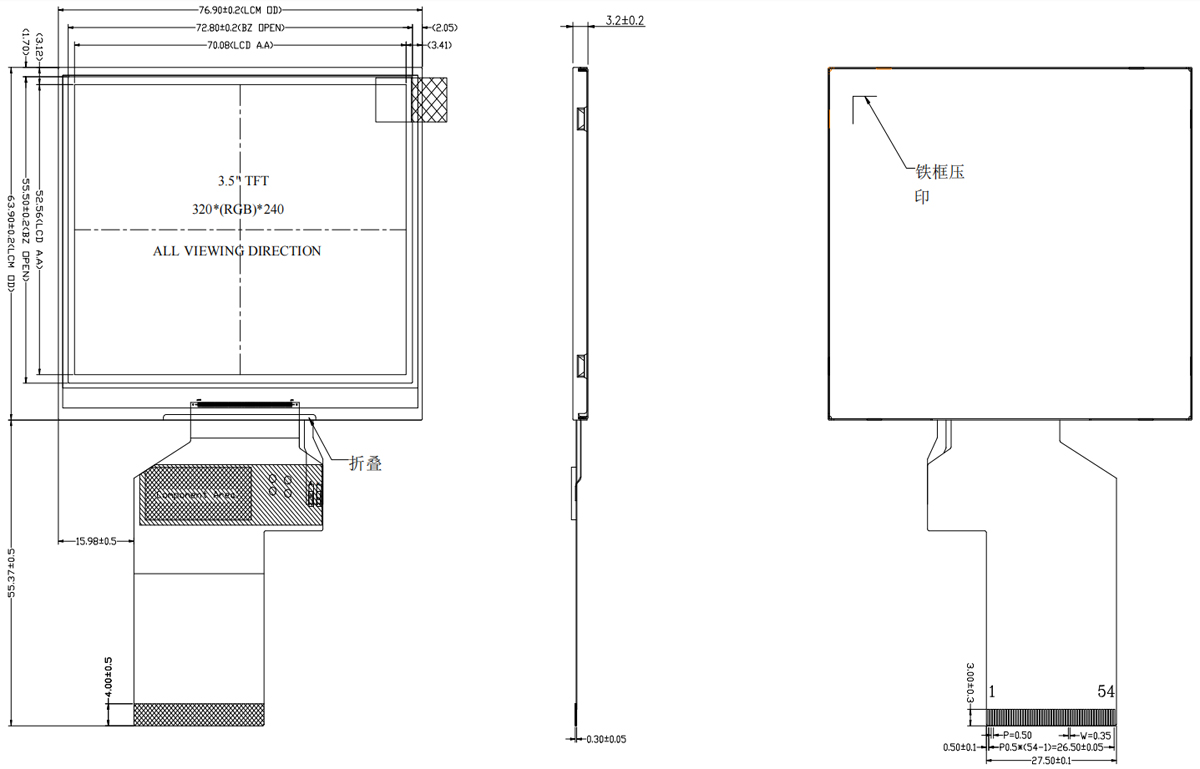

Drawing of 1000 Nits 3.5 inch TFT LCD Module

LCD PIN Function (RGB 54 PIN)

Pin No.	Symbol	Description
1~2	LEDK	Cathode of LED backlight
3~4	LEDA	Anode of LED backlight
5~7	NC	No connect
8	RESET	RESETPIN
9	SPENA	Chip select of serial interface
10	SPCLK	Clock pin of serial interface
11	SPDAT	Data input pin of serial interface
12~19	B0~B7	Blue data bus
20~27	G0~G7	Green data bus
28~35	R0~R7	Red data bus
36	HSYNC	Horizontal sync signal; negative polarity
37	VSYNC	Vertical sync signal; negative polarity
38	DCLK	Clock signal; latching data at the falling edge
39~40	NC	No connect
41~42	VDD	Power supply
43~51	NC	No connect
52	DEN	Display enable pin from controller
53~54	GND	Power ground

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Supply voltage for analog	VDD	-0.3	4.5	V
Supply voltage for logic	VDD	-0.3	4.5	V
Supply current (One LED)	I_LED	-	30	mA
Operating temperature	T_OP	-30	85	℃
Storage temperature	T_ST	-30	85	℃

Electrical Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Supply Voltage for Analog	VDD	3	3.3	3.6	V
Supply Voltage for Logic	VDD	3	3.3	3.6	V
Input Voltage	V_IL	GND	-	0.3VDD	V
Input Voltage	V_IH	0.7VDD	-	VDD	V
Input leakage Current	I_LKG	-1	-	1	μA

Backlight Driving Conditions

Item	Symbol	Value			Unit	Remark
Item	Symbol	Min.	Typ.	Max.	Unit	Remark
Voltage for LED Backlight	V_F	18	19.2	19.8	V	I_L=40mA
Current for LED Backlight	I_L	-	40	-	mA	-
Power Consumption	P	-	0.768	-	W	-
Luminance	L	800	1000	1400	Cd/m²	I_L=40mA
LED Life Time	-	30000	50000	-	Hr	-
