What is TFT LCD Display?

by Maxen | Jul 23, 2025
What is TFT LCD Display? Featured Image

From industrial HMI control panels to smart home hubs, from precision medical monitors to countless everyday devices, TFT LCD (Thin-Film Transistor Liquid Crystal Display) technology is everywhere. Known for its excellent performance, mature manufacturing process, and cost-efficiency, TFT LCDs have become the foundation of modern display technology.

This article takes you on a comprehensive journey into the core of TFT LCDs — exploring how they work, their layered structure, and why they remain the ideal choice for a wide range of applications.

TFT LCD stands for Thin-Film Transistor Liquid Crystal Display.

To understand it, we need to grasp two core concepts:

  • LCD (Liquid Crystal Display): A display technology that uses liquid crystal molecules to control light transmission. These molecules act like light valves — changing their orientation when voltage is applied, thereby controlling the amount of backlight that passes through.
  • TFT (Thin-Film Transistor): A key innovation that uses microscopic transistors on a glass substrate to precisely control each individual pixel. This forms the foundation of active matrix display technology.

In essence, TFT LCD refers to a display technology that leverages individual thin-film transistors to control each liquid crystal pixel with high accuracy and speed.

A high-resolution screen is made up of millions of pixels, each containing red (R), green (G), and blue (B) subpixels. TFT LCDs display vibrant images through a meticulous process:

  1. Backlight: A uniform white light is generated from the bottom layer of the display.
  2. Bottom Polarizer: Converts scattered light into polarized light, aligning the direction of light waves.
  3. TFT Layer: Transistors act as switches, applying precise voltages to specific pixels.
  4. Liquid Crystal Layer: Voltage alters the orientation of liquid crystal molecules, twisting them to various degrees.
  5. Light Modulation: The twisted molecules rotate the light, allowing variable amounts through.
  6. Top Polarizer: Only properly rotated light passes through the top polarizer; the rest is blocked.
  7. Color Filter: Polarized light passes through RGB filters, creating color.
  8. Image Display: Our eyes perceive a vibrant full-color image composed of these controlled subpixels.

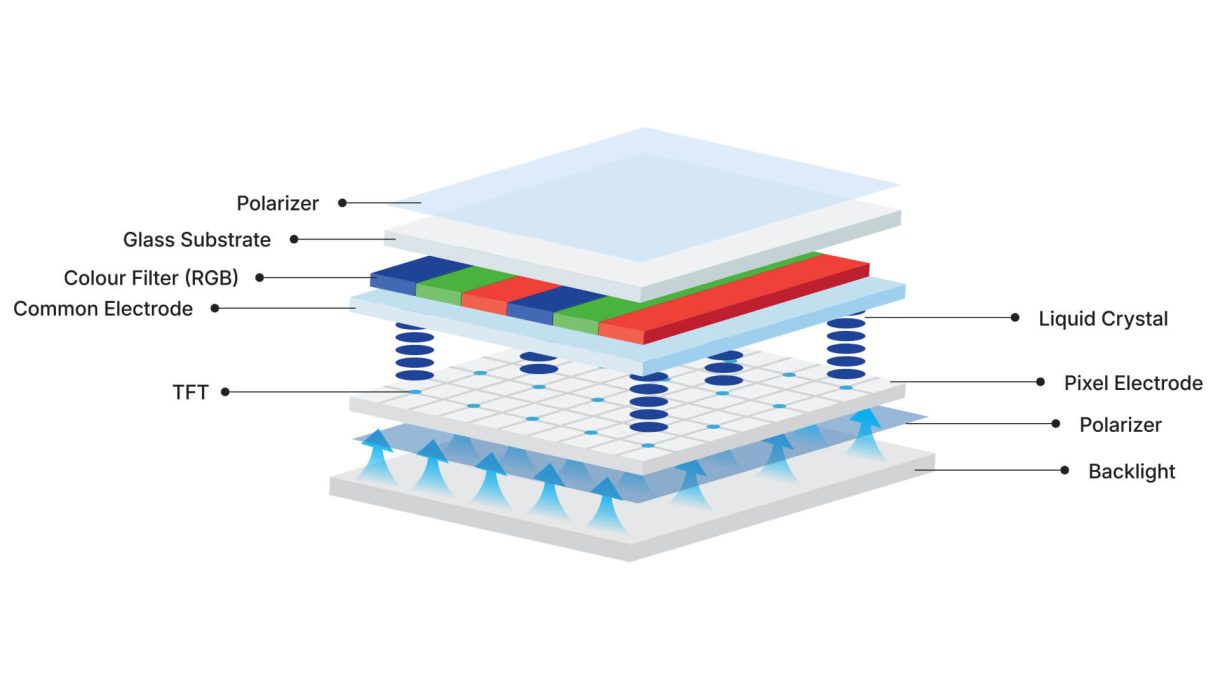

A complete TFT LCD module is a multilayer structure, each layer serving a unique function.

  • Backlight Unit: Provides white light; includes LED strips, light guide plate, diffuser film, and brightness enhancement film.
  • Bottom Polarizer: Aligns the light wave for consistent modulation.
  • TFT Array Glass Substrate: The “nervous system” of the display — houses transistors and transparent electrodes.
  • Liquid Crystal Layer: The core medium for light modulation.
  • Color Filter Substrate: Adds RGB color via precision filter layers.
  • Top Polarizer: Works with the bottom layer to regulate light transmission.
  • Driver IC: Bonded to the glass via FOG (Film on Glass) technology, it processes control signals and drives the display.

TFT LCDs dominate the display market due to the following advantages of their active-matrix architecture:

  • High Resolution & Sharp Image Quality: Each pixel is independently controlled, allowing for ultra-fine pixel density and sharp visuals.
  • Fast Response & Smooth Motion: Rapid pixel switching reduces motion blur — ideal for video and real-time data displays.
  • High Contrast & Vivid Colors: Offers excellent color reproduction and contrast under varying lighting conditions.
  • Mature, Cost-Effective Technology: A well-established ecosystem and scalable manufacturing processes keep costs down while ensuring reliability.

TFT LCDs, thanks to their transistor-per-pixel control, have resolved many limitations of earlier LCD tech — paving the way for high-performance, high-reliability displays.

At MAXEN, we don’t just understand TFT LCD technology — we bring it to life through robust engineering and manufacturing. Every display we ship undergoes over 48 hours of aging tests and is subject to three stages of quality control: IQC, IPQC, and OQC. Our in-house factory in Dongguan supports the full process — from glass cutting to self-sourced backlight films, ensuring superior traceability and efficiency. Our 3 fully automated FOG bonding lines are a testament to our quality commitment.

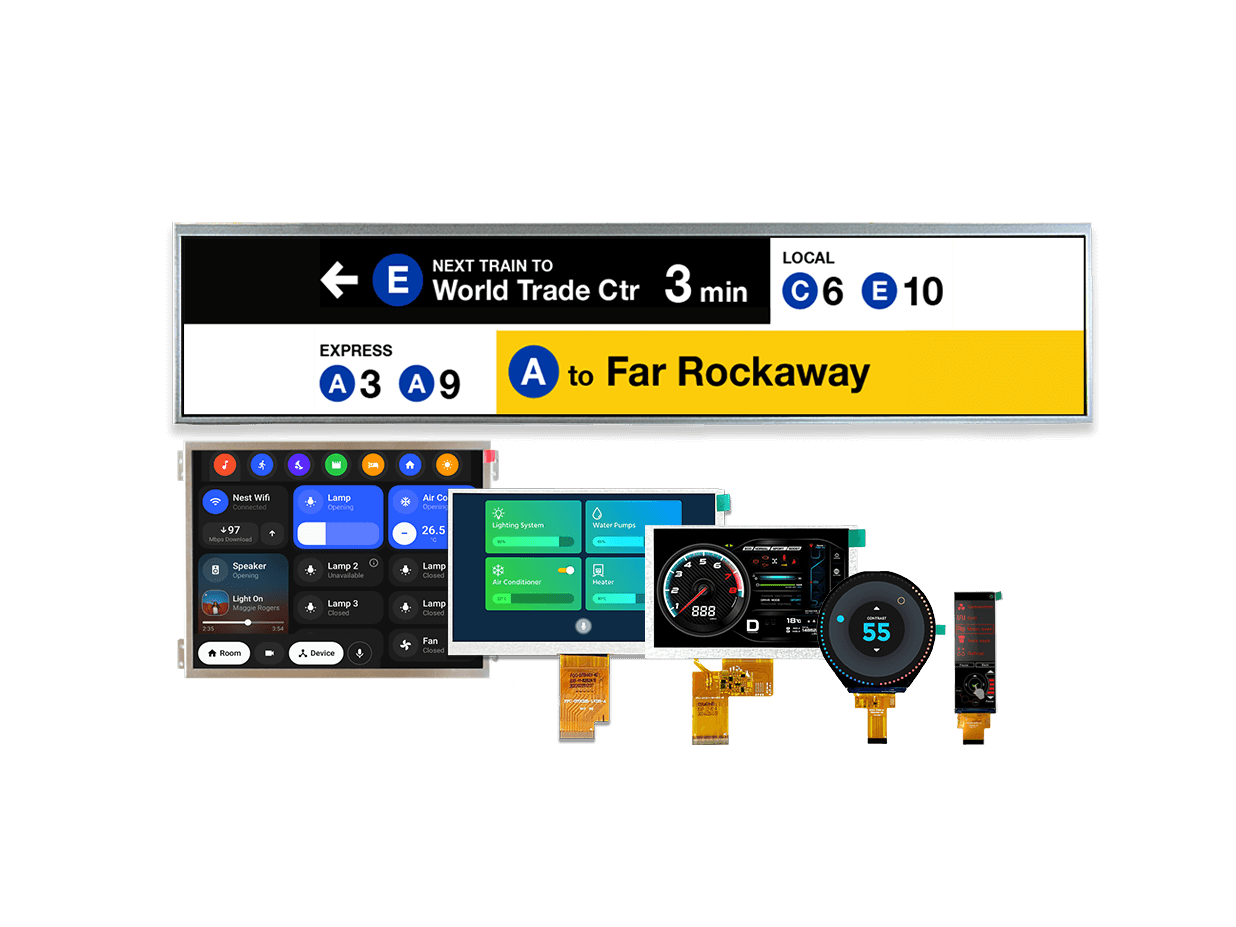

Whether you're looking for standard displays or fully customized solutions, MAXEN is your trusted TFT LCD partner.
