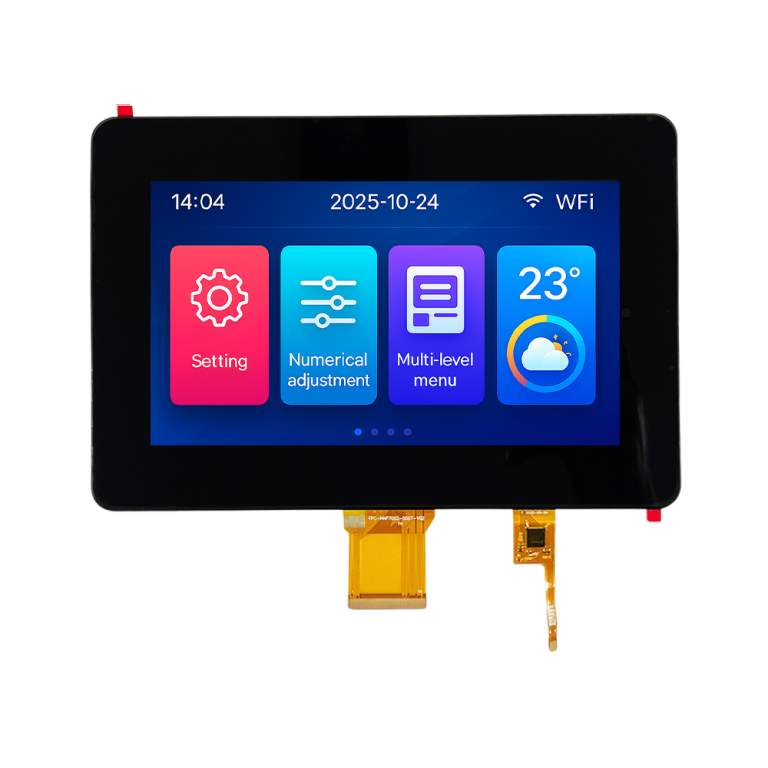

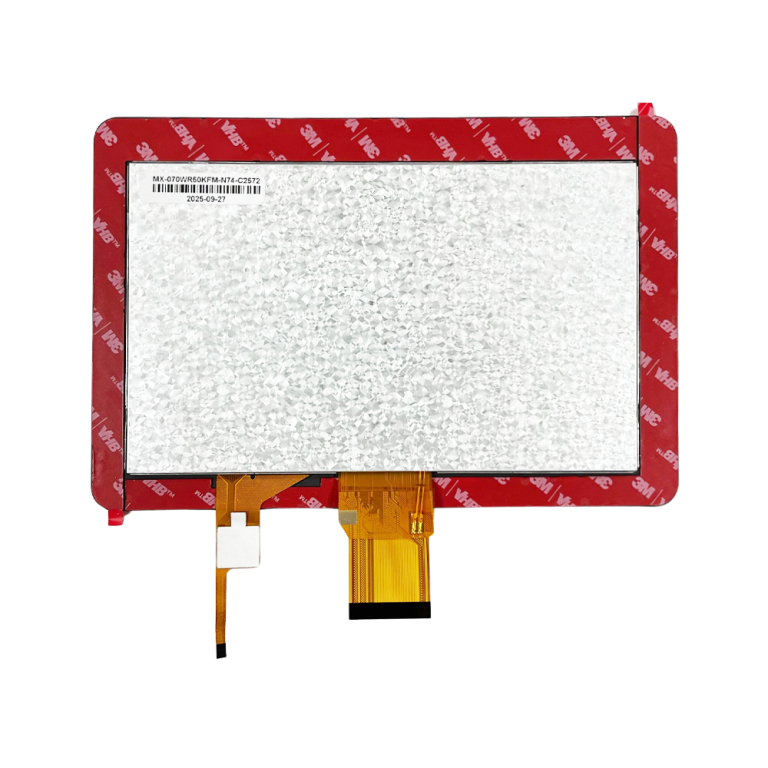

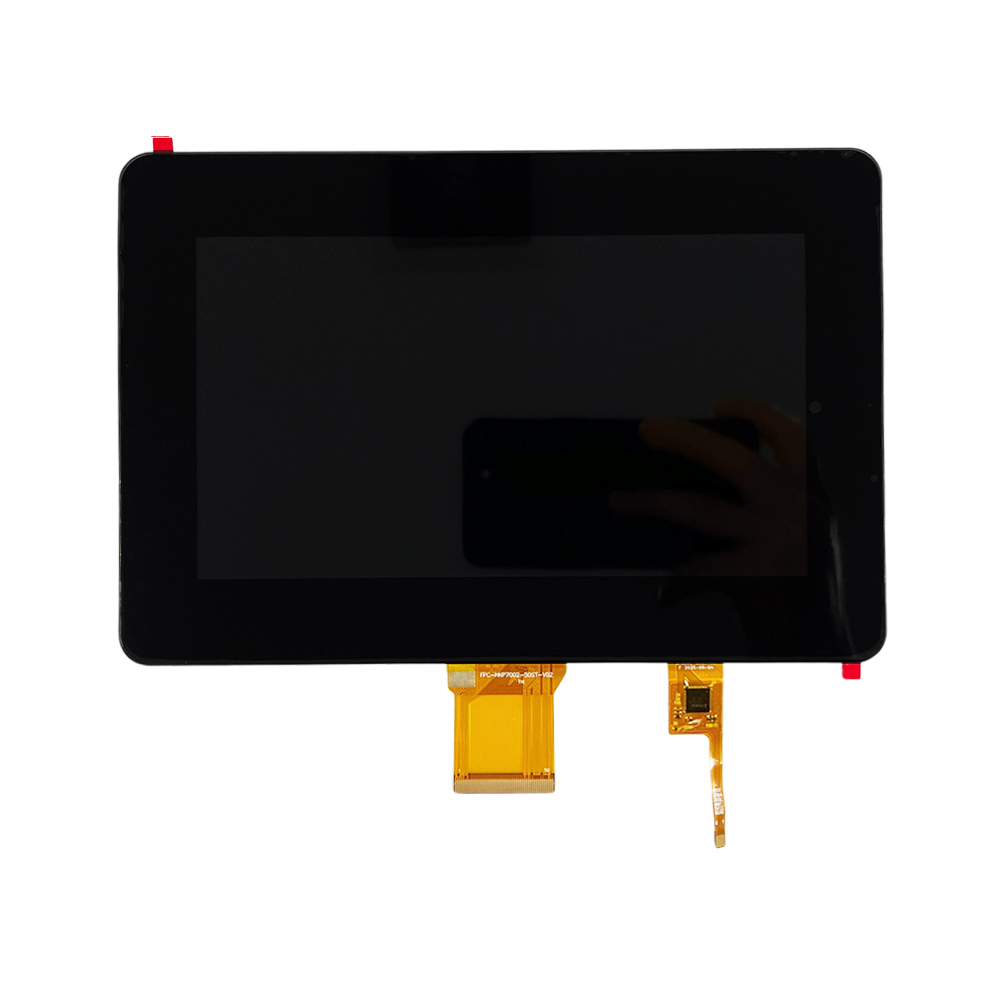

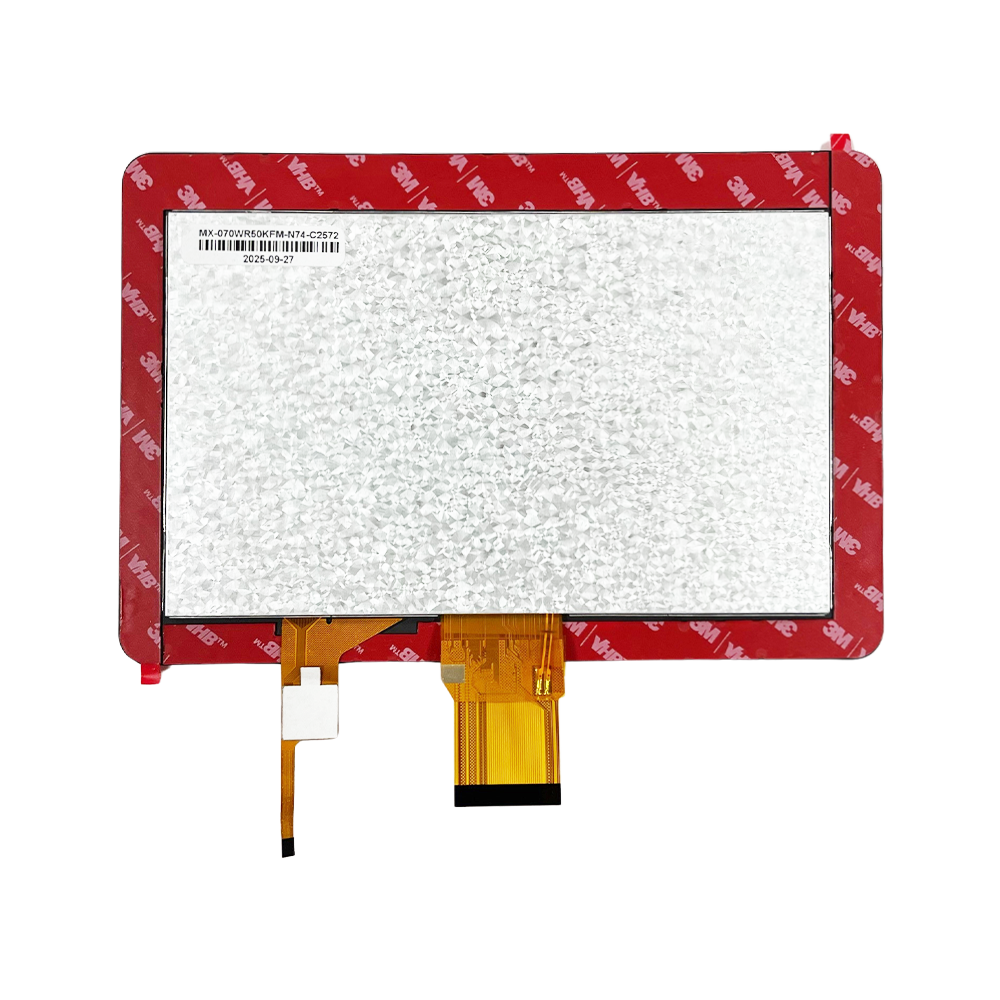

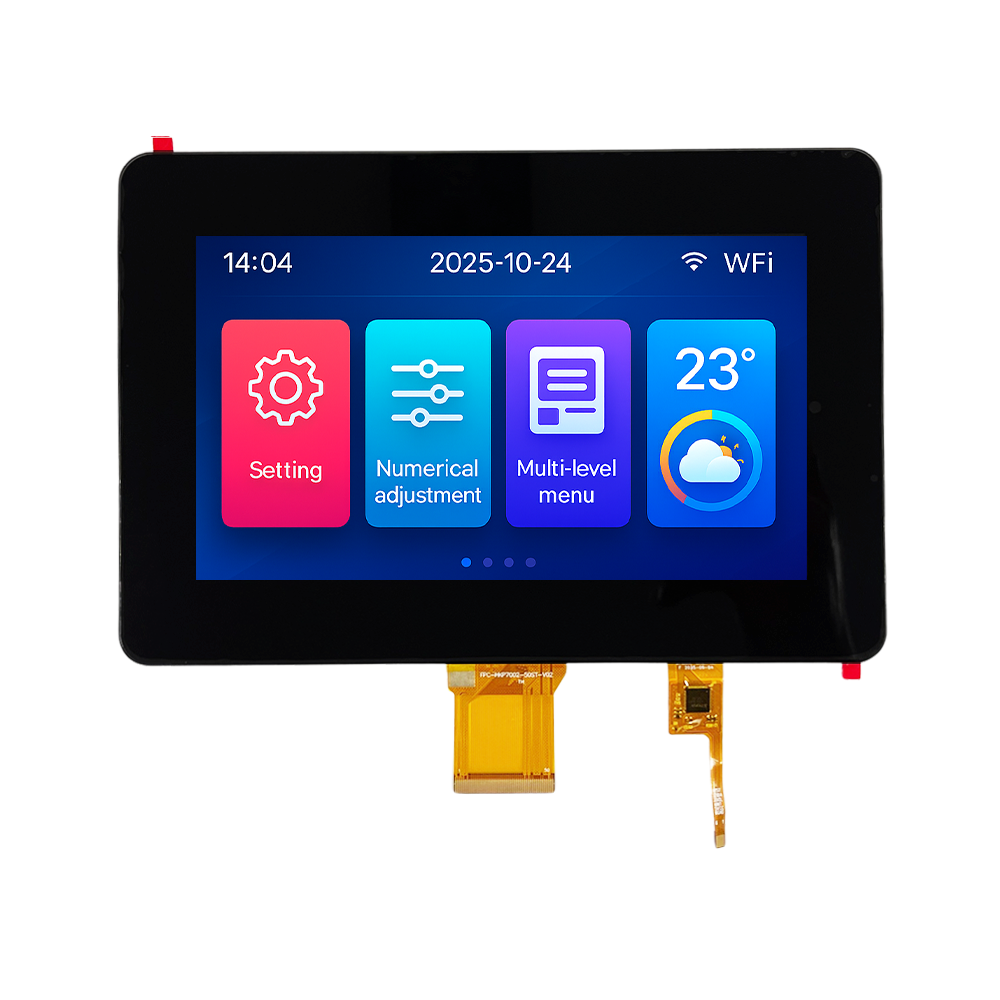

7 inch LCD Touch Screen

Ideal for industrial HMIs, kiosks, and control panels.

Main Features

Part No. MX-070WR50KFM-N74-C2572
7" TFT LCD with Touch Screen
800x480 resolution
Standard brightness 500 cd/m²
Full viewing angles (IPS)
50-pin RGB interface
Capacitive Touch with ST1633i Controller (I²C interface)

Get a Quote Download Specs.

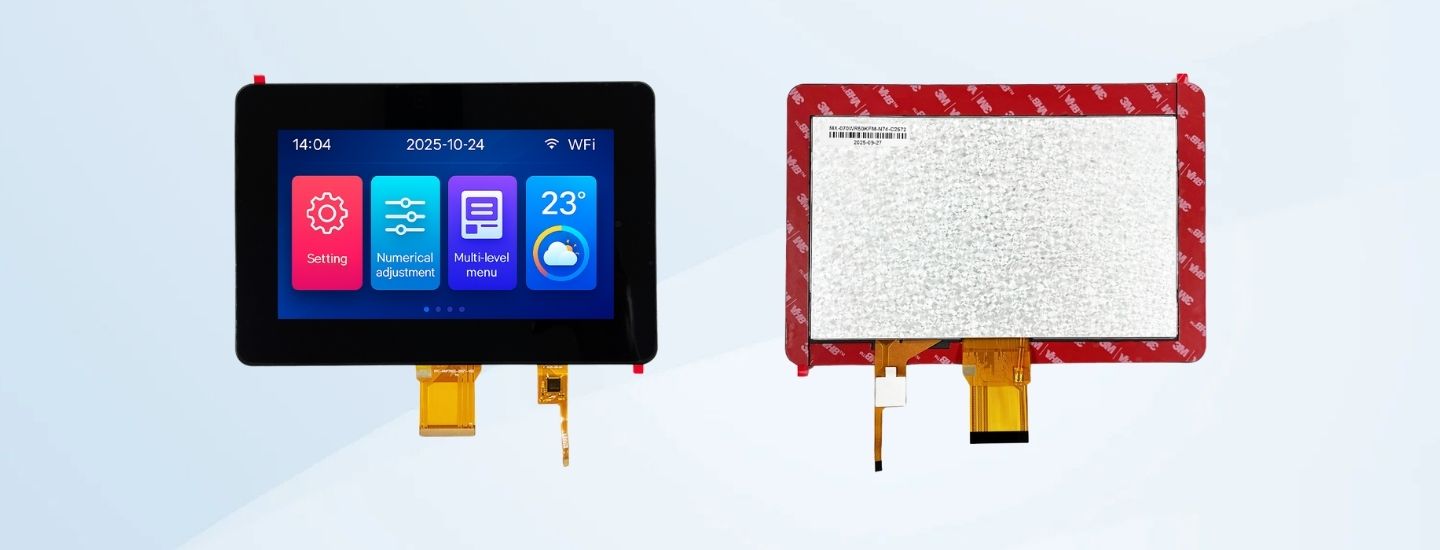

MX-070WR50KFM-N74-C2572

7 inch LCD Touch Screen MX-070WR50KFM-N74-C2572 is designed for high-performance applications. The 7 inch TFT display features an 800x480 resolution, 500 cd/m² brightness, IPS full viewing angles and 50-pin RGB interface, perfect for user-friendly interfaces and embedded systems.
This PCAP touch screen is driven by the ST1633i controller (I²C interface), delivering precise and responsive capacitive touch performance. The touch layer consists of a 3mm glass cover with a 0.7mm sensor, providing durability and accurate touch experience, making the 7 inch LCD touch screen ideal for industrial and embedded applications.

Standard Brightness

500 nits
Working Temp Range

-20°C to 70°C
Interface

50-pin RGB
IC

Single IC design

LCM PIN Definition (50-pin RGB)
TP PIN Definition (6-pin I²C)
Absolute Maximum Ratings
LED Backlight Characteristics

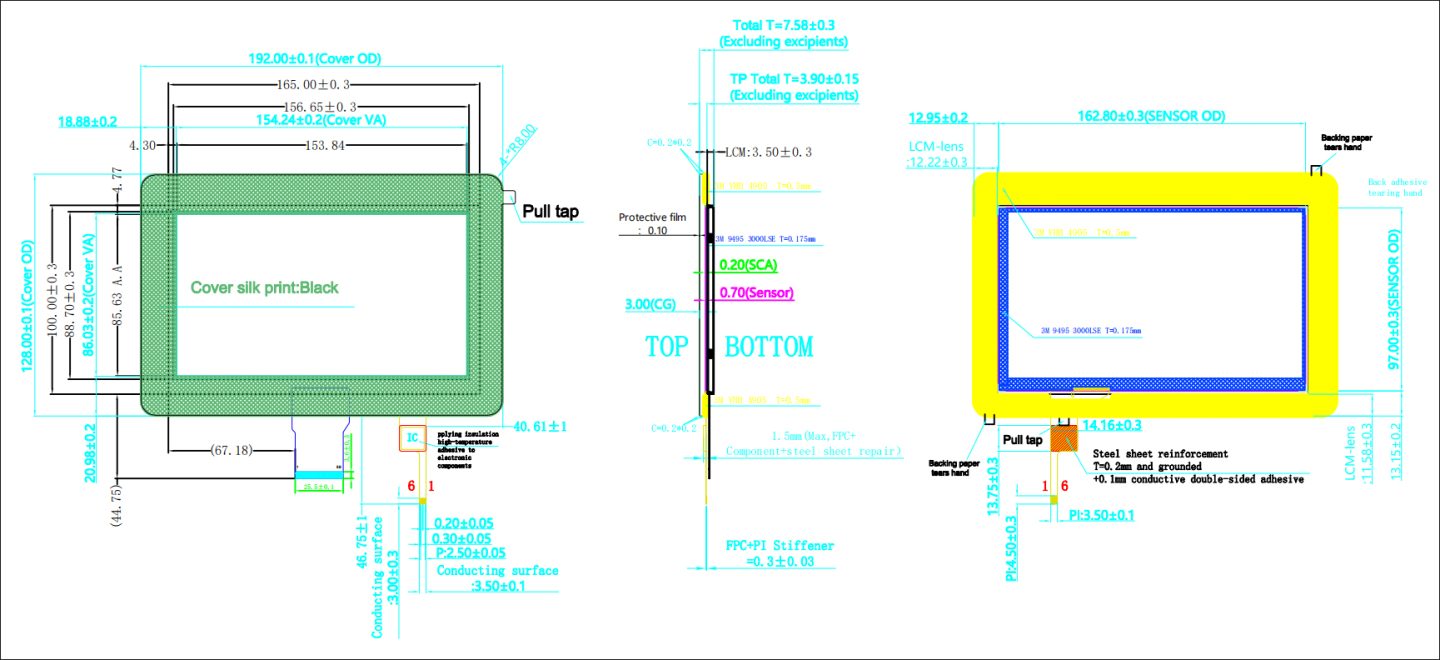

Product Drawing

PIN NO.	Symbol	Function
1~2	VLED+	Power for LED backlight (Anode)
3~4	VLED-	Power for LED backlight (Cathode)
5	GND	Power Ground
6	NC	Not connected
7	DVDD	Digital power
8	NC	Not connected
9	DE	Data input enable
10	VSYNC	Vertical Sync input
11	HSYNC	Horizontal Sync input
12~19	B7~B0	Blue data
20~27	G7~G0	Green data
28~35	R7~R0	Red data
36	GND	Power Ground
37	DCLK	Sample clock
38	GND	Power ground
39	SHLR	Left/right selection
40	UPDN	Up/Down selection
41~43	NC	Not connected
44	RESET	Global reset pin
45	DISPLAY	Display on/off
46~47	NC	Not connected
48	GND	Power ground
49~50	NC	No connection

PIN NO.	Assignment
1	RST
2	SDA
3	SCL
4	INT
5	VCC
6	GND

Parameter	Symbol	Min	Typ	Max	Unit
Power supply	DVDD	0.3	-	3.96	V
Operating Temperature	TOP	-20	-	70	℃
Storage Temperature	TST	-30	-	80	℃

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply voltage	Vf	-	8.4	9.0	10.2	V
Supply current	If	-	-	180	-	mA
Number of LEDs	-	3Sx9P	-	27	-	Piece
Power consumption	-	-	-	1620	-	mW
LED life time	-	-	30000	50000	-	Hrs
