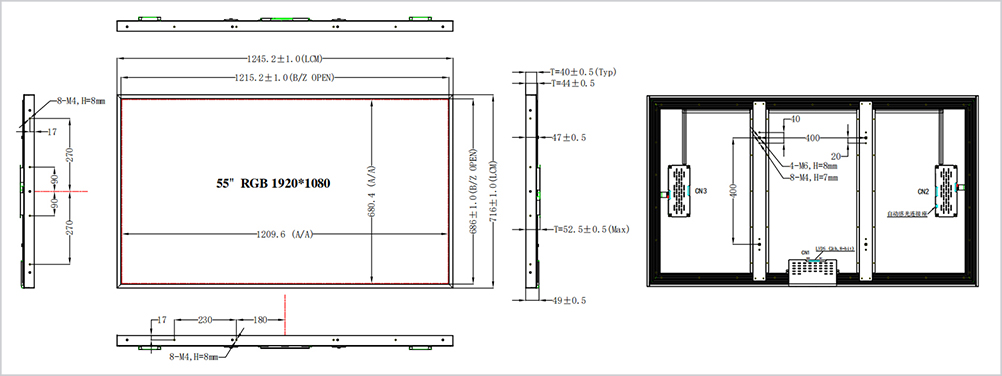

LCM Pin Definition (51-pin LVDS)
| Pin No. | Symbol | Description | Pin No. | Symbol | Description |
| 1 | GND | Ground | 16 | ORX2- | Odd pixel Negative LVDS differential data input. |
| 2 | SCL | I2C Clock | 17 | ORX2+ | Odd pixel Negative LVDS differential data input. |
| 3 | SDA | I2C Data | 18 | GND | Ground |
| 4 | NC | No Connection | 19 | OCLK- | Odd pixel Negative LVDS differential clock input. |
| 5 | NC | No Connection | 20 | OCLK+ | Odd pixel Negative LVDS differential clock input. |
| 6 | NC | No Connection | 21 | GND | Ground |
| 7 | SELLVDS | LVDS data format selection: L or NC: VESA | 22 | ORX3- | Odd pixel Negative LVDS differential data input. |
| 8 | NC | No Connection | 23 | ||
| 9 | NC | No Connection | 24 | ORX3+ | Odd pixel Negative LVDS differential data input. |
| 10 | NC | No Connection | 25 | NC | No Connection |
| 11 | GND | Ground | 26 | NC | No Connection |
| 12 | ORXO- | Odd pixel Negative LVDS differential data input. | 27 | NC | No Connection |
| 13 | ORXO+ | Odd pixel Negative LVDS differential data input. | 28 | ERX0- | Even pixel Negative LVDS differential data input. |
| 14 | ORX1- | Odd pixel Negative LVDS differential data input. | 29 | ERXO+ | Even pixel Negative LVDS differential data input. |
| 15 | ORX1+ | Odd pixel Negative LVDS differential data input. | 30 | ERX1- | Even pixel Negative LVDS differential data input. |
| 31 | ERX1+ | Even pixel Negative LVDS differential data input. | 42 | NC | No Connection |
| 32 | ERX2- | Even pixel Negative LVDS differential data input. | 43 | NC | No Connection |
| 33 | ERX2+ | Even pixel Negative LVDS differential data input. | 44 | GND | Ground |
| 34 | GND | Ground | 45 | GND | Ground |
| 35 | ECLK- | Even pixel Negative LVDS differential clock input. | 46 | GND | Ground |
| 36 | ECLK+ | Even pixel Negative LVDS differential clock input. | 47 | NC | No Connection |
| 37 | GND | Ground | 48 | VCC | +12V |
| 38 | ERX3- | Even pixel Negative LVDS differential data input. | 49 | VCC | +12V |
| 39 | ERX3+ | Even pixel Negative LVDS differential data input. | 50 | VCC | +12V |
| 40 | NC | No Connection | 51 | VCC | +12V |
| 41 | NC | No Connection |

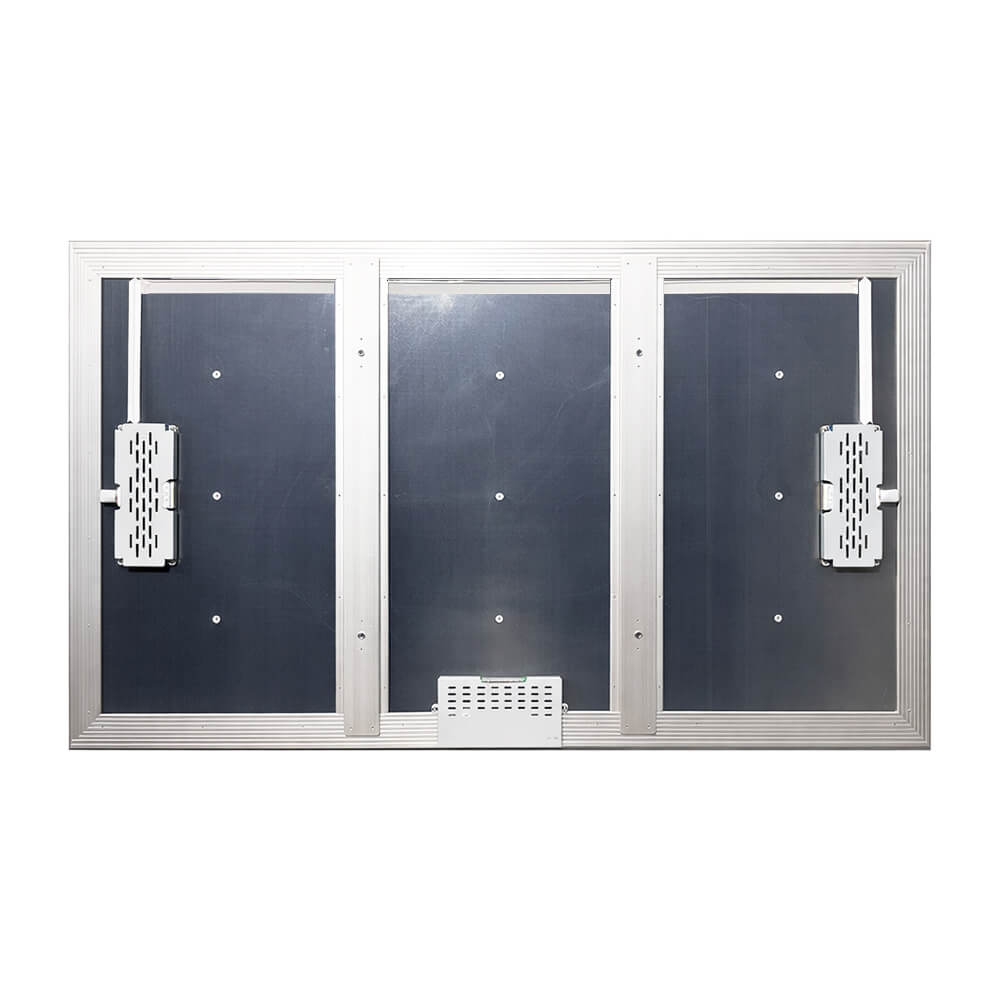

Backlight Interface Connection
CN2: Input terminal
| PIN# | Symbol | Description |
| 1~5 | VDDB | Operating Voltage Supply,+24V DC Regulated |
| 6~10 | GND | Ground |
| 11 | Not connect | |
| 12 | VBLON | BL On-Off: High (2.5~5.5V)for BL, Low/Open(0~0.5V)for BL off. |
| 13 | VDIM(note 1) | Internal DC Dimming High (3.3V/100%Duty)for 100%Lum; |
| 14 | PWM | Internal PWM Dimming |
CN3: Input terminal
| PIN# | Symbol | Description |
| 1~5 | VDDB | Operating Voltage Supply,+24V DC Regulated |
| 6~10 | GND | Ground |
| 11~14 | NC | No Connect |
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit |
| Power Supply Voltage | VDD | VSS-0.3 | 13.2 | V |
| Operating Temperature | Top | -20 | +70 | ℃ |
| Tsur | -20 | +70 | ℃ | |
| Storage Temperature | Tst | -30 | +80 | ℃ |
| Operating Ambient Humidity | Hop | 10 | 90 | %RH |
| Storage Humidity | Hst | 10 | 90 | %RH |
Electrical Characteristics
| Parameter | Symbol | Values | Unit | |||
| Min | Typ | Max | ||||
| Power Supply Input Voltage | VDD | 10.8 | 12 | 13.2 | V | |
| Power Supply Current | IDD | - | 300 | 940 | mA | |
| Power Supply Ripple Voltage | VRP | - | - | 300 | mV | |
| Rush Current | IRUSH | - | - | 3 | A | |
| LVDS Interface | Differential Input High Threshold Voltage | VLVTH | - | - | +100 | mV |
| Differential Input Low Threshold Voltage | VLVTL | -100 | - | - | mV | |
| Input Differential Voltage | |VID| | 100 | 400 | 600 | mV | |
| Common Input Voltage | VLVC | 0.6 | 1.2 | 2.4-|VID|/2 | V | |
| CMOS Interface | Input High Threshold Voltage | VIH | 2.7 | - | 3.3 | V |
| Input Low Threshold Voltage | VIL | 0 | - | 0.6 | V | |
| Power Consumption | PDD | - | 10.96 | - | W | |
LED Backlight Characteristics
| Parameter | Symbol | Values | Unit | ||||
| Min | Typ | Max | |||||
| LED Driver: | |||||||
| Power Supply Input Voltage | VBL | 21.6 | 24.0 | 26.4 | Vdc | ||
| Power Supply Input Current | IBL | - | 12.5 | - | A | ||
| Power Supply Input Current(In-Rush) | In-rush | - | - | (TBD) | A | ||
| Power Consumption | PBL | - | 300 | - | W | ||
| Input Voltage for Control System Signals | On/Off | On | V on | 2.8 | - | 24.0 | Vdc |
| Off | V off | -0.3 | 0.0 | 0.5 | Vdc | ||
| Brightness Adjust | ExtVBR-B | 30 | - | 100 | % | ||
| 30 | - | 100 | % | ||||
| ExtVBR-B Frequency | fPWM | 1K | - | 20K | Hz | ||
| Pulse Duty Level(DC) | High Level | 2.5 | - | 5.5 | Vdc | ||
| Low Level | 0.0 | - | 0.5 | Vdc | |||
| LED: | |||||||
| Life Time | 30,000 | 50,000 | - | Hrs | |||
