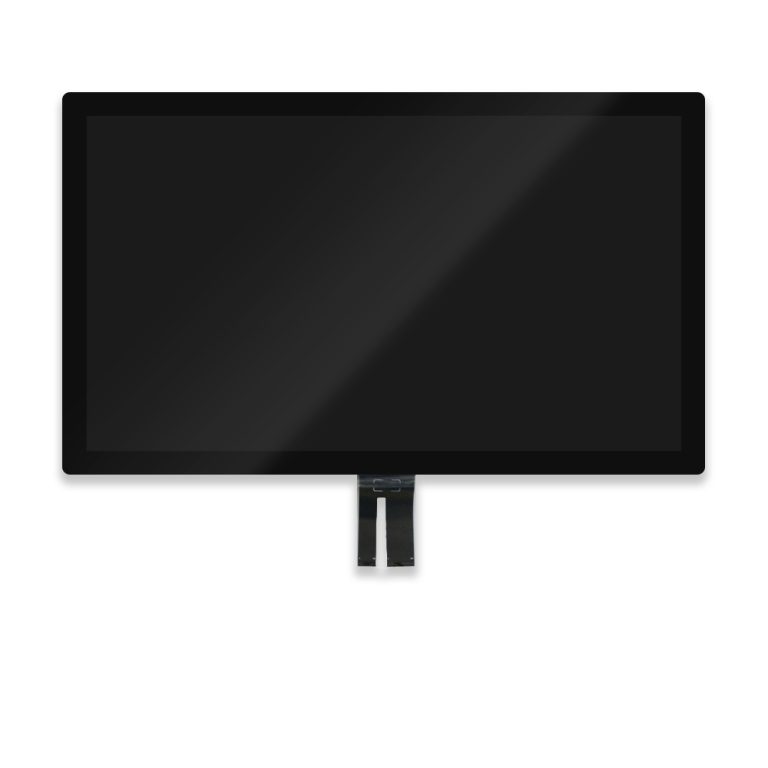

32 inch LCD Module with Touch Screen

Ideal for industrial HMI, EV charging stations, self-service kiosks and other large-format touch applications.

Main Features

Part No. MX320CD05-G1KD-QH3A
32" TFT LCD with Touch Screen
1920x1080 resolution
High brightness 1000 cd/m²
Full viewing angles (IPS)
51-pin LVDS interface
Capacitive Touch with WEIDA Controller (I²C&USB interface)

Get a Quote Download Specs.

MX320CD05-G1KD-QH3A

32 inch LCD Module with Touch Screen MX320CD05-G1KD-QH3A is a high-performance interactive display solution featuring a 1920x1080 (FHD) resolution, 1000 cd/m² high brightness, and an IPS panel with full viewing angles for consistent image quality across wide perspectives. Designed for reliable system integration, it supports a 51-pin LVDS interface and includes a projected capacitive touch panel driven by a WEIDA controller with I²C & USB connectivity—making it ideal for industrial HMI, EV charging stations, self-service kiosks, smart building control terminals, and other large-format touch applications.

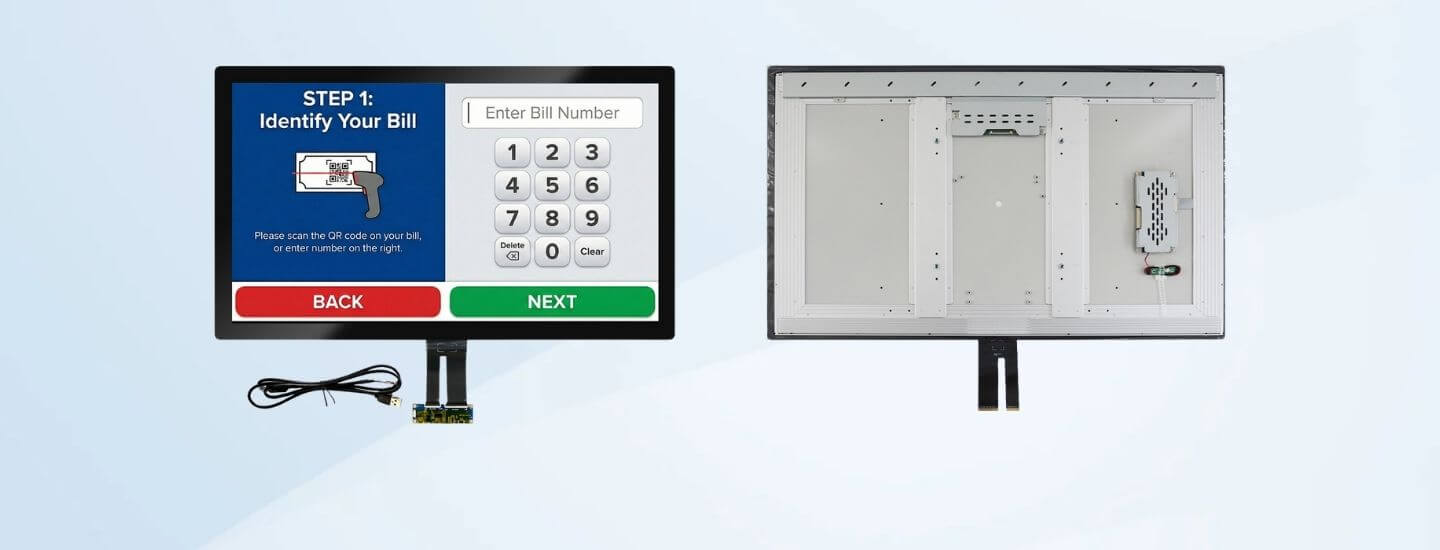

32 inch 1920x1080 lcd touch screen module

High Brightness

1000 nits
Working Temp Range

-20°C to 70°C
Interface

51-pin LVDS
Touch Controller IC

WEIDA WD8752

LCM PIN Definition (51-pin LVDS)
TP PIN Definition (USB)
Backlight Interface Connection
Product Drawing

LCM PIN Definition (51-pin LVDS)

PIN No.	Symbol	Description
1~6	NC	No Connection
7	LVDS Select	'H'=JEIDA, 'L' or NC=VESA
8~10	NC	No Connection
11	GND	Ground
12	R1AN	FIRST LVDS Receiver Signal (A-)
13	R1AP	FIRST LVDS Receiver Signal (A+)
14	R1BN	FIRST LVDS Receiver Signal (B-)
15	R1BP	FIRST LVDS Receiver Signal (B+)
16	R1CN	FIRST LVDS Receiver Signal (C-)
17	R1CP	FIRST LVDS Receiver Signal (C+)
18	GND	Ground
19	R1CLKN	FIRST LVDS Receiver Clock Signal (-)
20	R1CLKP	FIRST LVDS Receiver Clock Signal (+)
21	GND	Ground
22	R1DN	FIRST LVDS Receiver Signal (D-)
23	R1DP	FIRST LVDS Receiver Signal (D+)
24~25	NC	No connection
26	NC or GND	No Connection or Ground
27	NC	No connection
28	R2AN	SECOND LVDS Receiver Signal (A-)
29	R2AP	SECOND LVDS Receiver Signal (A+)
30	R2BN	SECOND LVDS Receiver Signal (B-)
31	R2BP	SECOND LVDS Receiver Signal (B+)
32	R2CN	SECOND LVDS Receiver Signal (C-)
33	R2CP	SECOND LVDS Receiver Signal (C+)
34	GND	Ground
35	R2CLKN	SECOND LVDS Receiver Clock Signal (-)
36	R2CLKP	SECOND LVDS Receiver Cloc kSignal (+)
37	GND	Ground
38	R2DN	SECOND LVDS Receiver Signal (D-)
39	R2DP	SECOND LVDS Receiver Signal (D+)
40~41	NC	No connection
42~43	NC or GND	No Connection or Ground
44~46	GND	Ground
47	NC	No connection
48~51	VLCD	Power Supply +12.0V

TP PIN Definition (USB)

PIN NO.	Interface
1	VDD/5V
2	D-
3	D+
4	GND

Backlight Interface Connection

PIN NO.	Symbol	Description
1	VDDB	Operating Voltage Supply, +24V DC Regulated
2	VDDB	Operating Voltage Supply, +24V DC Regulated
3	VDDB	Operating Voltage Supply, +24V DC Regulated
4	VDDB	Operating Voltage Supply, +24V DC Regulated
5	VDDB	Operating Voltage Supply, +24V DC Regulated
6	GND	Ground
7	GND	Ground
8	GND	Ground
9	GND	Ground
10	GND	Ground
11	NC	Not connect
12	VBLON	BL On-Off: High (2.5~5.5V)for BL on,Low/Open(0~0.5V)for BL off
13	VDIM	Internal DC Dimming High (3.3V/100%Duty) for 100%Lum;
14	PWM	Internal PWM Dimming
