: Touch Screen Displays Solution, TFT LCD with Touch Panel Bonding

MAXEN Touch Screen Displays are the best choice for embedded applications. MAXEN Touch Screen Displays include PCAP or resistive touch panel, controller board, TFT LCD display and bonding services. MAXEN Touch Screen Display solution will provide comprehensive technical support and high-quality one-stop service to enable customers to start new projects quickly, bringing customers maximum benefit, flexibility and efficient design!

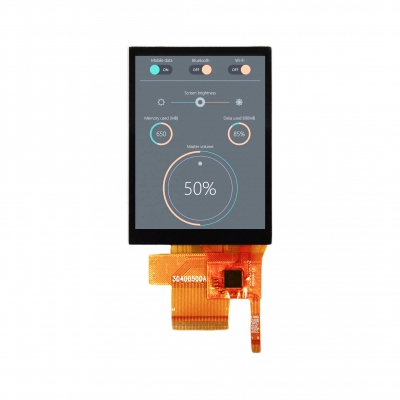

Our standard Touch Screen Displays range in size from 2.8” to 32”. The LCD screen can be provided by us or by the customer. For the bonding method, customers can choose conventional air bonding or optical bonding. All bonding processes are carried out in our factory, with high quality and high efficiency! Our Touch Screen Displays are sure to meet the needs of businesses in a wide range of industries.

SEND INQUIRY

Size	Resolution	Model NO.	Structure	IC Model	Active Area	Cover O.D	Cover thickness	Sensor Thickness	Interface	Surface Treatment	Custom

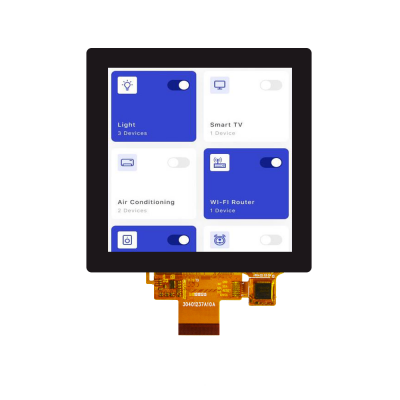

4.0"	720x720	MX-040HM30TFM-C06	G+G	FT5446	71.93x71.93	84x84x3.46	0.70	0.55	TFT: MIPI Touch: IIC	No	Available

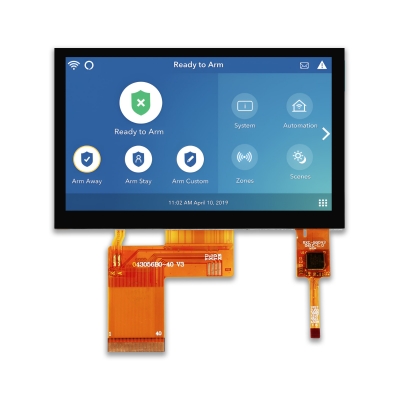

4.3"	480x272	MX-B43NR40-IG271K-CTP01	G+G	GT911	95.04x53.86	105.50x67.20x5.00	1.10	0.55	RGB 40PIN	No	Available
4.3"	480x272	MX-B43NR40-IG26-1517	G+G	ST1633I	95.04x53.86	109.50x71.20x5.03	1.10	0.55	RGB 40PIN	No	Available

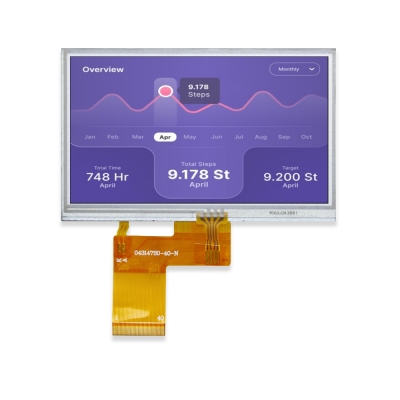

4.3	480x272	MX-043NR40BFM-R35	F+G	/	95.04x53.86	105.50x67.20x4.20	/	0.70	RGB 40PIN	No	Available

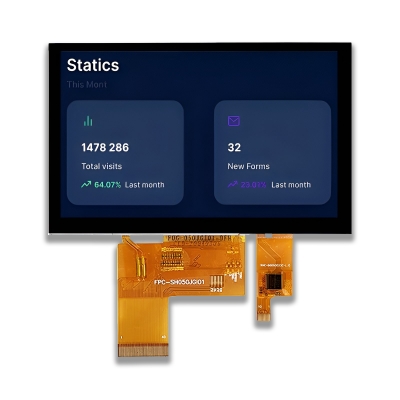

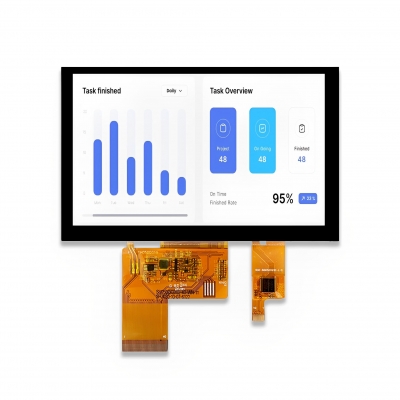

5.0"	800x480	MX-A50HR40-TNS07-H023	G+G	GT911	108.00x64.80	120.70x76.30x4.90	1.10	0.55	RGB 40PIN	No	Available
5.0"	800x480	MX-B50HR40-TIS09-H023	G+G	GT911	108.00x64.80	120.70x76.30x4.90	1.10	0.55	RGB 40PIN	No	Available
5.0"	800x480	MX-B50HR40-TIS09FL-002R	F+G	/	108.00x64.80	120.70x75.80x4.05	/	0.70	RGB 40PIN	No	Available

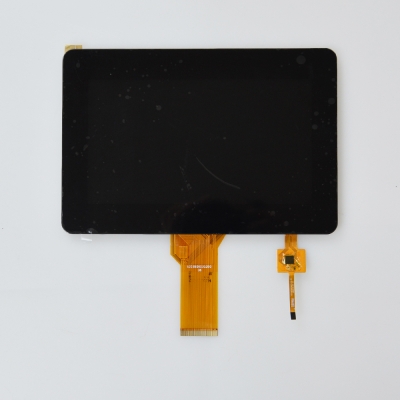

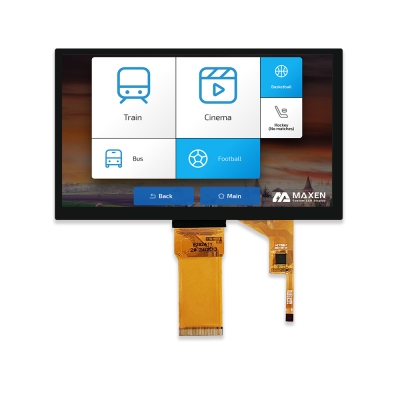

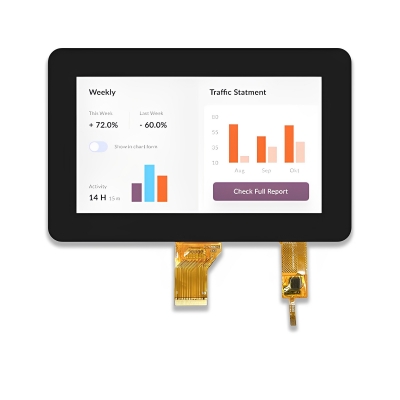

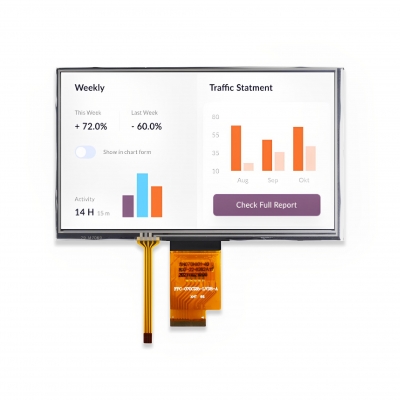

7.0"	1024x600	MX-B70HL40-IX20L-775	G+G	GT911	154.21x85.92	188.08x121.92x5.90	1.10	0.70	LVDS 40PIN	No	Available
7.0"	1024x600	MX-H70HL40-IS311K-029	F+G	/	154.21x85.92	165.00x100.00x4.95	/	1.10	LVDS 40PIN	No	Available

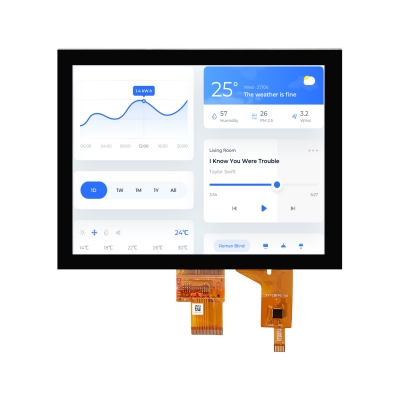

8.0"	1024x768	MX-A80HL40-IPQ03-P828	LCD with PCAP	GT911	162.05x121.54	183.00x141.00x4.58	/	0.70	LVDS, IIC	No	Available

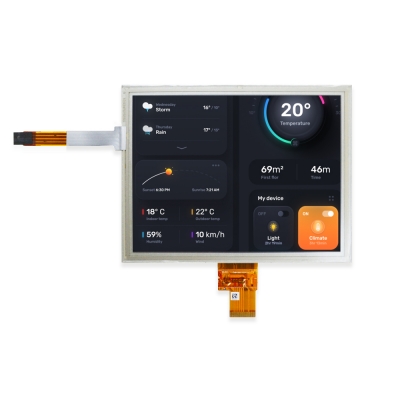

8.0"	1024x768	MX-A80HL40-IPQ03-RT	LCD with RTP	/	162.05x121.54	182.00x140.00x4.80	/	1.10	LVDS, 4 Wire-USB	No	Available

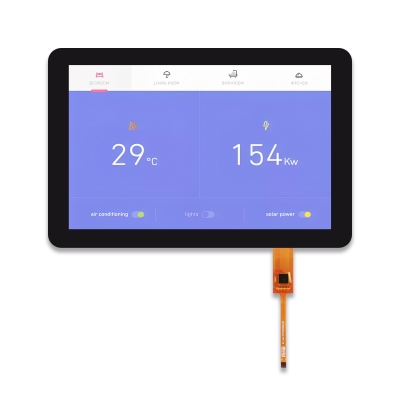

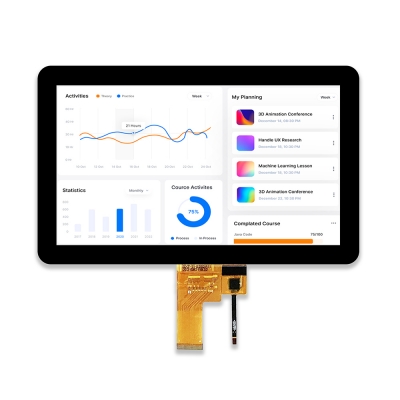

10.1"	1024x600	MX-B101HR50-IS411K-DB-651	G+G	GT9271	222.72x125.28	253.50x156.50x7.20	0.70	1.10	RGB 50PIN	No	Available
10.1"	1024x600	MX-B101HL40-IS24651	G+G	GT9271	226.22x128.10	253.50x156.50x7.20	0.70	1.10	LVDS 40PIN	No	Available
10"	1280x800	MX-B101L40-206-776	G+G	GT9271	216.96x135.60	251.50x165.50x5.00	1.10	1.10	LVDS 40PIN	No	Available

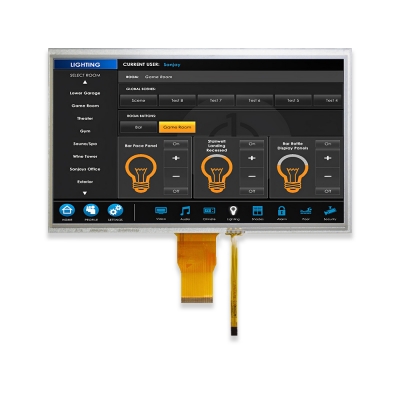

10.1"	1024x600	MX-101HR50BFM-R46	LCD with RTP	/	222.72x125.28	235.00x143.00x5.20	/	1.10	TFT: RGB Touch: 4-Wire USB	No	Available
10.4"	1024x600	MX-C104HL30-ID071K-857	G+G	ILI2511	210.432*157.824	236.00178.4012.30	1.80	1.10	LVDS 30PIN	No	Available

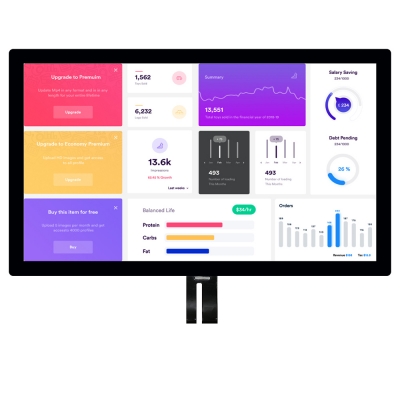

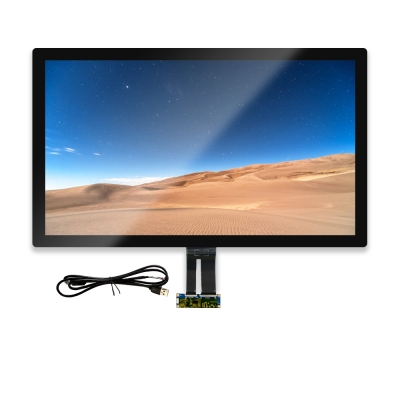

32"	1920x1080	MX-320HL51UFS-C04	G+G	WD8752	698.40x392.85	757.12x450.60x17.80	2.00	1.10	LVDS 51PIN	No	Available
32"	1920x1080	MX320CD05-G1KD-QH3A	G+G	WD8752	699.40x392.85	757.12x450.60x21.90	2.00	1.10	TFT: LVDS Touch: IIC, USB	Anti-Glare (AG)	Available
