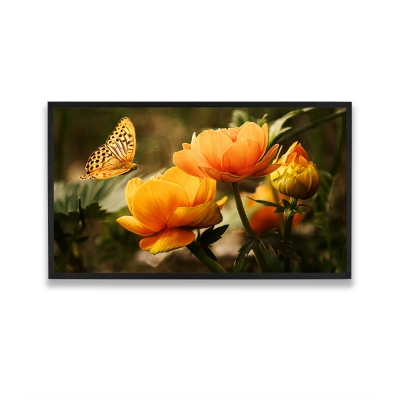

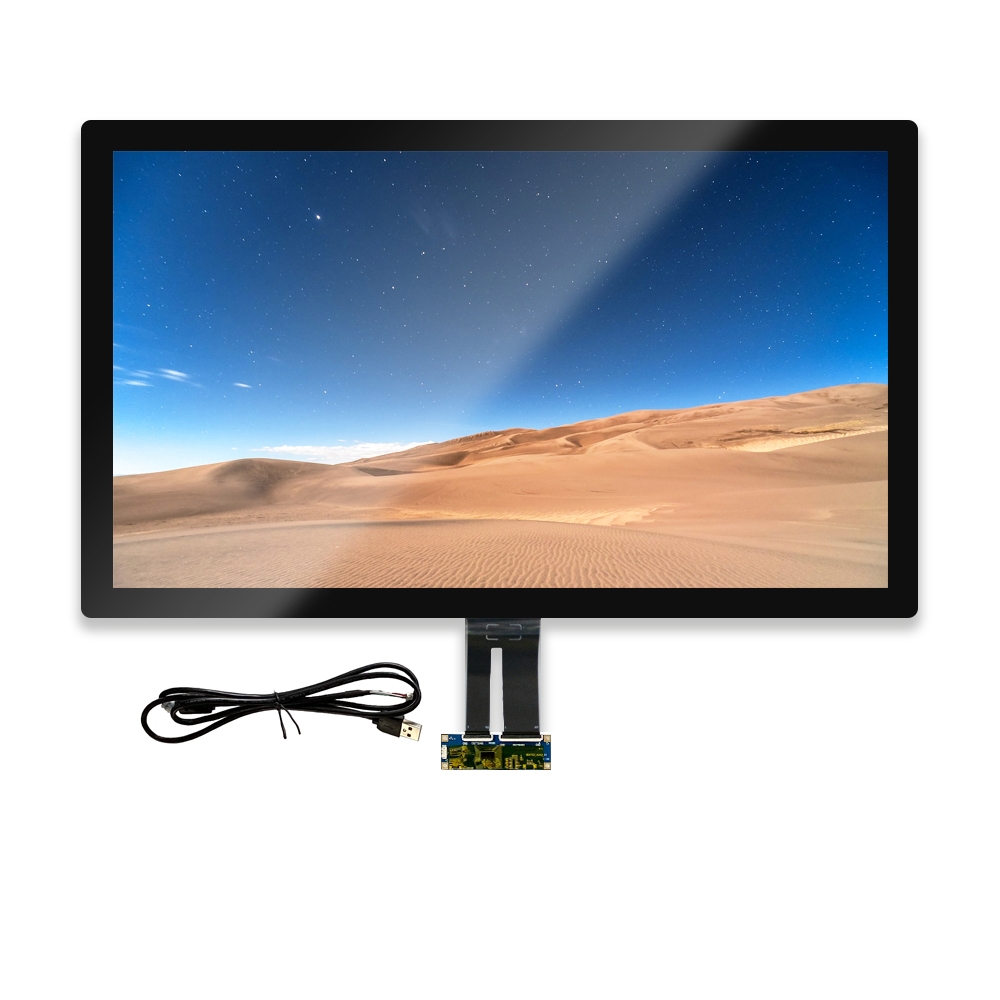

MX320CD05-G1KD-QH3A is a 32 inch LCD touch display module, boasting an HD resolution of 1920x1080 pixels, this display ensures crystal-clear imagery for a range of applications. The remarkable 1000 nits sunlight readable brightness further enhances visibility, making it particularly suitable for environments with abundant ambient light. The LVDS interface is a widely adopted standard in LCD technology known for its reliable data transmission capabilities. The G+G (Glass + Glass) structure of the PCAP touchscreen contributes to durability and robustness, ensuring a long-lasting and reliable touch experience. To mitigate issues related to glare and reflections, the touchscreen surface undergoes an Anti-Glare (AG) treatment. This not only improves visibility under direct or intense lighting conditions but also enhances the overall viewing comfort.
In summary, the MX320CD05-G1KD-QH3A is a versatile display solution suitable for a range of applications, including but not limited to commercial displays and interactive information presentations. If you require further clarification or additional details, please feel free to inquire.
In summary, the MX320CD05-G1KD-QH3A is a versatile display solution suitable for a range of applications, including but not limited to commercial displays and interactive information presentations. If you require further clarification or additional details, please feel free to inquire.
LCD Module PIN Function (LVDS 51 PIN)
| PIN No. | Symbol | Description |
| 1~6 | NC | No Connection |
| 7 | LVDS Select | ‘H‘=JEIDA, ‘L‘ or NC=VESA |
| 8~10 | NC | No Connection |
| 11 | GND | Ground |
| 12 | R1AN | FIRST LVDS Receiver Signal (A-) |
| 13 | R1AP | FIRST LVDS Receiver Signal (A+) |
| 14 | R1BN | FIRST LVDS Receiver Signal (B-) |
| 15 | R1BP | FIRST LVDS Receiver Signal (B+) |
| 16 | R1CN | FIRST LVDS Receiver Signal (C-) |
| 17 | R1CP | FIRST LVDS Receiver Signal (C+) |
| 18 | GND | Ground |
| 19 | R1CLKN | FIRST LVDS Receiver Clock Signal (-) |
| 20 | R1CLKP | FIRST LVDS Receiver Clock Signal (+) |
| 21 | GND | Ground |
| 22 | R1DN | FIRST LVDS Receiver Signal (D-) |
| 23 | R1DP | FIRST LVDS Receiver Signal (D+) |
| 24~25 | NC | No connection |
| 26 | NC or GND | No Connection or Ground |
| 27 | NC | No connection |
| 28 | R2AN | SECOND LVDS Receiver Signal (A-) |
| 29 | R2AP | SECOND LVDS Receiver Signal (A+) |
| 30 | R2BN | SECOND LVDS Receiver Signal (B-) |
| 31 | R2BP | SECOND LVDS Receiver Signal (B+) |
| 32 | R2CN | SECOND LVDS Receiver Signal (C-) |
| 33 | R2CP | SECOND LVDS Receiver Signal (C+) |
| 34 | GND | Ground |
| 35 | R2CLKN | SECOND LVDS Receiver Clock Signal (-) |
| 36 | R2CLKP | SECOND LVDS Receiver Cloc kSignal (+) |
| 37 | GND | Ground |
| 38 | R2DN | SECOND LVDS Receiver Signal (D-) |
| 39 | R2DP | SECOND LVDS Receiver Signal (D+) |
| 40~41 | NC | No connection |
| 42~43 | NC or GND | No Connection or Ground |
| 44~46 | GND | Ground |
| 47 | NC | No connection |
| 48~51 | VLCD | Power Supply +12.0V |

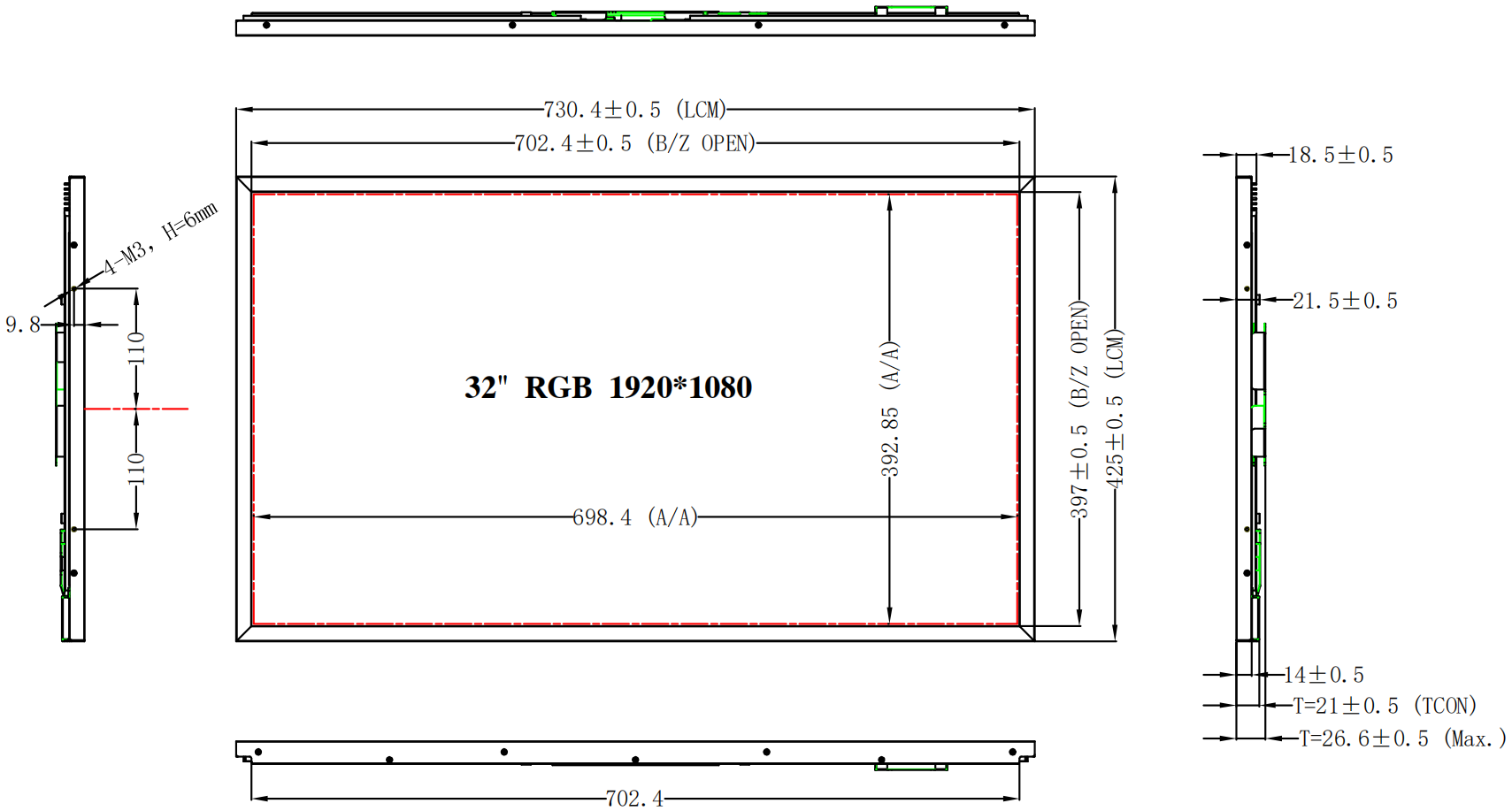

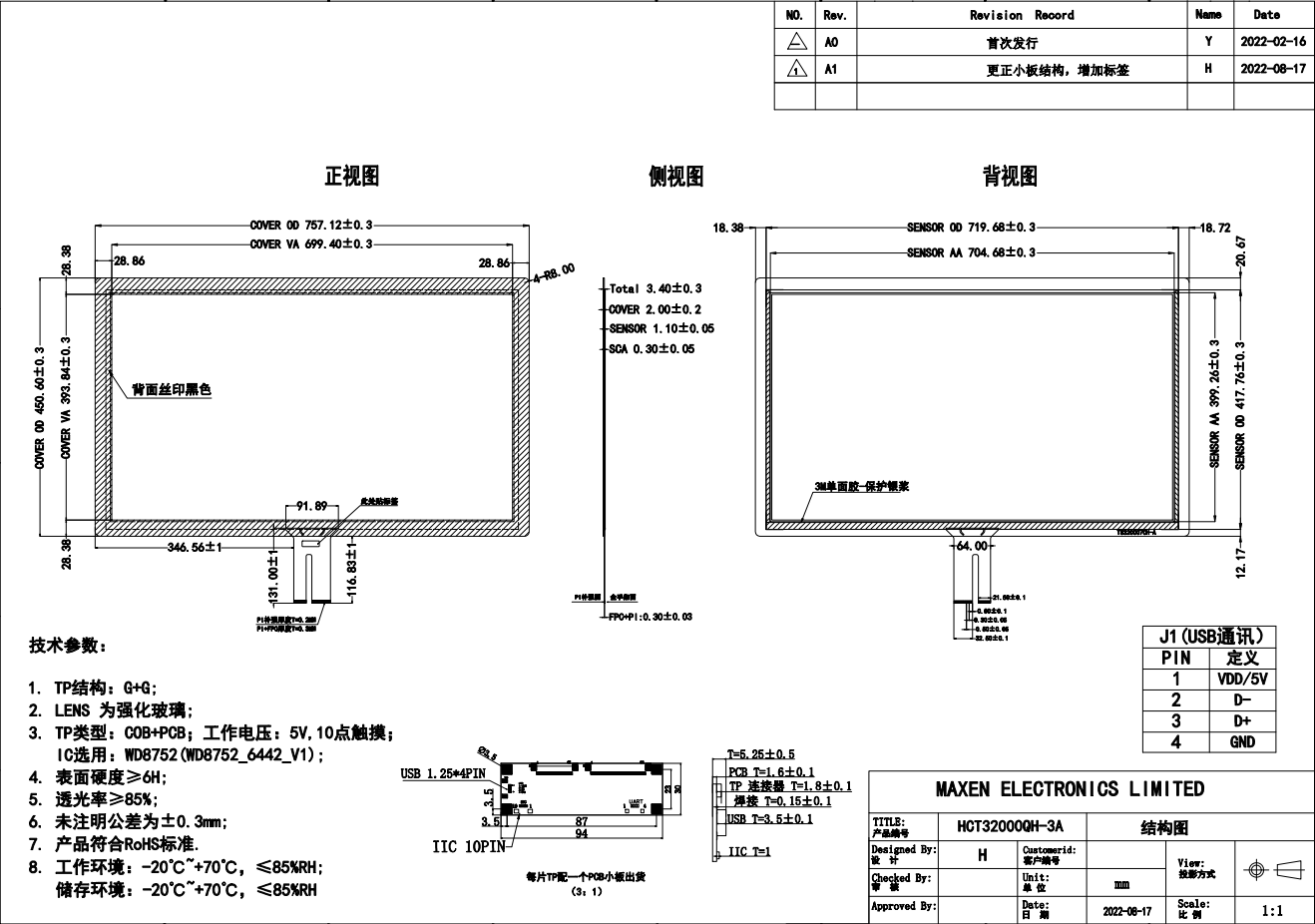

Product Structure
