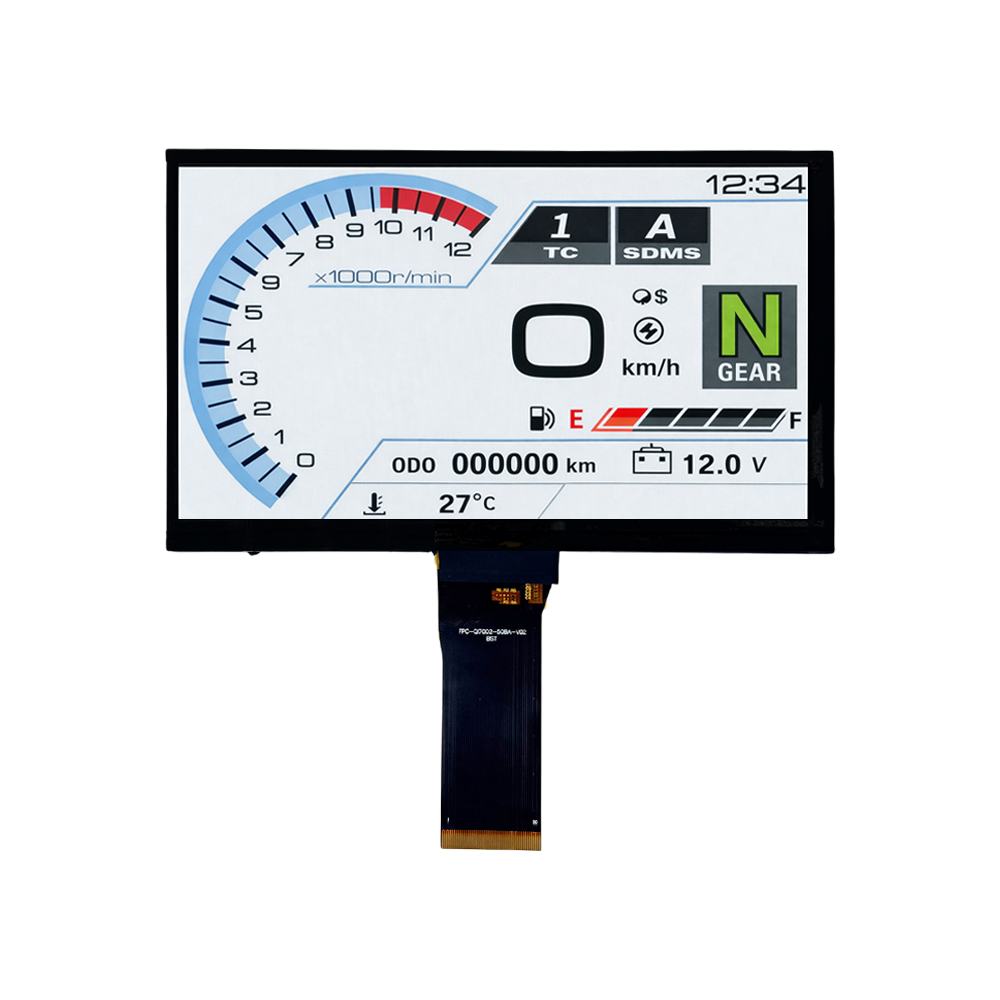

7" Automotive LCD Display
profile

7" Automotive LCD Display for Heavy-Duty Dashboards

Designed for heavy-duty motorcycles and ATVs, the MAXEN 7" automotive LCD display acts as a true digital cockpit. This 7 inch automotive-grade screen provides maximum space for multi-gauge layouts and smart navigation, built entirely to rigorous car-level reliability standards.

Guaranteeing flawless operation across a true -30°C to +85°C range in the harshest global climates, the heavy-duty dashboard module completely prevents thermal degradation. This all-weather smart display's ultra-high brightness ensures the large viewing area is easily readable in broad daylight, while optional PCAP touch panels support gloved operation for outdoor riding.

Inquiry Now
Size Resolution Image Part NO. TFT Type Brightness
(nits)
Interface Viewing Angle
(T/B/L/R)
Operation Temp.
(℃)
Outline Dimension
(WxHxT, mm)
Active Area
(WxH, mm)
Drawing
7" 1024*600 7 inch LCD Module 7 inch LCD Module Featured Image MX-070HR50AFH-N156 IPS 1000 50-pin RGB 85/85/85/85 -30~85 164.90*100.00*5.50 154.21*85.92 Download PDF
applications

Wide Range of Applications
