| Size | Resolution | Image | Part NO. | TFT Type | Brightness (nits) |
Interface | Viewing Angle (T/B/L/R) |
Operation Temp. (℃) |
Outline Dimension (WxHxT, mm) |
Active Area (WxH, mm) |
Drawing |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.8" | 240*320 |
2.8 inch LCD Display
|
MX-028NR40HFM-N10 | IPS | 500 | 40-pin SPI+RGB | 80/80/80/80 | -20~70 | 50.50*69.70*2.10 | 43.20*57.60 | Download PDF |
| 2.8" | 240*320 |
2.8 inch TFT Display
|
MX-028NS40HFH-N14 | IPS | 1000 | 40-pin SPI+RGB | 80/80/80/80 | -20~70 | 50.50*69.70*2.10 | 43.20*57.60 | Download PDF |
| 3.5" | 320*240 |
3.5 inch LCD Display
|
MX-35T5432024006L01T | TN | 350 | 54-pin RGB | 50/60/70/70 | -20~70 | 76.80*63.80*3.26 | 70.08*52.56 | Download PDF |
| 3.5" | 320*240 |
3.5 inch TFT Display
|
MX-I035T54-32006L02T | IPS | 550 | 54-pin RGB | 80/80/80/80 | -30~85 | 76.90*63.90*3.20 | 70.08*52.56 | Download PDF |

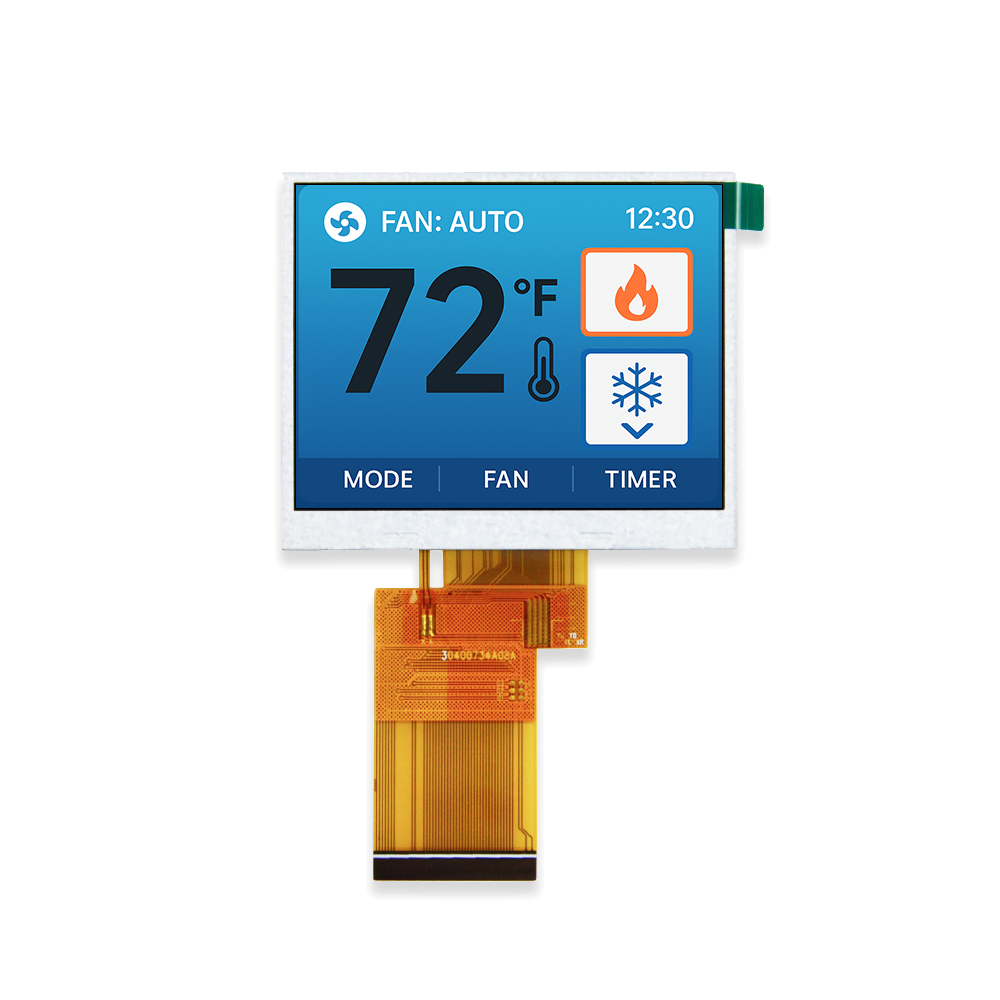

| 3.5" | 640*480 |
3.5 inch LCD Screen
|
MX-035WR54EFH-N20 | IPS | 1000 | 54-pin RGB | 80/80/80/80 | -20~70 | 76.90*63.90*3.20 | 70.08*52.56 | Download PDF |
