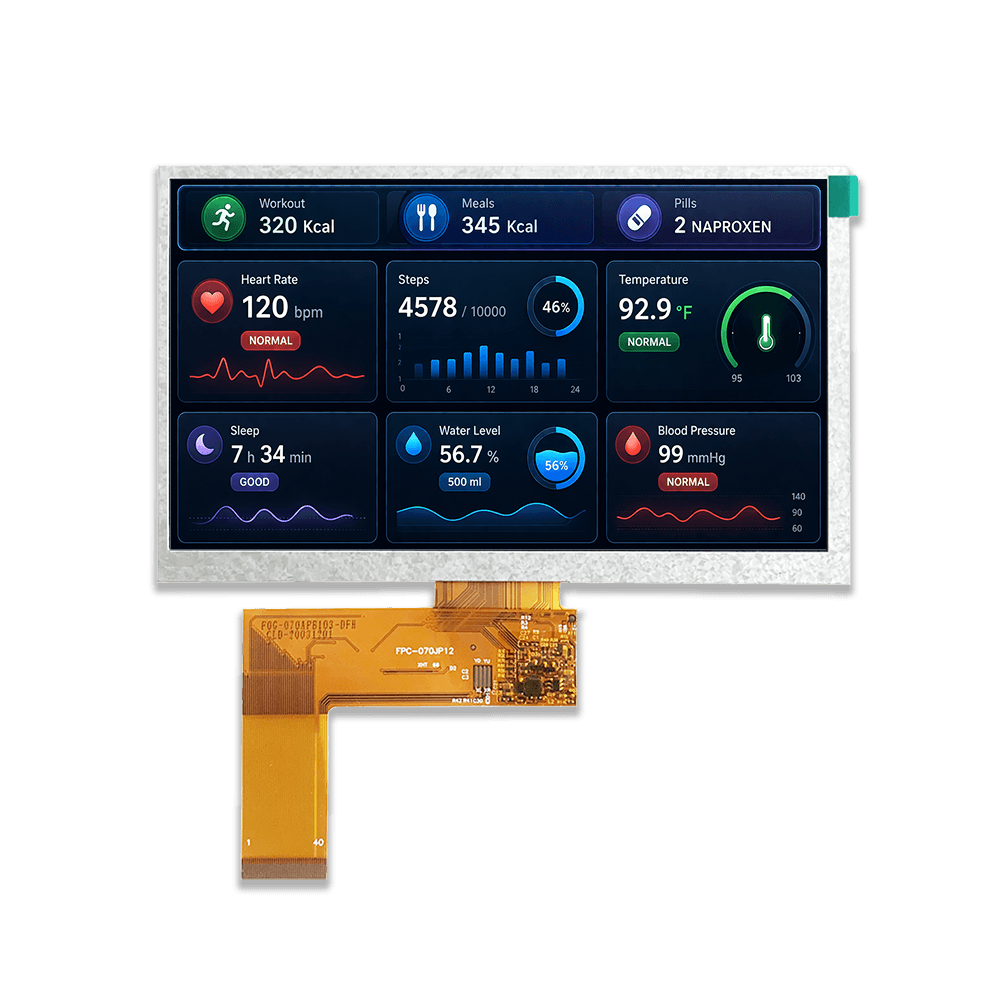

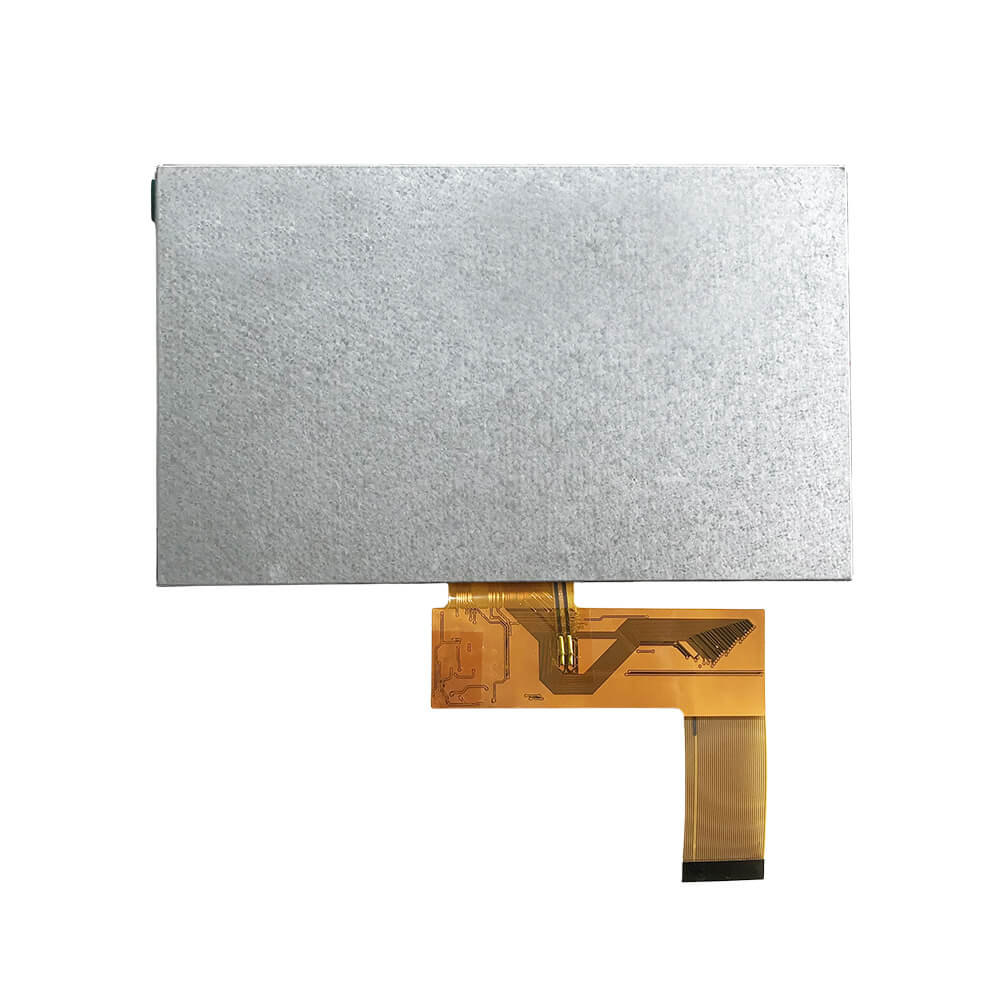

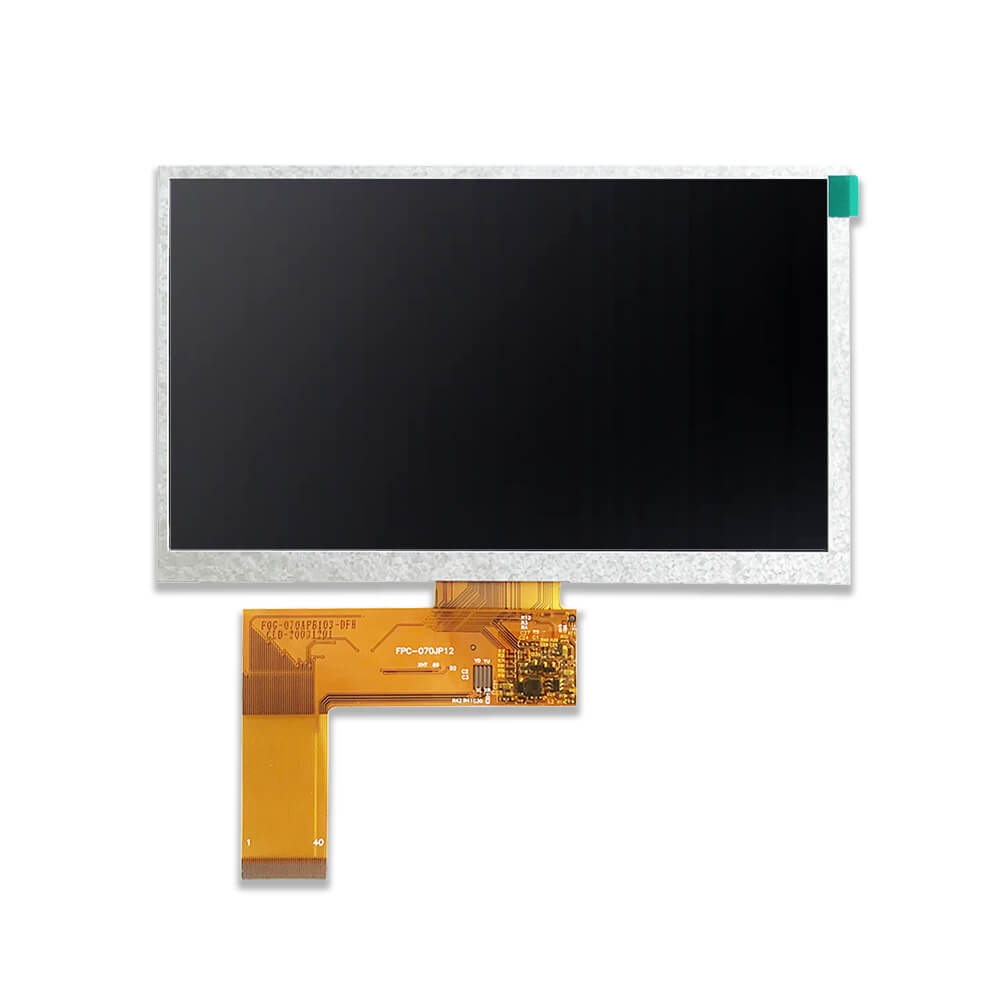

TFT Display 7 inch

Ideal for industrial automation equipment, medical devices, and standard electrical control panels.

Main Features

Part No. MX-070WR40BWS-N163
7.0" TFT LCD Display
800x480 resolution
Standard brightness 250 cd/m²
6 o'clock viewing angles (TN)
40-pin RGB interface
Built-in EK9716 driver IC

Get a Quote Download Specs.

MX-070WR40BWS-N163

TFT Display 7 inch MX-070WR40BWS-N163 features 800x480 resolution and 40-pin RGB interface built on TN panel, engineered for reliable embedded system designs. Driven by the built-in EK9716 IC, this 7 inch screen panel provides 250 nits of brightness and standard operating temperature range from -20℃ to 70℃. The 800x480 LCD module is perfectly suited for industrial automation equipment, medical devices, and standard electrical control panels.

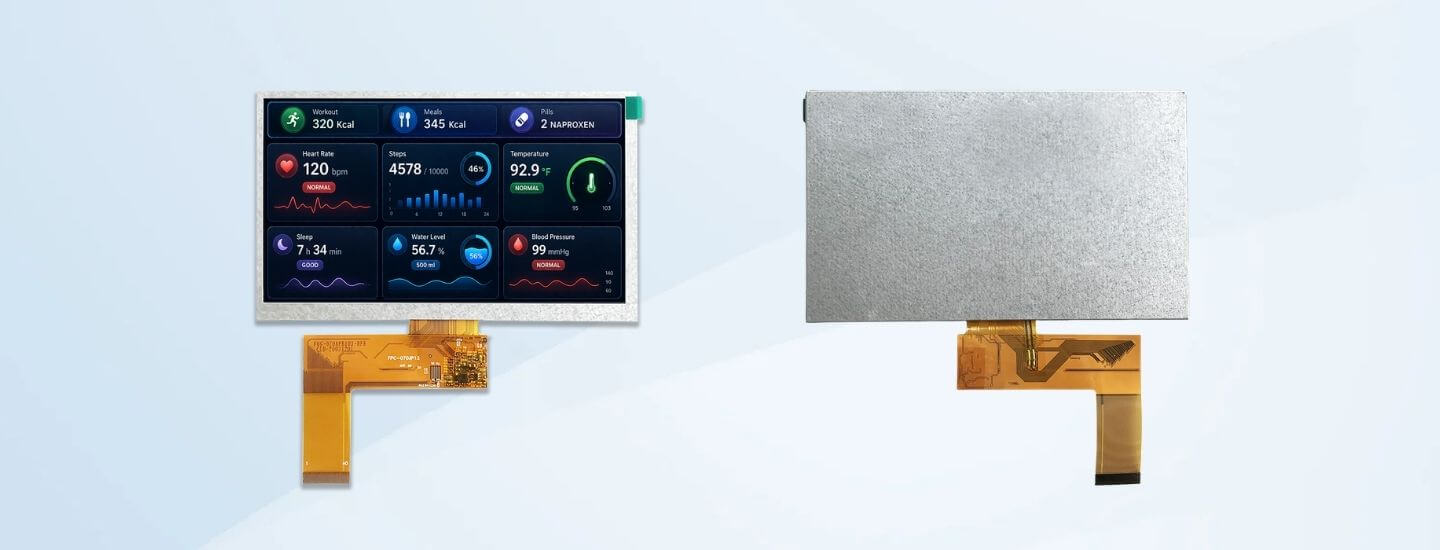

7 inch 800x480 tn 40-pin rgb tft display

Standard Brightness

250 nits
Working Temp Range

-20°C to 70°C
Interface

40-pin RGB
IC

EK9716

LCM PIN Definition (40-pin RGB)
Absolute Maximum Ratings
LED Backlight Characteristics
Product Drawing

LCM PIN Definition (40-pin RGB)

Pin No.	Symbol	Functional
1	LED K	LED Cathode
2	LED A	LED Anode
3	GND	Digital Ground
4	VDD	Digital Power
5~12	RO~R7	Red data Input
13~20	G0~G7	Green data Input
21~28	B0~B7	Blue data Input
29	GND	Digital Ground
30	DCLK	Clock input
31	DISP	Display on/off
32	HSYNC	Horizontal sync input.Negative polarity
33	VSYNC	Vertical sync input.Negative polarity
34	DE	Data enable signal
35	NC	Not connect
36	GND	Digital Ground
37	XR	TPX_Right
38	YD	TPY_Bottom
39	XL	TPX_Left
40	YU	TPY_Up

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Power supply 1	VDD	-0.5	+3.6	V
Power supply 2	Avdd	-0.5	+13.85	V
Operating temperature	ToPR	-20	70	℃
Storage temperature	TsTG	-30	80	℃

Item	Symbol	Min	Typical	Max	Unit
LED module Forward voltage	VLED	-	9.6	-	V
LED module current	ILED	-	140	-	mA
LCM Surface Luminance ★1	Ls	-	250	-	mcd
LCM Surface brightness uniform ★2	LD	80	-	-	%
