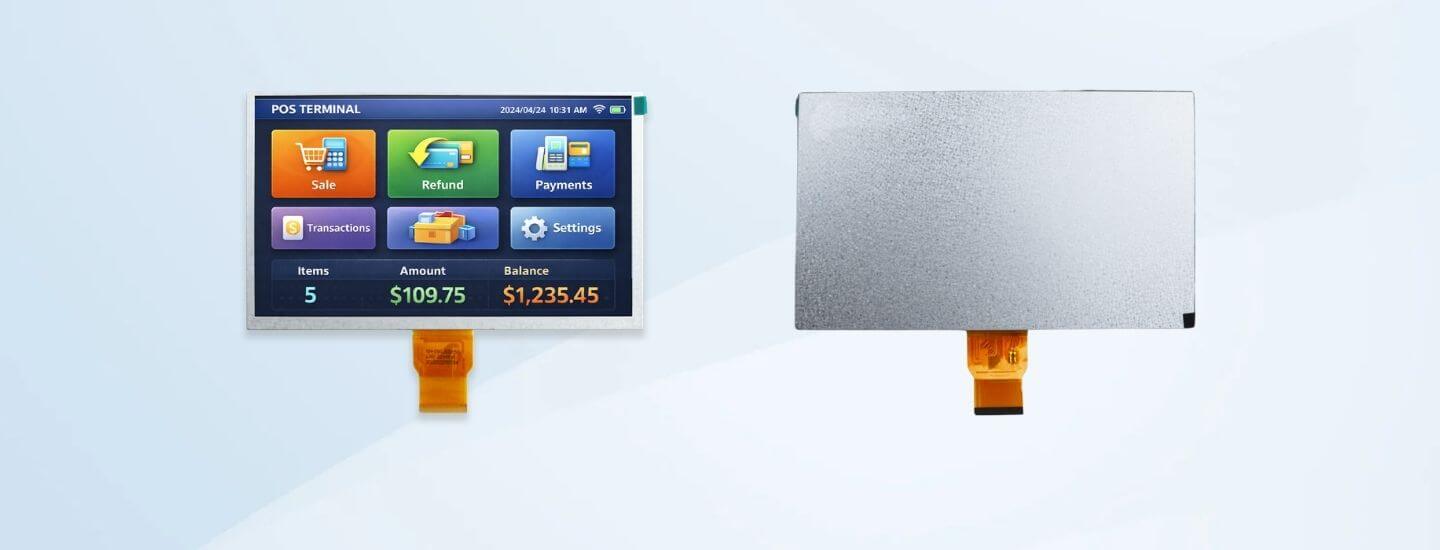

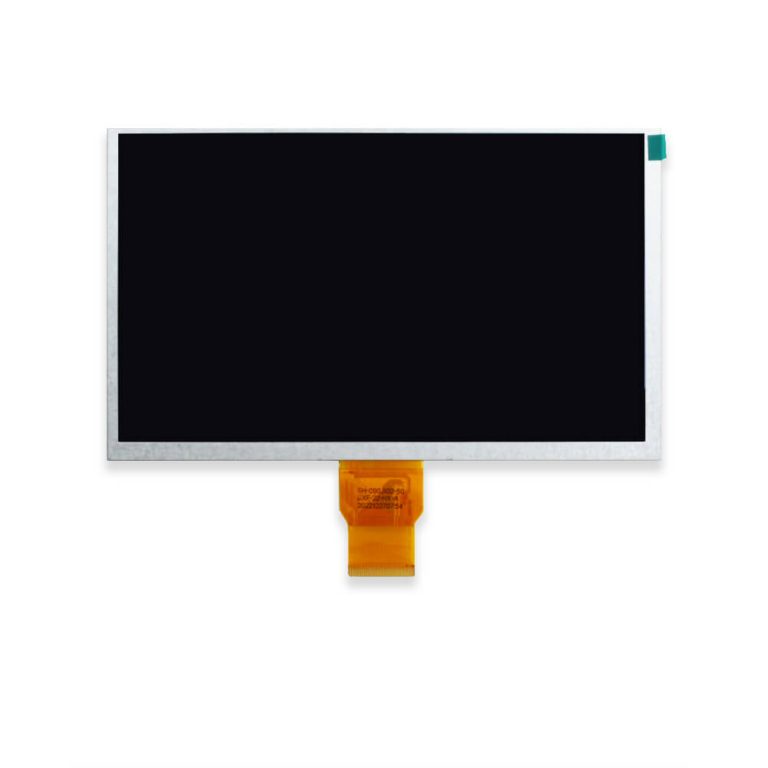

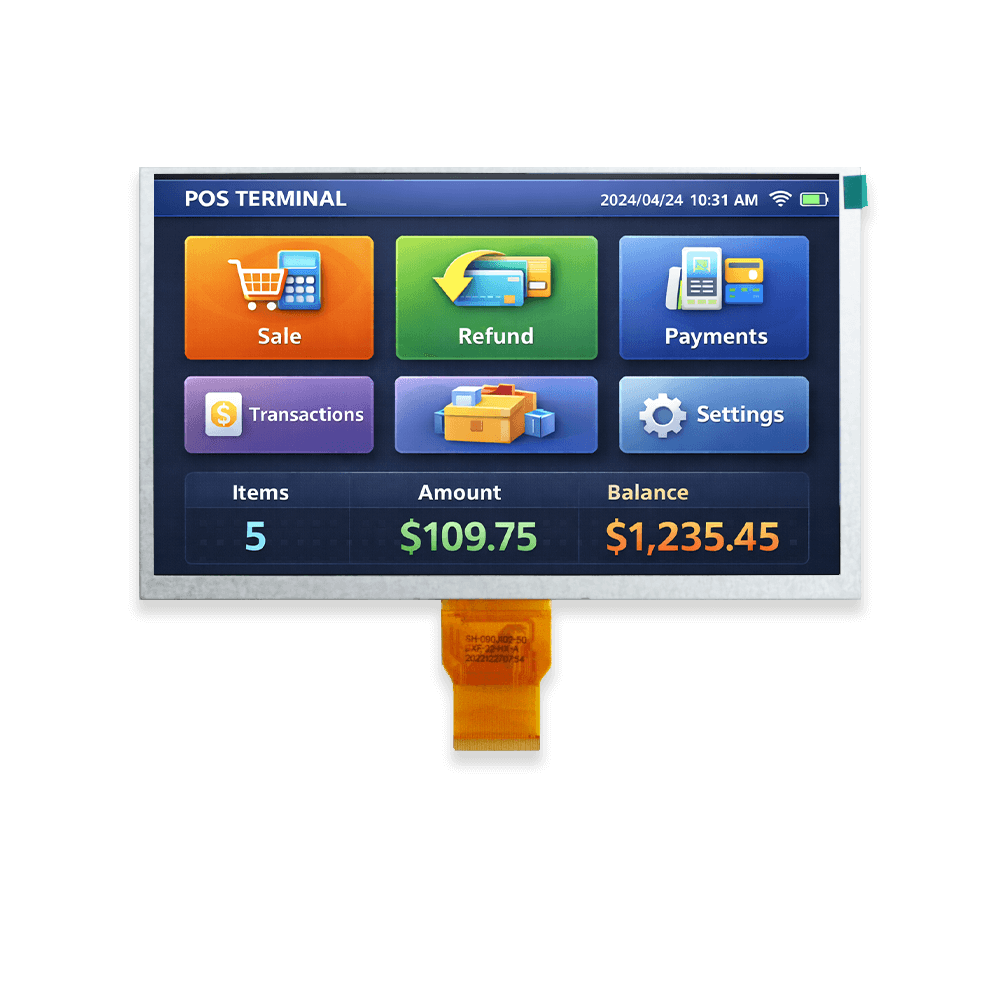

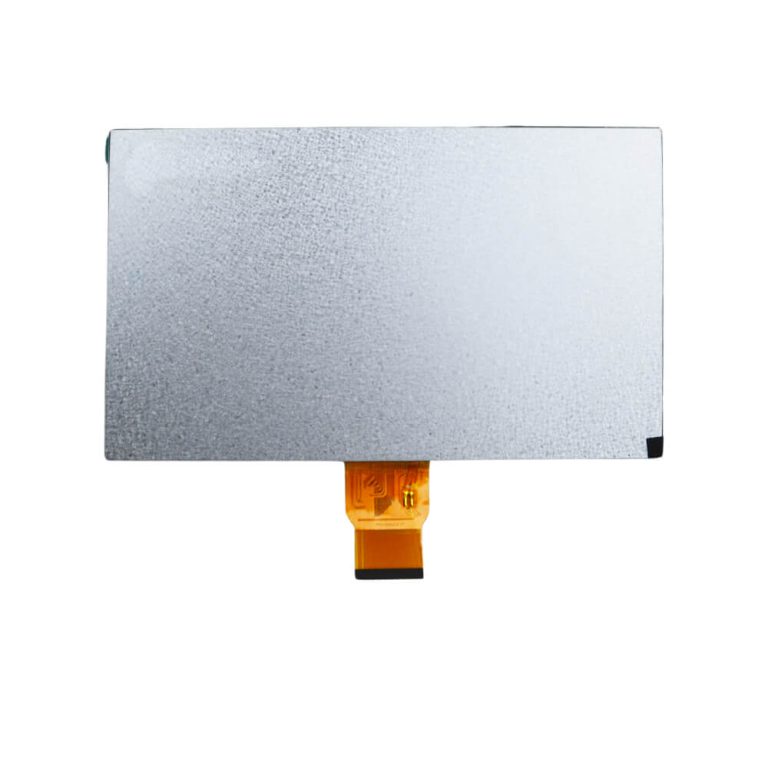

| Pin NO. | SYMBOL | DESCRIPTION |
| 1~2 | VLED+ | Power for LED backlight(Anode) |
| 3~4 | VLED- | Power for LED backlight(Cathode) |
| 5 | GND | Power ground |
| 6 | VCOM | Common Voltage |
| 7 | DVDD | Digital Power |
| 8 | MODE | DE/SYNC mode select.Normally pull high. H:DE mode. L:HSD/VSD mode. |
| 9 | DE | Data Enable signal |
| 10 | VSYNC | Vertical sync input |
| 11 | HSYNC | Horizontal sync input |
| 12~19 | B7~B0 | Blue Data Input, If you use 18-bit,please use B7-B2,and connect B0-B1 to GND |
| 20~27 | G7~G0 | Green Data Input, If you use 18-bitplease use G7-G2,and connect GO-G1 to GND |
| 28~35 | R7~RO | Red Data Input If you use 18-bit,please use R7-R2,and connect RO-R1 to GND |
| 36 | GND | Power ground |
| 37 | DCLK | Clock input |
| 38 | GND | Power ground |
| 39 | SHLR | Left or Right Display Control |
| 40 | UPDN | Up/Down Display Control |
| 41 | VGH | Positive Power for TFT |
| 42 | VGL | Negative Power for TFT |
| 43 | AVDD | Analog Power |
| 44 | RESET | Global reset pin.Active low to enter reset state.Suggest to connecting with an RC reset circuit for stability.Normally pull high. |
| 45 | NC | Not connection |
| 46 | VCOM | Common Voltage |
| 47 | DITH | Dithering function enable control. DITH=“H”,enable internal dithering function DITH=“L”,disable internal dithering function |
| 48 | GND | Power ground. |
| 49 | NC | Not connection |
| 50 | NC | Not connection |
