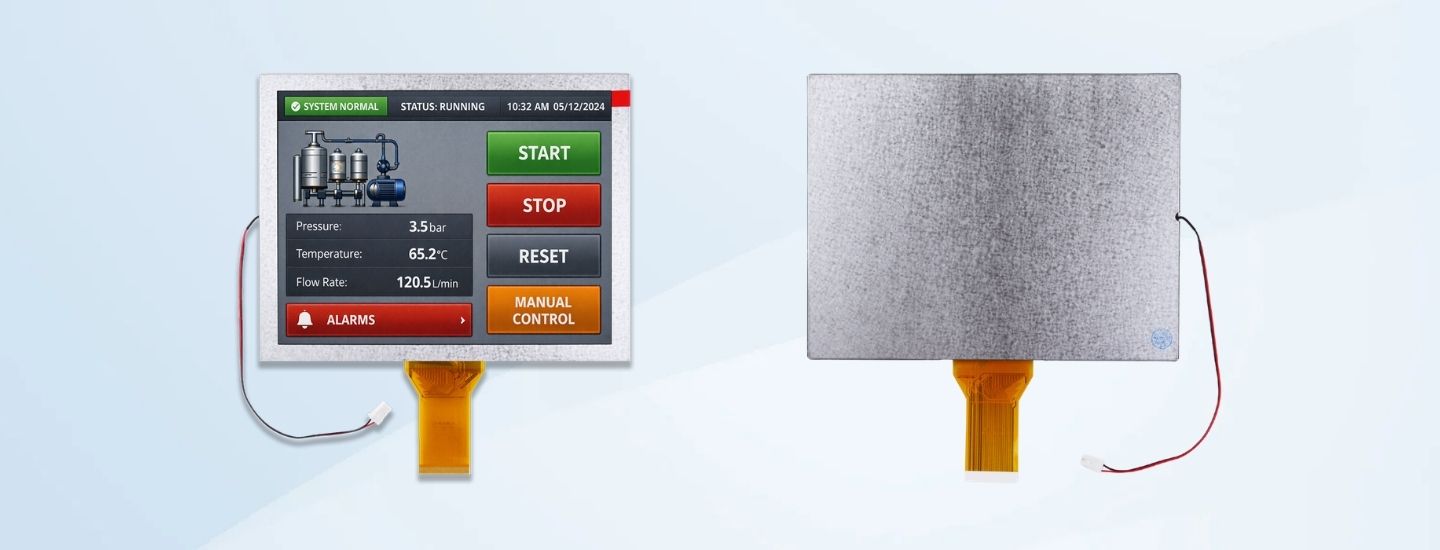

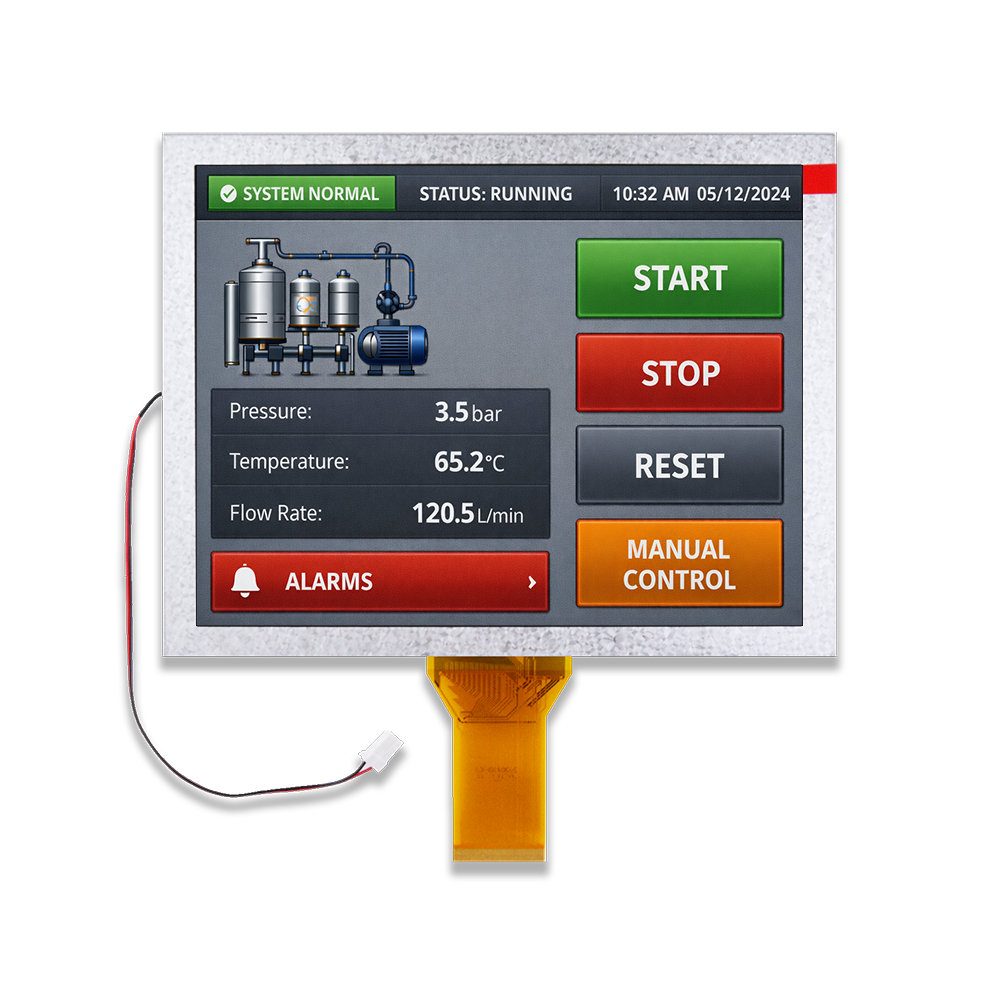

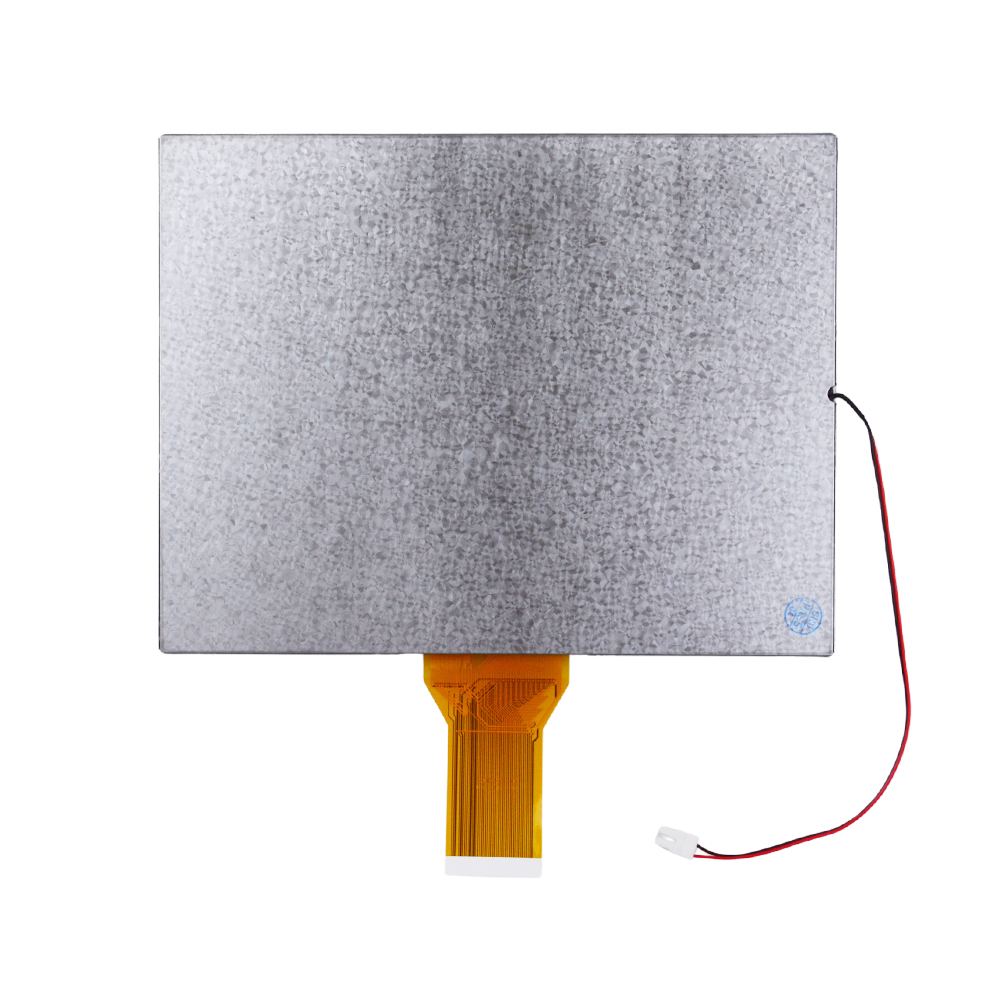

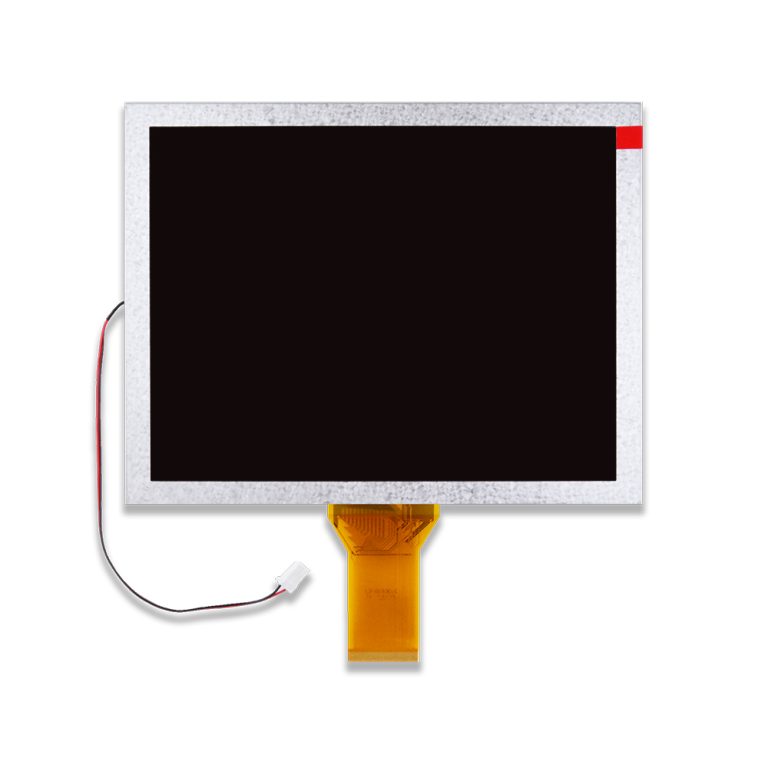

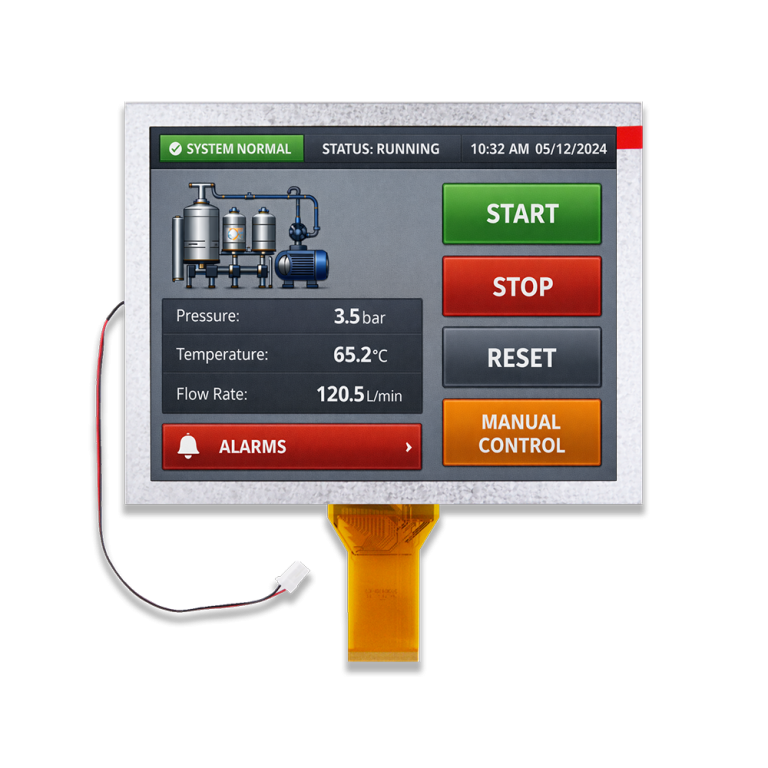

| Pin No. | Symbol | Function |
| 1~4 | NC | No connection |
| 5 | GND | Power ground |
| 6 | Vcom | Common voltage |
| 7 | Vcc | Power for Digital circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Input Enable |
| 10 | VS | Vertical Sync Input |
| 11 | HS | Horizontal Sync Input |
| 12 | B7 | Blue data (MSB) |
| 13~18 | B6~B1 | Blue data |
| 19 | B0 | Blue data (LSB) |
| 20 | G7 | Green data (MSB) |
| 21~26 | G6~G1 | Green data |
| 27 | G0 | Green data (LSB) |
| 28 | R7 | Red data (MSB) |
| 29~34 | R6~R1 | Red data |
| 35 | R0 | Red data (LSB) |
| 36 | GND | Power ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power ground |
| 39 | L/R | Right/left selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON voltage |
| 42 | VGL | Gate OFF voltage |
| 43 | AVDD | Power for Analog circuit |
| 44 | RESET | Global reset pin |
| 45 | NC | No connection |
| 46 | Vcom | Common voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power ground |
| 49~50 | NC | No connection |
