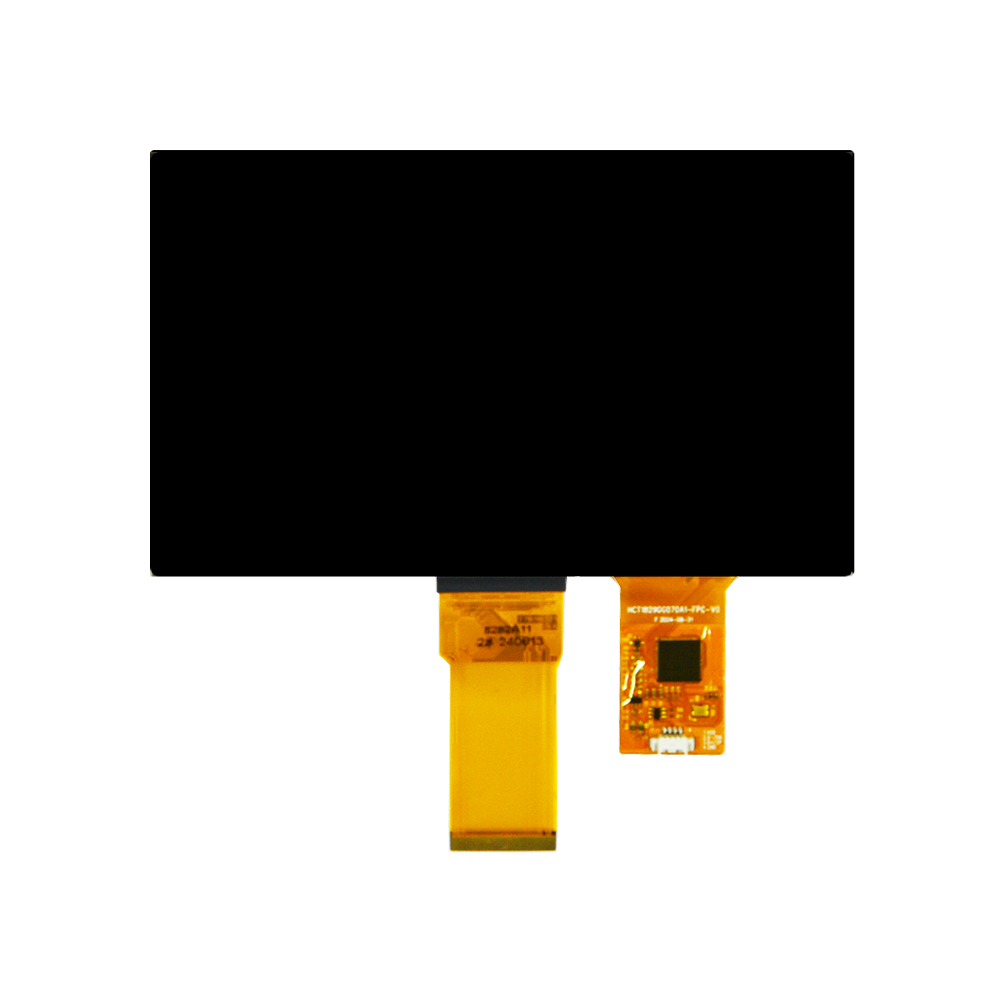

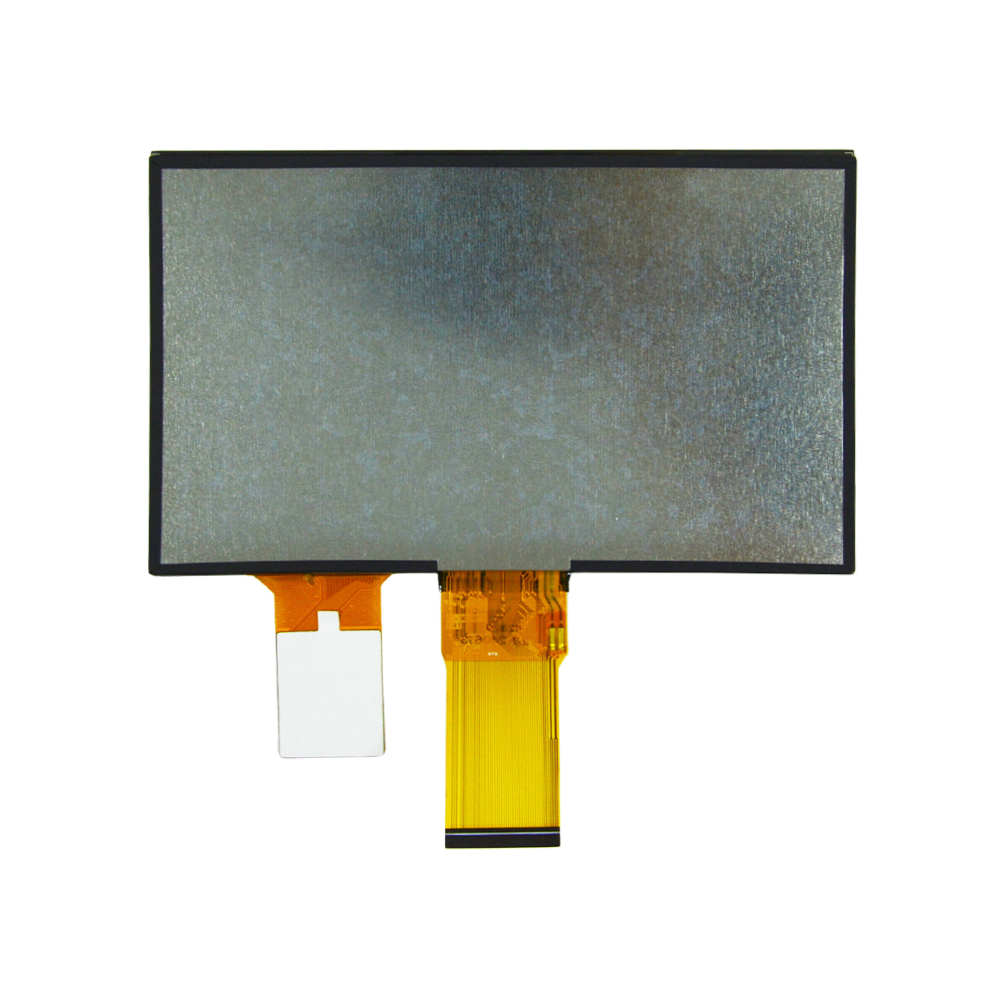

7 inch TFT LCD Optical Bonding with PCAP Touch Screen

Ideal for smart home panels, industrial control systems, and embedded HMI devices—offering competitive pricing and stable long-term supply for OEM projects.

Main Features

Part No. MX-070HR50BFM-N62-F1829
7" TFT LCD Optical Bonding with Touch Screen
1024x600 resolution
High brightness 500 cd/m²
Full viewing angles (IPS)
50-pin RGB interface
Built-in JD9165 driver IC
Capacitive Touch with ILI2511 Controller (USB interface)

Get a Quote Download Specs.

MX-070HR50BFM-N62-F1829

7 inch TFT LCD Optical Bonding with PCAP Touch Screen MX-070HR50BFM-N62-F1829 featuring a 1024x600 IPS panel with 500 cd/m² high brightness and a 50-pin RGB interface. With optical bonding, the 7 inch LCD Touch Screen delivers improved sunlight readability, higher contrast, and enhanced durability for embedded applications. The display integrates a single-chip JD9165 driver IC to simplify system design, while the PCAP touch uses an ILI2511 controller with USB interface, enabling simple USB touch screen connection and faster system bring-up for industrial HMI, medical, access control, and outdoor control panels.

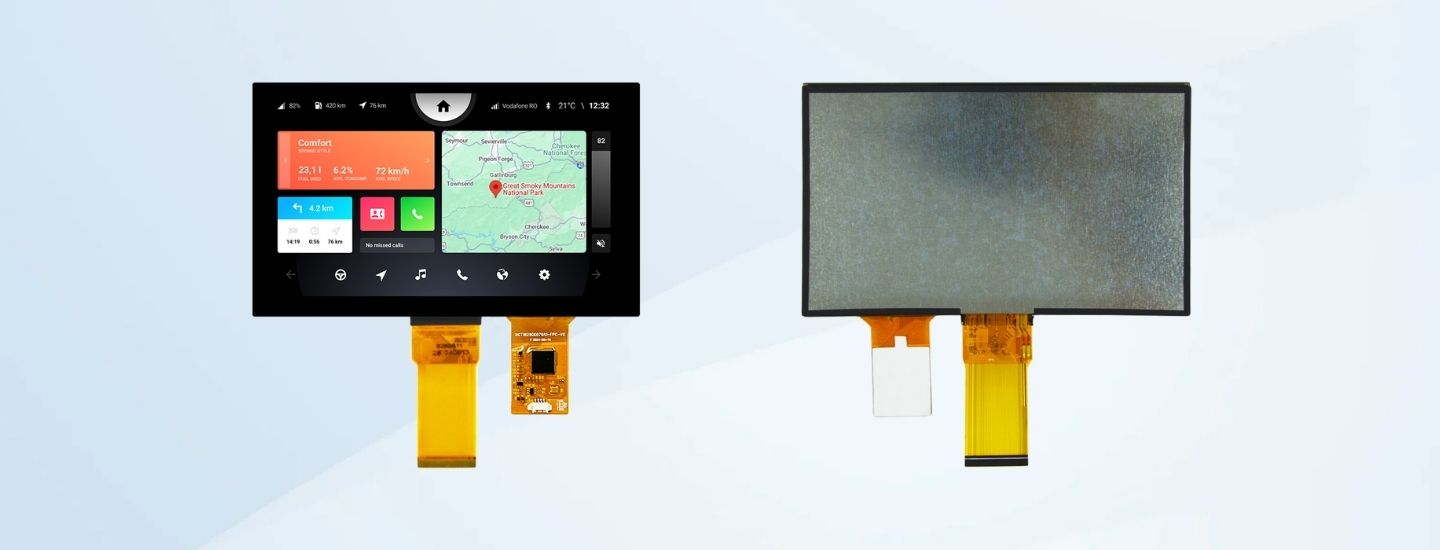

7 inch 1024x600 optical bonding usb touch screen

Standard Brightness

500 nits
Working Temp Range

-20°C to 70°C
Interface

50-pin RGB
IC

JD9165BA

Pin NO.	SYMBOL	DESCRIPTION
1	VLED+	Power for LED backlight (Anode)
2	VLED+	Power for LED backlight (Anode)
3	VLED-	Power for LED backlight (Cathode)
4	VLED-	Power for LED backlight (Cathode)
5	GND	Power ground
6	VCOM	Common Voltage
7	DVDD	Digital Power
8	MODE	DE/SYNC mode select.
9	DE	Data Enable signal
10	VSYNC	Vertical sync input
11	HSYNC	Horizontal sync input
12	B7	Blue data (MSB)
13	B6	Blue data
14	B5	Blue data
15	B4	Blue data
16	B3	Blue data
17	B2	Blue data
18	B1	Blue data
19	B0	Blue data (LSB)
20	G7	Green data (MSB)
21	G6	Green data
22	G5	Green data
23	G4	Green data
24	G3	Green data
25	G2	Green data
26	G1	Green data
27	G0	Green data (LSB)
28	R7	Red data (MSB)
29	R6	Red data
30	R5	Red data
31	R4	Red data
32	R3	Red data
33	R2	Red data
34	R1	Red data
35	RO	Red data (LSB)
36	GND	Power ground
37	DCLK	Clock input
38	GND	Power ground
39	SHLR	Left/Right Selection
40	UPDN	Up/Down Selection
41	VGH	Gate ON Voltage
42	VGL	Gate OFF Voltage
43	AVDD	Power for Analog Circuit
44	RESET	Global reset pin
45	NC	Not connection
46	VCOM	Common Voltage
47	DITH	Dithering function enable control
48	GND	Power ground
49	NC	Not connection
50	NC	Not connection

PIN NO.	Interface
1	VDD/5V
2	D-
3	D+
4	GND

Item	Symbol	Min.	Max.	Unit
Digital Supply Voltage	VDD	-0.3	3.6	V
Analog Supply Voltage	AVDD	-0.5	14.85	V
TFT Gate ON Voltage	VGH	0.3	20	V
TFT Gate OFF Voltage	VGL	-20	0.3	V
TFT Common Electrode Voltage	VCOM	0	6	V
Operating Temperature	TOP	-20	60	℃
Storage Temperature	TST	-30	80	℃

Item	Symbol	Min.	Typ	Max.	Unit
Digital Supply Voltage	VDD	3.0	3.3	3.6	V
Analog Supply Voltage	AVDD	9	10	11	V
TFT Gate ON Voltage	VGH	18	19	20	V
TFT Gate OFFVoltage	VGL	-8.5	-7.0	-7.5	V
TFT Common Electrode Voltage	VCOM	-	4	-	V
