7 inch TFT LCD Display

Ideal for industrial HMI, smart home appliances, medical equipment, and automotive/two-wheeler displays.

Main Features

Part No. MX-070HM40BFH-N150
7.0" TFT LCD Display
1024x600 resolution
High brightness 1000 cd/m²
Full viewing angles (IPS)
40-pin MIPI interface
Single voltage design

Get a Quote Download Specs.

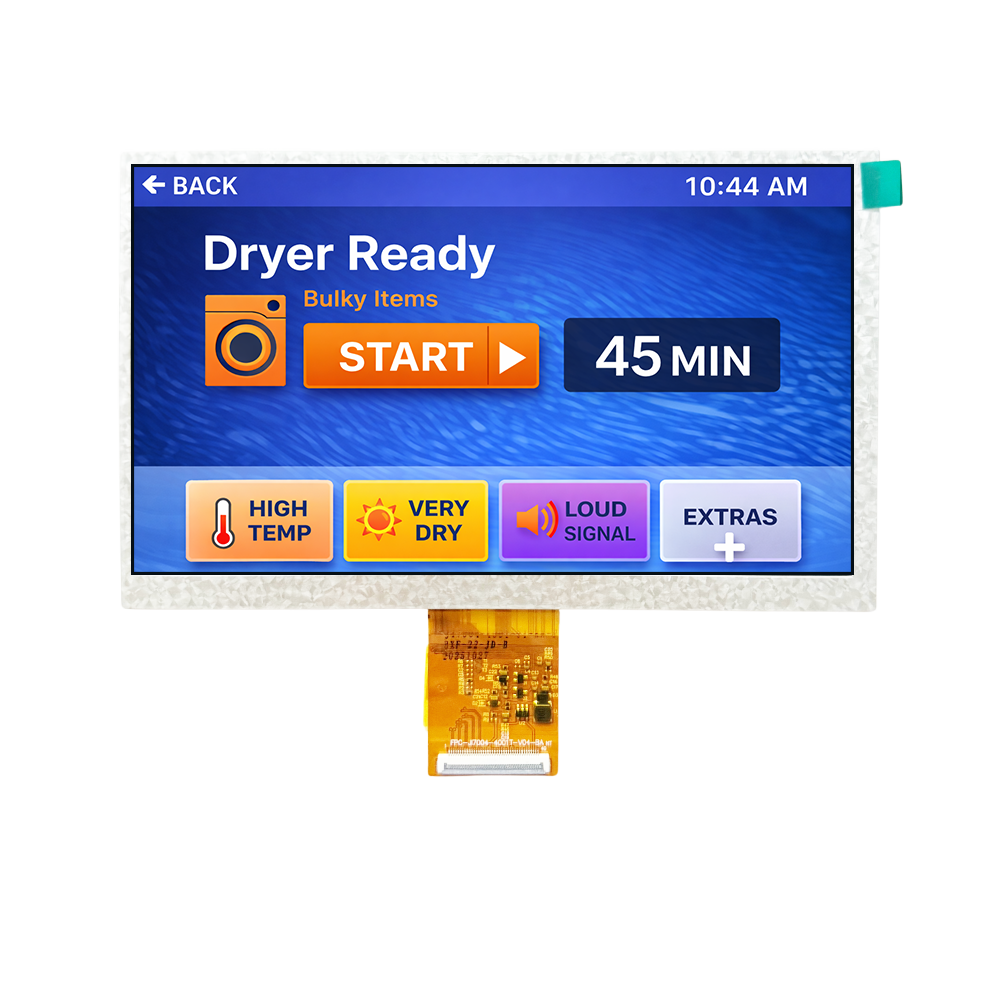

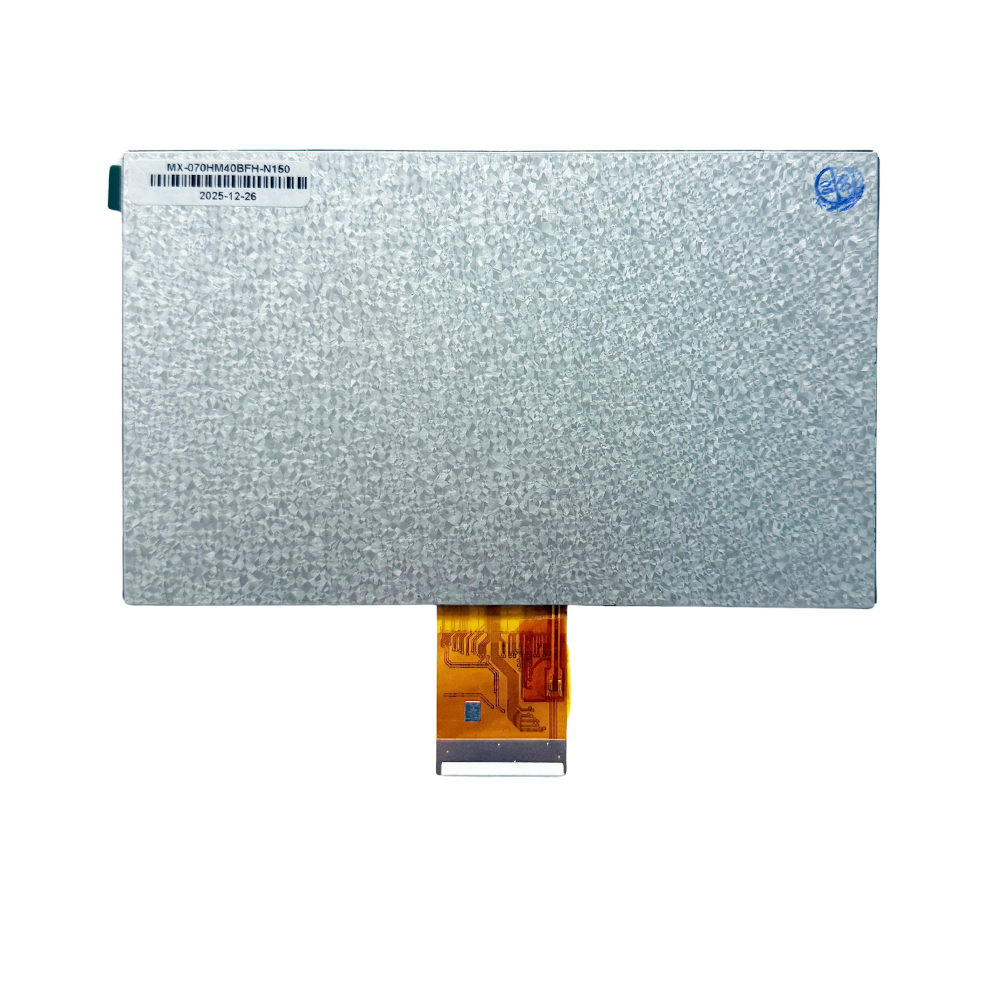

MX-070HM40BFH-N150

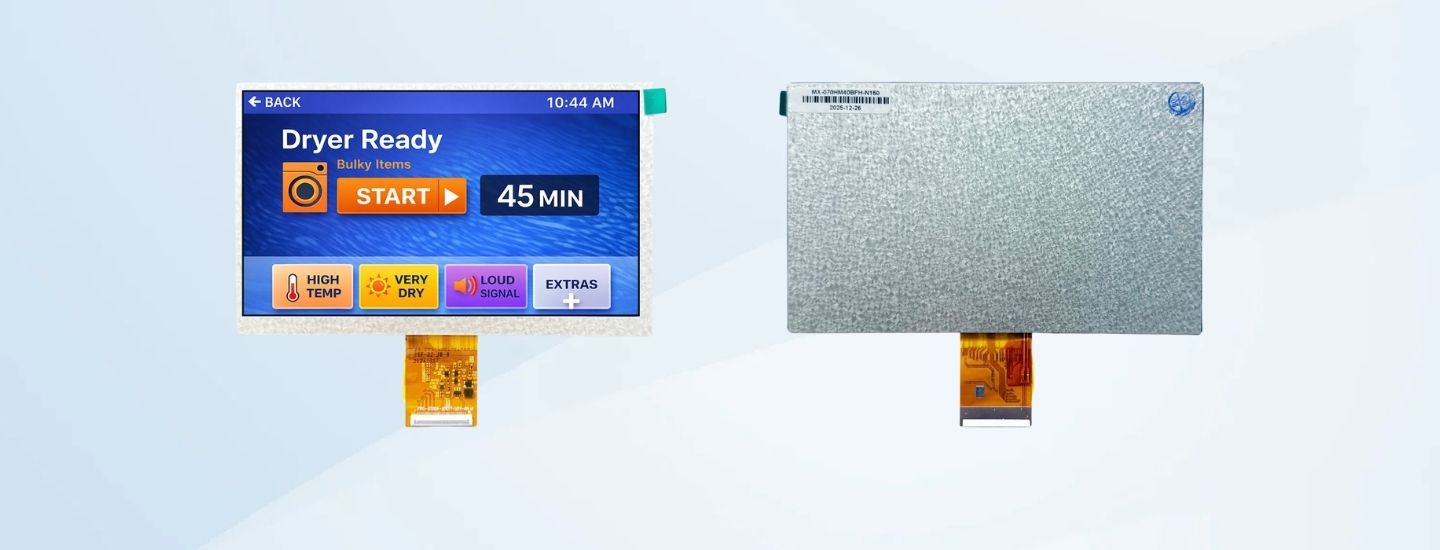

7 inch TFT LCD display MX-070HM40BFH-N150 delivers sharp visuals with a native 1024x600 (WSVGA) resolution and a 1000 cd/m² high-brightness panel, making it well-suited for outdoor and high-ambient-light environments. Built on IPS technology, the 7 inch display provides full viewing angles with minimal color shift for consistent image quality from virtually any direction. The LCD module features a compact 40-pin MIPI interface for high-speed signal transmission and supports a single-voltage supply to simplify system power design and integration. Designed for stable performance in demanding applications, the 7" TFT LCD is an ideal choice for industrial HMI, smart home appliances, medical equipment, and automotive/two-wheeler displays.

High Brightness

1000 nits
Working Temp Range

-20°C to 70°C
Interface

40-pin MIPI
IC

Single IC design

LCM PIN Definition (40-pin MIPI)
Absolute Maximum Ratings
Electrical Characteristics
LED Backlight Characteristics
Product Drawing

LCM PIN Definition (40-pin MIPI)

PIN No.	SYMBOL	Function
1	GND	Ground
2	DSI-D0P	DSI Data differential signal input pins. (Data lane0)
3	DSI-D0N	DSI Data differential signal input pins. (Data lane O)
4	GND	Ground
5	DSI-D1P	DSI Data differential signal input pins. (Data lane 1)
6	DSI-D1N	DSI Data differential signal input pins. (Data lane 1)
7	GND	Ground
8	DSI-CLKP	DSI CLOCK differential signal input pins
9	DSI-CLKN	DSI CLOCK differential signal input pins
10	GND	Ground
11	DSI-D2P	DSI Data differential signal input pins. (Data lane 2)
12	DSI-D2N	DSI Data differential signal input pins. (Data lane 2)
13	GND	Ground
14	DSI-D3P	DSI Data differential signal input pins. (Data lane 3)
15	DSI-D3N	DSI Data differential signal input pins. (Data lane 3)
16-17	GND	Ground
18-23	NC	NC
24	RESET	Reset Signal pin ("Low"is enable)
25-26	NC	NC
27	GND	Ground
28-29	LEDK	Backlight LED Cathode
30	GND	Ground
31	NC	NC
32-33	GND	Ground
34	NC	NC
35-36	LEDA	Backlight LED Anode.
37	GND	Ground
38-39	VDD	Power supply (3.3V)
40	NC	NC

Absolute Maximum Ratings

Parameter	Symbol	Min	Typ	Max	Unit
Power supply	DVDD	-0.3	-	3.96	V
Analog Supply	AVDD	-0.5	-	14.85	V
TFT Gate ON	VGH	-0.3	-	40	V
TFT Gate OFF	VGL	-20	-	0.3	V
TFT Common Electrode	VCOM	2.85	-	3.15	V
Operating Temperature	TOP	-20	-	70	℃
Storage Temperature	TST	-30	-	80	℃

Electrical Characteristics

Item	Symbol	Min.	Typ	Max.	Unit
Digital Supply Voltage	VDD	3.0	3.3	3.6	V
Analog Supply Voltage	AVDD	9.8	9.9	10	V
TFT Gate ON Voltage	VGH	17.0	18.0	19.0	V
TFT Gate OFF Voltage	VGL	-6.6	-6.0	-5.4	V
TFT Common Electrode Voltage	VCOM	-	3.6	-	V
