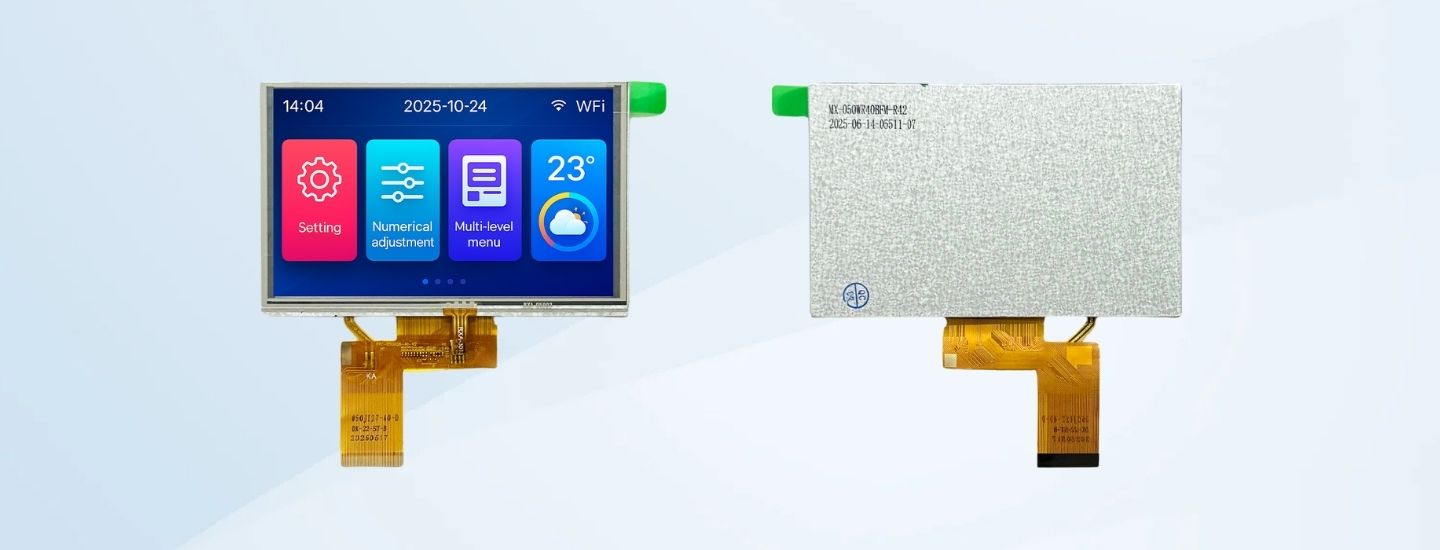

5 inch Resistive Touch Screen LCD Display

Ideal for industrial equipment, medical devices, and outdoor HMI applications.

Main Features

Part No. MX-050WR40BFM-R42
5" TFT LCD with Touch Screen
800x480 resolution
High brightness 500 cd/m²
Full viewing angles (IPS)
40-pin RGB interface
4-wire resistive touch screen

Get a Quote Download Specs.

MX-050WR40BFM-R42

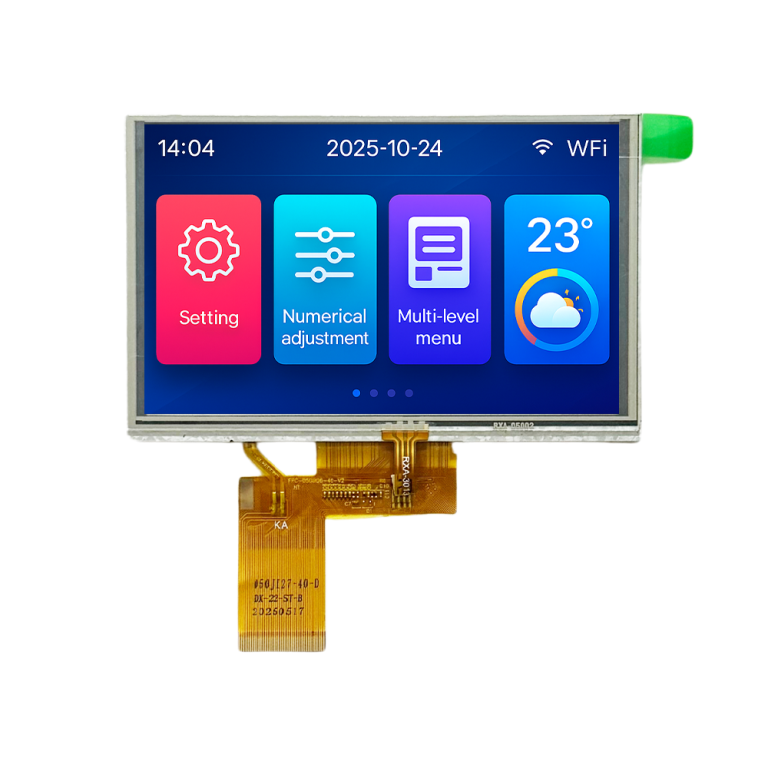

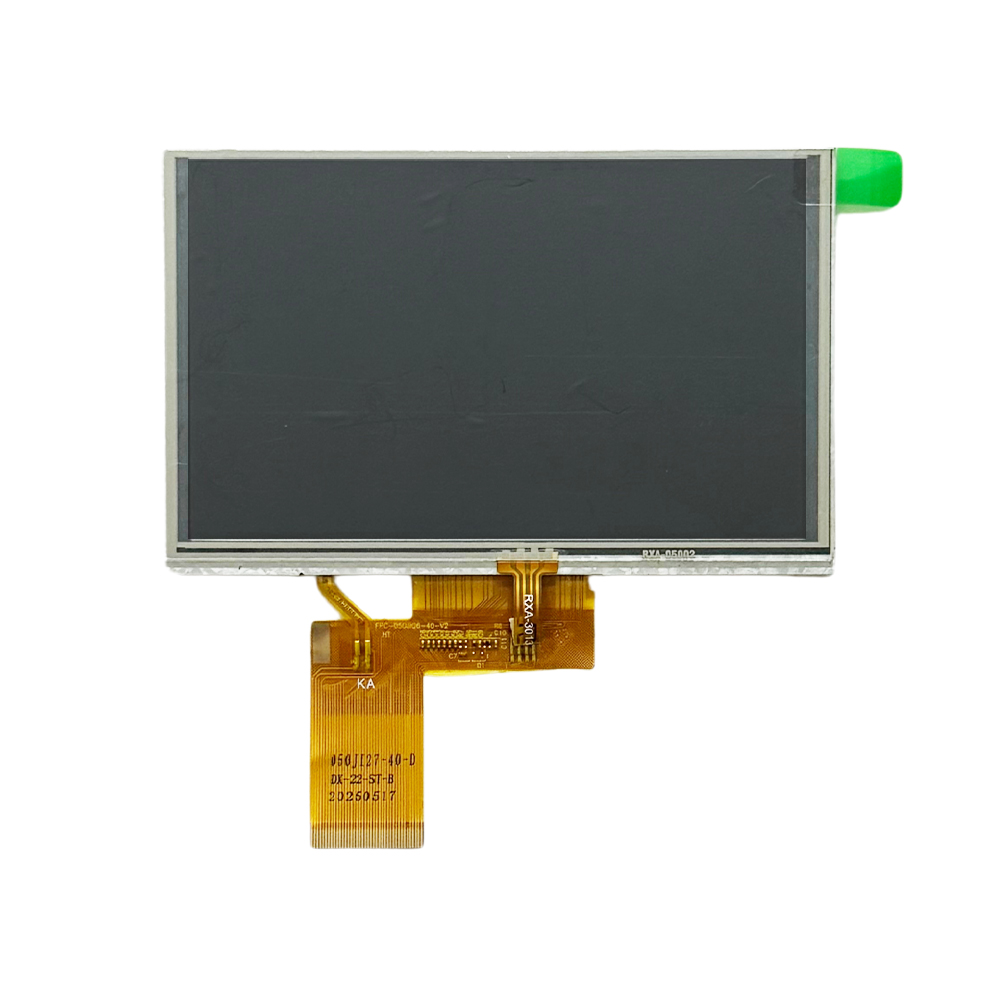

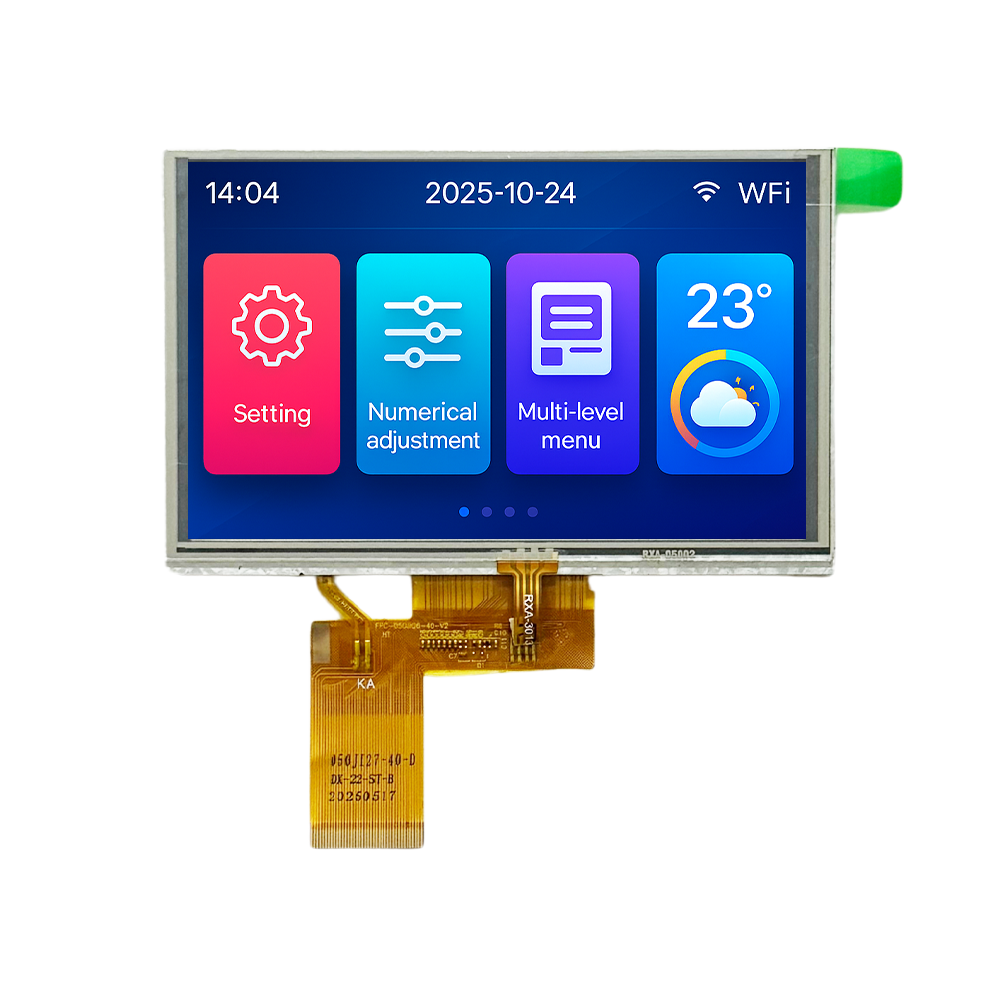

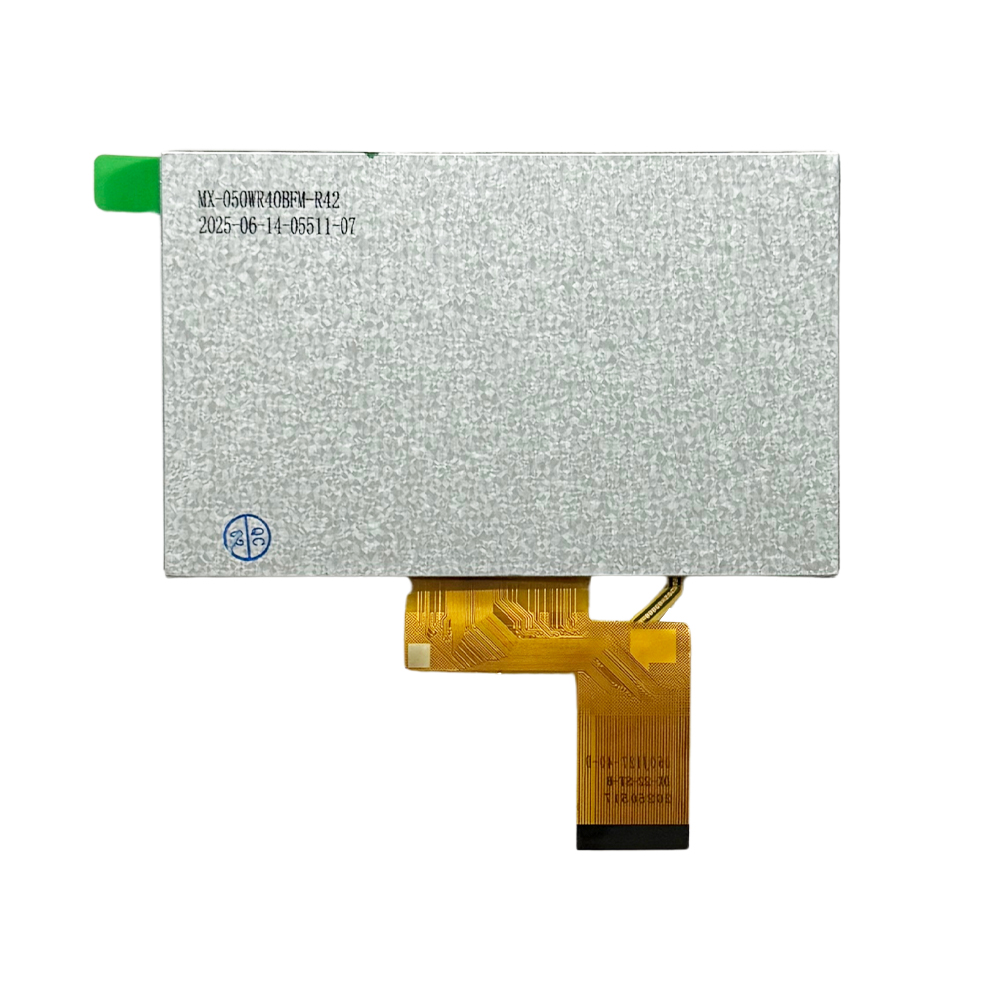

5 inch Resistive Touch Screen LCD Display MX-050WR40BFM-R42 combines a TFT LCD panel and 4-wire resistive touch screen in a compact, durable design. The 800x480 IPS display with 500 cd/m² high brightness and 40-pin RGB interface ensures vivid colors, wide viewing angles, stable performance, and easy integration into embedded systems. The resistive touch panel allows precise input with fingers, stylus, or gloves, making the 5 inch resistive touch screen LCD display ideal for industrial control, medical devices, and outdoor HMI applications.

High Brightness

500 nits
Working Temp Range

-20°C to 70°C
Interface

40-pin RGB
IC

Single IC design

LCM PIN Definition (40-pin RGB)
TP PIN Definition (4-wire)
Absolute Maximum Ratings
Electrical Characteristics

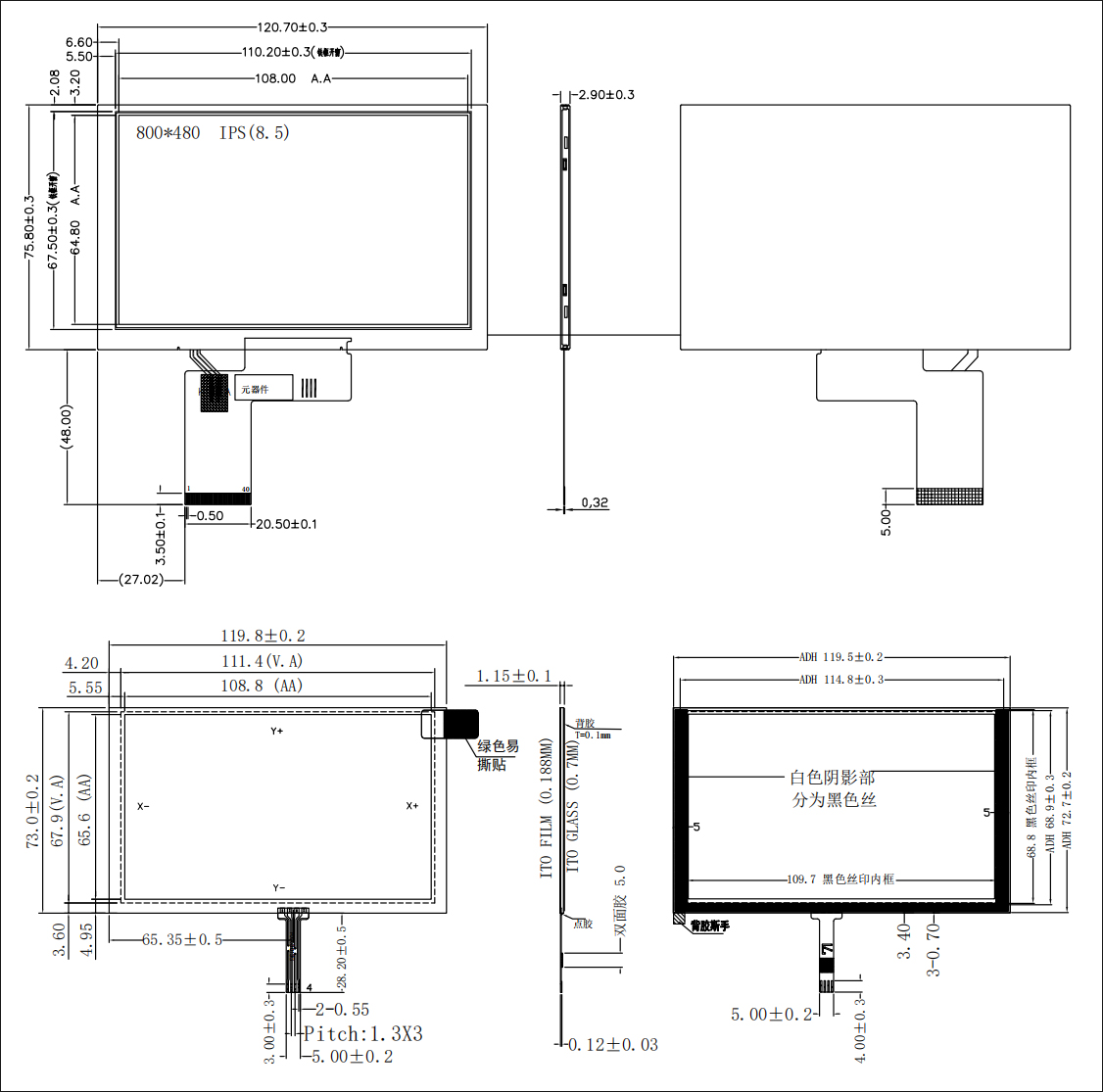

Product Drawing

PIN NO.	Symbol	Description
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	GO-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Standby mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin

PIN NO.	OUT
1	Y-
2	X-
3	Y+
4	X+

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VDD	-0.3	-	3.6	V
Input Voltage	Vin	-0.3	-	VDD+0.5	V
Current of LED	ILED	0	-	20	mA
TFT Gate ON Voltage 1	VGH	10	12	14	V
TFT Gate OFF Voltage 2	VGL	-14	-11.5	-11.5	V
TFT Common Electrode Voltage	VCOM	-1.0	TBD	1.0	V
Supply voltage	Vf	16.8	18.6	20.4	V
Supply current	If	-	60	-	mA

Parameter		Symbol	Condition	Min	Typ	Max	Unit
Power supply		VDD	Ta=25℃	2.8	3.3	3.6	V
Input voltage	‘H’	VIH	VDD=3.3V	0.7VDD	-	VDD	V
Input voltage	‘L'	VIL	VDD=3.3V	0	-	0.3VDD	V
Current Consumption		Icc1	Normal mode	-	-	-	mA
Current Consumption		Icc2	Sleep mode	-	0.03	0.09	mA
