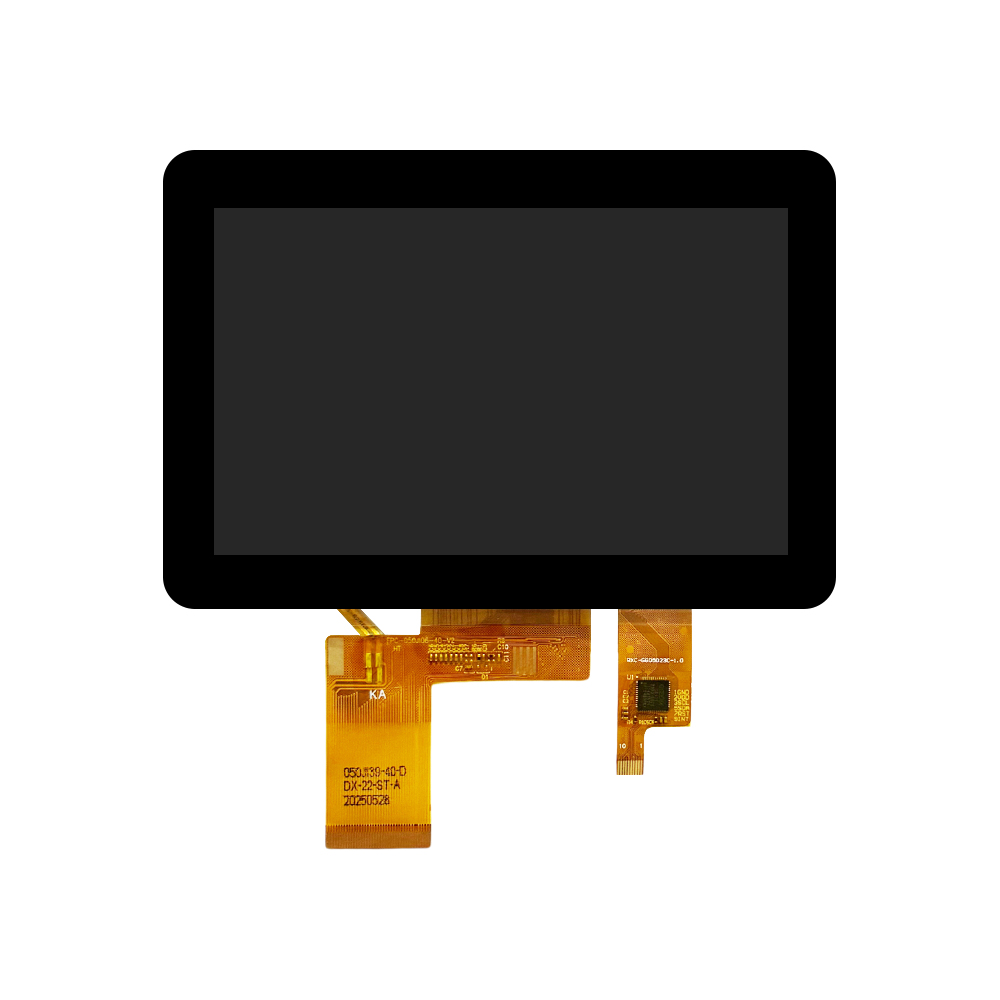

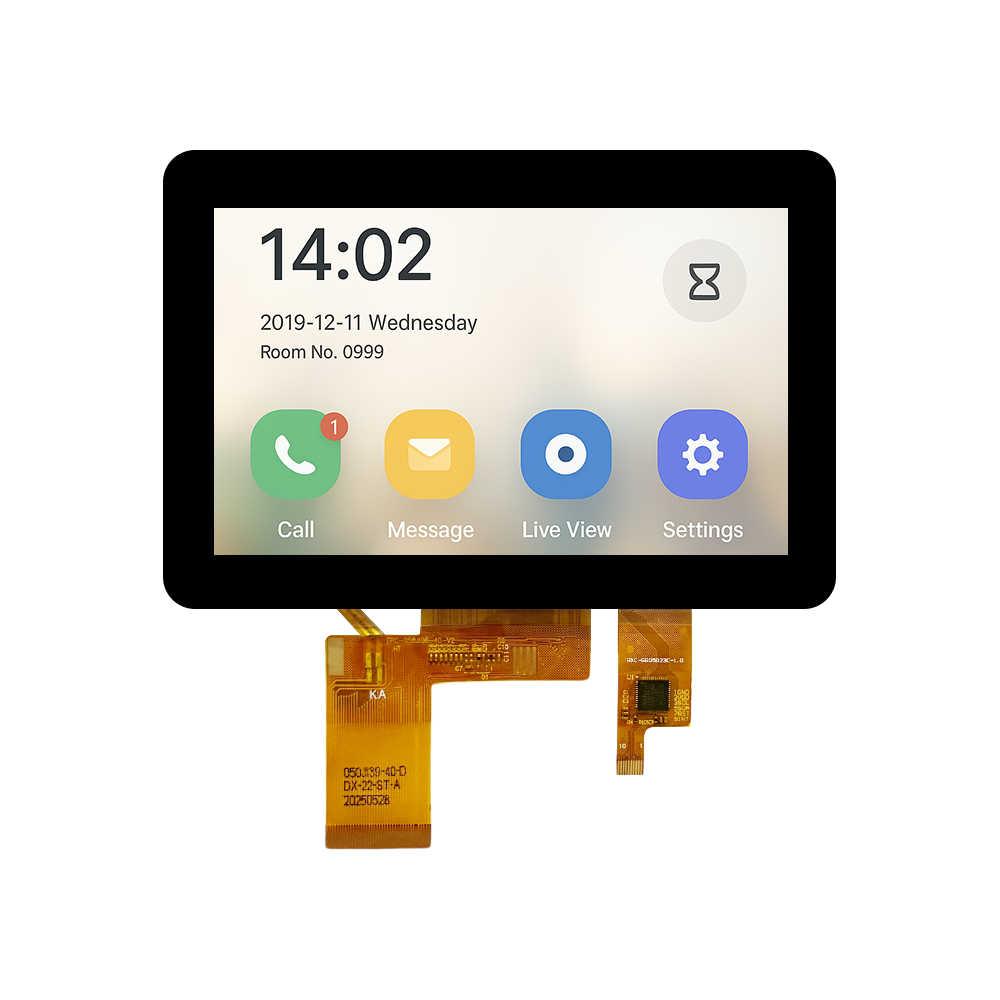

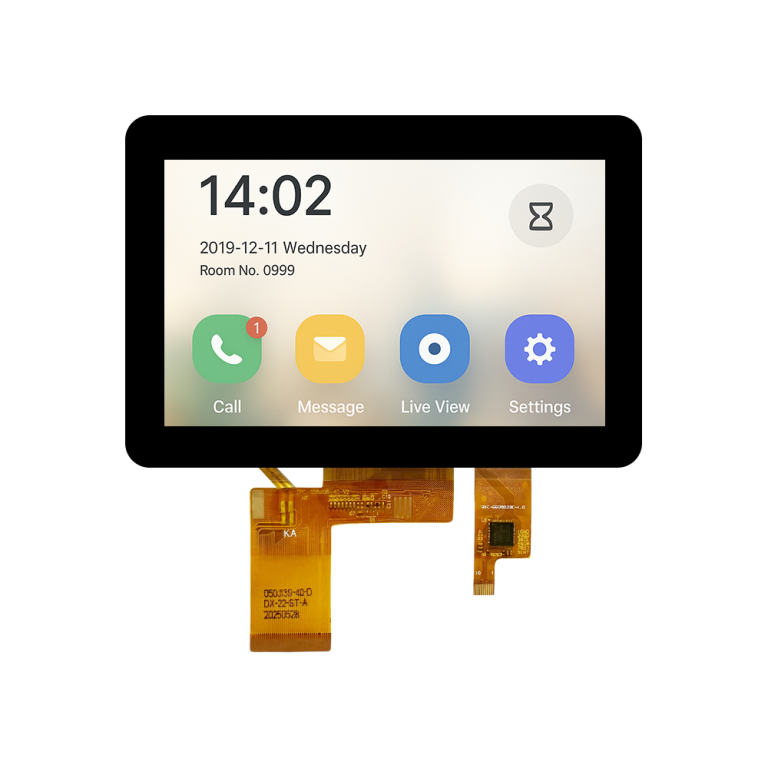

5 inch LCD Touch Screen

Ideal for video intercom systems and smart home devices.

Main Features

Part No. MX-050WR40BFM-N16-CTP02
5" TFT LCD with Touch Screen
800x480 resolution
High brightness 500 cd/m²
Full viewing angles (IPS)
40-pin RGB interface
Capacitive Touch with GT911 Controller (I²C interface)

Get a Quote Download Specs.

MX-050WR40BFM-N16-CTP02

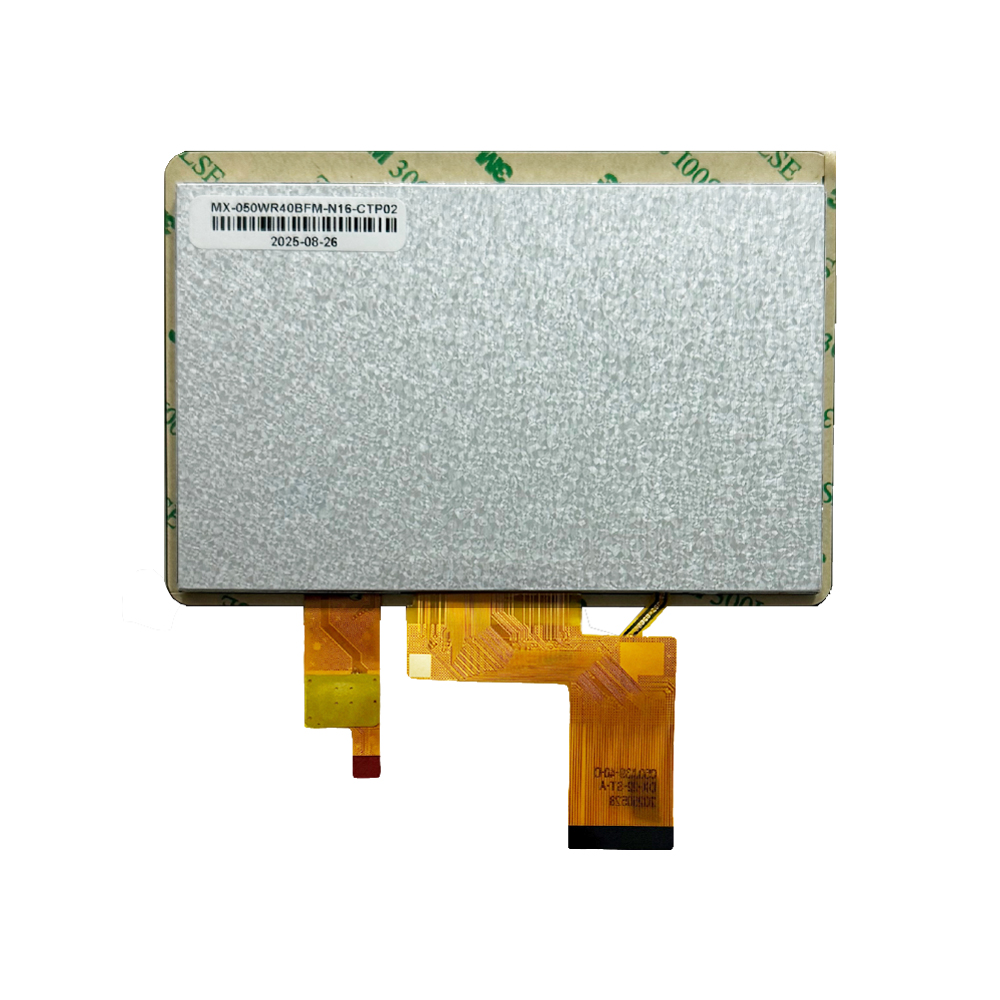

5 inch LCD Touch Screen (Part No. MX-050WR40BFM-N16-CTP02) combines the MX-050WR40BFM-N16 TFT display with the MX-GG05023BG-1.0 capacitive touch panel, bonded together using double-sided tape for reliable assembly and easy integration. Featuring an 800x480 resolution IPS panel, this touch screen display delivers vivid colors, wide viewing angles, and high brightness of 500 cd/m² for clear visibility in both indoor and outdoor environments. The PCAP touch screen adopts a GT911 controller (I²C interface) to ensure accurate and responsive touch performance. Ideal for industrial control systems, smart home devices, and embedded HMI applications, this 5-inch touch display module provides excellent durability, smooth operation, and consistent visual quality.

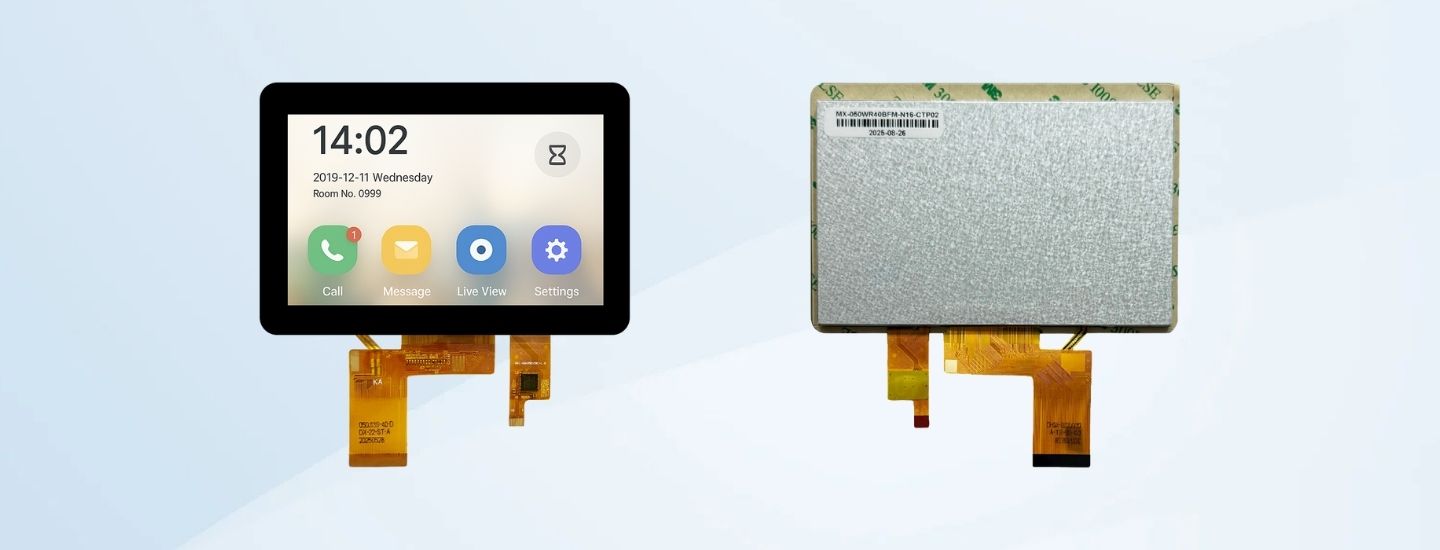

5 inch 800x480 ips lcd touch screen display

High Brightness

500 nits
Working Temp Range

-20°C to 70°C
Interface

40-pin RGB
IC

Single IC design

LCM PIN Definition (40-pin RGB)
TP PIN Definition (10-pin I²C)
Absolute Maximum Ratings
Electrical Characteristics

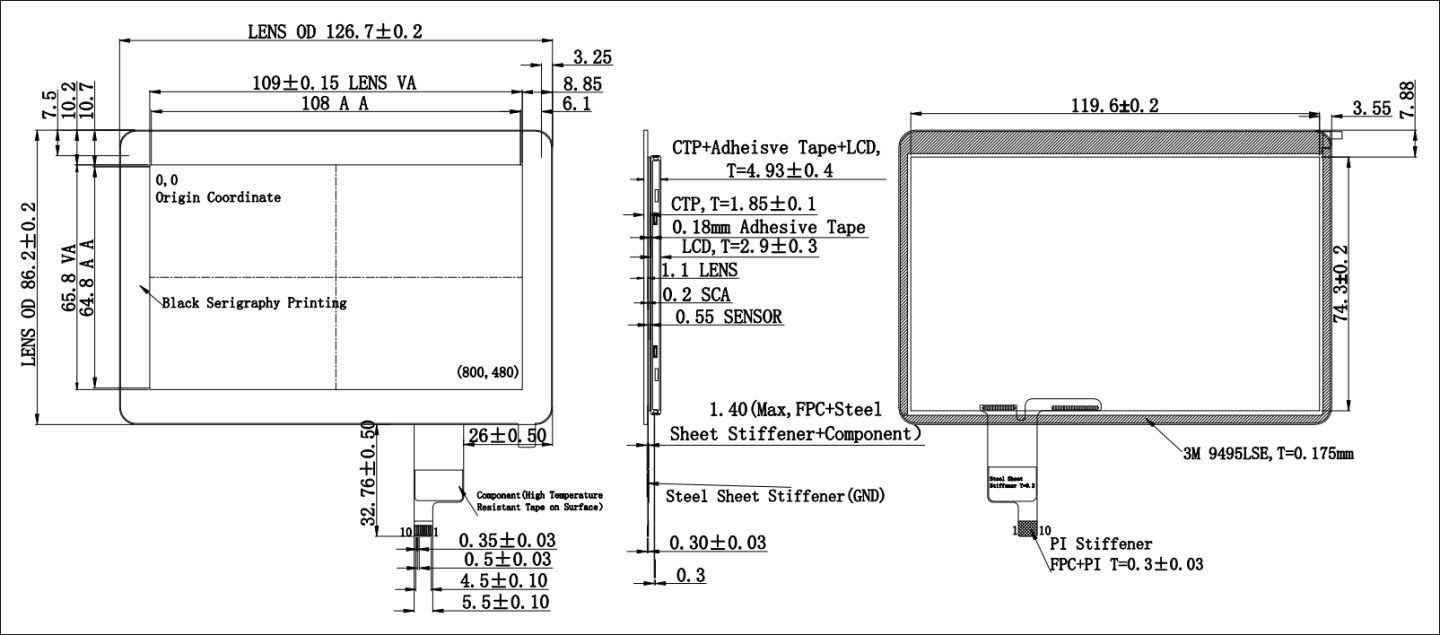

Product Drawing

PIN NO.	Symbol	Description
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	GO-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Standby mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin

PIN NO.	Assignment
1	VSS
2	VDD
3	SCL
4	VSS
5	SDA
6	VSS
7	RST
8	NC
9	INT
10	VSS

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VDD	-0.3	-	3.6	V
Input Voltage	Vin	-0.3	-	VDD+0.5	V
Current of LED	ILED	0	-	20	mA
TFT Gate ON Voltage 1	VGH	10	12	14	V
TFT Gate OFF Voltage 2	VGL	-14	-11.5	-11.5	V
TFT Common Electrode Voltage	VCOM	-1.0	TBD	1.0	V
Supply voltage	Vf	16.8	18.6	20.4	V
Supply current	If	-	60	-	mA

Parameter		Symbol	Condition	Min	Typ	Max	Unit
Power supply		VDD	Ta=25℃	2.8	3.3	3.6	V
Input voltage	‘H’	VIH	VDD=3.3V	0.7VDD	-	VDD	V
Input voltage	‘L'	VIL	VDD=3.3V	0	-	0.3VDD	V
Current Consumption		Icc1	Normal mode	-	-	-	mA
Current Consumption		Icc2	Sleep mode	-	0.03	0.09	mA
