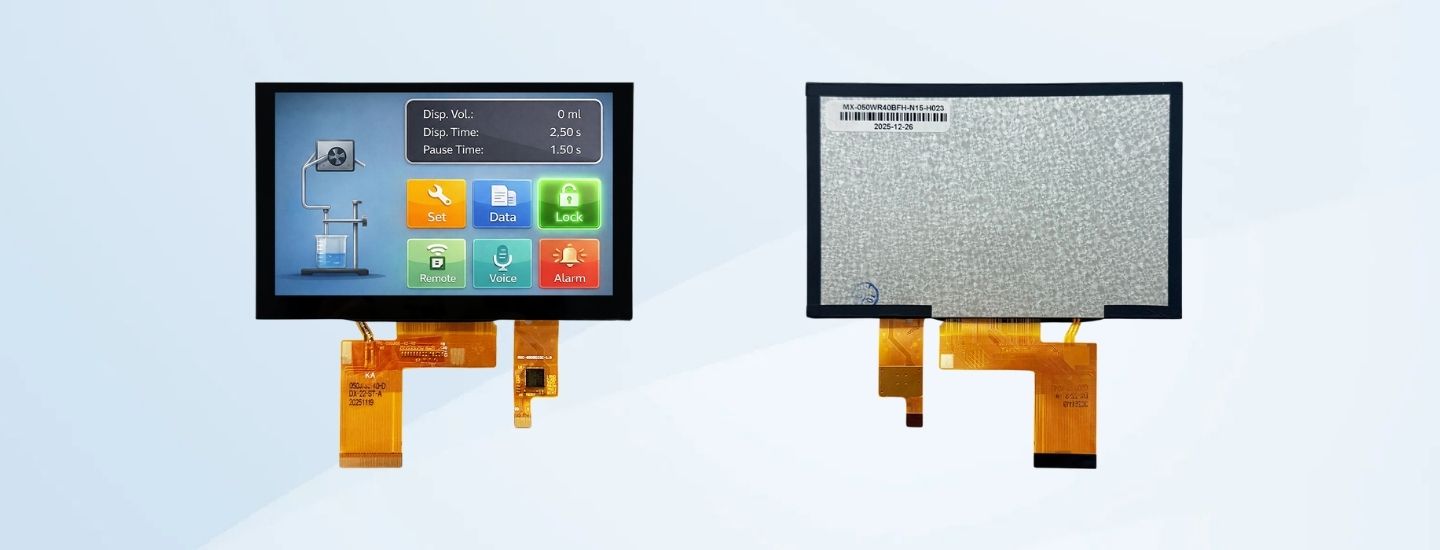

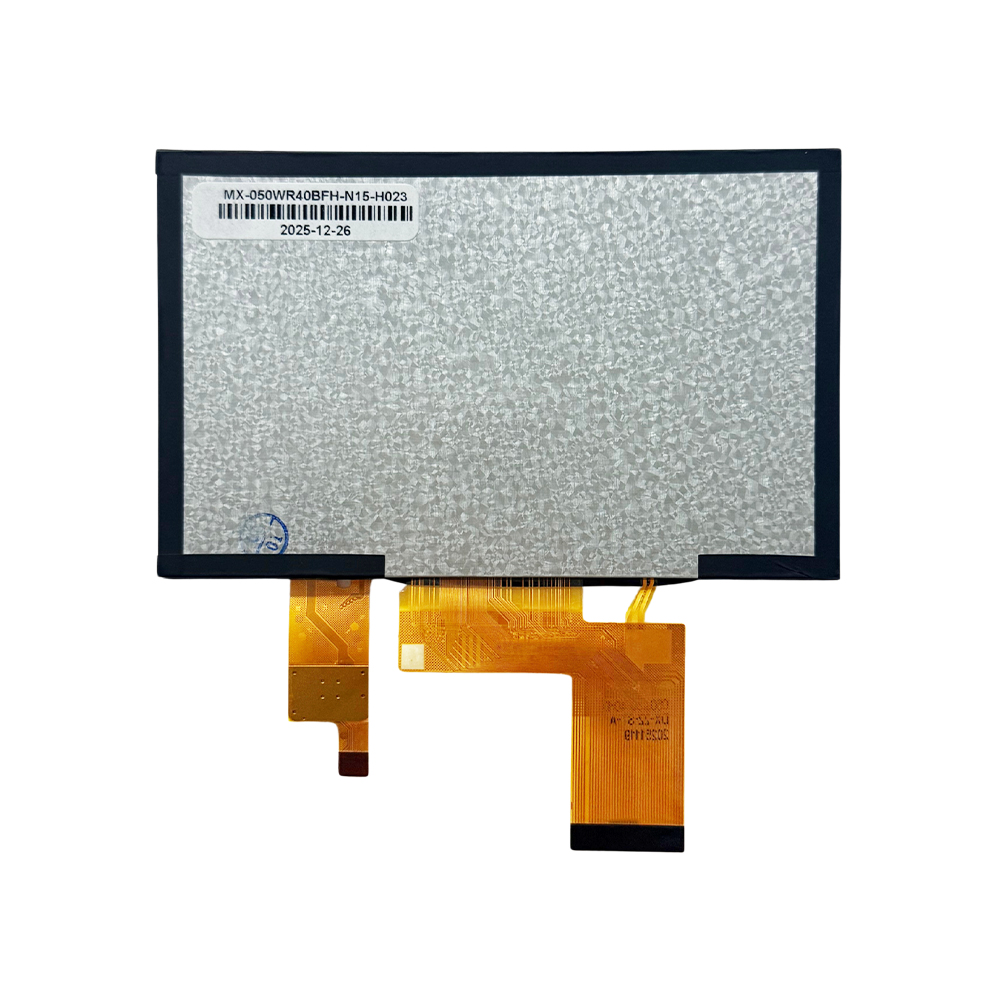

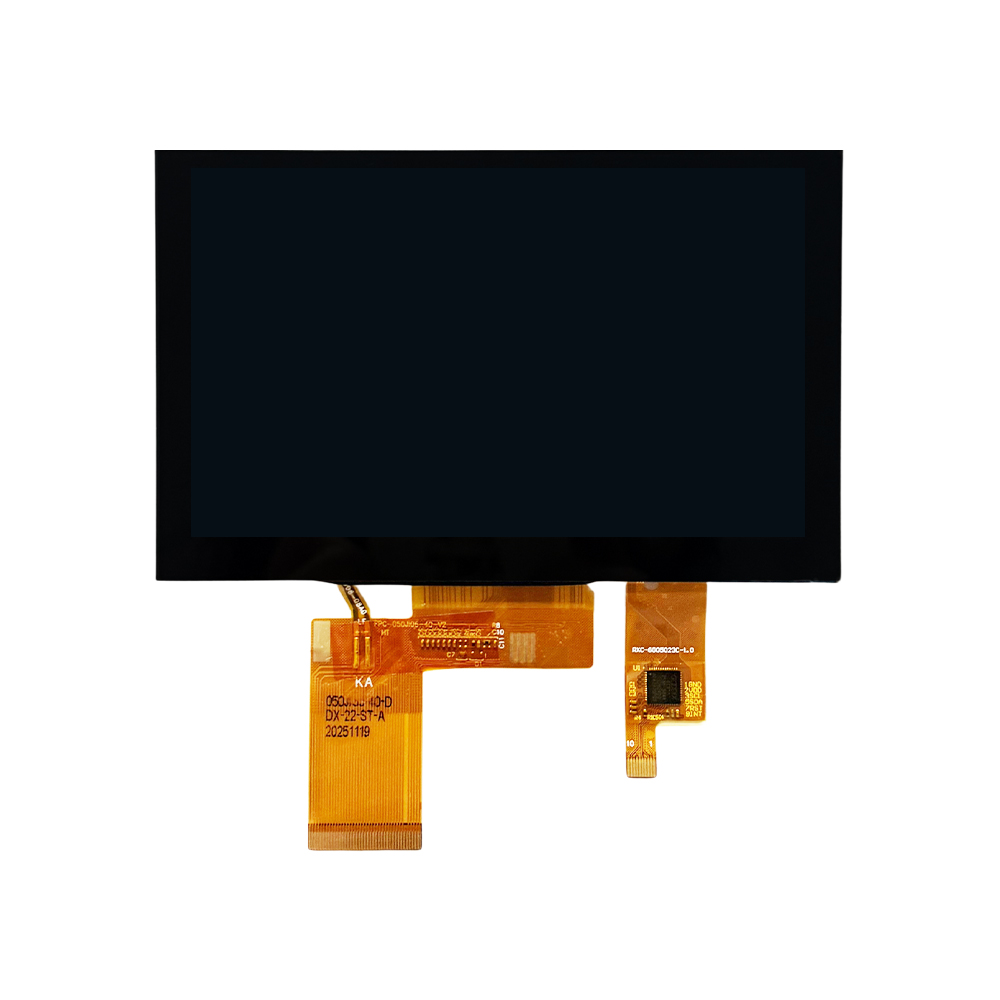

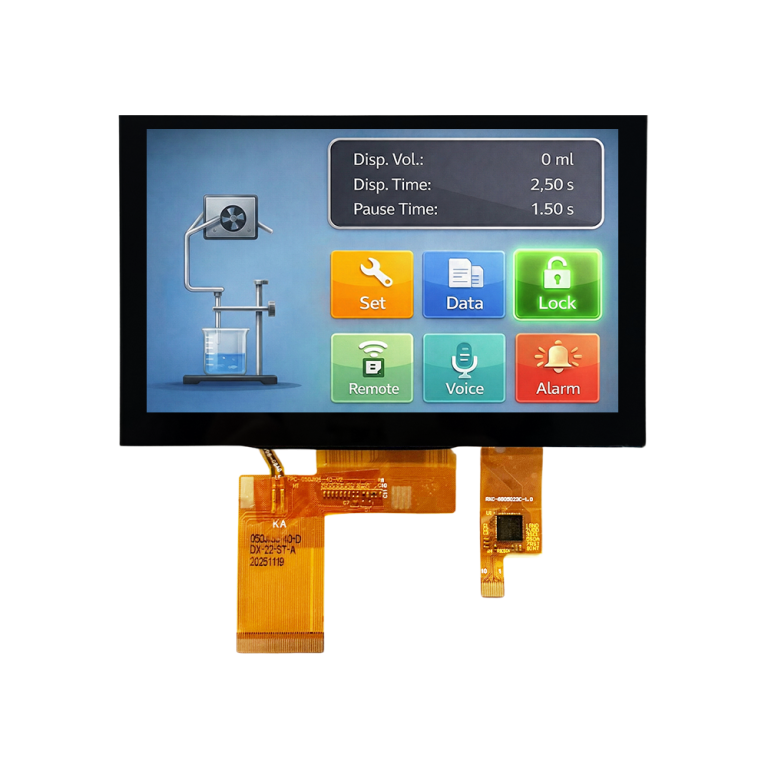

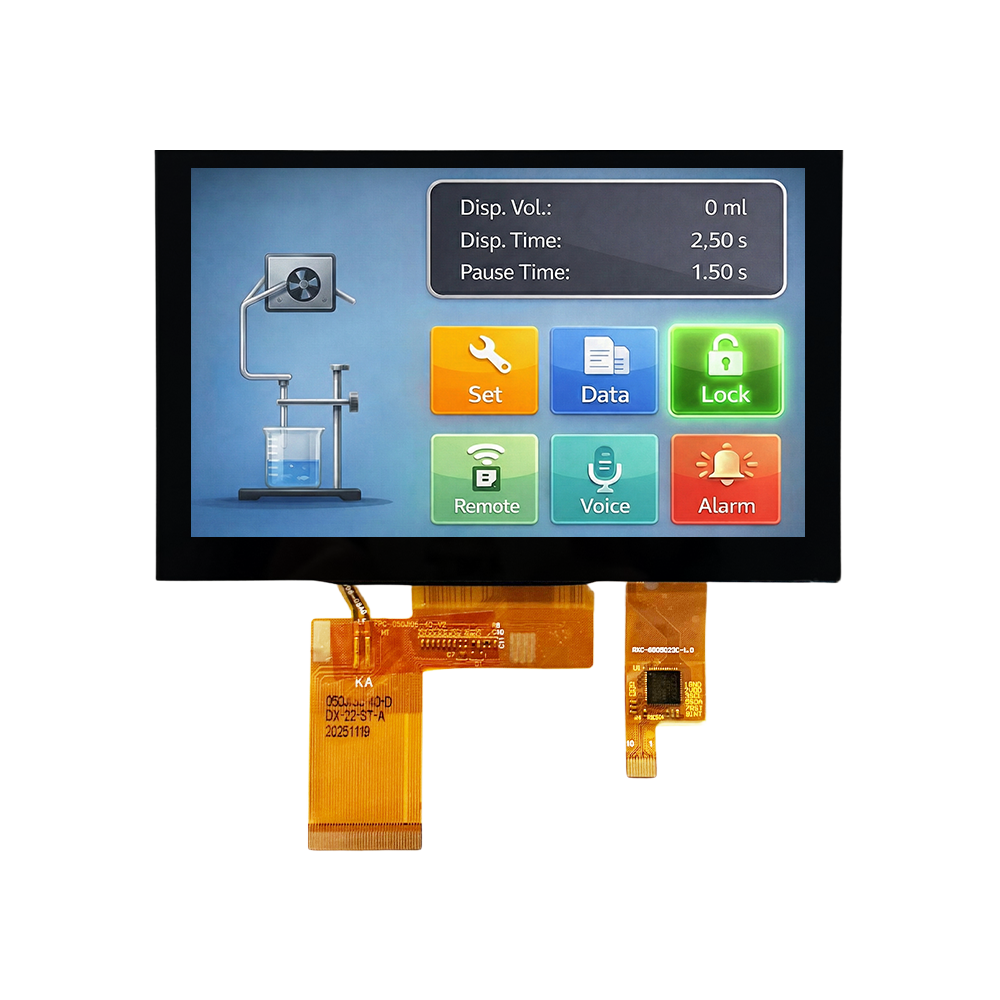

LCM PIN Definition (40-pin RGB)
| PIN NO. | Symbol | Description |
| 1 | LED_K | Backlight LED Ground |
| 2 | LED_A | Backlight LED Power |
| 3 | GND | GND |
| 4 | VDD | Power supply |
| 5~12 | RO-R7 | Red data bus |
| 13~20 | G0-G7 | Green data bus |
| 21~28 | B0-B7 | Blue data bus |
| 29 | GND | GND |
| 30 | PCLK | Data clock |
| 31 | DISP | Standby mode select pin |
| 32 | HSYNC | Line SYNC signal |
| 33 | VSYNC | Frame SYNC signal |
| 34 | DE | Data Enable Input |
| 35 | NC | NC |
| 36 | GND | GND |
| 37 | X1 | Touch Panel Control Pin |
| 38 | Y1 | Touch Panel Control Pin |
| 39 | X2 | Touch Panel Control Pin |
| 40 | Y2 | Touch Panel Control Pin |
TP PIN Definition (10-pin I²C)
| PIN NO. | Assignment |
| 1 | VSS |
| 2 | VDD |
| 3 | SCL |
| 4 | VSS |
| 5 | SDA |
| 6 | VSS |
| 7 | RST |
| 8 | NC |
| 9 | INT |
| 10 | VSS |
Absolute Maximum Ratings
| Item | Symbol | Min. | Max. | Unit |
| Power Supply Voltage | VDD | -0.3 | 3.6 | V |
| Input Voltage | Vin | -0.3 | VDD+0.5 | V |
| Current of LED | ILED | 0 | 20 | mA |
Electrical Characteristics
| Parameter | Symbol | Condition | Min | Typ | Max | Unit | |
| Power Supply | VDD | Ta=25℃ | 2.8 | 3.3 | 3.6 | V | |
| Input Voltage | 'H' | VIH | VDD=3.3V | 0.7VDD | - | VDD | V |
| 'L' | VIL | VDD=3.3V | 0 | - | 0.3VDD | V | |
| Current Consumption | lcc1 | Normal mode | - | - | - | mA | |
| lcc2 | Sleep mode | - | 0.03 | 0.09 | mA | ||
| Supply Voltage | Vf | - | 16.8 | 18.6 | 20.4 | V | |
| Supply Current | If | - | - | 80 | - | MA | |
