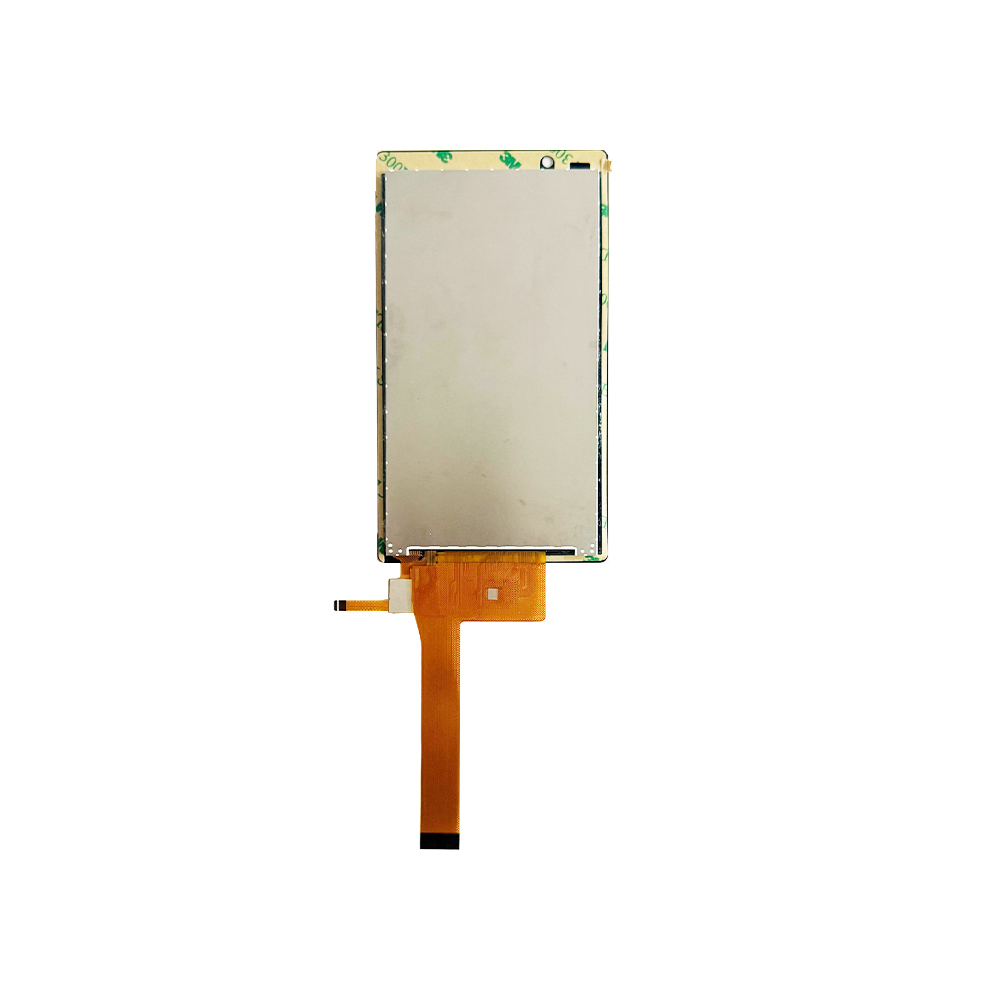

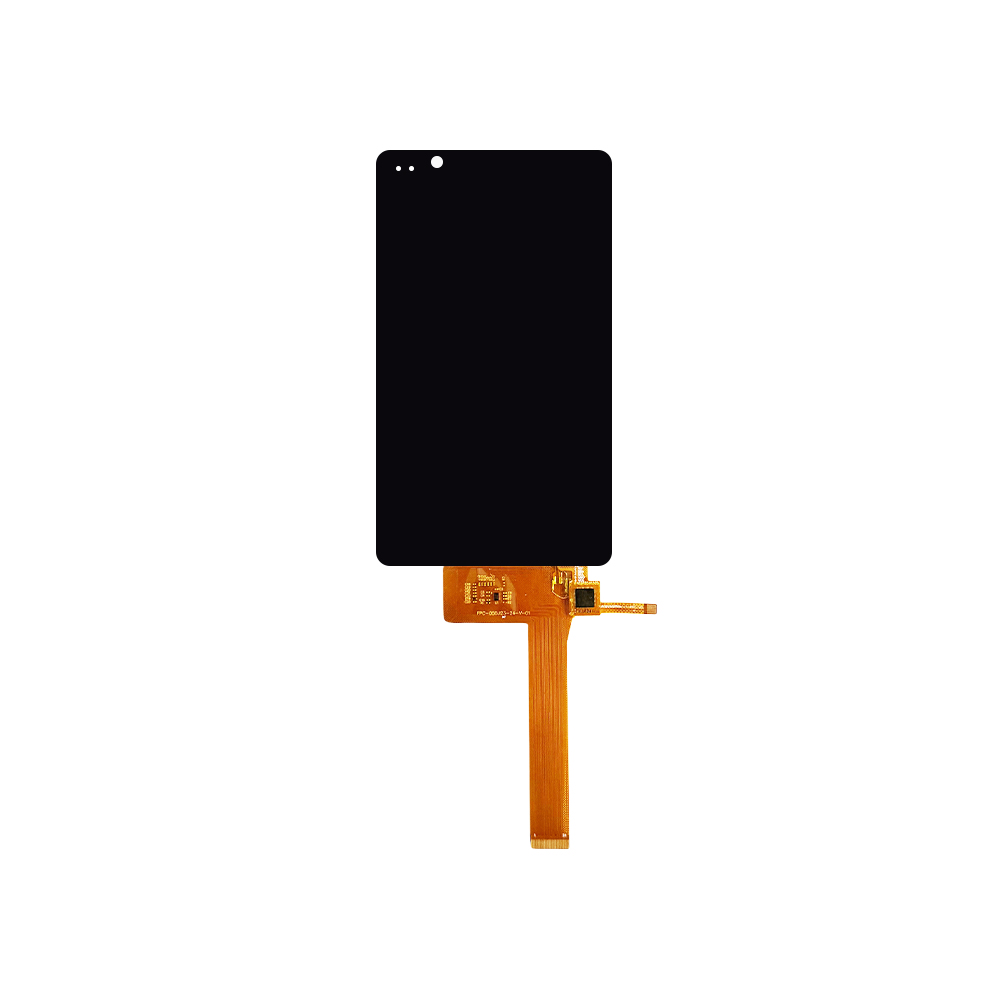

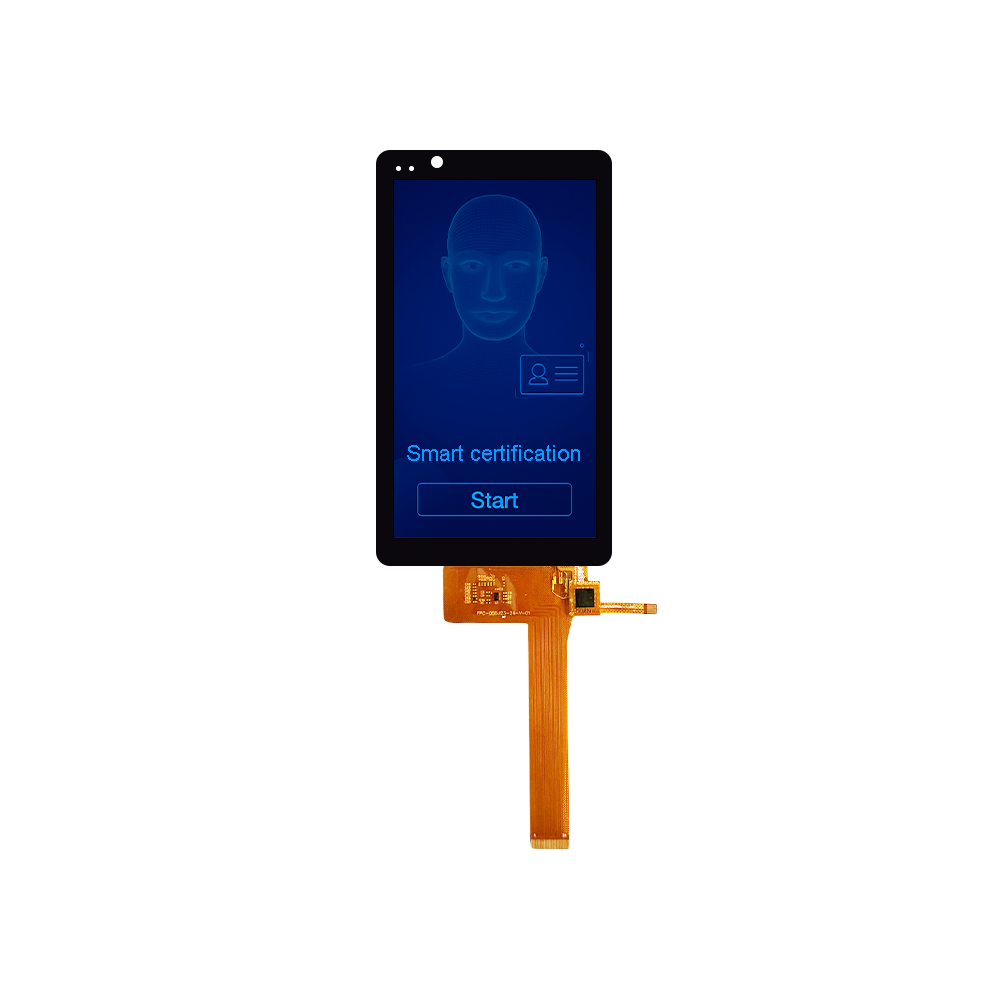

5 inch 720×1280 LCD Touch Display

Ideal for facial recognition applications with LED-compatible touch screen cover glass.

Main Features

Part No. MX-050FM24BFM-N41-1022
5" TFT LCD with Touch Screen
720x1280 resolution
High brightness 500 cd/m²
Full viewing angles (IPS)
24-pin MIPI interface
Capacitive Touch with GT911 Controller (I²C interface)

Get a Quote Download Specs.

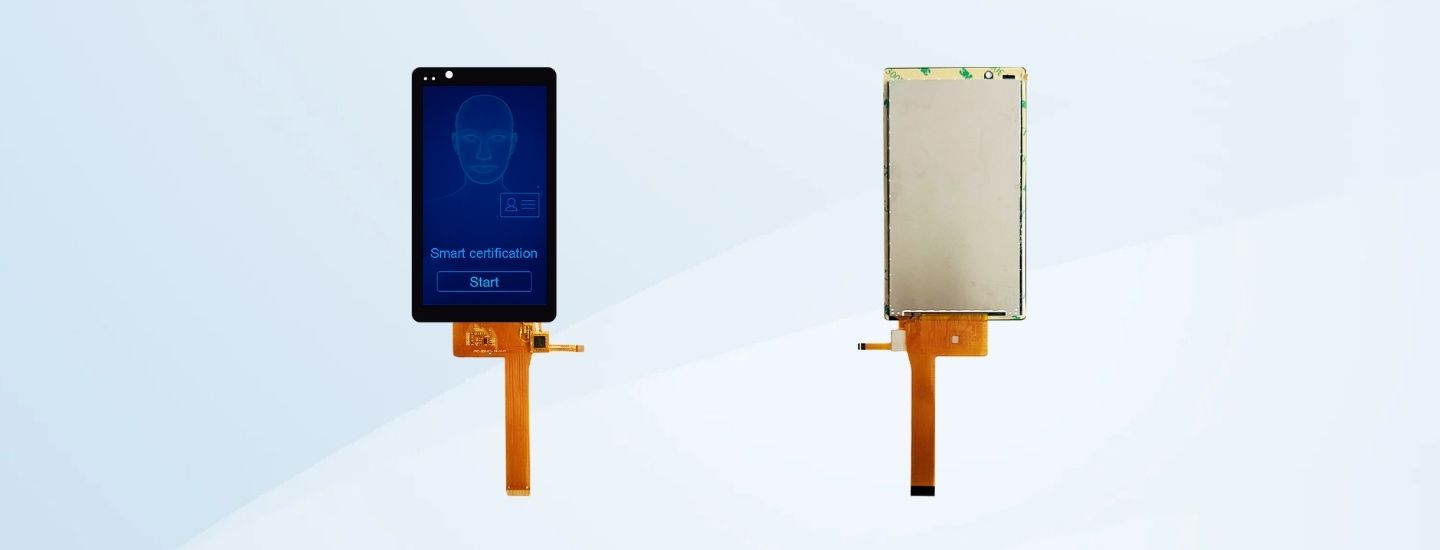

MX-050FM24BFM-N41-1022

5 inch 720x1280 LCD Touch Display MX-050FM24BFM-N41-1022 features a custom vertical orientation design, offering 500 cd/m² high brightness and an IPS panel that provides full viewing angles, ensuring excellent visual performance. This display is equipped with a 24-pin MIPI interface and a capacitive touch screen with the GT911 controller (I²C interface), delivering precise and responsive touch input. The PCAP touch screen cover glass includes transparent and semi-transparent holes (15%±5 transparency), making it ideal for LED lighting, with the light invisible when turned off—perfect for applications like facial recognition.

High Brightness

500 nits
Working Temp Range

-20°C to 70°C
Interface

24-pin MIPI
IC

ILI9881

PIN NO.	Symbol	Function
1	NC	No connection
2	VCI	Power supply (2.5V-3.3V)
3	IOVCC	Power supply (1.8V-3.3V)
4	NC	No connection
5	RESET	Global reset pin
6	GND	Power ground
7	NC	No connection
8	PWM
9	VLED-	Power for LED backlight (Cathode)
10	VLED+	Power for LED backlight (anode)
11	GND	Power ground
12	GND	Power ground
13	NC	No connection
14	TE
15	GND	Power ground
16	MIPI DOP	MIPI date positive signal
17	MIPI DON	MIPI date negative signal
18	GND	Power ground
19	MIPI D1P	MIPI date positive signal
20	MIPI D1N	MIPI date negative signal
21	GND	Power ground
22	MIPI CLKP	MIPI CLK positive signal
23	MIPI CLKN	MIPI CLK negative signal
24	GND	Power ground

PIN NO.	Assignment
1	INT
2	RST
3	SDA
4	SCL
5	GND
6	VDD

Parameter	Symbol	Min	Typ	Max	Unit
Power Supply	DVDD	-0.3	-	3.96	V
Analog Supply	AVDD	-0.5	-	14.85	V
TFT Gate ON	VGH	-0.3	-	40	V
TFT Gate OFF	VGL	-20	-	0.3	V
TFT Common Electrode	VCOM	2.85	-	3.15	V
Operating Temperature	TOP	-20	-	70	℃
Storage Temperature	TST	-30	-	80	℃

Parameter		Symbol	Min	Typ	Max	Unit
Power supply		DVDD	3.0	3.3	3.6	V
		AVDD	9.3	9.6	9.9	V
		VGH	11	12	13	V
		VGL	-13	-12	-11	V
Input signal voltage		VCOM	-2	-1	0	V
Input voltage	"H"	VIH	0.7VDVDD	-	VDVDD	V
Input voltage	"L"	VIL	0	-	0.3VDVDD	V

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply voltage	Vf	-	-	18	-	V
Supply current	If	-	-	40	-	mA
Number of LED	-	6Sx2P	-	12	-	Piece
Power consumption	-	-	996	1116	1224	mW
LED life time	-	-	30000	-	-	Hrs

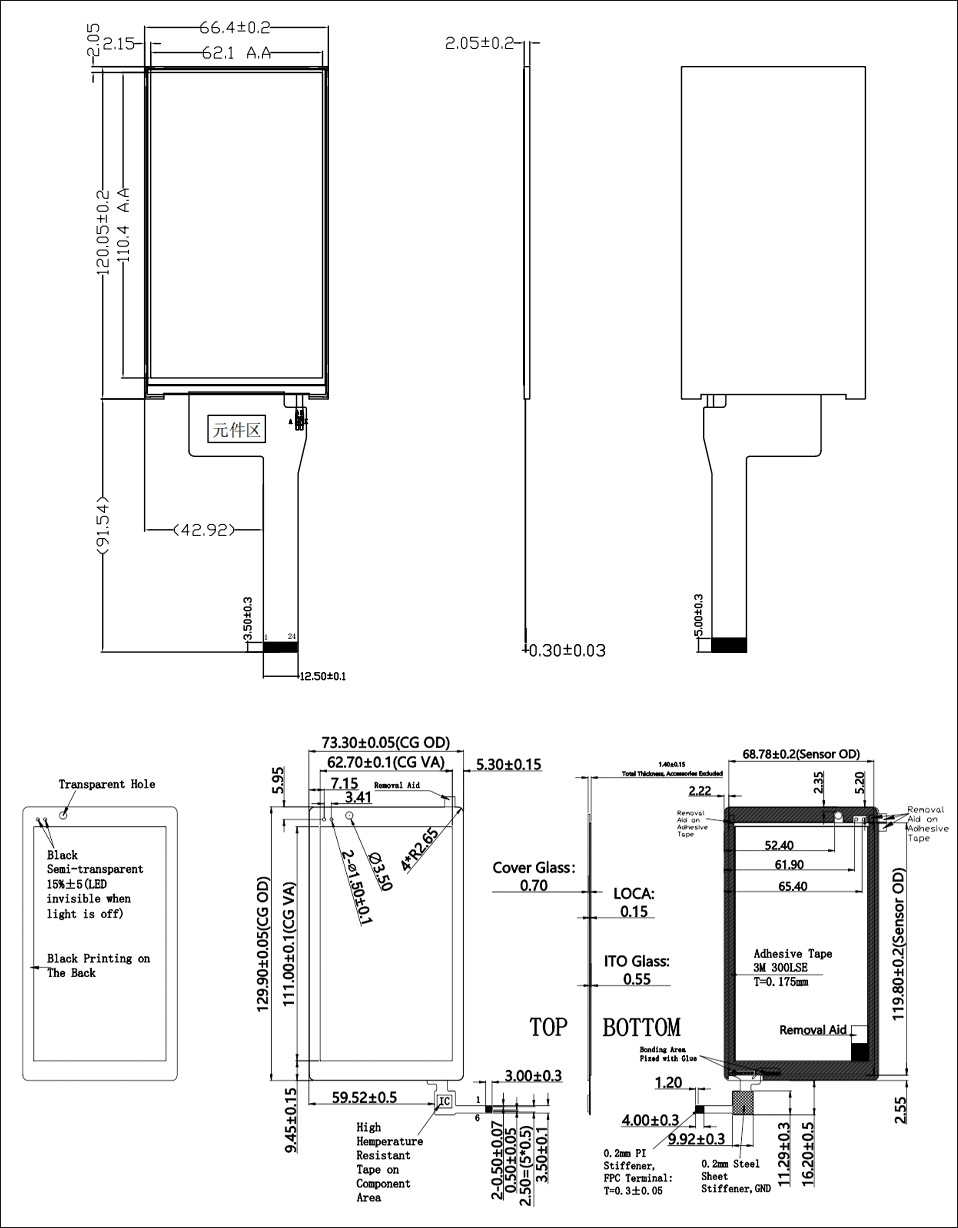

5 inch 720×1280 LCD Touch Display Product Drawing

Tags:

MIPI Interface

Touch Screen for Facial Recognition

5 inch LCD

Vertical LCD

720x1280 Display

GT911 Touch Controller

Capacitive Touch

LED Compatible

Transparent Holes Design
