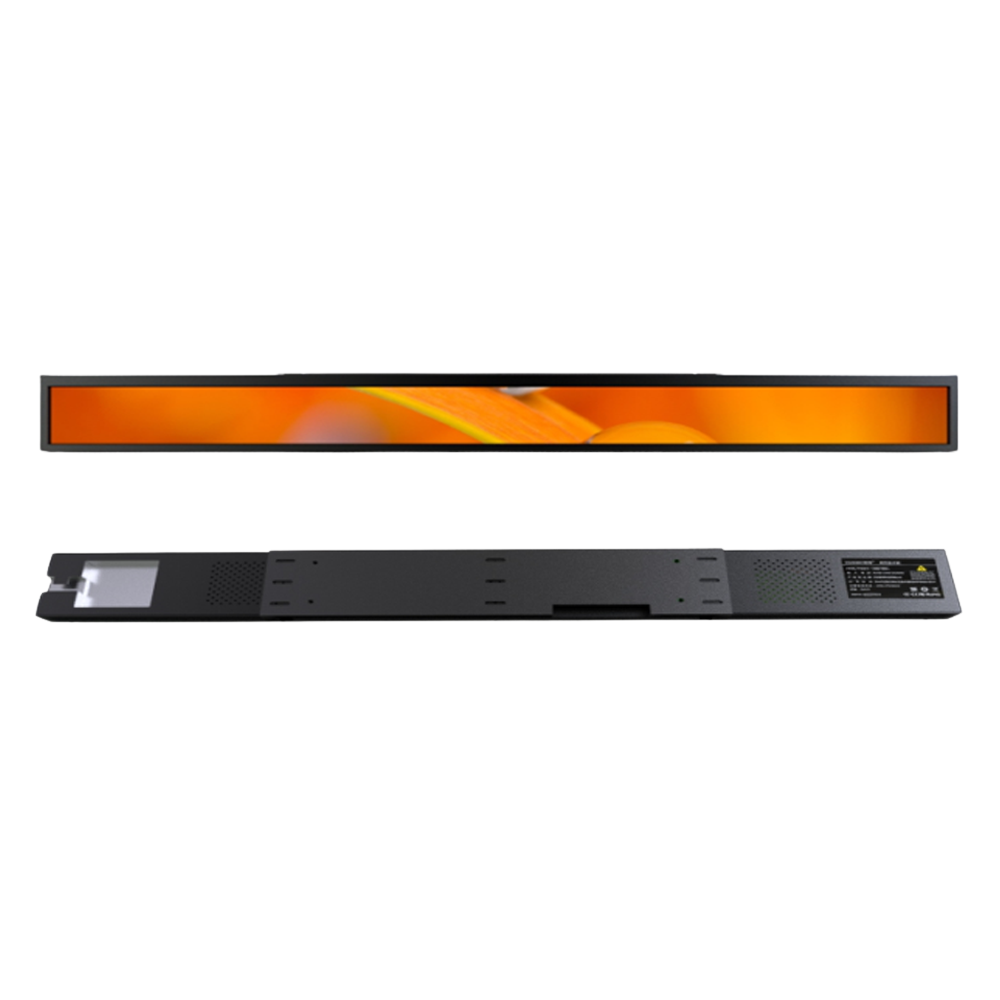

23.1 inch Shelf Edge Display

Ideal for supermarket shelf edge advertising, pharmacy shelves and convenience stores.

Main Features

23.1" stretched bar-type LCD with 1880x120 resolution
High brightness 500 cd/m²
IPS full viewing angle
Built-in Android platform (Cortex-A55, 2G RAM + 16G eMMC)
Flexible content playback via WiFi, USB and TF card
Slim wall-mount design ideal for shelf edge advertising

Get a Quote Download Specs.

Smart Shelf Edge Bar Display for Digital Retail Signage

The 23.1 inch shelf edge display is a stretched bar-type LCD designed for modern retail shelving and long, narrow fixtures. With 1880x120 resolution, 500 cd/m² high brightness and IPS full viewing angles, it delivers clear, readable content along the entire shelf edge. The built-in Android platform with Cortex-A55 processor, 2G RAM and 16G eMMC supports flexible content playback via WiFi, USB and TF card, making it easy to update pricing, promotions and branding visuals. Its slim wall-mount design fits neatly on supermarket, pharmacy and convenience store shelves, helping retailers replace static labels with dynamic, eye-catching digital signage.

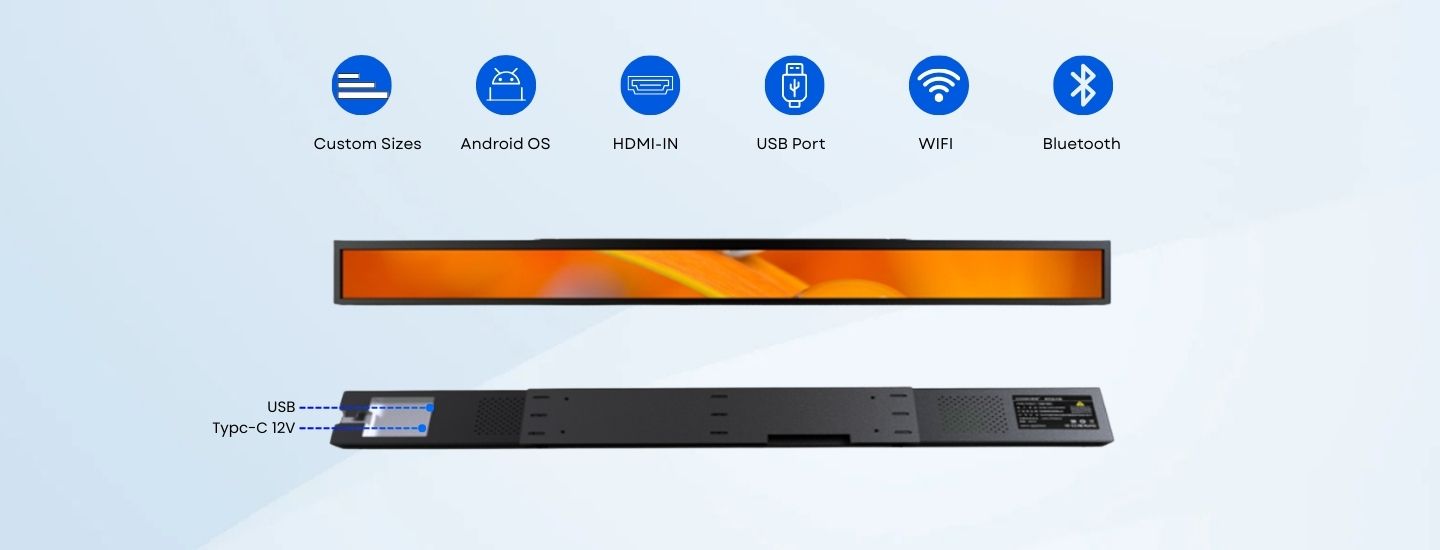

23.1 inch Shelf Edge Display 1880x120 resolution

High Brightness

500 nits
Interface

Type-C
Working Temp Range

-20°C to 70°C
Operating System

Android

Product Parameters

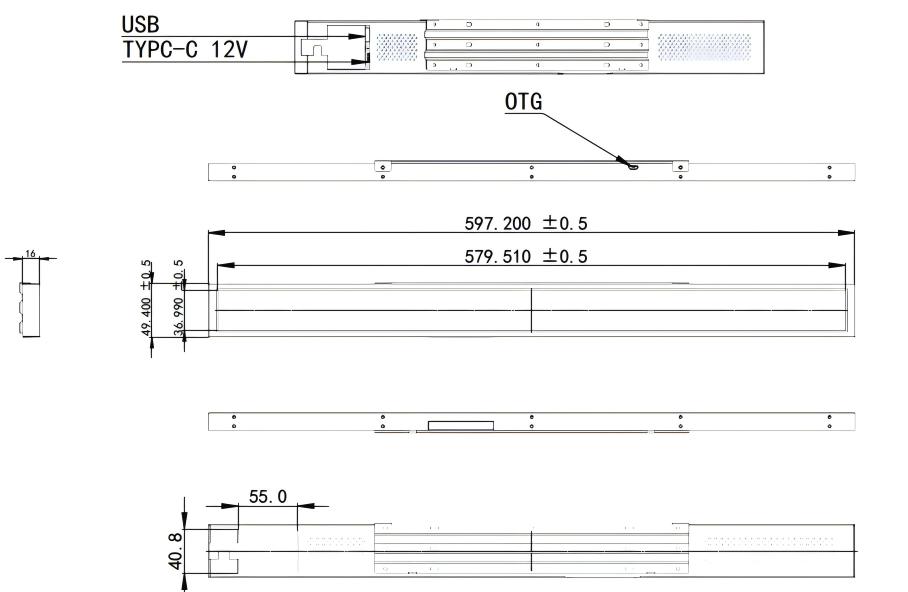

Product Drawing

Size	23.1"
Panel Type	a-Si TFT-LCD
Display Area	579.51mm*36.99mm
Aspect Ratio	>3:1
Resolution	120x1880
Display Color	16.7M
Dot Pitch	0.10275(H)mm*0.30825(V)mm
Brightness	500cd/m2
Contrast Ratio	3000:1
Viewing Angle	178°
Response Time	8ms
Refresh Rate	60Hz
Menu Language	Chinese/English
Video Interface	NA
Audio Interface	N/A
Other Interface	N/A
CPU	Quad-core Cortex-A55
Memory	2G DDR3
Storage	16G EMMC
WIFI	2.4G+5G WIFI
Bluetooth	N/A
Ethernet Port	N/A
Interface Support	TF Card×1/OTG×1/Type-c×1
System Version	Android 11
Input Voltage	～AC 100-240V 50/60Hz
Maximum Power Consumption	20W
Standby Power Consumption	≤0.1W（Board only）
Storage Temperature	-20~60°
Amplifier Power	N/A
Product Dimensions	597.2×49.4×16mm
Packaging Dimensions	/
Net Weight	0.6KG
Remote Control	N/A
AC Power Adapter	AC 12V/3A

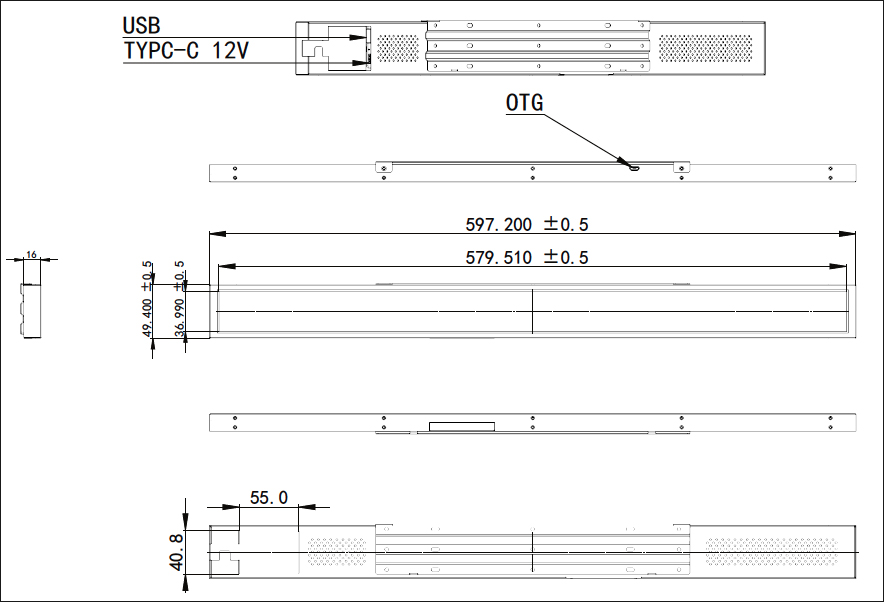

23.1 inch Shelf Edge Display Product Drawing

Tags:

retail shelf signage

3.1 inch shelf edge display

supermarket shelf display

shelf edge display

stretched lcd display

custom shelf edge display

lcd display manufacturer

android shelf display

bar type lcd monitor

digital price tag display

pharmacy shelf display

23.1 inch bar lcd

FAQs

Frequently Asked Questions

Can you support small MOQ for new projects?

Yes. We can support smaller MOQ for new designs and pilot runs, then ramp up with your mass production plan.

What kind of reliability and environmental tests can you cover?

We can follow standard display tests such as high/low temperature storage and operation, temperature cycling, humidity, ESD and basic vibration tests according to the agreed test plan.

How do you handle design or component changes during the product lifetime?

Design or key component changes are communicated in advance. We follow a controlled change process and can provide alternative solutions or second-source options where needed.

Can I visit your factory?

Yes, factory visits are welcome with prior scheduling.

Do you support OEM/ODM projects?

Yes, we offer full customization services for OEM and ODM clients.
