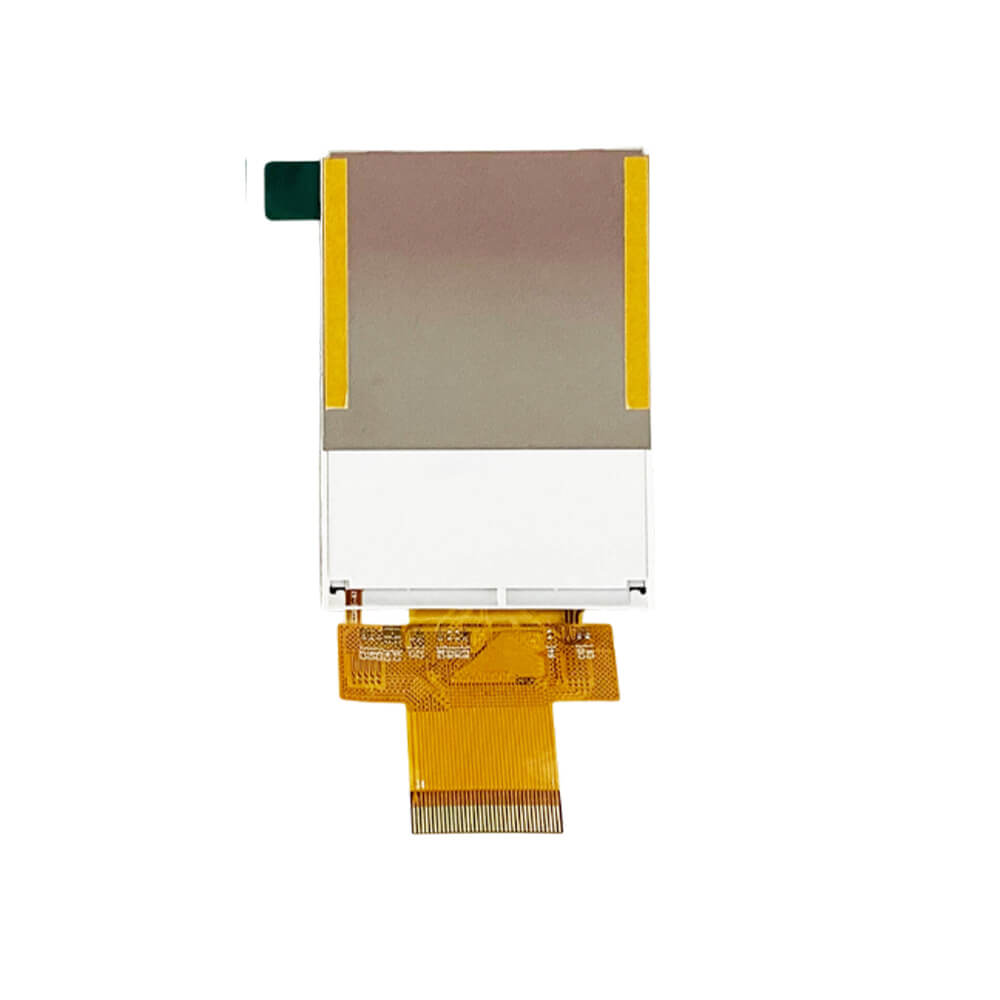

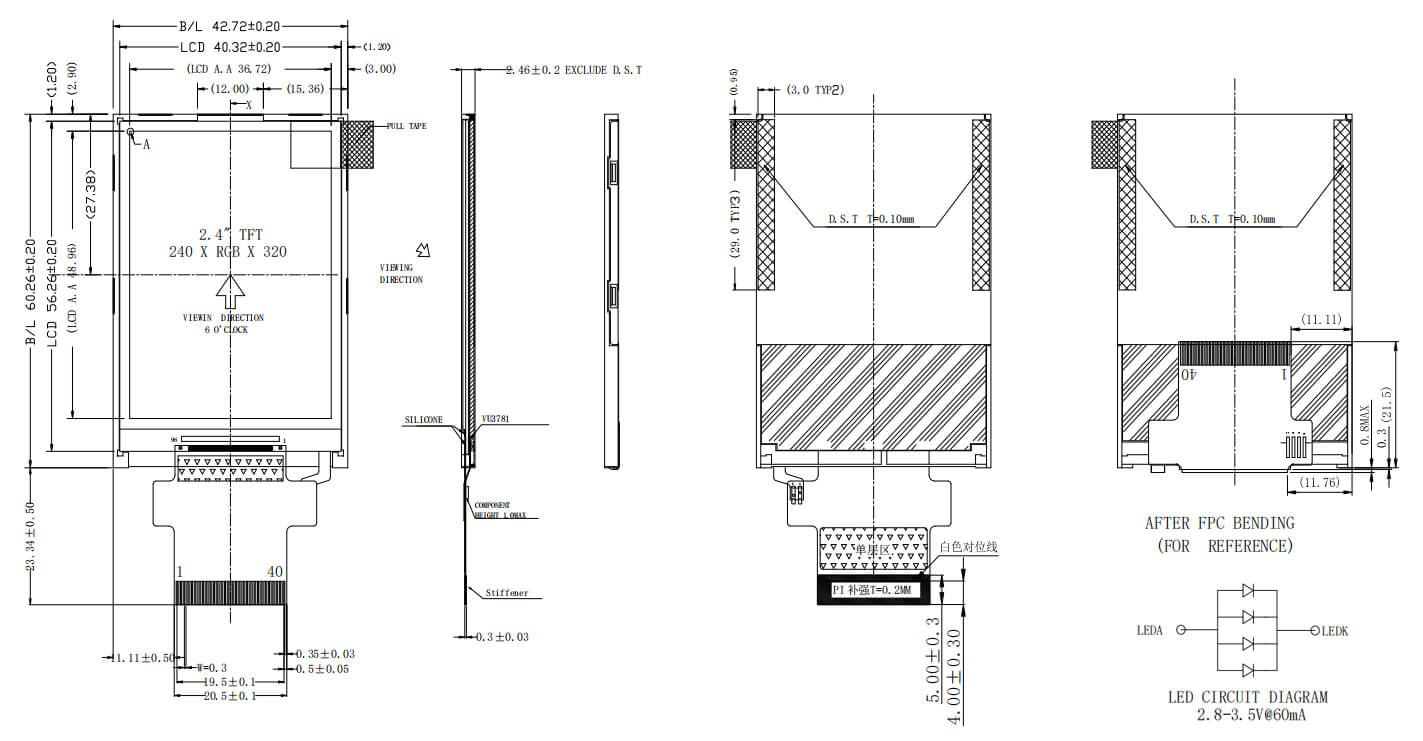

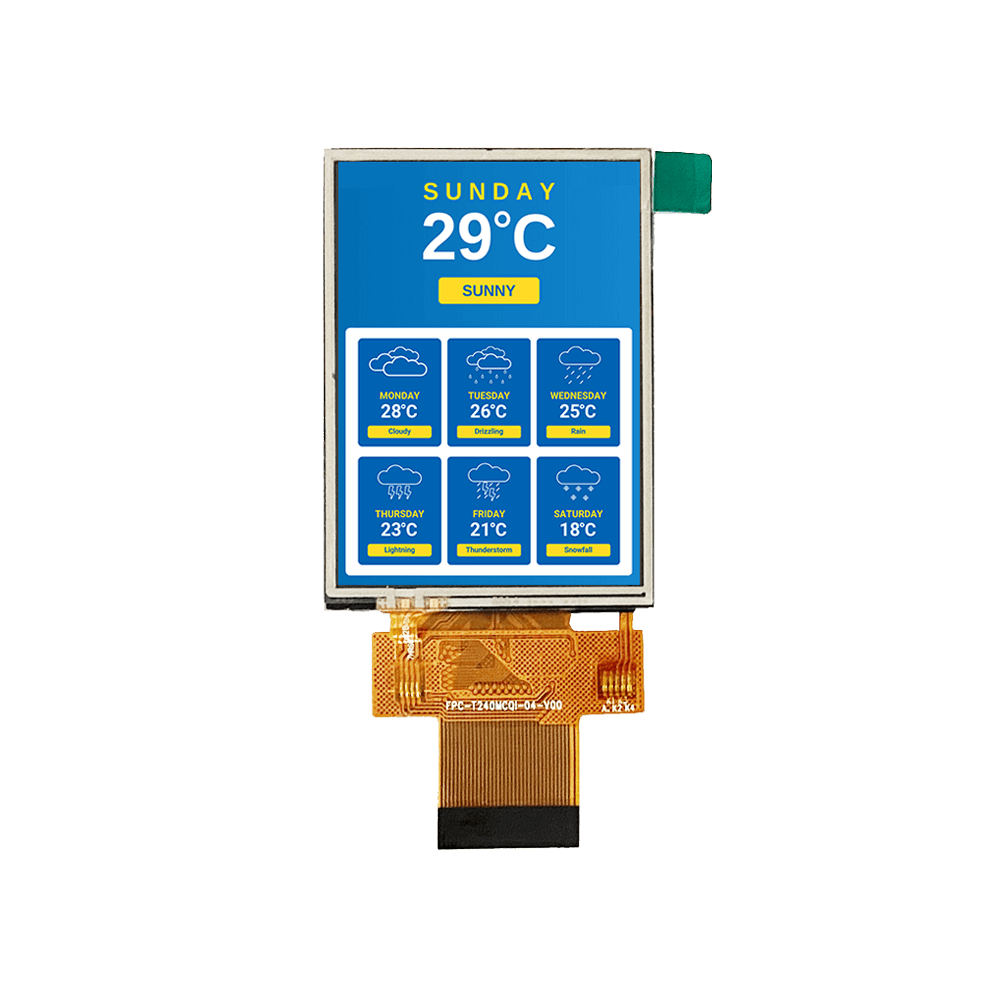

Pin No. | Symbol | Description |
1 | NC | No connect. |
2~5 | DB1~DB4 | Data bus. |
6 | GND | Power ground. |
7 | IOVCC | Power supply for I/O. |
8 | CS | Chip select input pin(“Low”enable). |
9 | RS | Display data/command selection pin. |
10 | WR | Write enable. |
11 | RD | Read enable. |
12 | IM0 | IM0=“0”:80-16bit parallel,Data Pin:DB[17:10],DB[8:1]; IM0=“1”:80-8bit parallel,Data Pin:DB[17:10]. |
13 | XR | No connect. |
14 | YD | No connect. |
15 | XL | No connect. |
16 | YU | No connect. |
17 | LEDA | Anode of LED backlight. |
18~21 | LEDK1~LEDK4 | Cathode of LED backlight. |
22 | NC | No connect. |
23 | DB5 | Data bus. |
24~31 | DB10~DB17 | Data bus. |
32 | RESET | Reset pin. |
33 | VCI | Power supply for Analog. |
34 | IOVCC | Power supply for I/O |
35 | GND | Power ground. |
36~38 | DB6~DB8 | Data bus. |
39 | TE | Tearing effect output signal. |
40 | NC | No connect. |
Parameter | Symbol | Min | Max | Unit |
Supply voltage for analog | VCI | -0.3 | 4.6 | V |
Supply voltage for logic | IOVCC | -0.3 | 4.6 | V |
Supply current(One LED) | ILED | — | 30 | mA |
Operating temperature | Top | -20 | +60 | ℃ |
Storage temperature | TsT | -30 | +70 | ℃ |
Note: The absolute maximum rating values of this product are not allowed to be exceeded at anytimes. Should a module be used with any of the absolute maximum ratings exceeded, the characteristics of the module may not be recovered, or in an extreme case, the module may be permanently destroyed.
Item | Symbol | Min | Typ. | Max | Unit |
Supply Voltage for Analog | VCI | 2.4 | 2.8 | 3.5 | V |
Supply Voltage for Logic | IOVCC | 1.65 | 1.8 | 3.3 | V |
Input Voltage | VIL | GND | — | 0.3IOVCC | V |
VH | 0.7IOVCC | — | IOVCC | ||
Input leakage Current | ILKG | -1 | — | 1 | μA |
Item | Symbol | Value | Unit | Remark | ||
Min. | Typ. | Max. | ||||
Voltage for LED Backlight | VF | 2.8 | 3.3 | 3.5 | V | IL=60mA |
Current for LED Backlight | IL | — | 60 | — | mA | — |
Power Consumption | P | — | 0.198 | — | W | — |
LEDLife Time | — | 30,000 | 50,000 | — | Hr | Note |
Note: Brightness to be decreased to 50% of the initial value at ambient temperature TA=25℃.
