12.1 inch LCD Touch Screen

Ideal for outdoor agricultural machinery, and other high-humidity or seaside applications.

Main Features

Part No. MX-121FL20BFH-C14
12.1" TFT LCD Optical Bonding with Touch Screen
1280x800 resolution
High brightness 1000 cd/m²
Full viewing angles (IPS)
20-pin LVDS interface
Capacitive Touch with EETI Controller (USB interface)
Waterproof-capable touch, supports wet / water-drop operation

Get a Quote Download Specs.

MX-121FL20BFH-C14

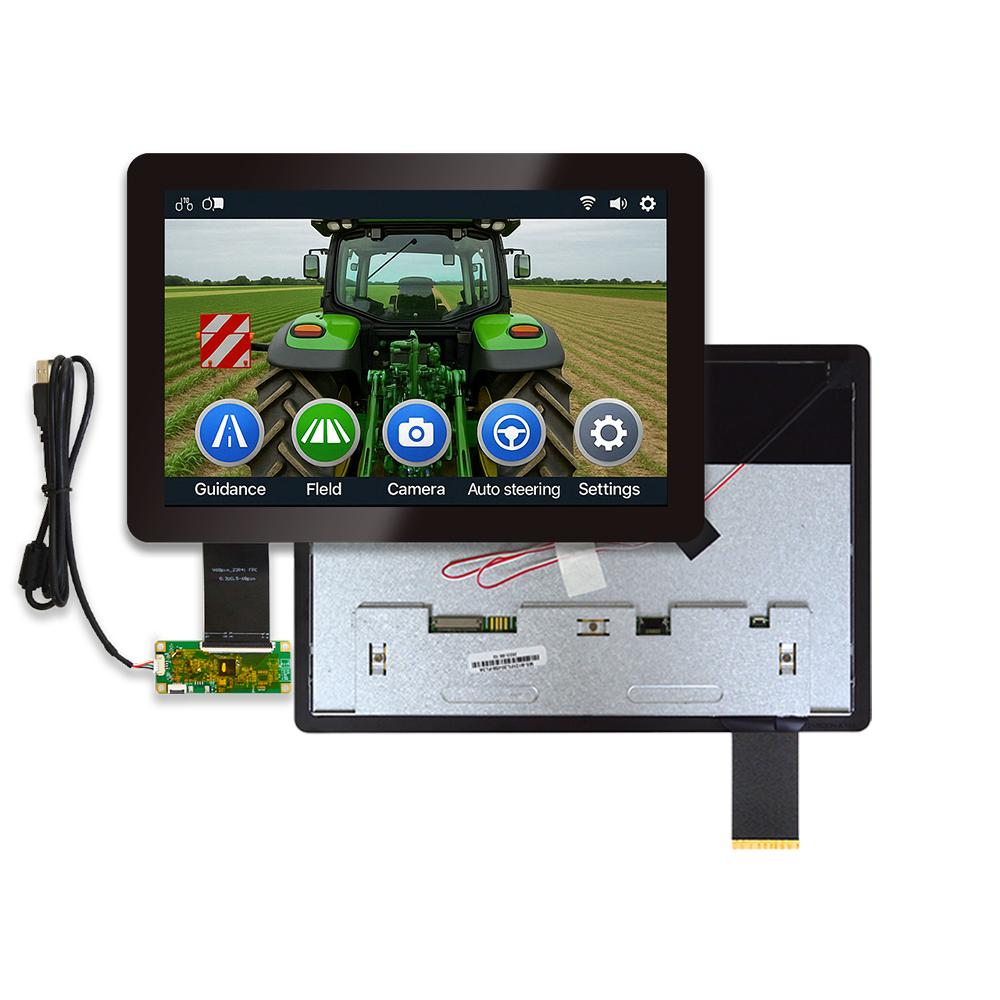

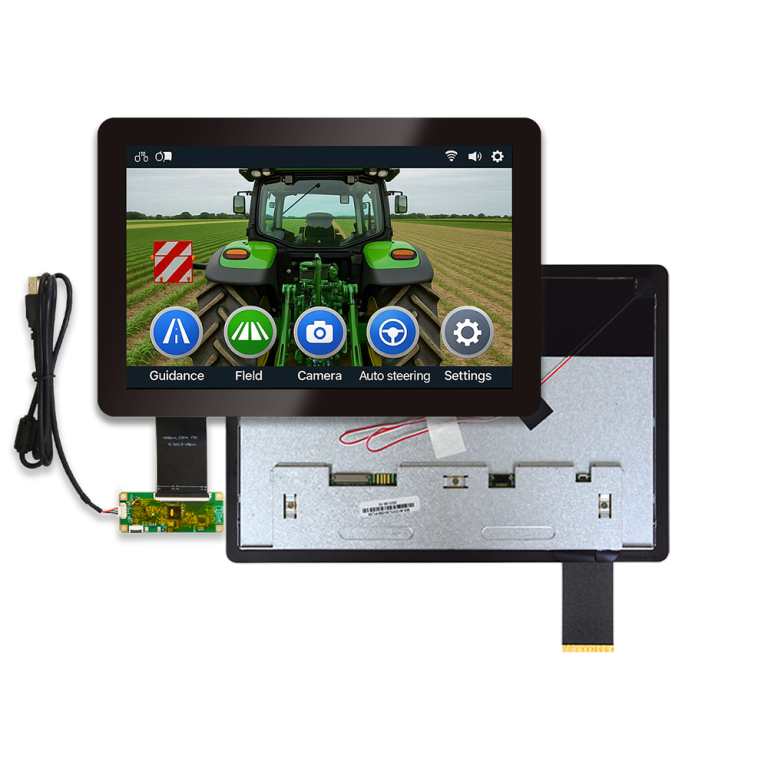

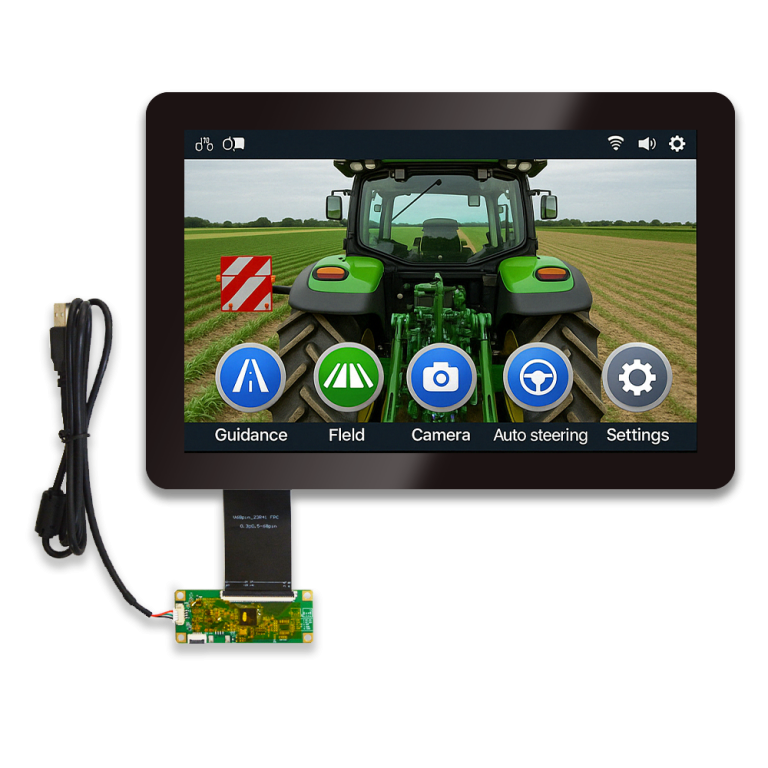

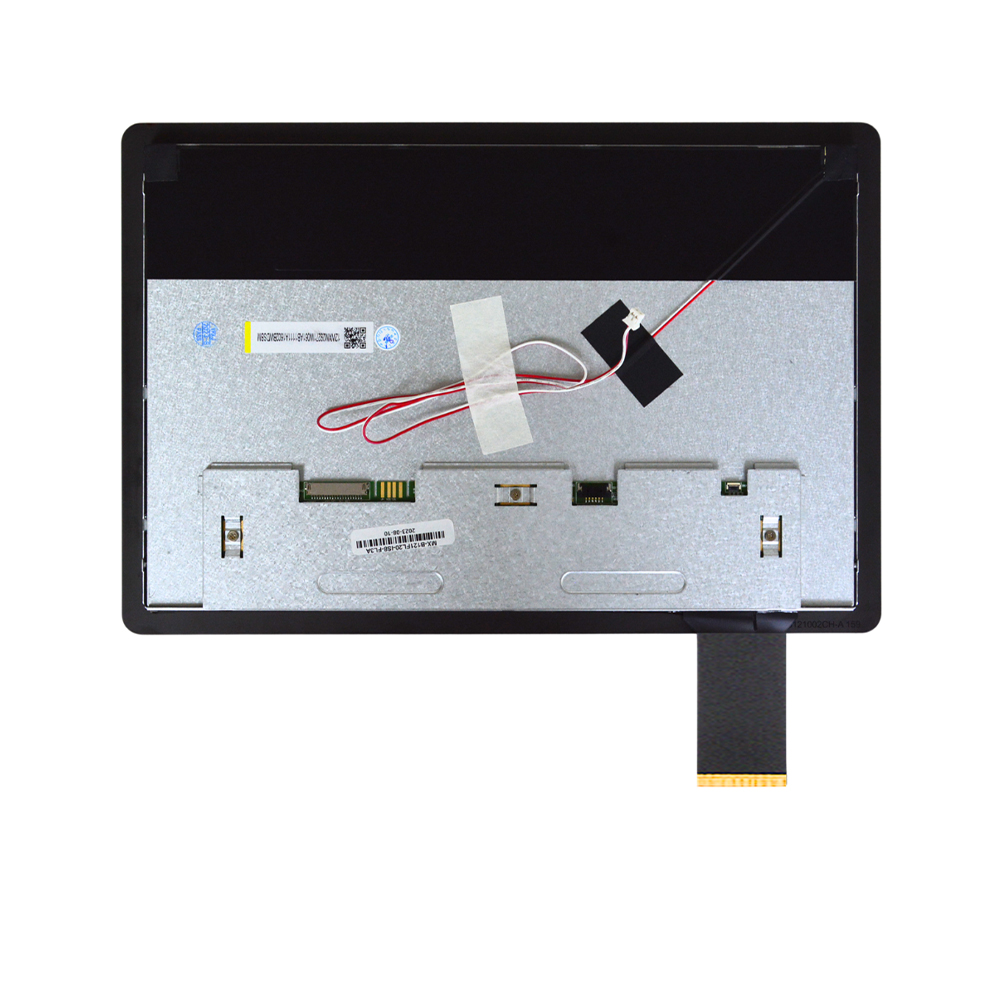

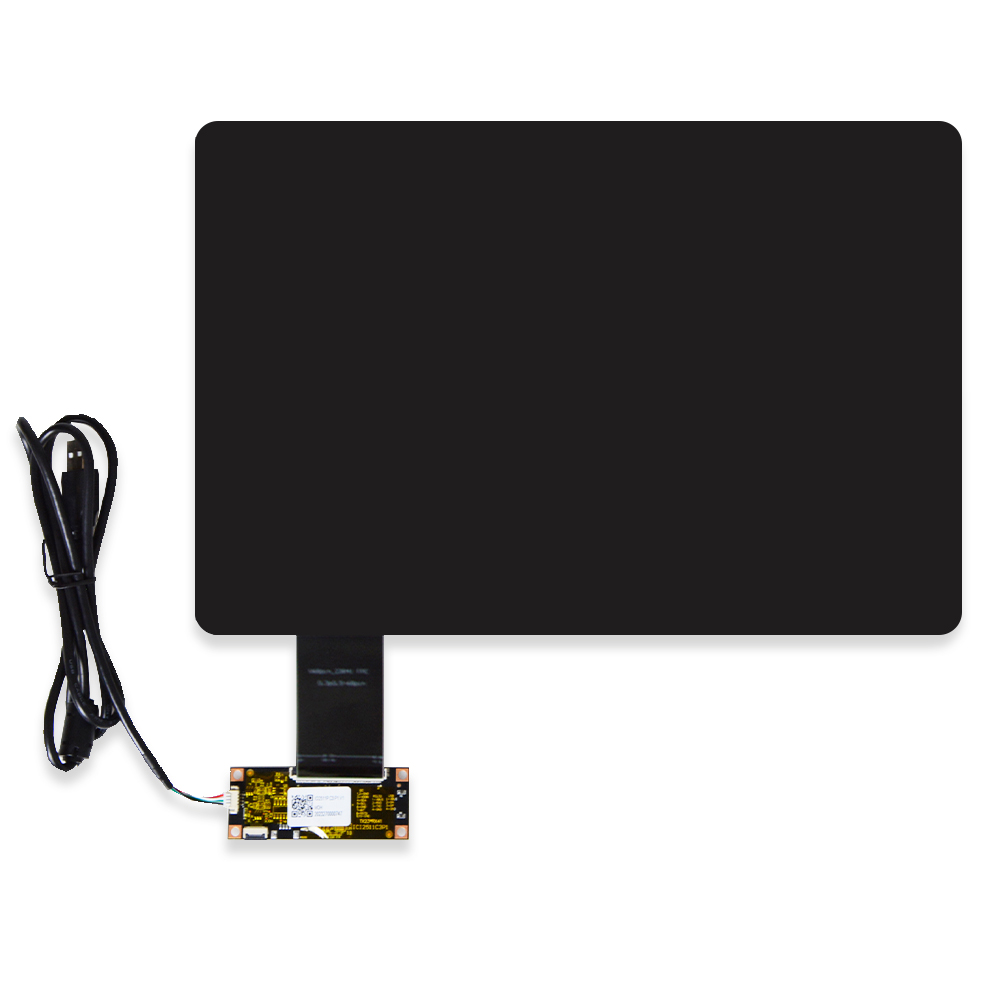

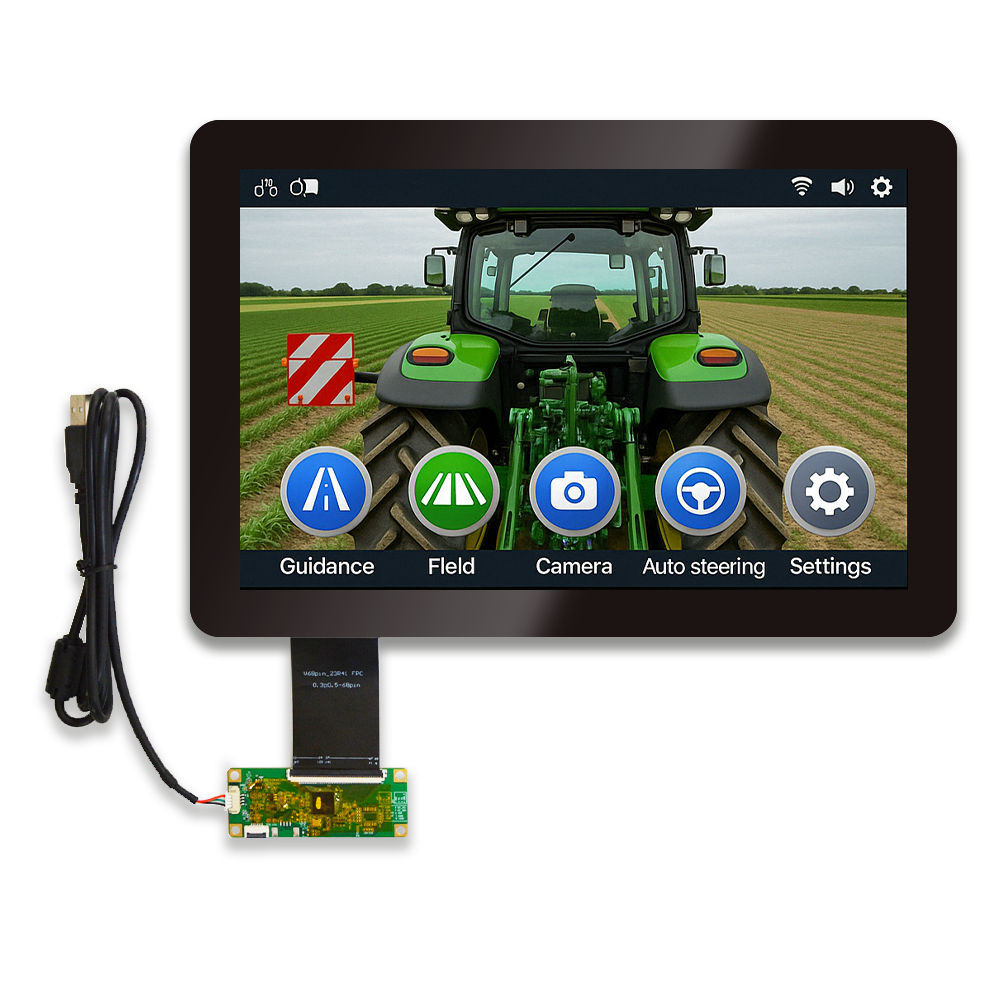

12.1 inch LCD Touch Screen MX-121FL20BFH-C14 is an outdoor-grade touch display module featuring a 12.1" 1280x800 IPS TFT with 1000 cd/m² high brightness and a 20 pin LVDS interface for easy integration with industrial systems. The 12.1 inch LCD display is equipped with an independent LED constant-current driver board (LED-0101/0202) to maintain stable, uniform backlight output during long-time operation. The G+G projected capacitive touch is OCR optically bonded to the LCD, which improves sunlight readability, reduces internal reflection, and enhances mechanical robustness. Using an EETI waterproof-capable touch controller, this 12.1 inch LCD touch screen can still respond under water drops or wet-hand operation, making it suitable for marine displays, outdoor HMI, EV charging stations, kiosks, outdoor agricultural machinery, and other high-humidity or seaside applications.

12.1 inch 1280x800 ips lcd touch screen for agriculture machinery

High Brightness

1000 nits
Working Temp Range

-20°C to 70°C
Interface

20-pin LVDS
Touch Controller IC

EETI

LCM PIN Definition (20-pin LVDS)
TP PIN Definition (USB)
Absolute Maximum Ratings
Electrical Characteristics

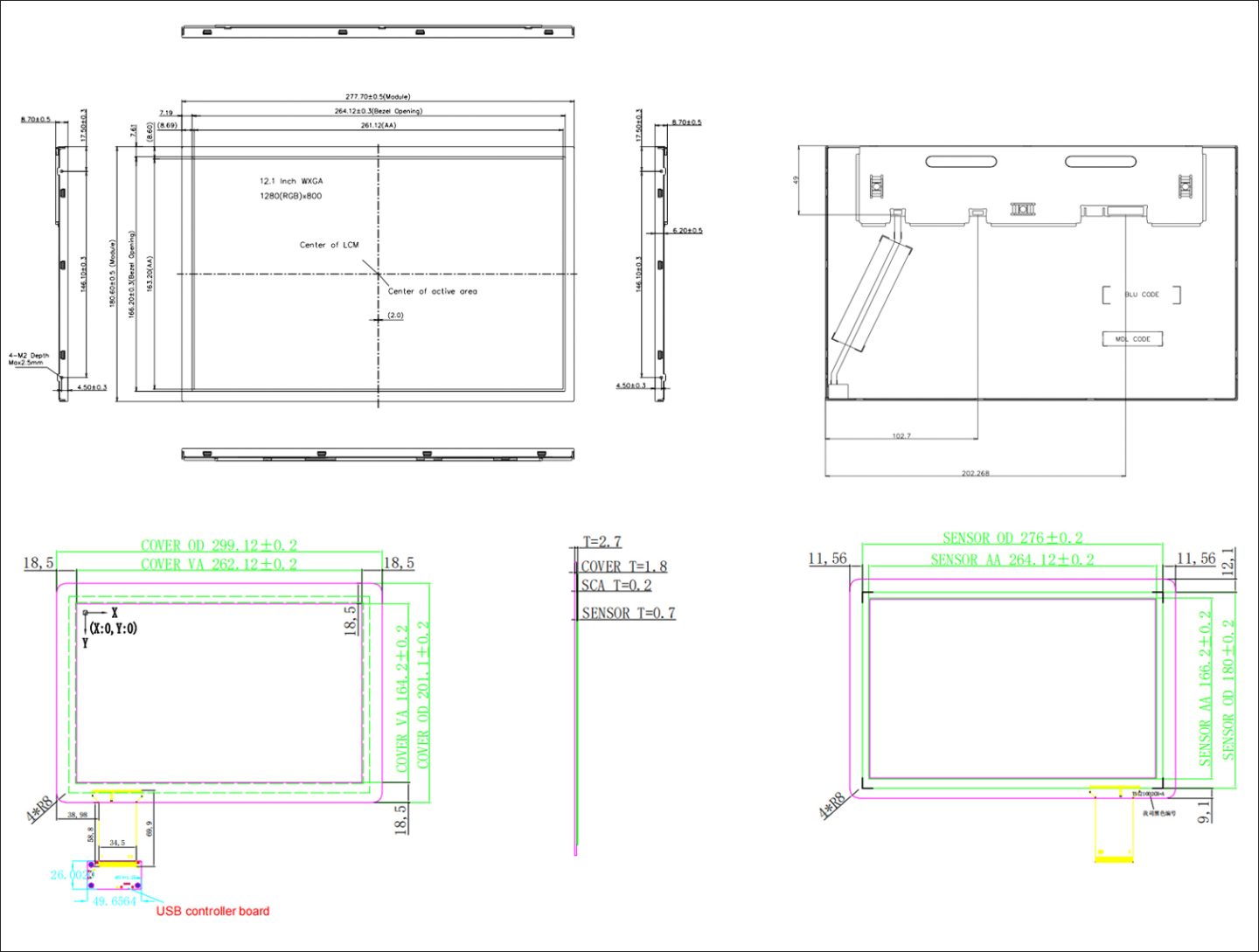

Product Drawing

PIN NO.	PIN Name	Description
1	VCC	Power supply
2	VCC	Power supply
3	N C	Not connect
4	GND	Ground
5	D0-	Pixel data
6	D0+	Pixel data
7	GND	Ground
8	D1-	Pixel data
9	D1+	Pixel data
10	GND	Ground
11	D2-	Pixel data
12	D2+	Pixel data
13	GND	Ground
14	CLK-	Pixel data
15	CLK+	Pixel data
16	GND	Ground
17	SDA	Not connect
18	SCL	Not connect
19	D3-	Pixel data
20	D3+	Pixel data

PIN NO.	Interface
1	VDD/5V
2	D-
3	D+
4	GND

Parameter	Symbol	Min.	Max.	Unit
LC Operating Voltage	Vop	-	5.0	V
Operating Temperature (Humidity)	Top	-20	+70	℃
Storage Temperature (Humidity)	Tst	-30	+80	℃

Parameter	Symbol	Value	Range	Unit
TFT Gate ON Voltag	VGH	23	-	V
TFT Gate OFF Voltage	VGL	-8	-	V
TFT Common Electrode Voltage	Vcom	3.5	2~5	V
TFT Kick-Back Voltage Max	△Vp Max	-	-	V
TFT Kick-Back Voltage Min	△Vp Min	-	-	V
LCD Panel Signal Processing Board	VDD	3.3	3.0~3.6	V
LCD Panel Signal Current	-	0.6	0.5~0.8	A
Backlight Input Voltage	-	12	11~13	V
Backlight Input Current	-	0.4	0.3~0.5	A
LCD Panel Display Power	-	6.5	6~7	W
Backlight Power	-	4.5	4~5	W
