10.1 inch TFT LCD Display 1024×600 RGB 1000 Nits

Suitable for integration into industrial HMI panels, PLC control systems, packaging machinery, and CNC operation terminals.

Main Features

Part No. MX-B101HR50-IS411K-DB
10.1" TFT LCD Display
1024x600 resolution
High brightness 1000 cd/m²
Full viewing angles (IPS)
50-pin RGB interface

Get a Quote Download Specs.

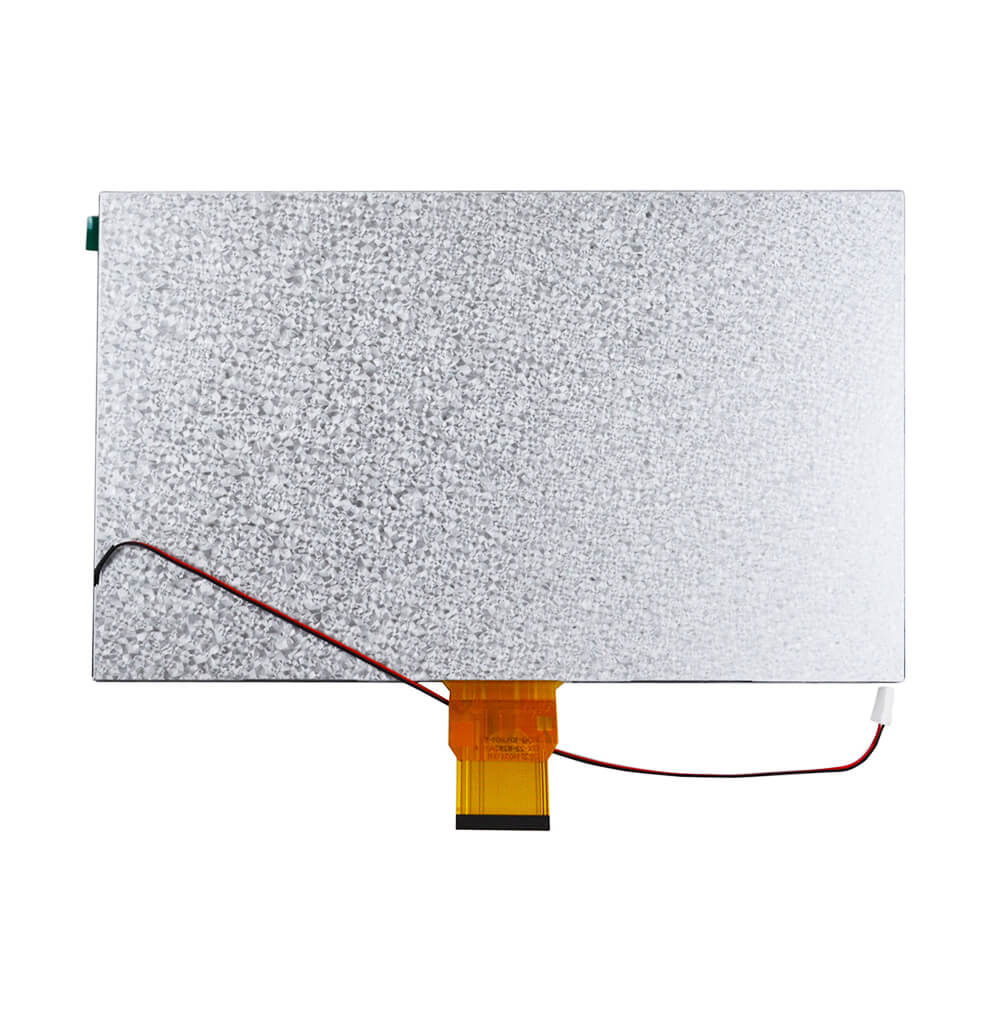

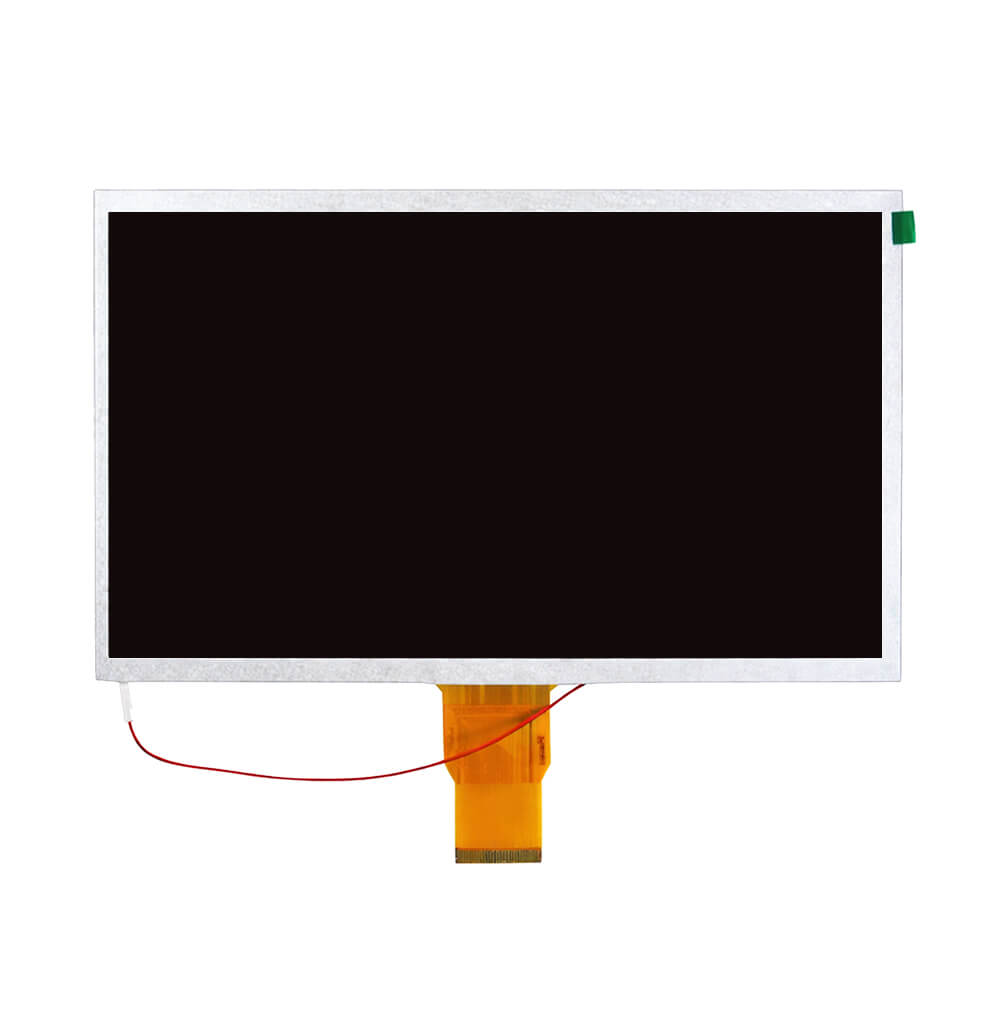

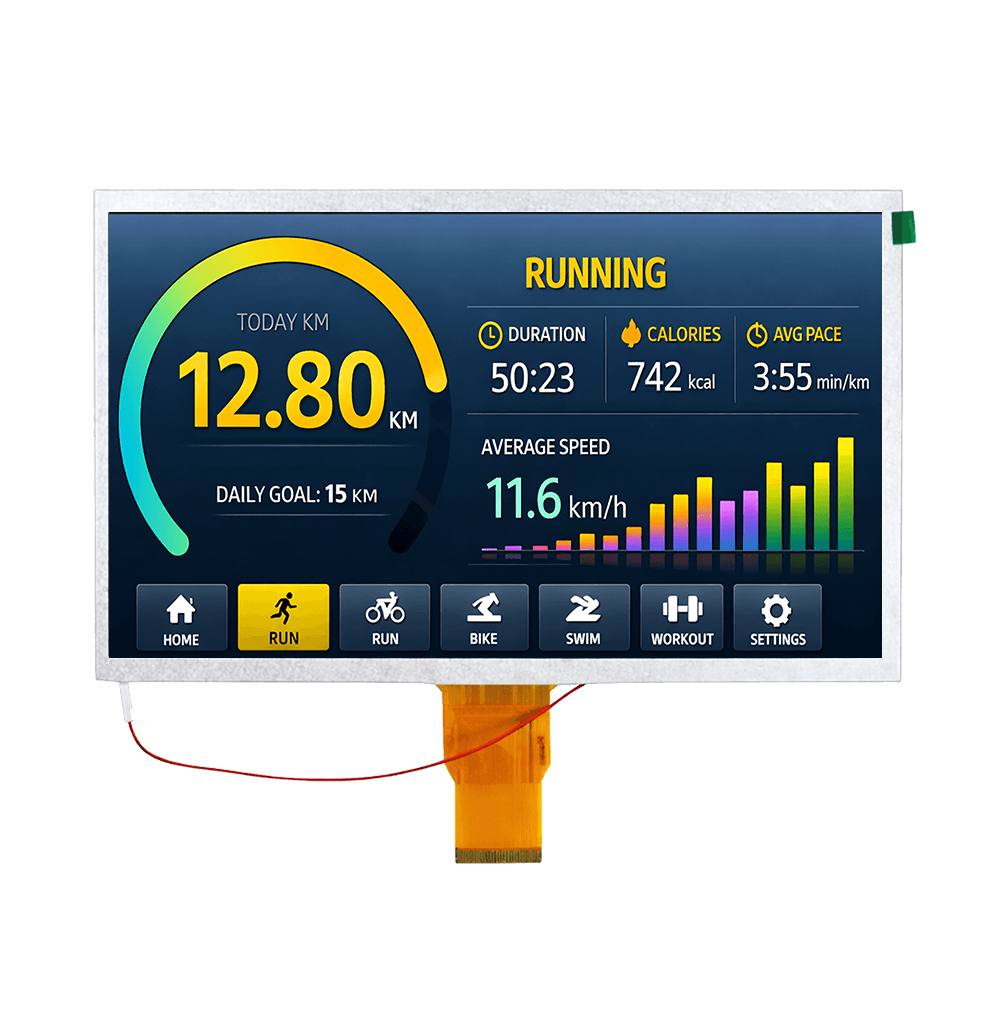

MX-B101HR50-IS411K-DB

Developed for embedded control platforms and industrial equipment, this 10.1 inch TFT LCD Display MX-B101HR50-IS411K-DB combines 1024x600 resolution, IPS full viewing angles, and 1000 nits high brightness to support clear and stable image presentation in demanding operating environments. The 50-pin RGB interface makes the module suitable for integration into industrial HMI panels, PLC control systems, packaging machinery, and CNC operation terminals, where dependable signal connection and consistent screen performance are important. With an operating temperature range of -20°C to 70°C, the display can support equipment used under continuous working conditions. For customers developing industrial devices that require practical brightness, wide viewing performance, and straightforward RGB integration, this module offers a reliable display solution.

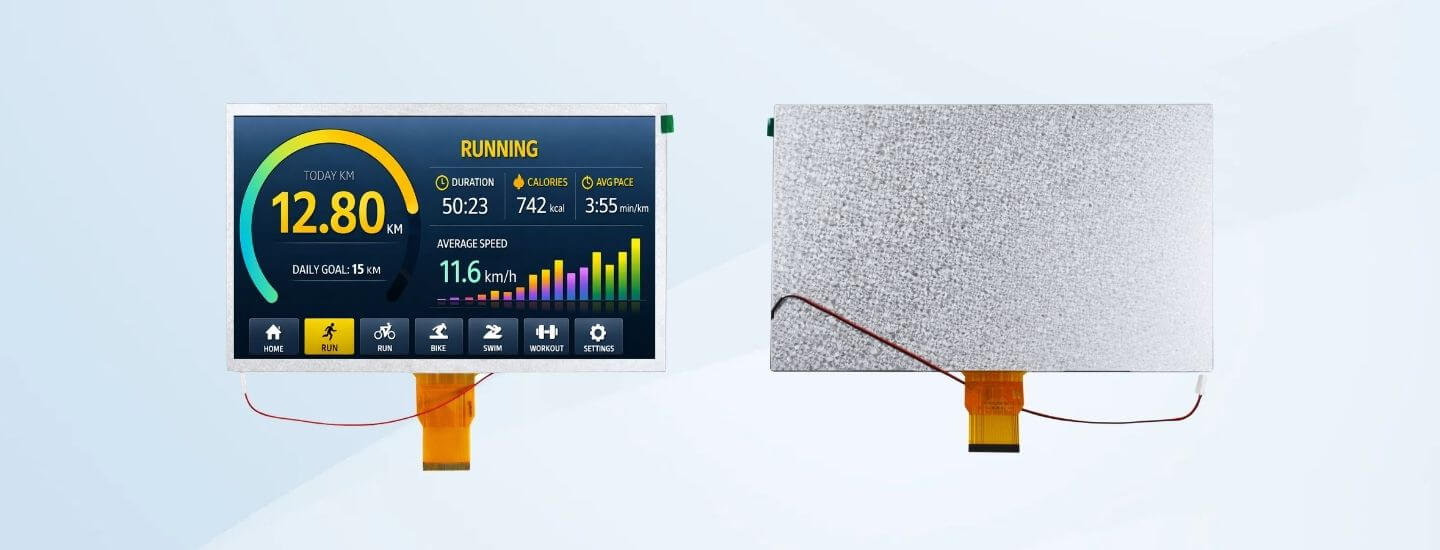

10 inch 1024x600 1000-nits ips tft lcd display

Resolution

10.1" 1024x600
High Brightness

1000 nits
Working Temp Range

-20°C to 70°C
Interface

50-pin RGB

LCM Pin Definition (50-pin RGB)
Absolute Maximum Ratings
Electrical Characteristics
LED Backlight Characteristics
Product Drawing

LCM Pin Definition (50-pin RGB)

Pin NO.	SYMBOL	I/O	DESCRIPTION
1	VLED+	-	Power for LED backlight (Anode)
2	VLED+	-	Power for LED backlight(Anode)
3	VLED-	-	Power for LED backlight(Cathode)
4	VLED-		Power for LED backlight(Cathode)
5	GND	P	Power ground
6	VCOM	I	Common Voltage
7	DVDD	P	Digital Power
8	MODE	I	DE/SYNC mode select.
9	DE	I	Data Enable signal
10	VSYNC	I	Vertical sync input
11	HSYNC	I	Horizontal sync input
12	B7	I	Blue data(MSB)
13	B6	I	Blue data
14	B5	I	Blue data
15	B4	I	Blue data
16	B3	I	Blue data
17	B2	I	Blue data
18	B1	I	Blue data
19	B0	I	Blue data(LSB)
20	G7	I	Green data(MSB)
21	G6	I	Green data
22	G5	I	Green data
23	G4	I	Green data
24	G3	I	Green data
25	G2	I	Green data
26	G1	I	Green data
27	G0	I	Green data (LSB)
28	R7	I	Red data(MSB)
29	R6	I	Red data
30	R5	I	Red data
31	R4	I	Red data
32	R3	I	Red data
33	R2	I	Red data
34	R1	I	Red data
35	RO	I	Red data (LSB)
36	GND	P	Power ground
37	DCLK	I	Clock input
38	GND	P	Power ground
39	SHLR	I	Left/Right Selection
40	UPDN	I	Up/Down Selection
41	VGH	P	Gate ON Voltage
42	VGL	P	Gate OFF Voltage
43	AVDD	P	Power for Analog Circuit
44	RESET	I	Global reset pin
45	NC	-	Not connection
46	VCOM	I	Common Voltage
47	DITH	I	Dithering function enable control
48	GND	P	Power ground
49	NC	-	Not connection
50	NC	-	Not connection

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Digital Supply Voltage	DVDD	-0.3	3.6	V
Analog Supply Voltage	AVDD	0	13.5	V
TFT Gate ON Voltage	VGH	-0.3	20	V
TFT Gate OFF Voltage	VGL	-20	0.3	V
Operating Temperature	TOP	-20	70	℃
Storage Temperature	TST	-30	80	℃

Electrical Characteristics

Item	Symbol	Min.	Typ	Max.	Unit
Digital Supply Voltage	DVDD	3.0	3.3	3.6	V
Analog Supply Voltage	AVDD	9.5	9.6	9.7	V
TFT Gate ON Voltage	VGH	17.6	18	18.4	V
TFT Gate OFF Voltage	VGL	-6.4	-6	-5.6	V
TFT Common Electrode Voltage	VCOM	4.0	4.2	4.4	V

LED Backlight Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply voltage	If	-	-	-	18.6	V
Supply current	Vf	-	-	280	-	mA

10.1 inch TFT LCD Display 1024×600 RGB 1000 Nits Product Drawing

Tags:

Embedded LCD Module

HMI display

high brightness LCD

1024x600 LCD

IPS TFT Module

RGB Interface Display

10.1 Inch TFT LCD Display

Industrial Display

FAQs

Frequently Asked Questions

What kind of reliability and environmental tests can you cover?

We can follow standard display tests such as high/low temperature storage and operation, temperature cycling, humidity, ESD and basic vibration tests according to the agreed test plan.

Can I request samples before placing a bulk order?

Yes, samples are available for evaluation before mass production.

What is the difference between TN and IPS TFT panels?

TN panels have faster response but narrow viewing angles, while IPS panels offer wider viewing and better color.

Are MAXEN displays sunlight-readable?

Yes, we offer high-brightness options up to 1000+ cd/m² for outdoor use.

What is an “active area” in a TFT display?

It refers to the portion of the screen that actually displays content (excluding bezels).
