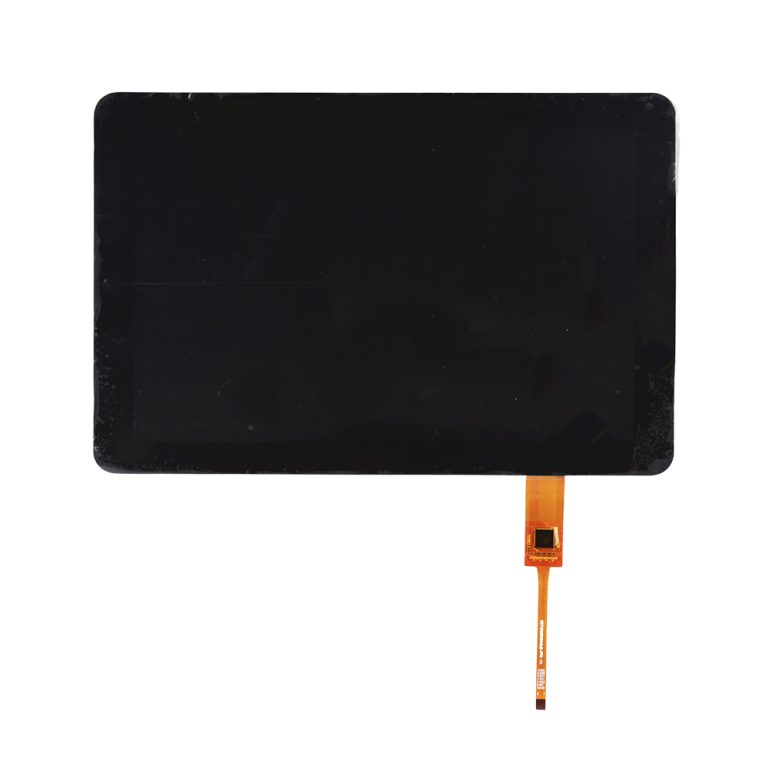

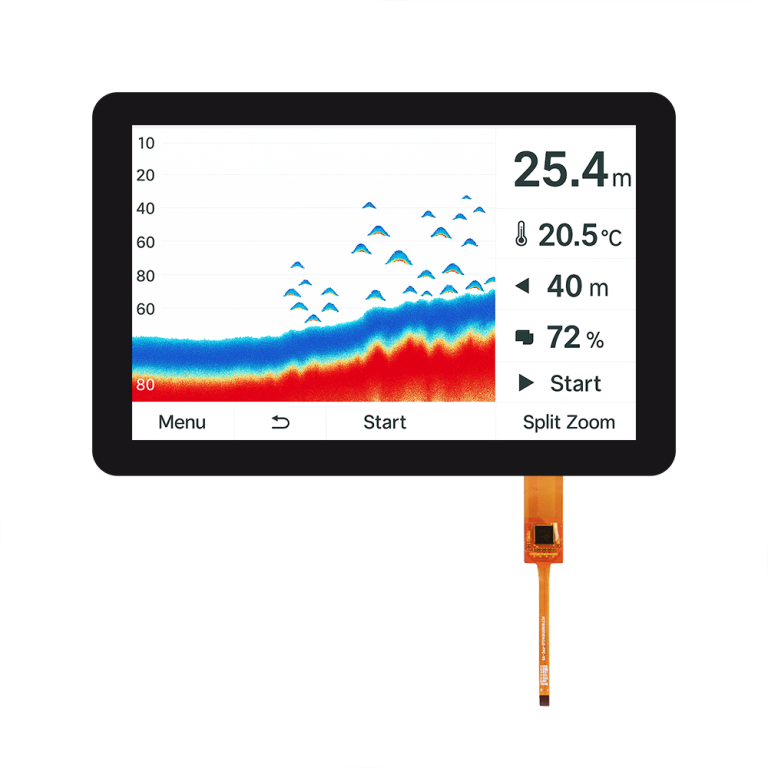

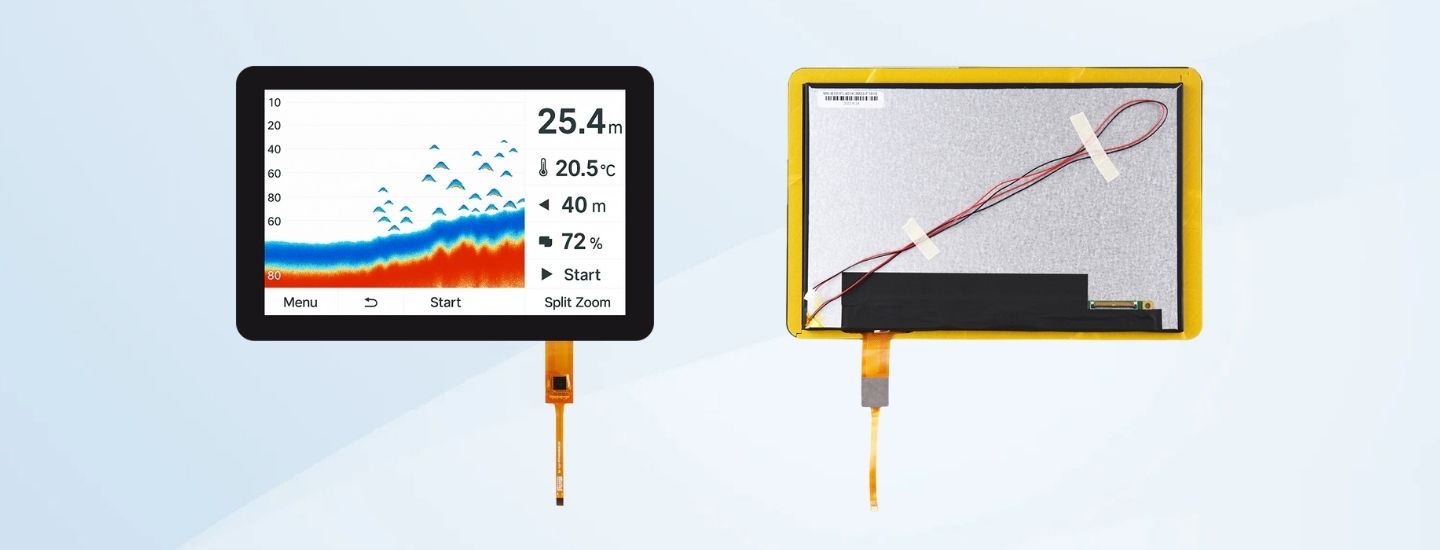

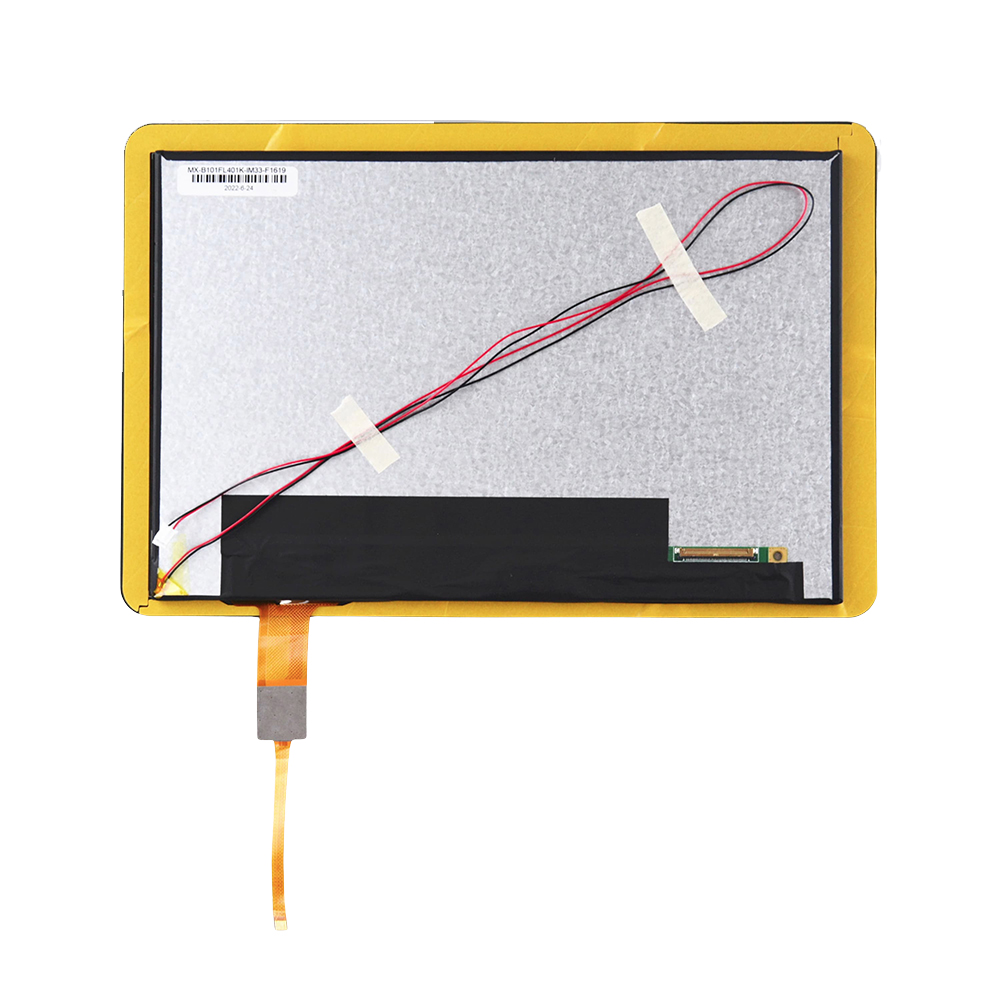

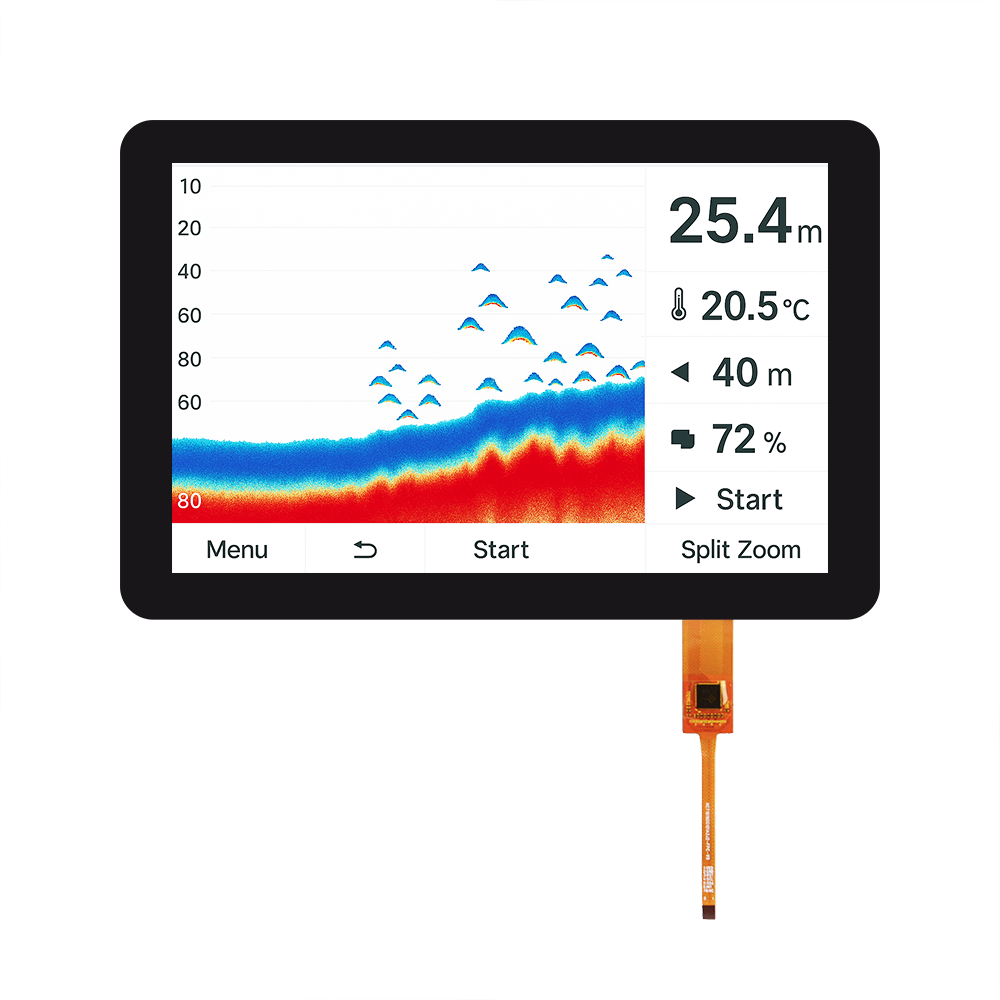

10.1 inch LCD Touch Screen

Ideal for fish finders, marine chartplotters, outdoor HMI panels, and field equipment.

Main Features

Part No. MX-101FL40BFH-N71-F1619
10.1" TFT LCD Optical Bonding with Touch Screen
1280x800 resolution
High brightness 1000 cd/m²
Full viewing angles (IPS)
40-pin LVDS interface
Capacitive Touch with HY4635 Controller (I²C interface)

Get a Quote Download Specs.

MX-101FL40BFH-N71-F1619

10.1 inch LCD Touch Screen MX-101FL40BFH-N71-F1619 is a premium, sunlight-readable module for harsh outdoor and marine use. Its 1280x800 IPS display delivers wide viewing with 1000 cd/m² high brightness, while optical bonding cuts glare and boosts contrast for clear visibility in direct sun. The capacitive touch uses the HY4635 waterproof controller (I²C) for reliable wet-touch performance and water rejection. With a 40-pin LVDS interface, it integrates smoothly into embedded systems—ideal for fish finders, marine chartplotters, outdoor HMI panels, and field equipment

High Brightness

1000 nits
Working Temp Range

-20°C to 70°C
Interface

40-pin LVDS
Touch Controller IC

HY4635

LCM PIN Definition (40-pin LVDS)
TP PIN Definition (8-pin I²C)
Absolute Maximum Ratings
Electrical Characteristics

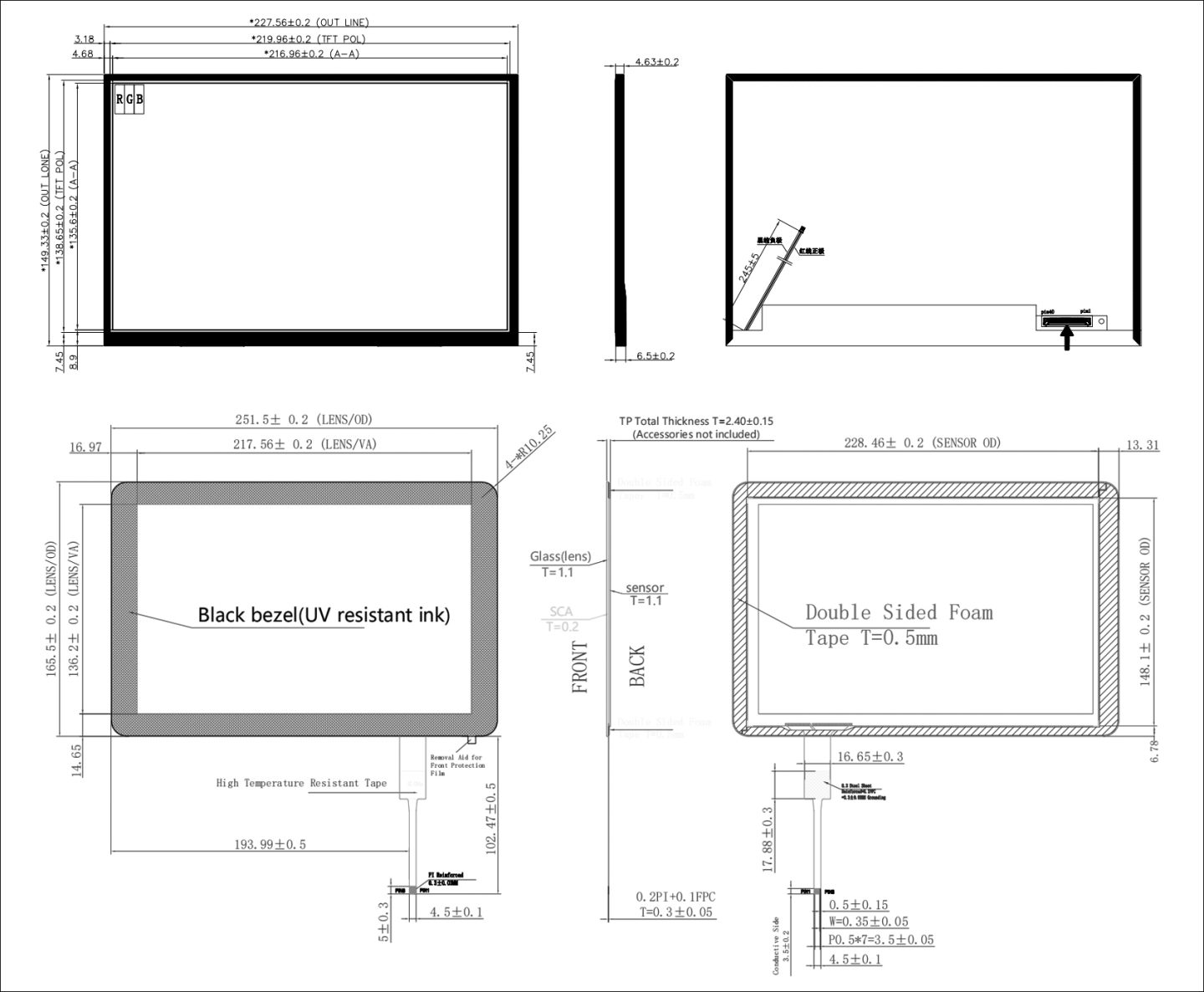

Product Drawing

Pin No.	Symbol	Description
1	NC	Non Connection
2~4	VDDIN	Power supply VDDIN=3.3V(Typ.)
5	NC	Non Connection
6~7	GND	GROUND
8	RINO-	LVDS Negative data signal (-)
9	RINO+	LVDS Positive data signal(+)
10	GND	GROUND
11	RIN1-	LVDS Negative data signal (-)
12	RIN1+	LVDS Positive data signal(+)
13	GND	GROUND
14	RIN2-	LVDS Negative data signal (-)
15	RIN2+	LVDS Positive data signal(+)
16	GND	GROUND
17	LVDS_CLK-	LVDS Negative CLK signal (-)
18	LVDS_CLK+	LVDS Positive CLK signal(+)
19	GND	GROUND
20	RIN3-	LVDS Negative data signal (-)
21	RIN3+	LVDS Positive data signal(+)
22	GND	GROUND
23~24	NC	No Connection
25	GND	GROUND
26	SCL_S	Reserved for LCD manufacturer's use, not connection
27	SDA_S	Reserved for LCD manufacturer's use, not connection
28	GND	GROUND
29	NC	No Connection
30	NC	No Connection
31~33	GND	GROUND
34	NC	No Connection
35	LED_PWM	LED PWM signal pin
36~37	NC	No Connection
38~40	LED+	LED Anode

PIN NO.	Assignment
1	VDD
2	GND
3	RESET
4	SCL
5	SDA
6	INT
7	NC
8	NC

Parameter	Symbol	Min.	Max.	Unit
Power Supply	VDD	VSS-0.3	3.6	V
Operating Temperature	Top	-20	+70	℃
Storage Temperature	TsT	-30	+80	℃

Parameter		Symbol	Values			Unit
Parameter		Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage		VDD	3.0	3.3	3.6	V
Power Supply Voltage		VRP	-	-	360	mV
Power Supply Current		IDD	-	127	343	mA
Power supply voltage for Backlight		VLED	16.8	18.0	19.8	V
Power supply current for Backlight		ILED	-	280	360	mA
Power Consumption		PLCD	-	0.42	1.13	W
Rush current		IRUSH	-	-	3.0	A
CMOS Interface	Input Voltage	VIH	2.7	-	3.3	V
	Input Voltage	VIL	0	-	0.5	V
	Output Voltage	VOH	2.7	-	3.3	V
	Output Voltage	VOL	0	-	0.5	V
