10.1 inch LCD Screen 800×1280 Portrait MIPI Interface

Suitable for access control terminals, biometric identification devices, portable testing instruments, and smart building control panels.

Main Features

Part No. MX-A101FM40-IX15
10.1" TFT LCD Display
800x1280 resolution
Standard brightness 300 cd/m²
Full viewing angles (IPS)
40-pin MIPI interface

Get a Quote Download Specs.

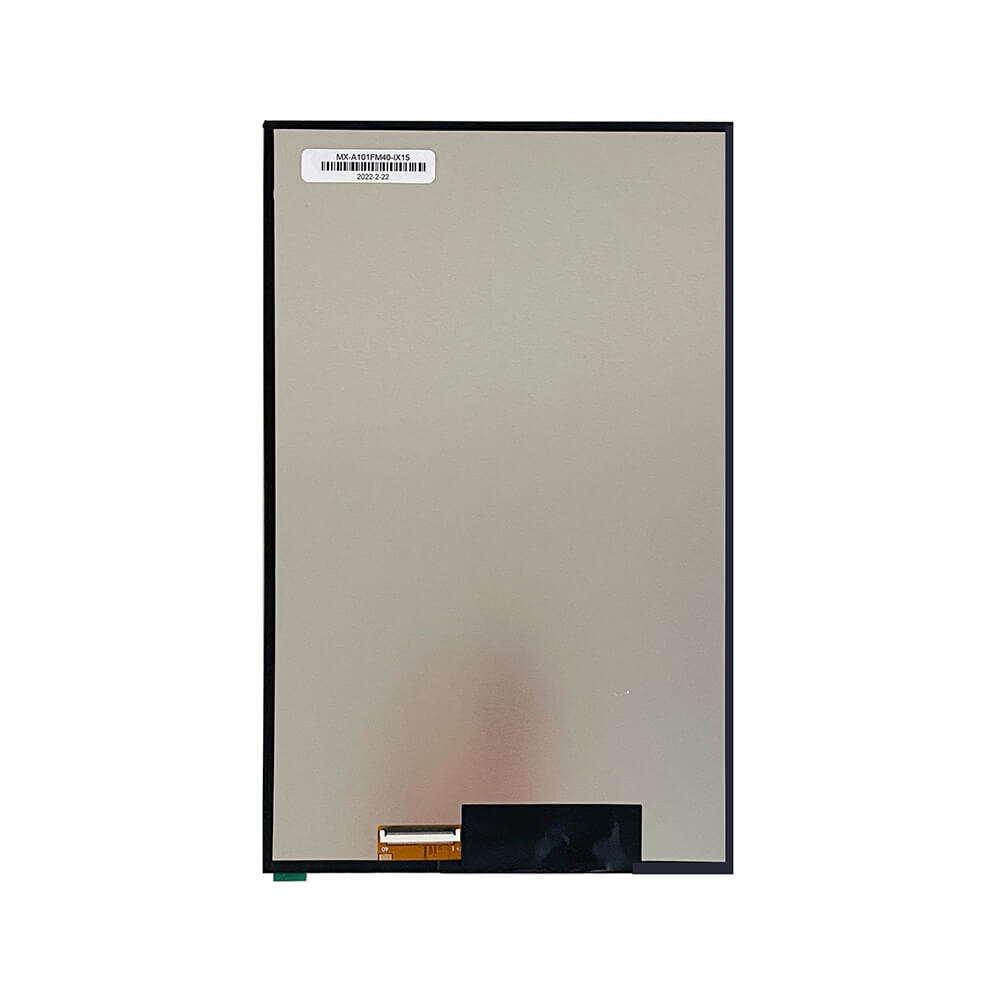

MX-A101FM40-IX15

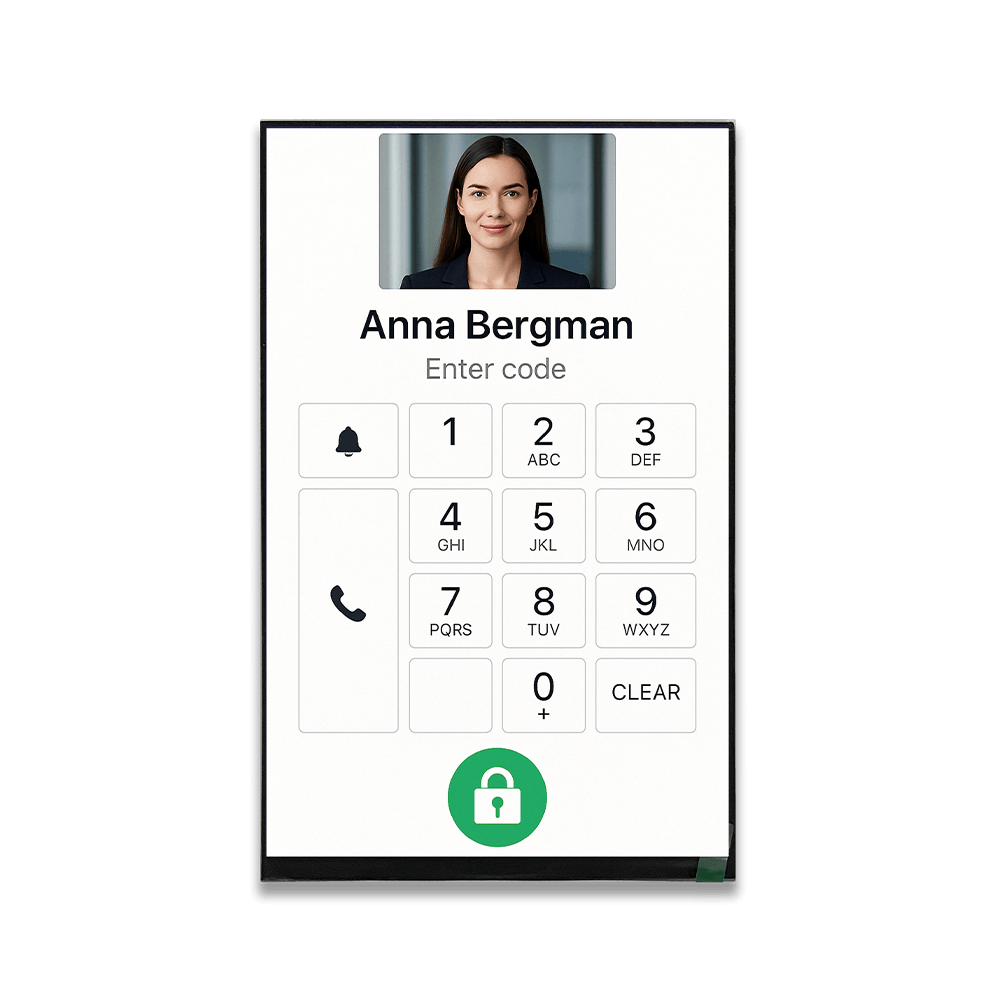

Built for compact devices with a vertical user interface, this 10.1 inch LCD screen MX-A101FM40-IX15 adopts an 800x1280 portrait format that fits products requiring a modern upright display layout. The IPS panel provides wide-angle visibility, while the 40-pin MIPI interface helps simplify integration into slim embedded platforms and space-limited electronic designs. With a thickness of only 2.50 mm, the module is especially suitable for access control terminals, biometric identification devices, portable testing instruments, and smart building control panels, where a lightweight structure and efficient internal arrangement are important. Operating at -10°C to 50°C, the display is well matched to indoor commercial equipment and intelligent terminal applications that prioritize compactness, portrait presentation, and practical system integration.

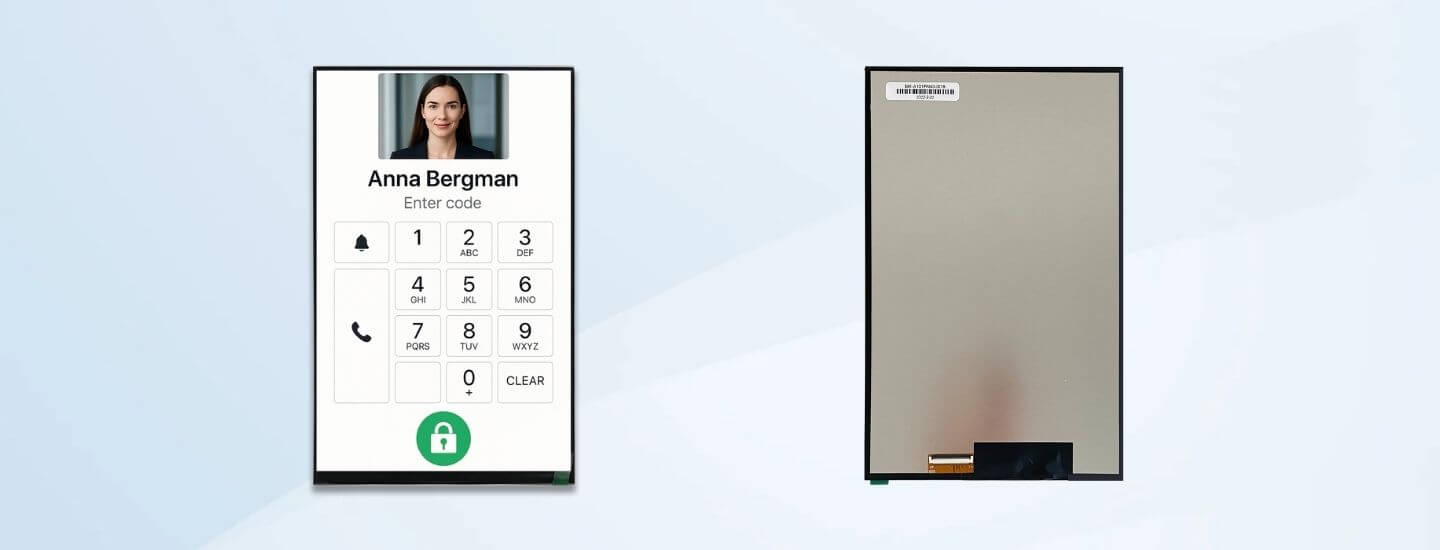

10.1 inch LCD screen 800x1280 Portrait MIPI Interface

Resolution

10.1" 800x1280
Brightness

300 nits
Working Temp Range

-10°C to 50°C
Interface

40-pin MIPI

LCM Pin Definition (40-pin MIPI)
Absolute Maximum Ratings
Electrical Characteristics
LED Backlight Characteristics
Product Drawing

LCM Pin Definition (40-pin MIPI)

Pin NO.	SYMBOL	I/O	DESCRIPTION
1	VLED+	-	Power for LED backlight (Anode)
2	VLED+	-	Power for LED backlight(Anode)
3	VLED-	-	Power for LED backlight(Cathode)
4	VLED-		Power for LED backlight(Cathode)
5	GND	P	Power ground
6	VCOM	I	Common Voltage
7	DVDD	P	Digital Power
8	MODE	I	DE/SYNC mode select.
9	DE	I	Data Enable signal
10	VSYNC	I	Vertical sync input
11	HSYNC	I	Horizontal sync input
12	B7	I	Blue data(MSB)
13	B6	I	Blue data
14	B5	I	Blue data
15	B4	I	Blue data
16	B3	I	Blue data
17	B2	I	Blue data
18	B1	I	Blue data
19	B0	I	Blue data(LSB)
20	G7	I	Green data(MSB)
21	G6	I	Green data
22	G5	I	Green data
23	G4	I	Green data
24	G3	I	Green data
25	G2	I	Green data
26	G1	I	Green data
27	G0	I	Green data (LSB)
28	R7	I	Red data(MSB)
29	R6	I	Red data
30	R5	I	Red data
31	R4	I	Red data
32	R3	I	Red data
33	R2	I	Red data
34	R1	I	Red data
35	RO	I	Red data (LSB)
36	GND	P	Power ground
37	DCLK	I	Clock input
38	GND	P	Power ground
39	SHLR	I	Left/Right Selection
40	UPDN	I	Up/Down Selection
41	VGH	P	Gate ON Voltage
42	VGL	P	Gate OFF Voltage
43	AVDD	P	Power for Analog Circuit
44	RESET	I	Global reset pin
45	NC	-	Not connection
46	VCOM	I	Common Voltage
47	DITH	I	Dithering function enable control
48	GND	P	Power ground
49	NC	-	Not connection
50	NC	-	Not connection

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Digital Supply Voltage	DVDD	-0.3	3.6	V
Analog Supply Voltage	AVDD	0	13.5	V
TFT Gate ON Voltage	VGH	-0.3	20	V
TFT Gate OFF Voltage	VGL	-20	0.3	V
Operating Temperature	TOP	-20	70	℃
Storage Temperature	TST	-30	80	℃

Electrical Characteristics

Item	Symbol	Min.	Typ	Max.	Unit
Digital Supply Voltage	DVDD	3.0	3.3	3.6	V
Analog Supply Voltage	AVDD	9.5	9.6	9.7	V
TFT Gate ON Voltage	VGH	17.6	18	18.4	V
TFT Gate OFF Voltage	VGL	-6.4	-6	-5.6	V
TFT Common Electrode Voltage	VCOM	4.0	4.2	4.4	V

LED Backlight Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply voltage	If	-	-	-	18.6	V
Supply current	Vf	-	-	280	-	mA

10.1 inch LCD Screen 800×1280 Portrait MIPI Interface Product Drawing
