| PIN NO. | CAM1-SYMBOL |
| 1 | GND |
| 2 | D0N |
| 3 | D0P |
| 4 | GND |
| 5 | D1N |
| 6 | D1P |
| 7 | GND |
| 8 | MCN |
| 9 | MCP |
| 10 | GND |
| 11 | LDO_EN |
| 12 | LED_EN |
| 13 | SCL |
| 14 | SDA |
| 15 | VDD |
Ideal for video doorbells, security/monitoring devices and compact embedded vision terminals requiring low latency and repeatable integration.

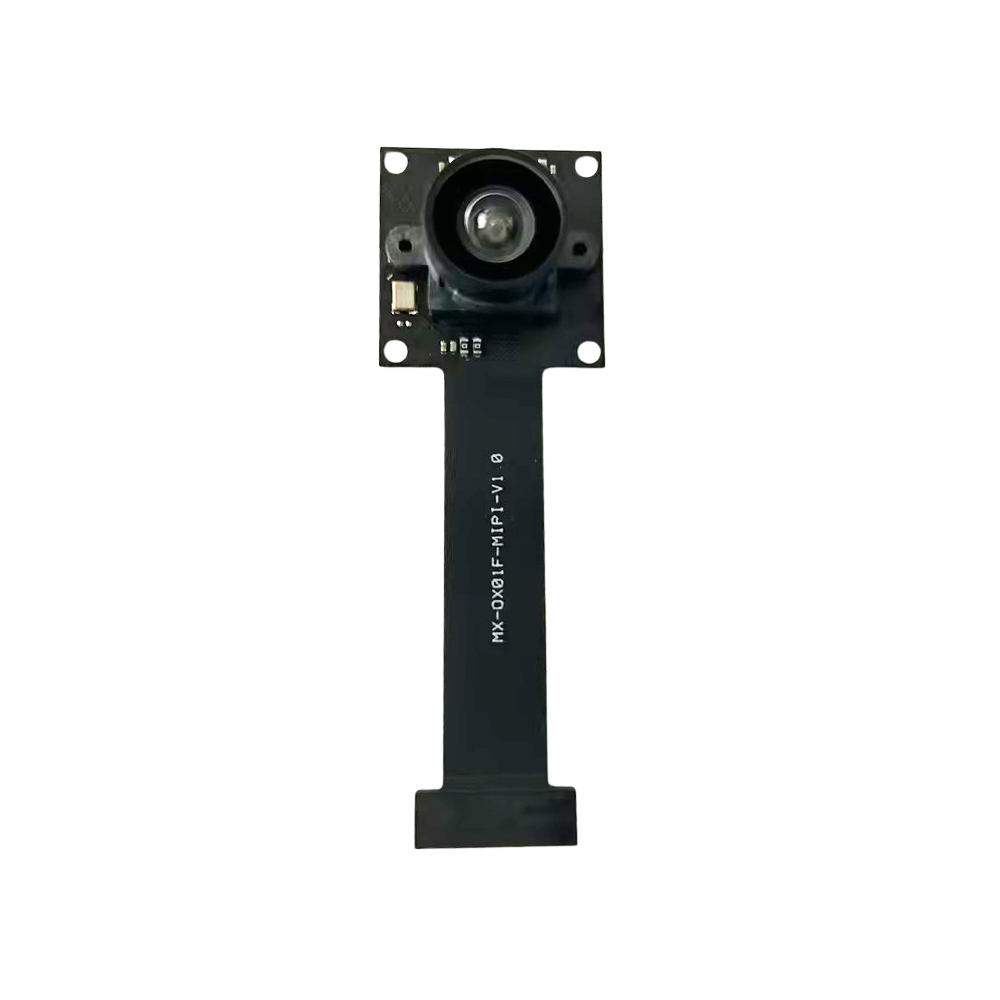

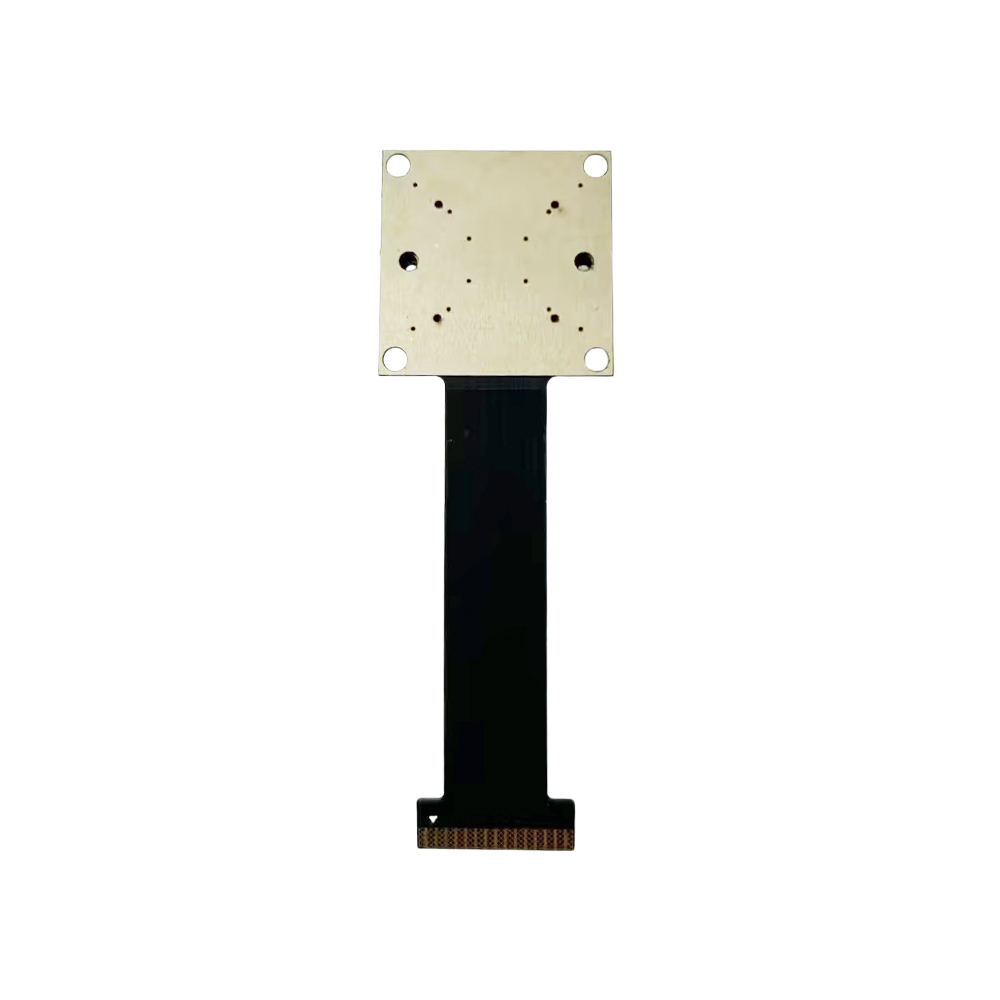

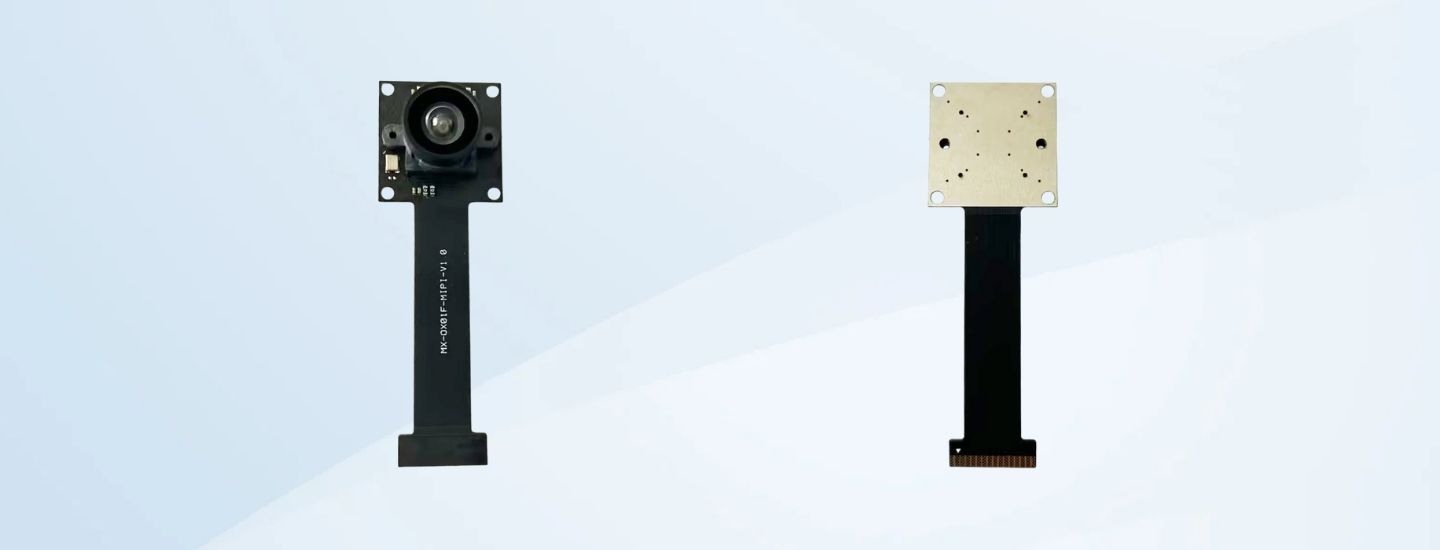

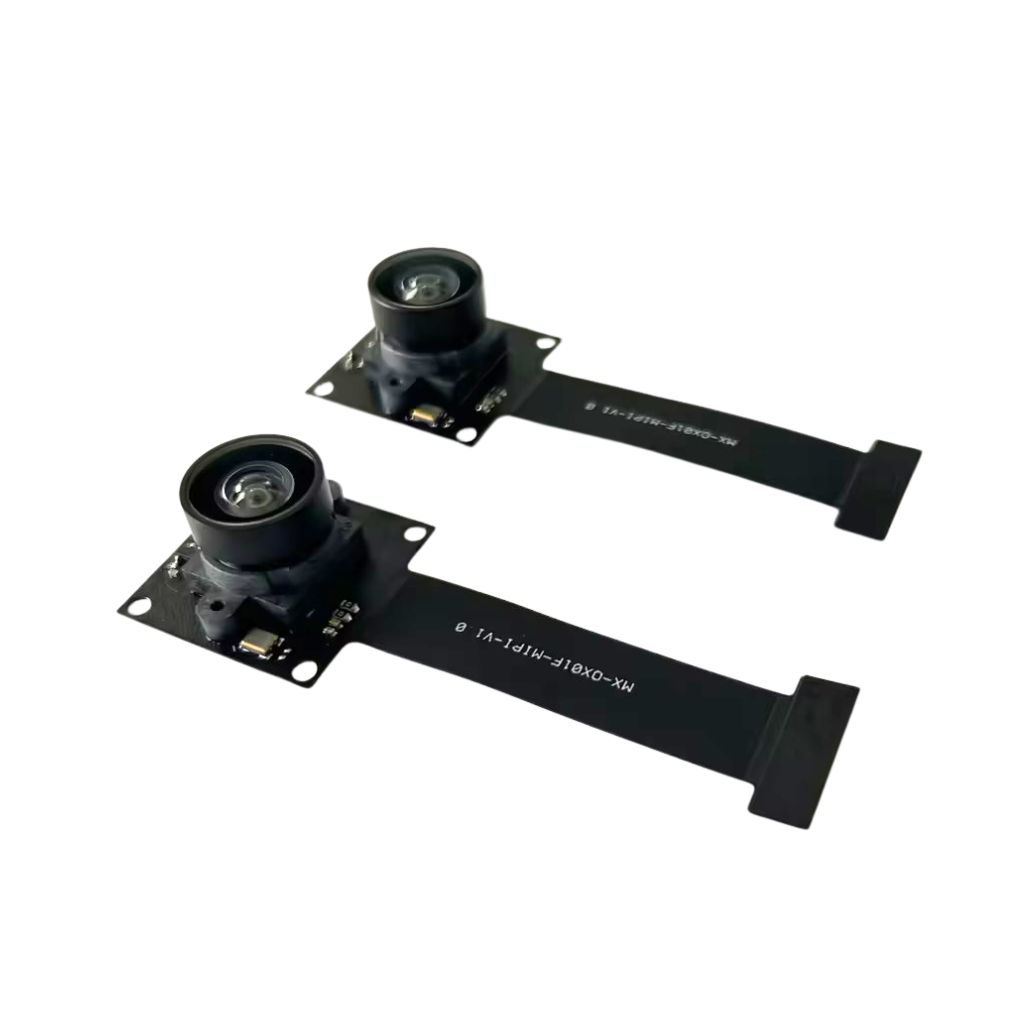

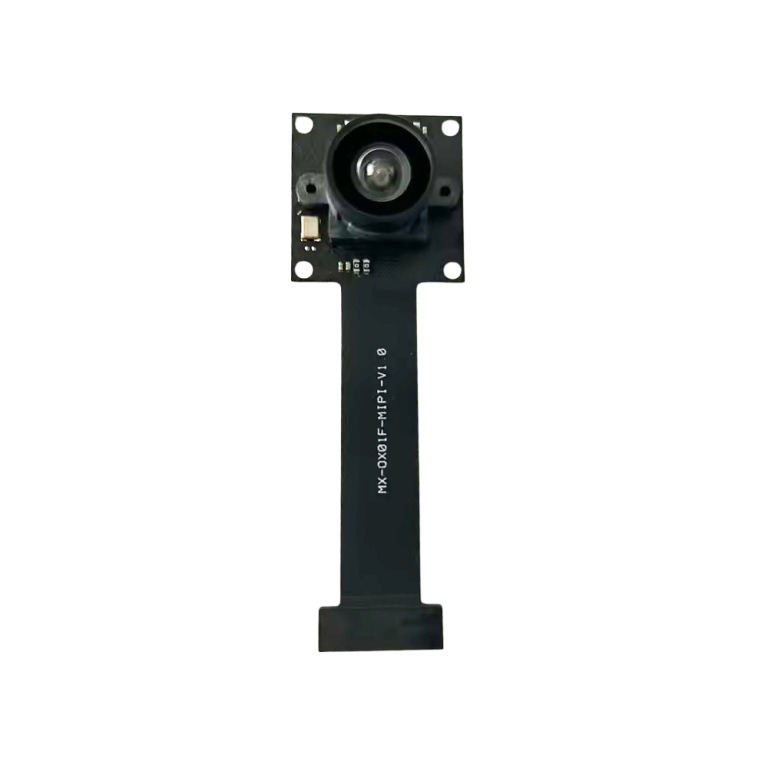

MX-OX01F-MIPI-V1.0 is a compact MIPI CSI-2 board camera module integrating a 1340×1020 CMOS sensor and a 2.6mm wide-FOV lens on a 24×24mm PCB, using a 15-pin 1.0mm-pitch FPC for direct connection to embedded host platforms to speed up EV/DT bring-up and support stable mass production; it supports AVDD 3.3V and DOVDD 1.8V/3.3V, is controlled via I²C (SCL/SDA), and includes LDO_EN/LED_EN for system coordination—ideal for video doorbells, security/monitoring devices and compact embedded vision terminals requiring low latency and repeatable integration.
| PIN NO. | CAM1-SYMBOL |
| 1 | GND |
| 2 | D0N |
| 3 | D0P |
| 4 | GND |
| 5 | D1N |
| 6 | D1P |
| 7 | GND |
| 8 | MCN |
| 9 | MCP |
| 10 | GND |
| 11 | LDO_EN |
| 12 | LED_EN |
| 13 | SCL |
| 14 | SDA |
| 15 | VDD |
