7 inch Portrait TFT LCD Series for Smart Home Applications

by Maxen | Jul 07, 2025
7 inch Portrait TFT LCD Series for Smart Home Applications Featured Image

Maxen has launched three new portrait-oriented TFT LCD touch displays, available in 7", 8", and 10.1" sizes. Each TFT LCD model features an 800x1280 resolution, MIPI interface, and IPS display panel with full viewing angles. All three TFT LCD touch displays are optically bonded using OCA and equipped with a PCAP (projected capacitive) touch screen, ensuring a clear, responsive, and durable user experience, suitable for premium smart home devices with limited space and a vertical layout.

Portrait TFT LCD Touch Displays for Vertical Smart Home Interfaces

Model NO.MX-I70FM31-ILX40-F1685MX-080FM31BFH-N11-F005MX101A40H-1K01-F1928

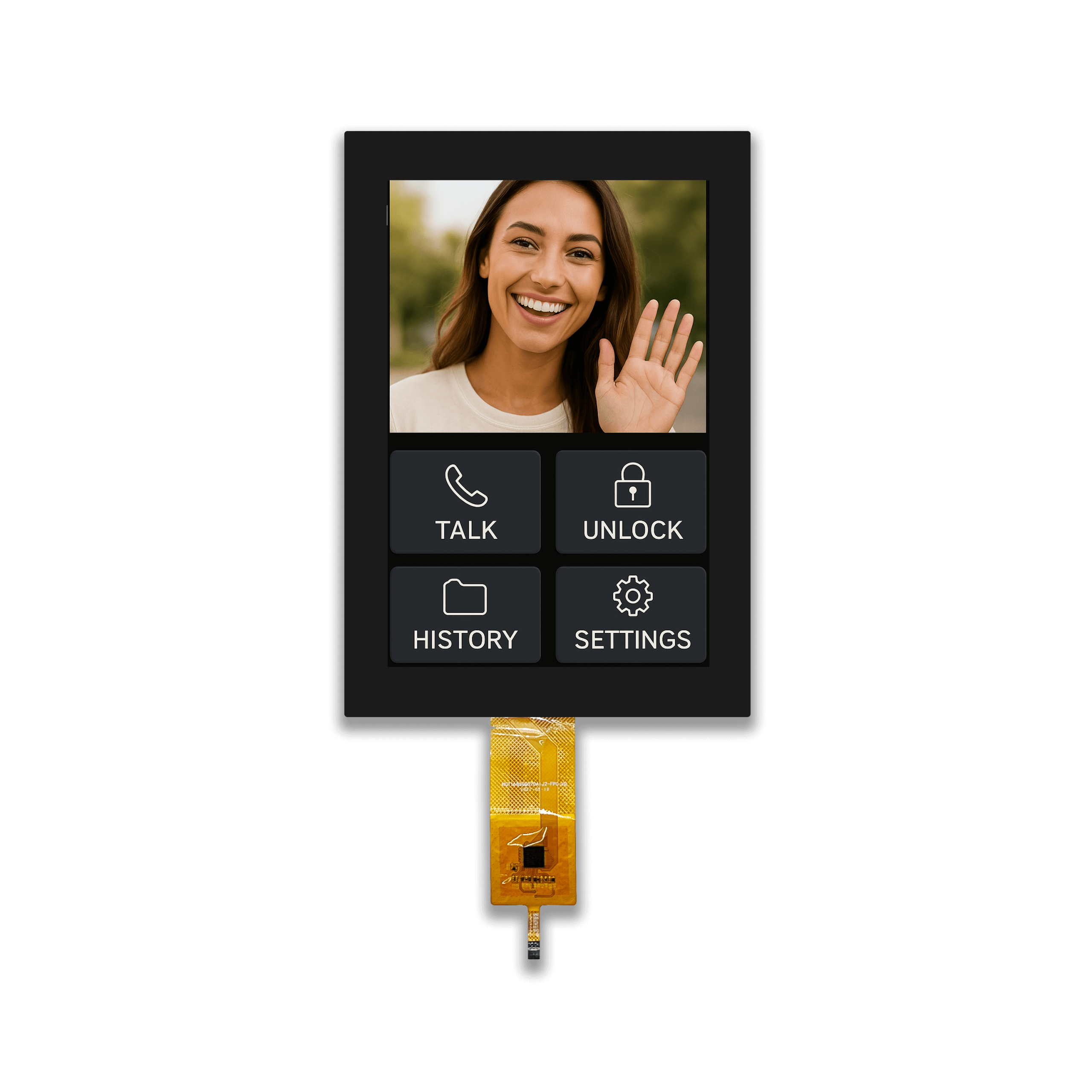

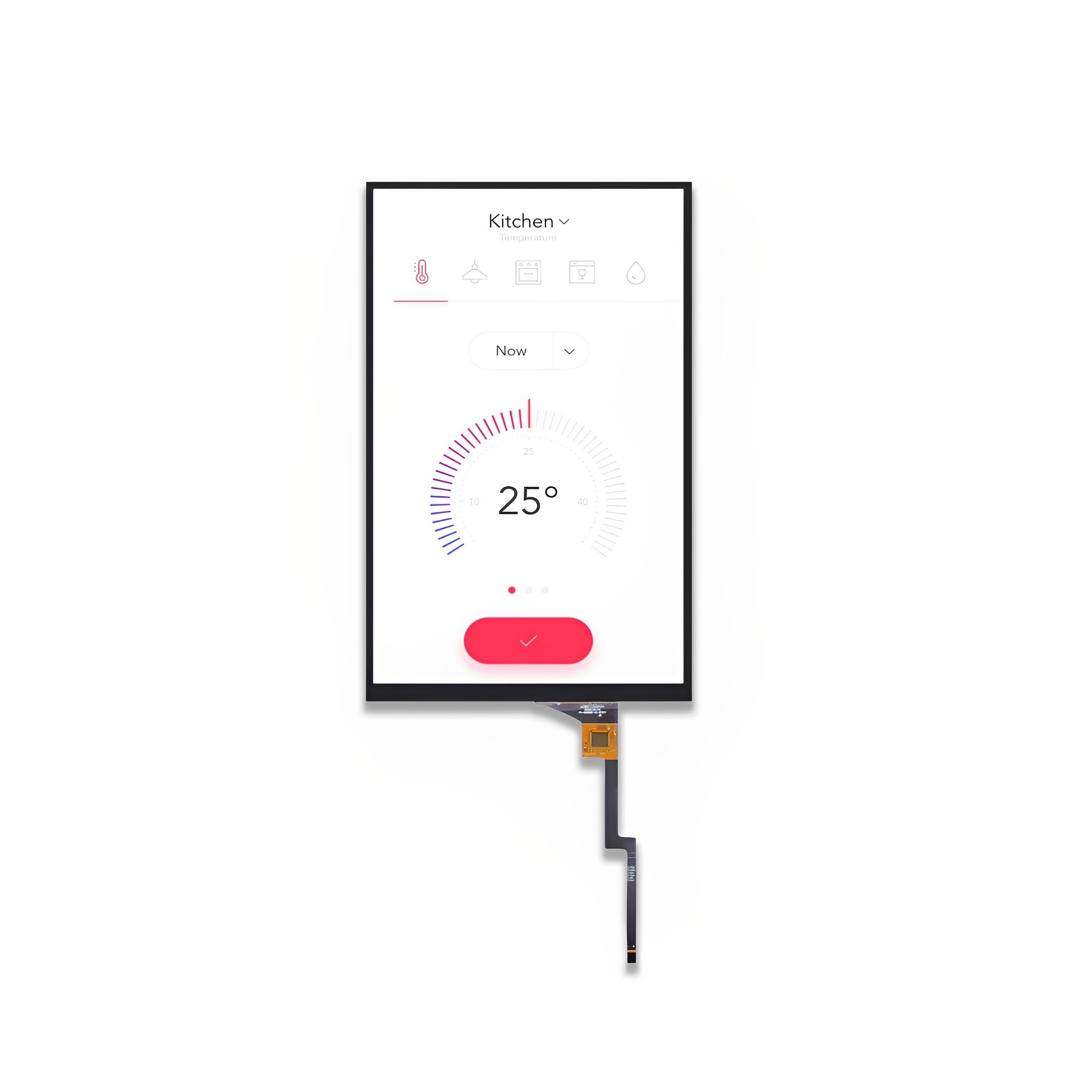

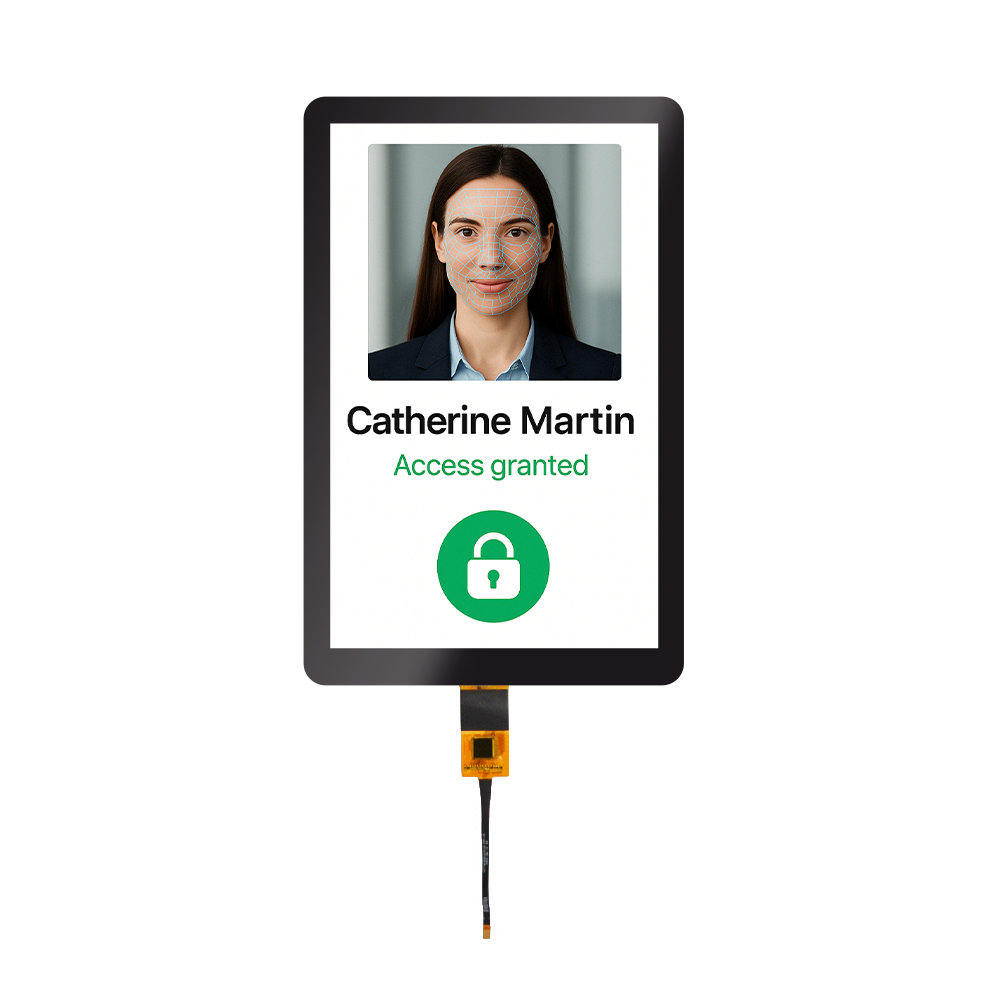

Image7 inch Portrait TFT LCD8 inch TFT LCD screen10.1 inch lcd touch screen
Size7”8”10.1”
Resolution800*1280800*1280800*1280
Module Size119.78x180.00x4.66 mm115.10x184.10x4.10 mm156.91x242.90x4.30 mm
Active Area94.20x150.72 mm107.64x172.22 mm135.36x216.58 mm
Viewing Angle80/80/80/80(IPS)85/85/85/85(IPS)80/80/80/80(IPS)
TFT InterfaceMIPIMIPIMIPI
Brightness350 cd/m²800 cd/m²1000 cd/m²
Operating Temperature-10~60℃-10~50℃-20~70℃
Storage Temperature-20~70℃-20~60℃-20~70℃
Bonding MethodOCA bondingOCA bondingOCA bonding
PCAP ICGT911GT911GT9271
PCAP InterfaceI2CI2CI2C

This series is mainly for smart home applications, especially suitable for installation in vertical spaces such as doorways or walls. Among them, video door phone is a key application scenario. High-brightness display combined with touch operation makes daily calls and access control management more intuitive and convenient.

In addition, these portrait TFT LCD displays are also suitable for:

  • Smart thermostat
  • Smart door lock
  • Smart switch panel
  • Access control terminal

If you are looking for a portrait TFT LCD display solution suitable for smart home terminal devices, Maxen's series of products can be a reliable choice. According to actual project requirements, it can support customized brightness, touch function, cover glass design, etc.

🏭 About Maxen

Maxen specializes in custom TFT LCD display modules for smart mobility, industrial, and embedded applications. We offer full support from prototyping to mass production.

📩 Get Datasheets, Drawings, or Samples
📫 Email us: sales@maxen-lcddisplay.com
