10.1 inch High Brightness IPS TFT LCD for Outdoor and Marine Applications

by Maxen | Jul 08, 2025
10.1 inch High Brightness IPS TFT LCD for Outdoor and Marine Applications Featured Image

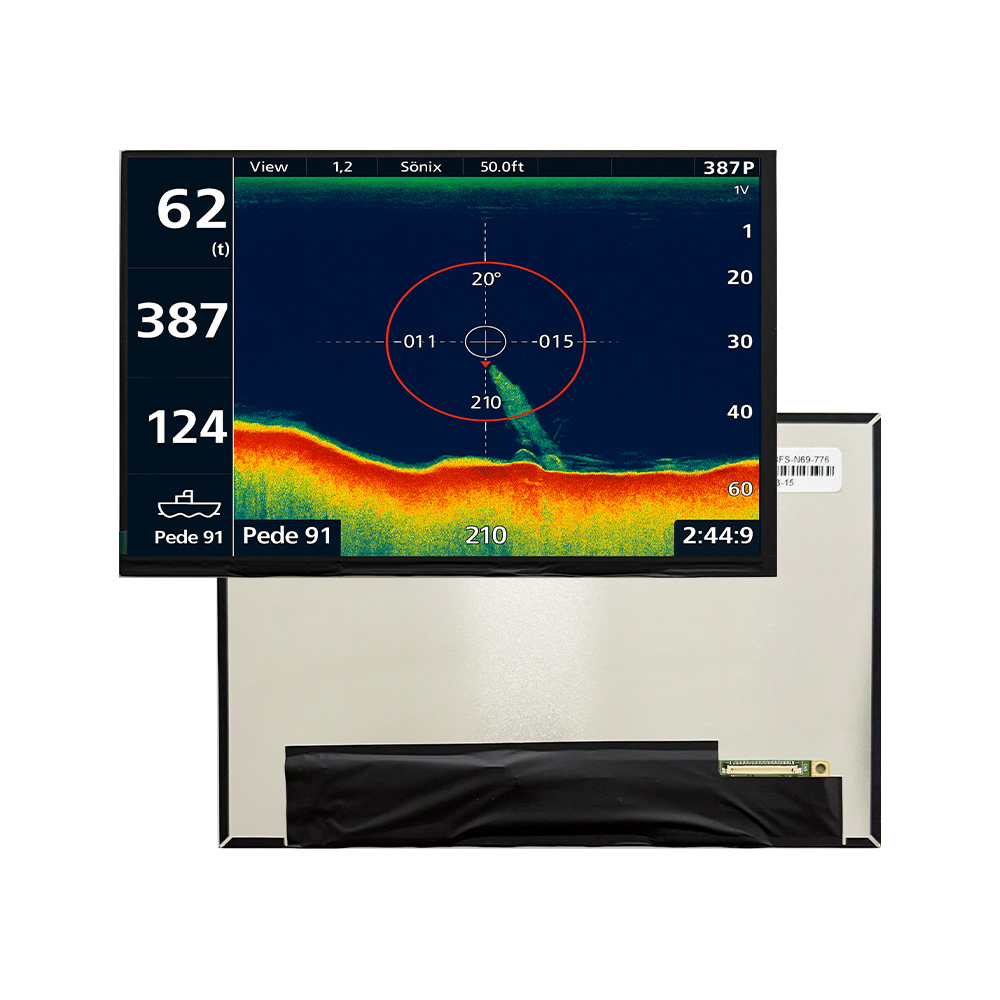

MAXEN introduces a new series of 10.1 inch high brightness TFT LCD displays designed for marine and outdoor environments. The MX-101FL40BF Series includes three models—MX-101FL40BFS-N69, MX-101FL40BFH-N71, and MX-101FL40BFH-C73—all featuring 1280x800 resolution, IPS technology for full viewing angles, and LVDS interface. These displays deliver clear, vibrant visuals with excellent durability, making them ideal for harsh lighting and weather conditions.

The key difference lies in brightness:

  • MX-101FL40BFS-N69: 400 cd/m² (typical), without touch screen.
  • MX-101FL40BFH-N71: 1000 cd/m² (typical), without touch screen.
  • MX-101FL40BFH-C73: 1000 cd/m² (typical), equipped with a PCAP touch panel that supports multi-touch and waterproof operation.
Model NO.MX-101FL40BFS-N69MX-101FL40BFH-N71MX-101FL40BFH-C73
Image10.1 inch standard brightness tft lcd10.1 inch high brightness lcd screen10.1 inch high brightness lcd touch display
Size10.1”10.1”10.1”
Resolution1280*8001280*8001280*800
Module Size228.20x148.95x2.60 mm227.56x149.33x5.00 mm251.50x165.50x7.40 mm
Active Area216.96x135.60 mm216.96x135.60 mm216.96x135.60 mm
Viewing Angle80/80/80/80(IPS)80/80/80/80(IPS)80/80/80/80(IPS)
TFT InterfaceLVDSLVDSLVDS
Brightness400 cd/m²1000 cd/m²1000 cd/m²
Operating Temperature-10~50℃-20~70℃-20~70℃
Storage Temperature-20~60℃-30~80℃30~80℃
PCAP Touch ScreenWithoutWithoutWith PCAP
PCAP IC----HY4635
PCAP Interface----I2C/USB

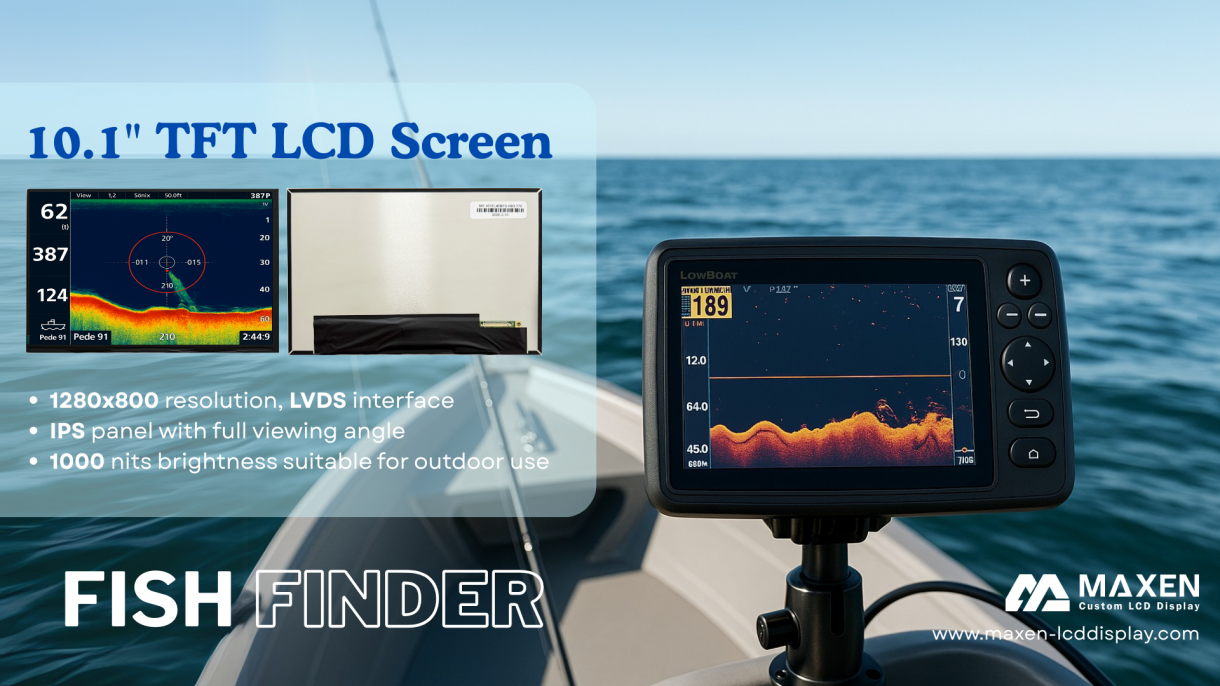

One key application is fish finders, where high brightness and waterproof multi-touch functionality are essential. Usually fish finders are used by anglers and marine operators to detect underwater objects and terrain. A responsive, sunlight-readable display ensures visibility and control on open water, even in poor lighting conditions.

Other ideal uses include:

  • Outdoor POS terminals
  • EV charging stations
  • Marine control systems
  • Industrial equipment

Whether under direct sunlight or in harsh weather, Maxen's new 10.1 inch high brightness TFT LCD displays deliver clarity and durability where it matters most.
