Transflective LCD Display, Sunlight Readable TFT LCD

MAXEN's transflective LCD displays—also known as sunlight readable LCDs or semi-reflective LCD displays—combine the advantages of transmissive and reflective structures. By utilizing both backlight and ambient light, transflective displays deliver clear visibility under direct sunlight while maintaining low power consumption in darker environments.

Our transflective LCD display modules are available in several sizes and resolutions, ensuring excellent image performance across different applications. Unlike purely transmissive panels that rely on high brightness, transflective LCD technology enhances outdoor readability without excessive power consumption, making it ideal for portable and battery-powered devices.

MAXEN transflective displays are widely used in industrial handheld devices, medical equipment, outdoor instruments, automotive applications, and smart home systems. With reliable performance and customizable options, they offer a perfect balance between clarity, durability, and energy efficiency.

Inquiry Now
Size Resolution Image Part NO. TFT Type Brightness
(nits)
Interface Viewing Angle
(T/B/L/R)
Operation Temp.
(℃)
Outline Dimension
(WxHxT, mm)
Active Area
(WxH, mm)
Drawing

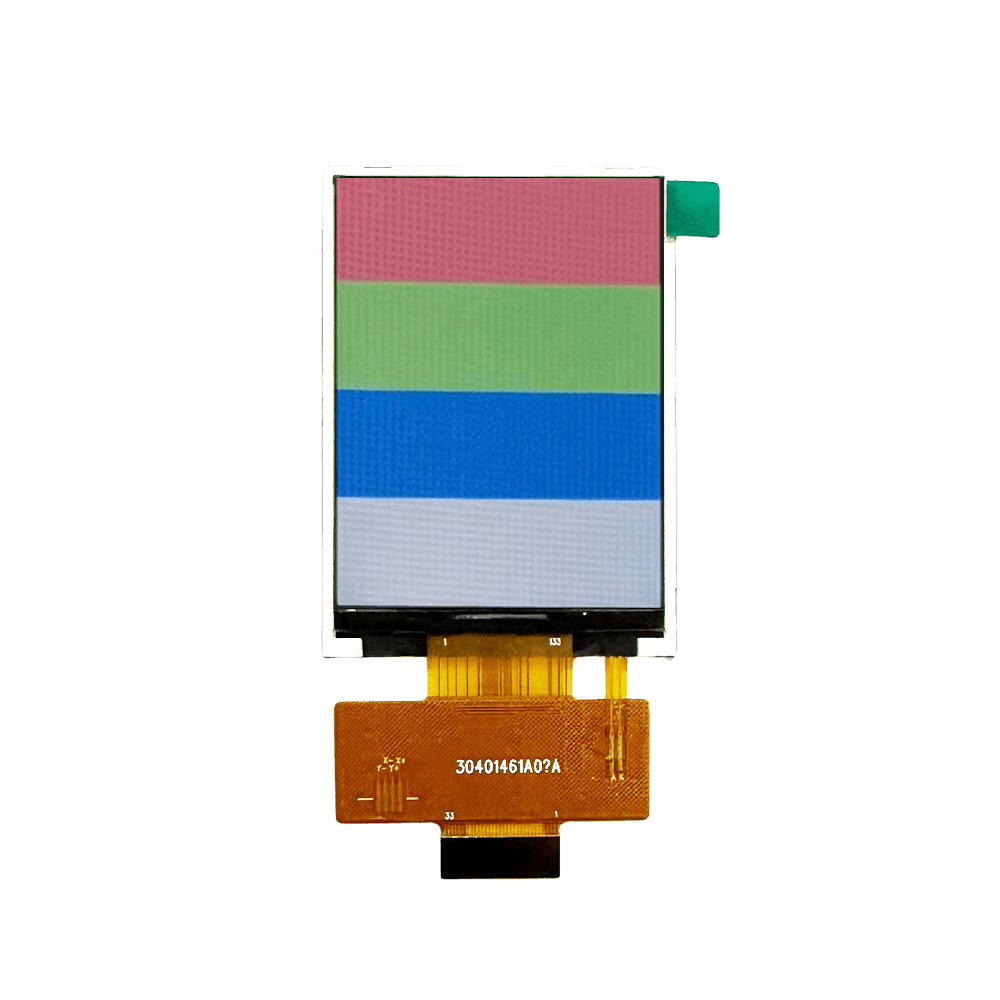

2.8" 240*320 2.8 inch Transflective LCD Screen 2.8 inch Transflective LCD Screen Featured Image MX-028NP33BFS-N17 TN 160 (Backlight ON) 33-pin MCU 35/35/40/35 (Backlight ON)
35/35/40/35 (Backlight OFF)
-20~70 50.44*69.64*2.84 43.20*57.60 Download PDF
