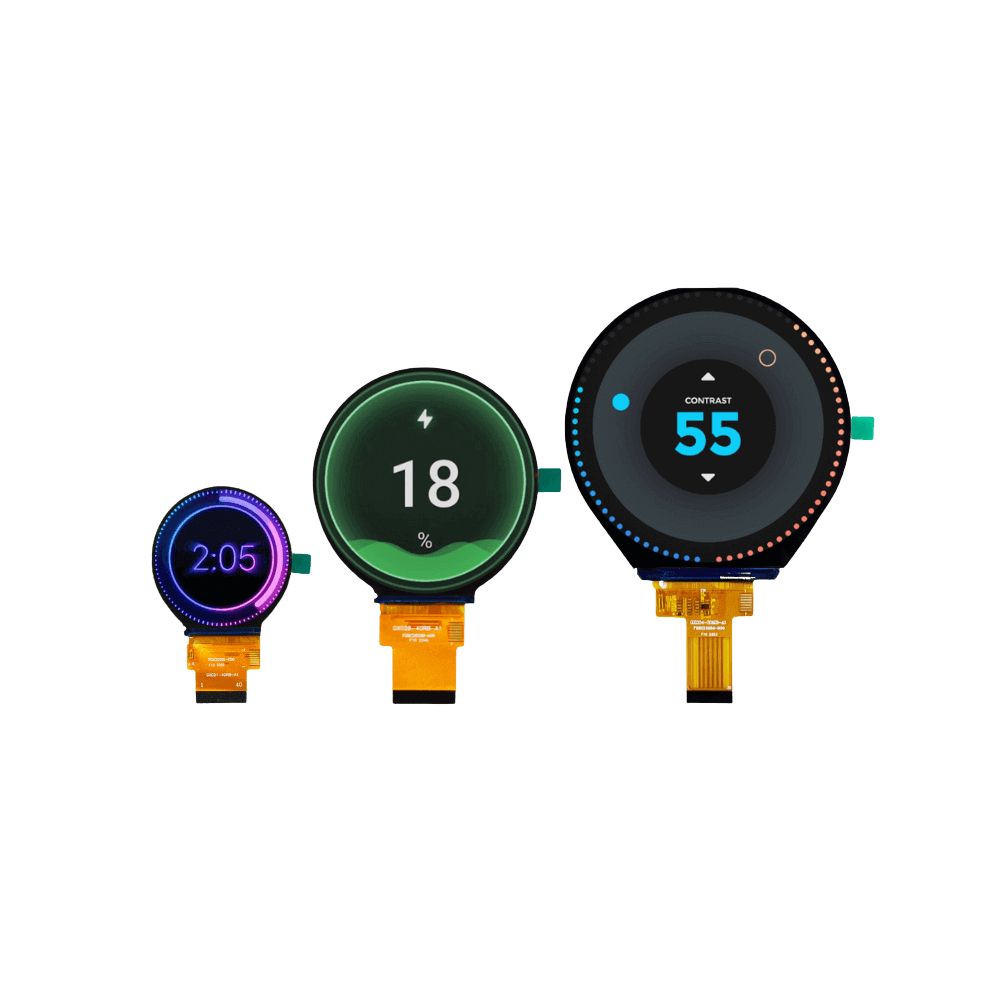

Round Type TFT Display, Circular LCD Screen

MAXEN's round type TFT LCD displays also known as circular LCD screens, different from traditional rectangular displays, its circular form exudes cutting-edge technology and modern elegance, perfectly suited for high-end or innovative use cases by using cuting lcd technology.

Available in TFT sizes 1.28 inch, 1.6 inch, 2.1 inch, 3.4 inch, 4 inch and 5 inch, with resolutions 240x240, 400x400, 480x480, 800x800. Optional with capacitive touch screens, these round TFT LCDs are the perfect choices for products requiring up to date design.

This type of round display tft is widely applied in smart home devices, wearable electronics, automotive instrument clusters, medical equipment, and consumer electronics, ideal for circular data visualization (e.g., clocks, dashboards, progress rings, radar charts).

Inquiry Now
Size Resolution Image Part NO. TFT Type Interface Brightness
(nits)
Viewing Angle
(T/B/L/R)
Operation Temp.
(℃)
Outline Dimension
(WxHxT, mm)
Active Area
(WxH, mm)
Drawing
2.1" 480*480 2.1 inch Round LCD Display 2.1 inch Round LCD Display Featured Image MX-R021NS40FS-N02 IPS 40-pin RGB 350 85/85/85/85 -20~70 56.18*59.71*2.20 53.28*53.28 Download PDF
2.1" 480*480 2.1 inch Circular LCD Screen with Capacitive Touch Screen 2.1 inch Circular LCD Screen with Capacitive Touch Screen Featured Image MX-R021NM30FS-N01-2501 IPS 30-pin MIPI + I²C 350 85/85/85/85 -20~70 61.60*65.60*4.68 (with PCAP) 53.28*53.28 Download PDF
2.8" 480*480 2.8 inch Round TFT Display 2.8 inch Round TFT Display Featured Image MX-R028NS40FS-N01 IPS 40-pin RGB 300 85/85/85/85 -20~70 73.03*76.48*2.30 70.13*70.13 Download PDF
3.4" 800*800 3.4 inch Round TFT LCD 3.4 inch Round TFT LCD Featured Image MX-R034HM30FS-N01 IPS 30-pin MIPI 300 85/85/85/85 -20~70 94.90*96.95*2.22 87.60* 87.60 Download PDF
4.0" 720*720 4 inch Round LCD Screen 4 inch Round LCD Screen Featured Image MX-R040WM30FS-N01 IPS 30-pin MIPI 320 85/85/85/85 -20~70 105.60*109.87*2.21 101.52*101.52 Download PDF
