| Size | Resolution | Image | Interface | Pin | Structure | Cover (mm) |
Touch Sensor (mm) |
Touch Controller | Cover O.D (WxHxT, mm) |
Valid Area (WxH, mm) |
Drawing |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.5" | 320*240/640*480 |
3.5 inch Capacitive Touch Screen
|
I²C | 10 Pin | PET+Glass | / | 0.70 | FT5216 | 76.40*63.40*1.08 | 70.08*52.56 | Download PDF |
| 4.3" | 480*272/800*480 |
4.3 inch Capacitive Touch Panel
|
I²C | 10 Pin | Glass+Glass | 1.10 | 0.55 | GT911 | 105.50*67.20*2.00 | 96.04*54.86 | Download PDF |
| 5" | 800*480 |
5 inch Capacitive Touch Screen
|
I²C | 10 Pin | Glass+Glass | 1.10 | 0.55 | GT911 | 120.70*76.30*1.85 | 109.00*65.80 | Download PDF |
| 7" | 800*480 |

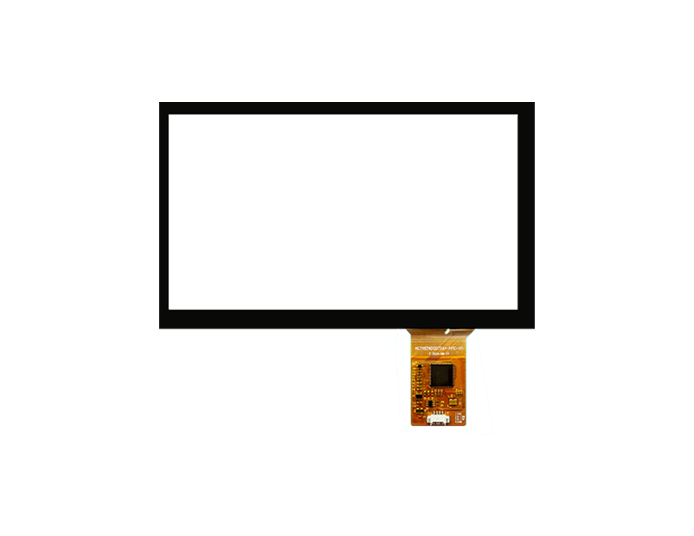

7 inch Capacitive Touch Panel
|
I²C | 6 Pin | Glass+Glass | 1.10 | 0.70 | GT911 | 188.08*121.92*2.40 | 154.08*85.92 | Download PDF |
| 10.1" | 1280*800 |
10.1 inch Capacitive Touch Screen
|
I²C, USB | 6 Pin | Glass+Glass | 1.10 | 1.10 | GT9271 | 251.50*165.50*2.40 | 217.56*136.20 | Download PDF |
