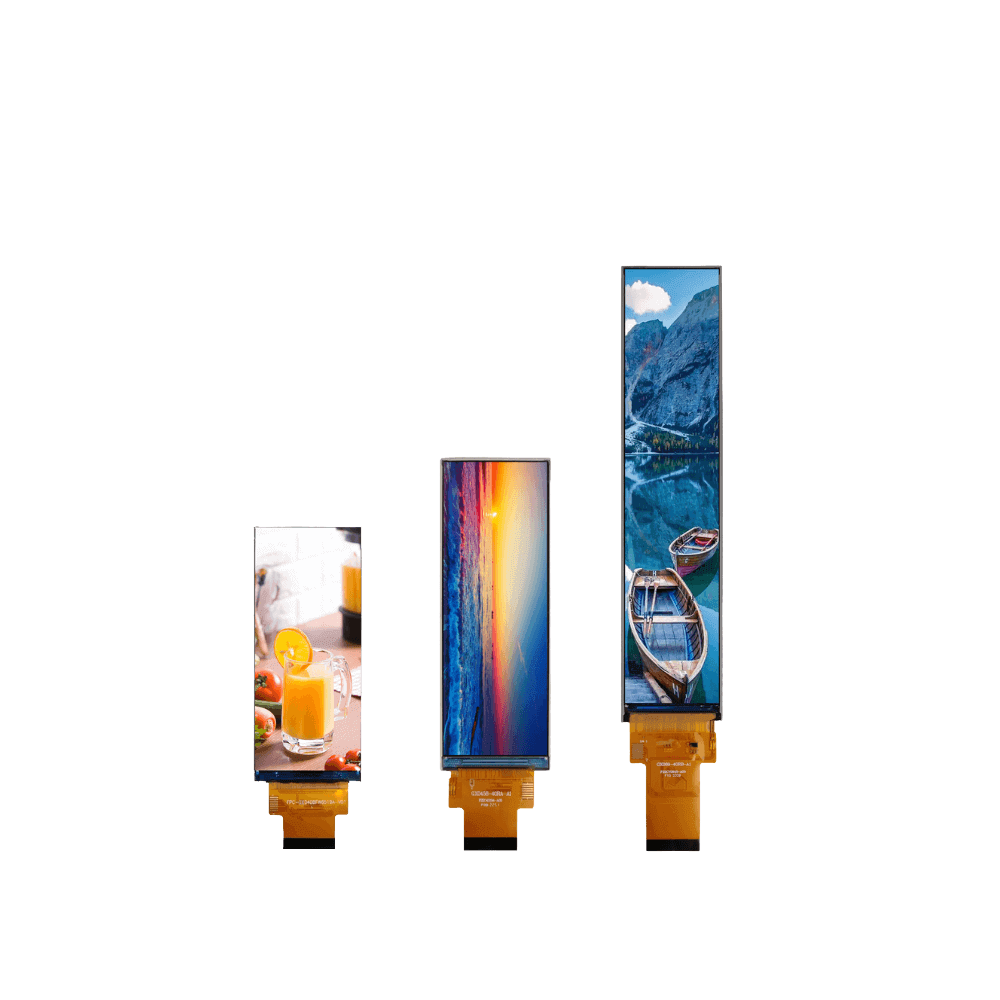

Bar Type TFT Display, Stretched Bar LCD Display

MAXEN's bar type TFT displays—also known as stretched LCD, bar LCD, or bar display—are designed to deliver an ultra-wide aspect ratio, making them ideal for applications where space is limited but clear, panoramic information display is required. Unlike conventional screens, bar type displays are produced through advanced cutting LCD technology.

Those cutted LCD displays including popular sizes 6.9 inch, 8.8 inch, 12.3 inch, 21.2 inch,23.1 inch, 24 inch. Resolutions including 480x192, 1280x320, 1920x360, and 1920x720 etc. Supporting versatile interfaces like LVDS, MIPI and optional with controller board with HDMI interface or Android system.

Oriented for advertisement displays, transportation displays, hospital call center displays, and museum displays.

Inquiry Now
Size Resolution Image Part NO. TFT Type Brightness
(nits)
Interface Viewing Angle
(T/B/L/R)
Operation Temp.
(℃)
Outline Dimension
(WxHxT, mm)
Active Area
(WxH, mm)
Drawing
3.5" 340*800 3.5 inch Bar Type Display 3.5 inch Bar Type Display Featured Image MX-035WR40BFS-N16 IPS 350 40-pin SPI+RGB 80/80/80/80 -20~70 36.67*88.45*1.65 33.97*81.00 Download PDF
4.6" 320*960 4.6 inch Bar Type TFT Display 4.6 inch Bar Type TFT Display Featured Image MX-046HS40FS-N01 IPS 300 40-pin RGB 80/80/80/80 -20~70 41.57*118.80*2.50 36.77*110.30 Download PDF
6.9" 280*1424 6.9 inch Bar-type TFT LCD Display 6.9 inch Bar-type TFT LCD Display Featured Image MX-069NR40BFS-N01 IPS 350 40-pin RGB 80/80/80/80 -20~70 38.20*181.70*3.40 33.60*170.88 Download PDF
21.2" 1920*360 21.2 inch Stretched Bar LCD Display 21.2 inch Stretched Bar LCD Display Featured Image MX-B212FL30-IBZ02 IPS 600 30-pin LVDS 89/89/89/89 0~50 543.50*118.50*7.50 529.42*99.26 Download PDF
24" 1920*360 24 inch Stretched Bar LCD Screen 24 inch Stretched Bar LCD Screen Featured Image MX-240FL30BFH-N02 IPS 1000 30-pin LVDS 89/89/89/89 0~50 612.70*132.10*8.40 597.89*112.10 Download PDF
