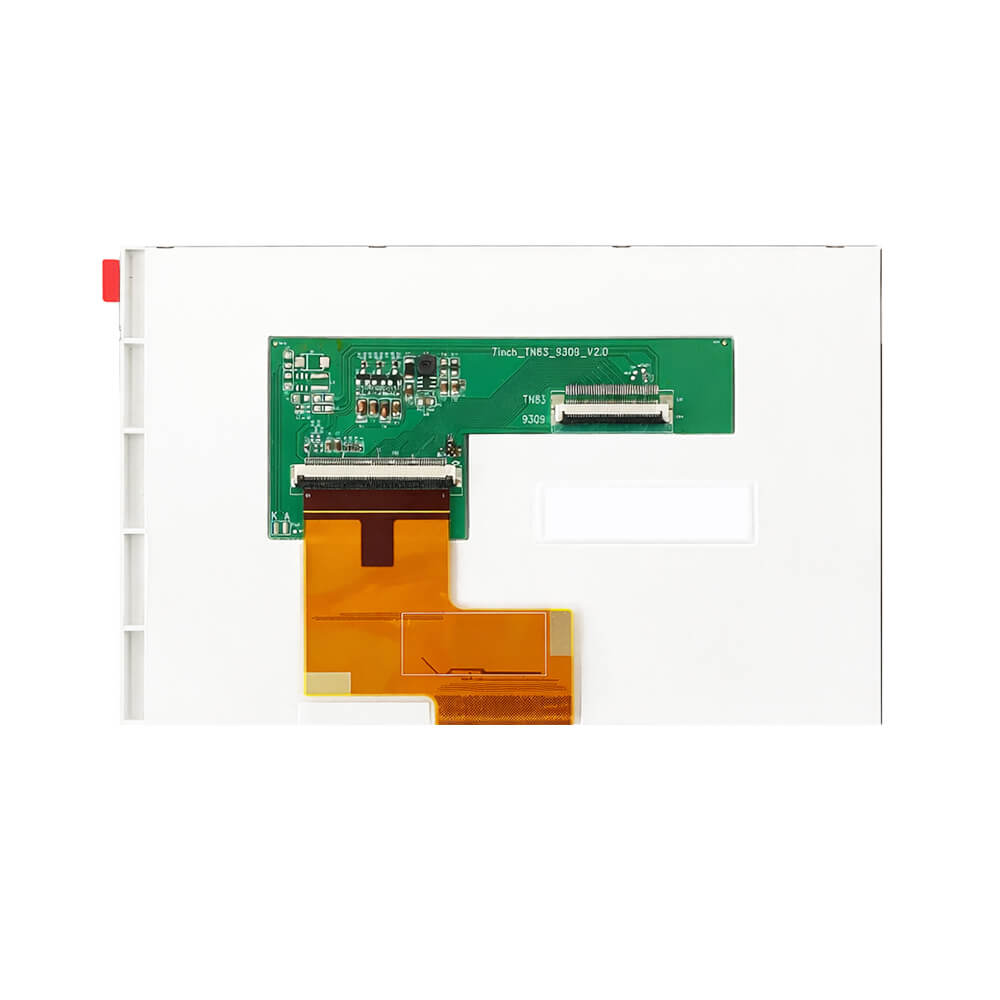

IPS Display 7 inch

Alternative to the Innolux AT070TN83 V.1. Suitable for upgrading legacy embedded system designs, portable testing instruments, and smart home control hubs.

Main Features

Part No. MX-070WR40UFS-N162
7.0" TFT LCD Display
800x480 resolution
Standard brightness 350 cd/m²
80/80/80/80 full viewing angle (IPS)
40-pin RGB interface

Get a Quote Download Specs.

MX-070WR40UFS-N162

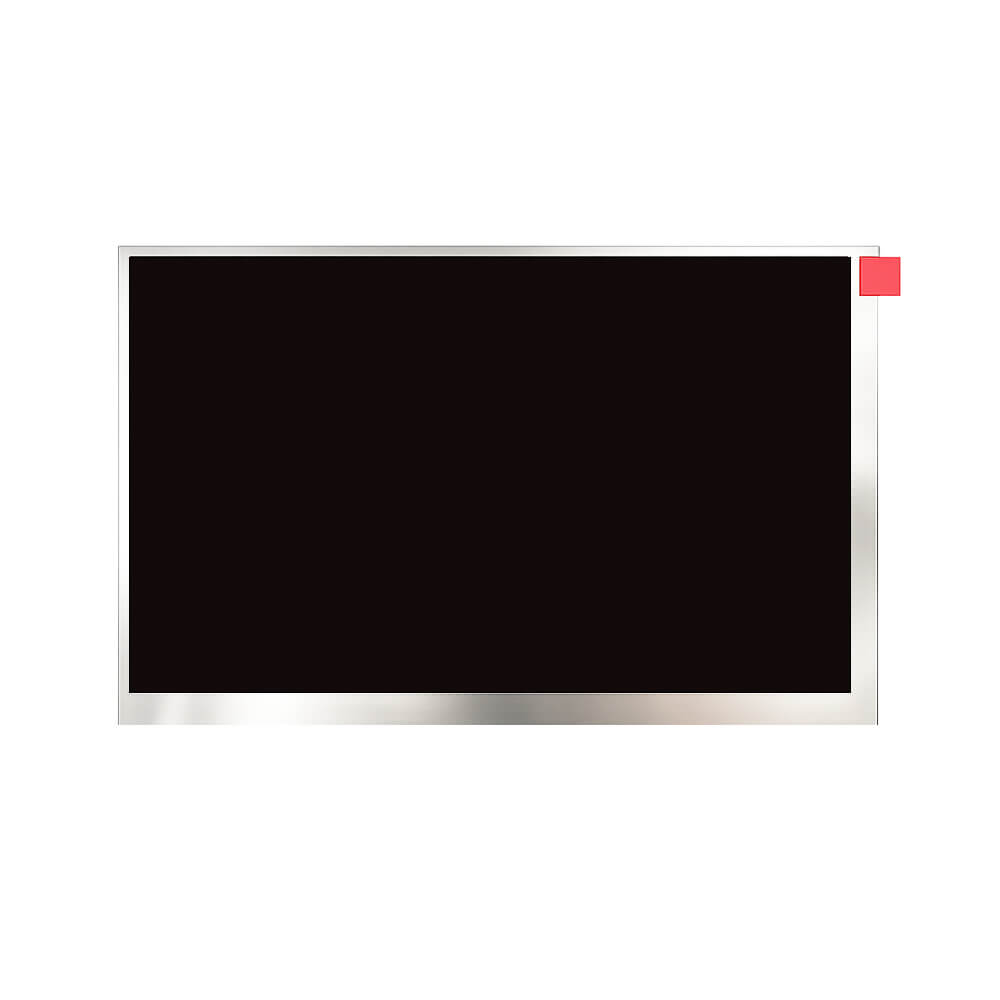

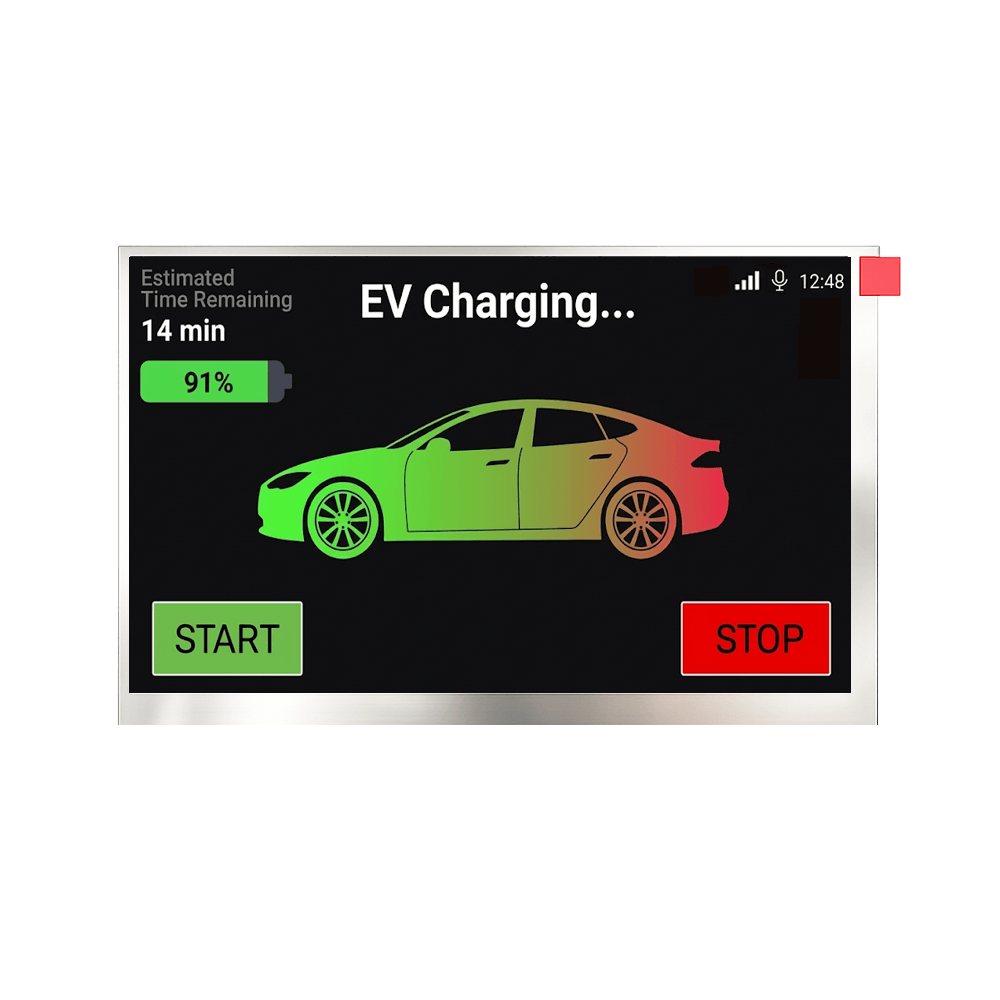

IPS Display 7 inch MX-070WR40UFS-N162 combines 800x480 resolution and specific 40-pin RGB interface with an IPS panel featuring 80/80/80/80 viewing angles, specifically designed as professional alternative to the Innolux AT070TN83 V.1. This 7 inch display module delivers 350 nits of reliable brightness and ensures stable operation across a -20℃ to 70℃ working range. Maintaining precise structural dimensions, this 800x480 TFT screen is ideal for upgrading legacy embedded system designs, portable testing instruments, and smart home control hubs.

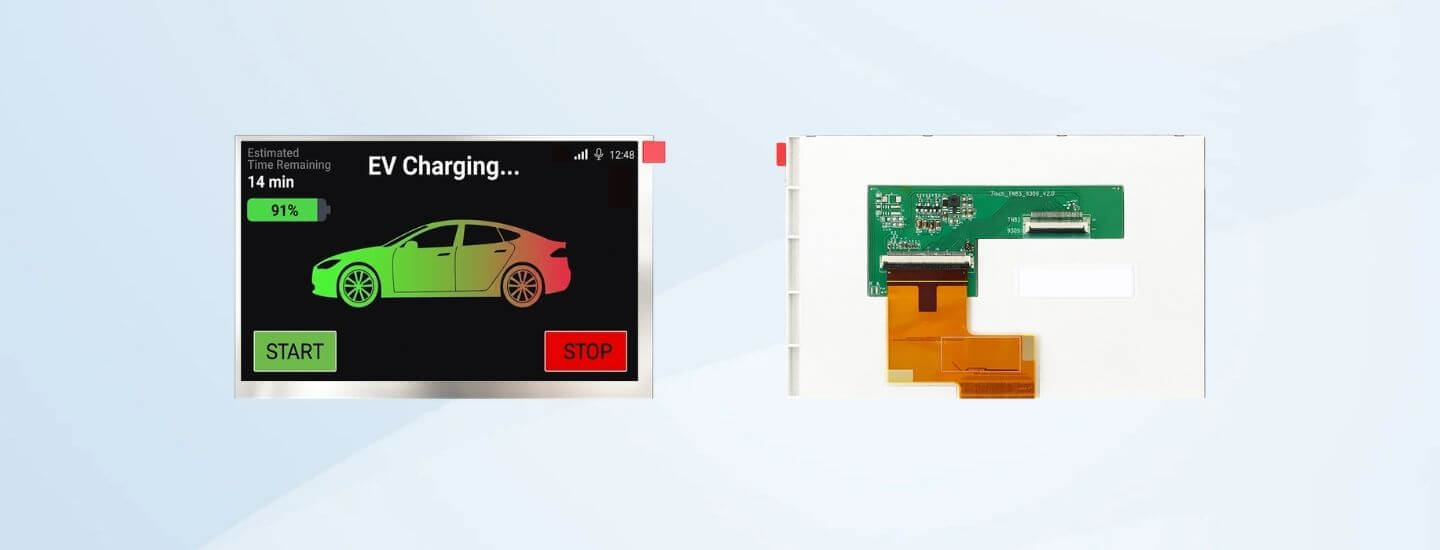

7 inch ips display 800x480 40 pin rgb interface

Standard Brightness

350 nits
Working Temp Range

-20°C to 70°C
Interface

40-pin RGB
Driver IC
/

LCM PIN Definition (40-pin RGB)
Absolute Maximum Ratings
LED Backlight Characteristics
Product Drawing

LCM PIN Definition (40-pin RGB)

Pin No.	Symbol	I/O	Function
1	VLED	P	Power supply for LED Driver
2	VLED	P	Power supply for LED Driver
3	ADJ	I	Adjust the led brightness with PWM Pulse
4	GLED	P	Ground for LED circuit
5	GLED	P	Ground for LED circuit
6	Vcc	P	Power supply for digital circuit
7	Vcc	P	Power supply for digital circuit
8	MODE	I	DE or HV mode control
9	DE	I	Data enable
10	VS	I	Vsync signal input
11	HS	I	Hsync signal input
12	GND	P	Power ground
13	B5	I	Blue data input (MSB)
14	B4	I	Blue data input
15	B3	I	Blue data input
16	GND	P	Power ground
17	B2	I	Blue data input
18	B1	I	Blue data input
19	BO	I	Blue data input(LSB)
20	GND	P	Power ground
21	G5	I	Green data input(MSB)
22	G4	I	Green data input
23	G3	I	Green data input
24	GND	P	Power ground
25	G2	I	Green data input
26	G1	I	Green data input
27	G0	I	Green data input(LSB)
28	GND	P	Power ground
29	R5	I	Red data input(MSB)
30	R4	I	Red data input
31	R3	I	Red data input
32	GND	P	Power ground
33	R2	I	Red data input
34	R1	I	Red data input
35	RO	I	Red data input(LSB)
36	GND	P	Power ground
37	DCLK	I	Sample clock
38	GND	P	Power ground
39	L/R	I	Select left or right scanning direction
40	U/D	I	Select up or down scanning direction

Absolute Maximum Ratings

Item	Symbol	Values		Unit
Item	Symbol	Min.	Max.	Unit
Power voltage	Vcc	-0.3	6.0	V
Power voltage	VLED	-	5.5	V
Input signal voltage	VI	-0.3	6.3	V
Operation Temperature	Top	-20	70	℃
Storage Temperature	Tst	-30	80	℃

LED Backlight Characteristics

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power voltage	Vcc	3.1	3.3	3.5	V
Power voltage	VLED	4.8	5.0	5.2	V
Current consumption	Icc	-	250	300	mA
Current consumption	lLED	-	500	550	mA
Input logic high voltage	VIH	0.7Vcc	-	V	V
Input logic low voltage	VIL	0	-	0.3V	V
LED life time	-	20,000	-	-	Hr
