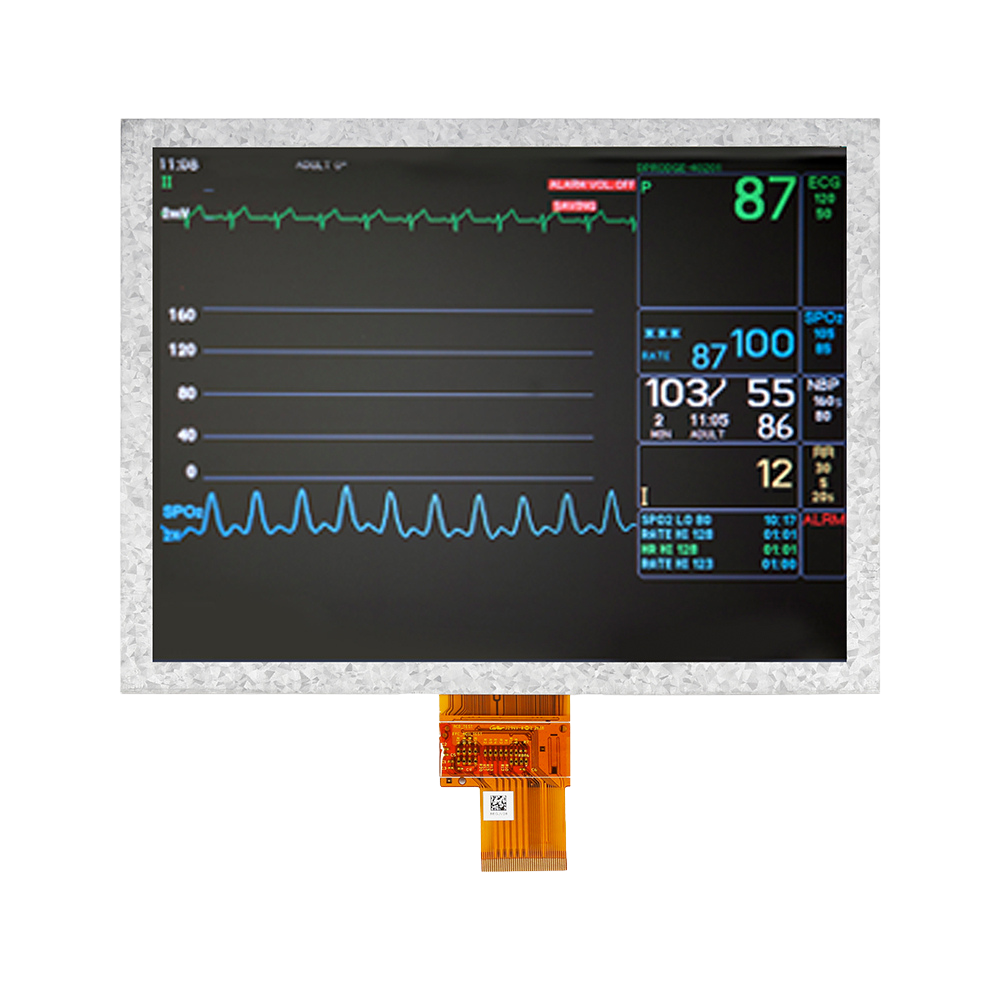

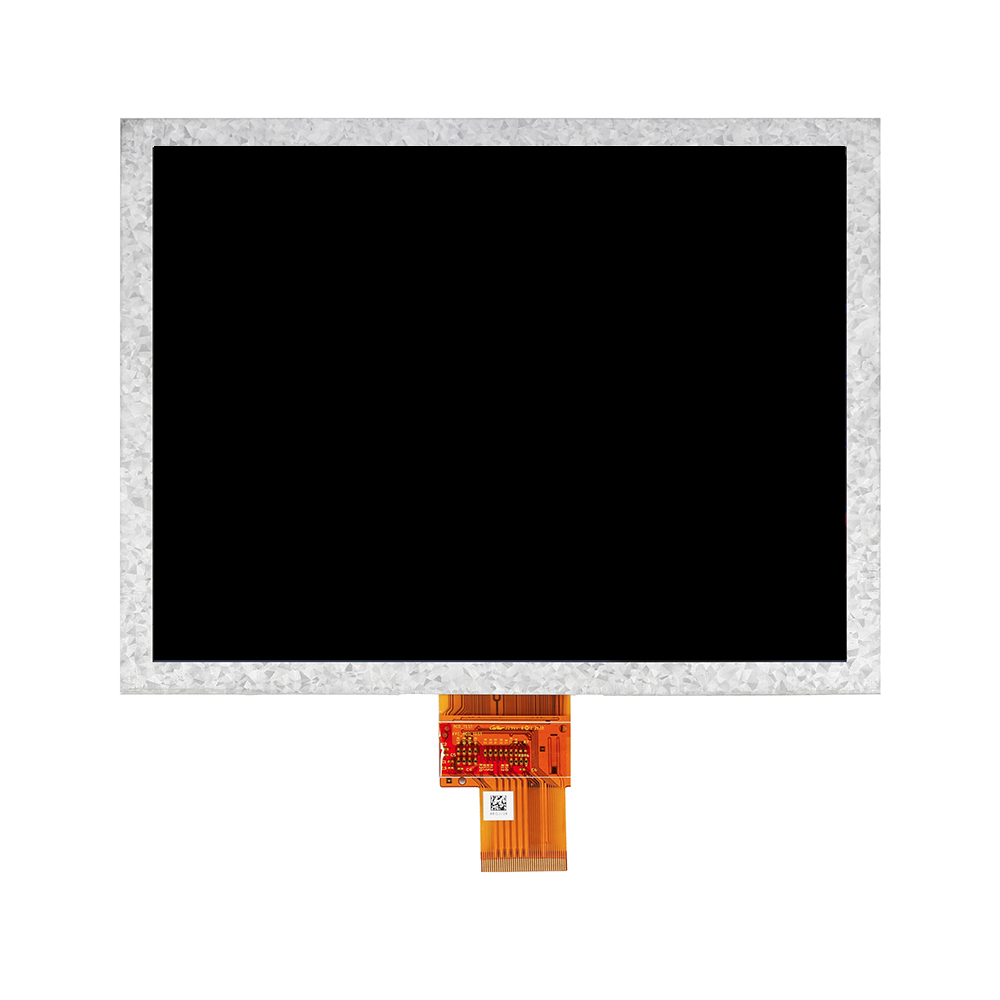

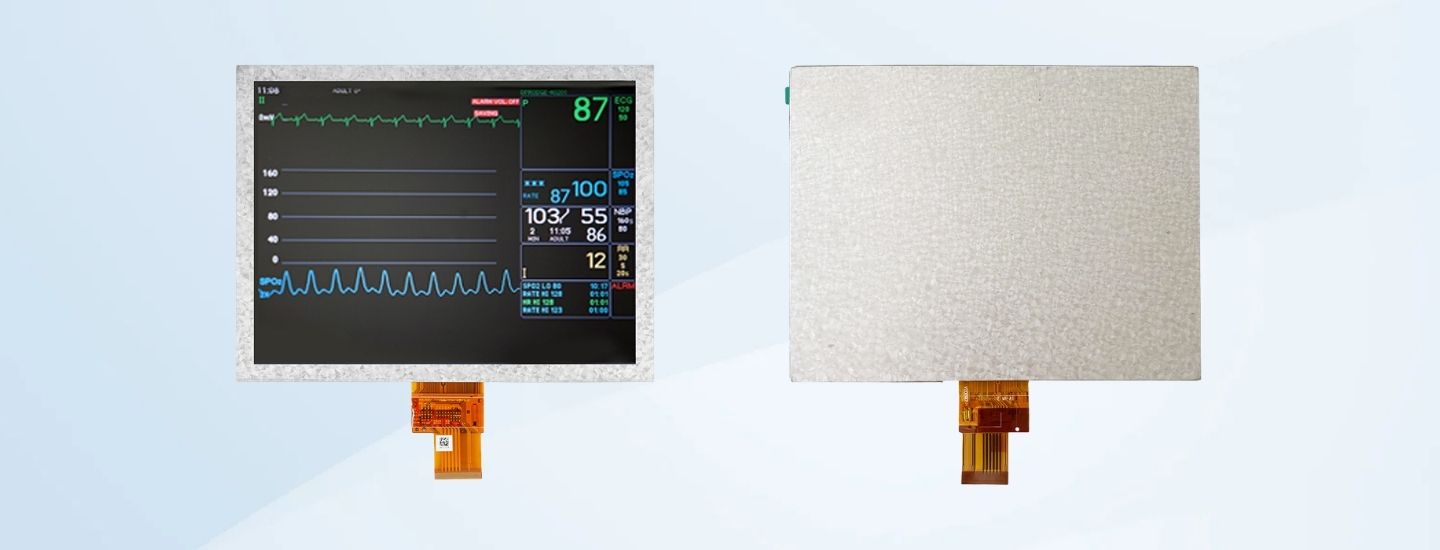

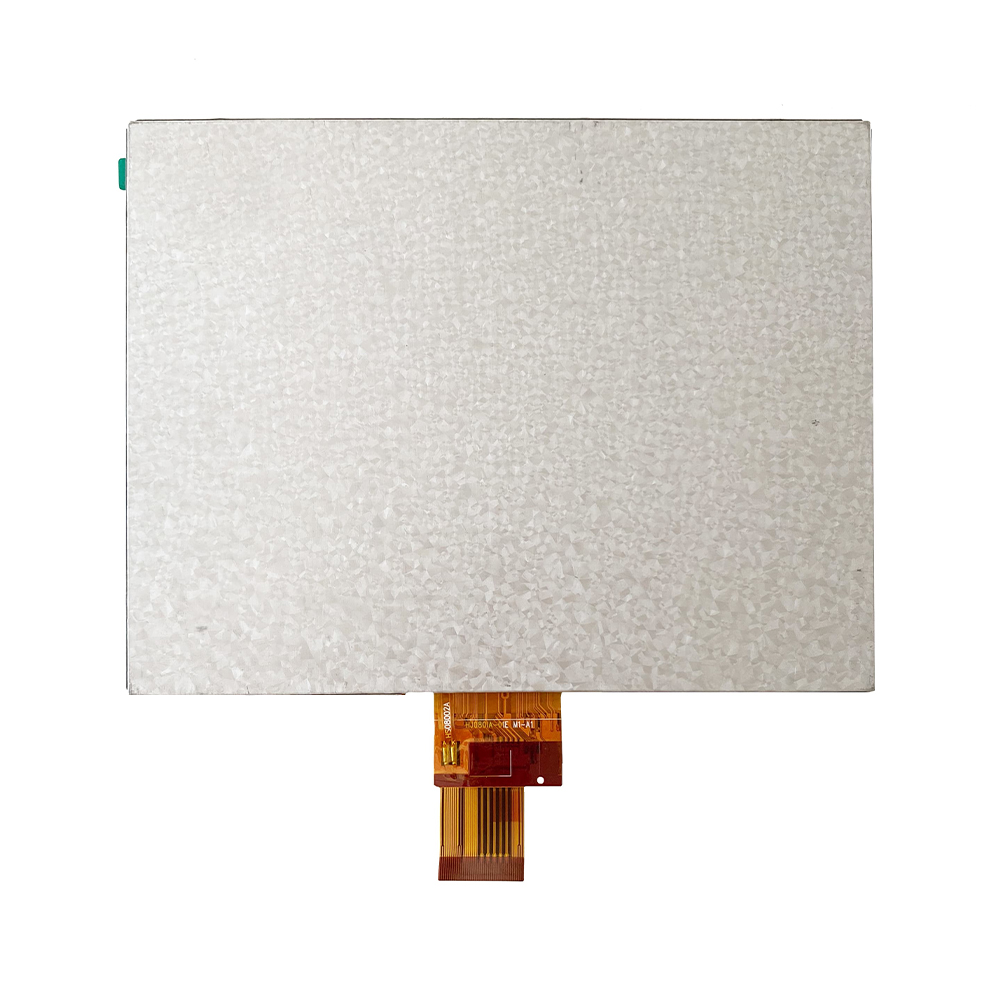

| Pin No. | Symbol | Function |
| 1 | VCOM | Common Voltage |
| 2 | VDD | Power Voltage for digital circuit |
| 3 | VDD | Power Voltage for digital circuit |
| 4 | NC | No connection |
| 5 | Reset | Global reset pin |
| 6 | STBYB | Standby mode,Normally pulled high STBYB=“1”,normal operation STBYB=“0”,timing controller,source driver will turn off,all output are High-Z |
| 7 | GND | Ground |
| 8 | RXINO- | -LVDS differential data input |
| 9 | RXINO+ | +LVDS differential data input |
| 10 | GND | Ground |
| 11 | RXIN1- | -LVDS differential data input |
| 12 | RXIN1+ | +LVDS differential data input |
| 13 | GND | Ground |
| 14 | RXIN2- | -LVDS differential data input |
| 15 | RXIN2+ | +LVDS differential data input |
| 16 | GND | Ground |
| 17 | RXCLKIN- | -LVDS differential clock input |
| 18 | RXCLKIN+ | +LVDS differential clock input |
| 19 | GND | Ground |
| 20 | RXIN3- | -LVDS differential data input |
| 21 | RXIN3+ | +LVDS differential data input |
| 22 | GND | Ground |
| 23 | NC | No connection |
| 24 | NC | No connection |
| 25 | GND | Ground |
| 26 | NC | No connection |
| 27 | DIMO | Backlight CABC controller signal output |
| 28 | SELB | 6bit/8bit mode select |
| 29 | AVDD | Power for Analog Circuit |
| 30 | GND | Ground |
| 31 | NC | No connection |
| 32 | NC | No connection |
| 33 | L/R | Horizontal inversion |
| 34 | U/D | Vertical inversion |
| 35 | VGL | Gate OFF Voltage |
| 36 | CABCEN1 | CABC HW enable |
| 37 | CABCENO | CABC HW enable |
| 38 | VGH | Gate ON Voltage |
| 39 | NC | No connection |
| 40 | NC | No connection |
