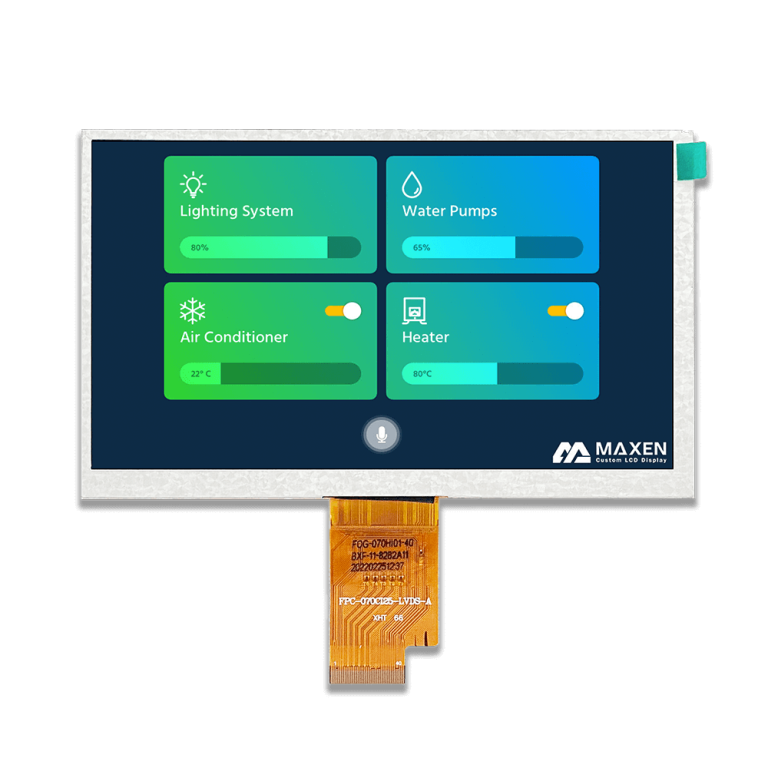

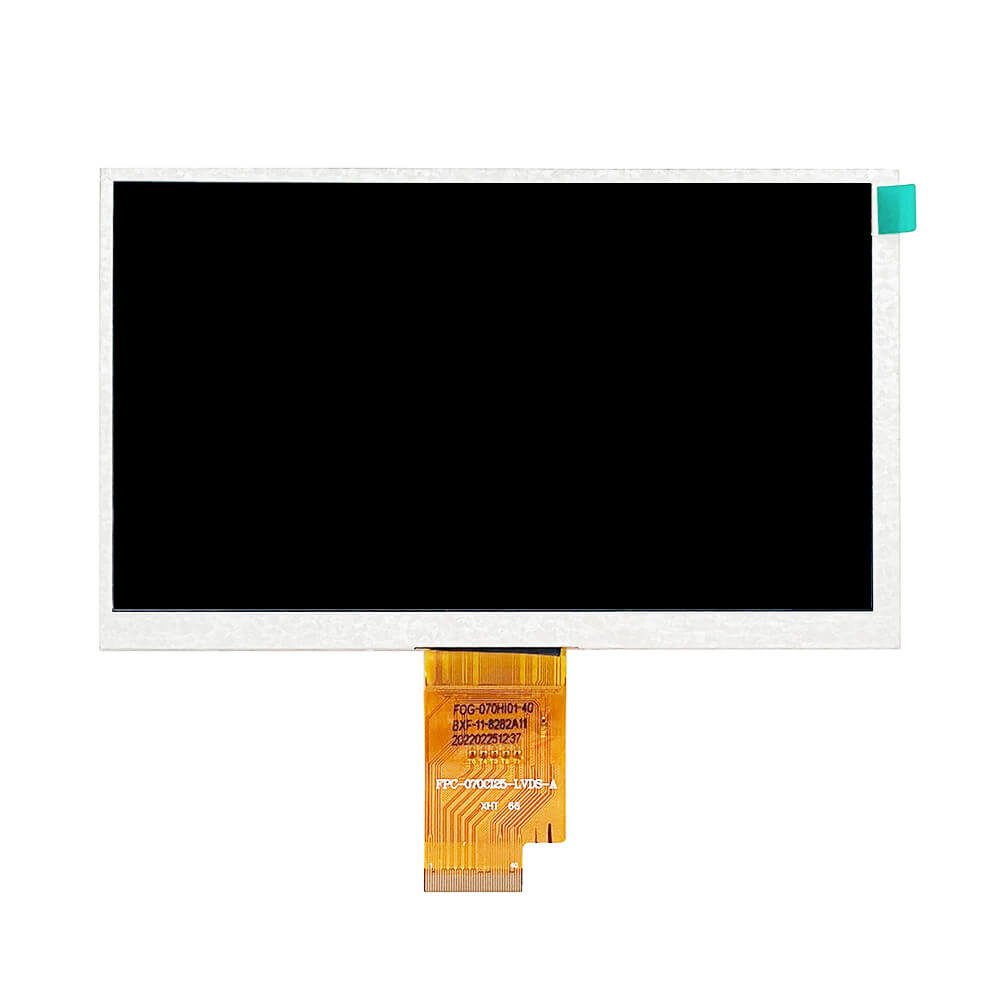

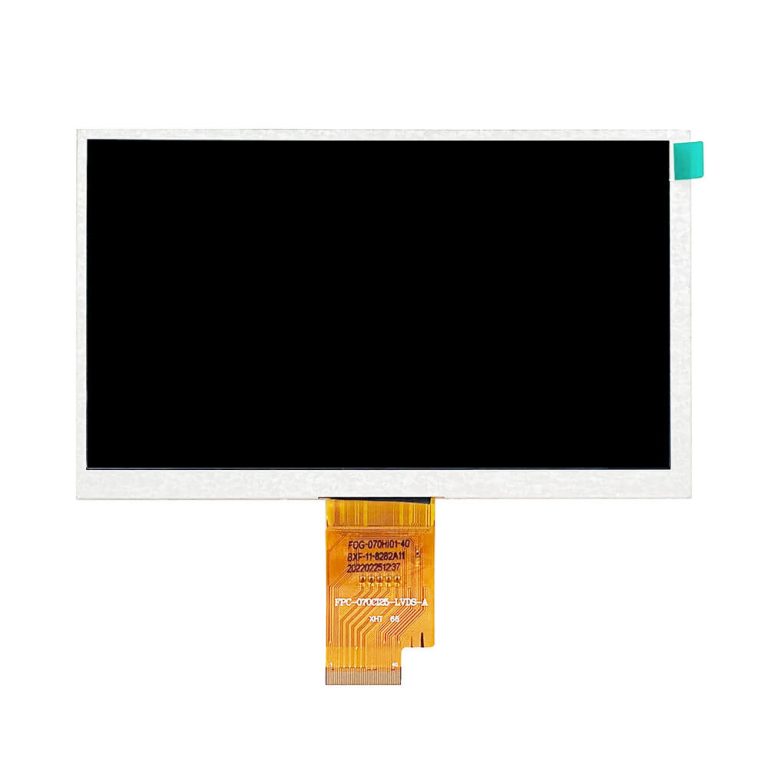

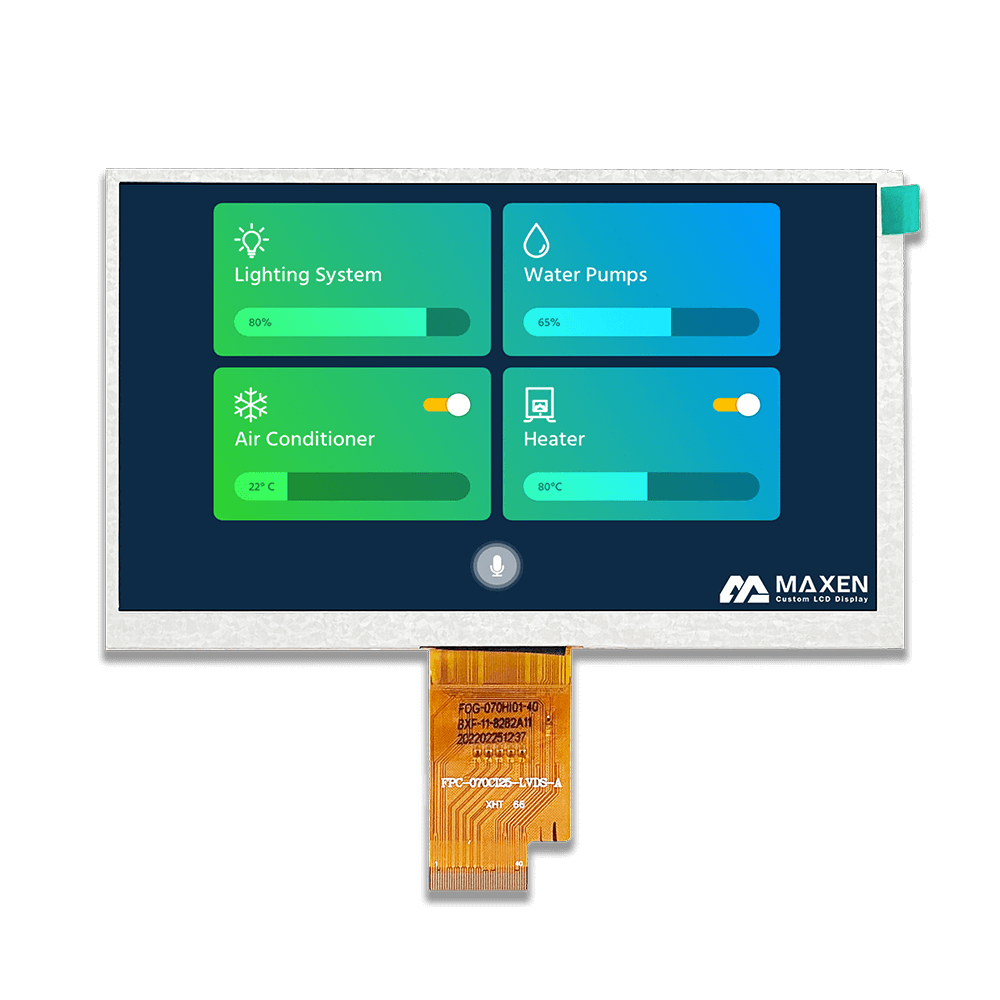

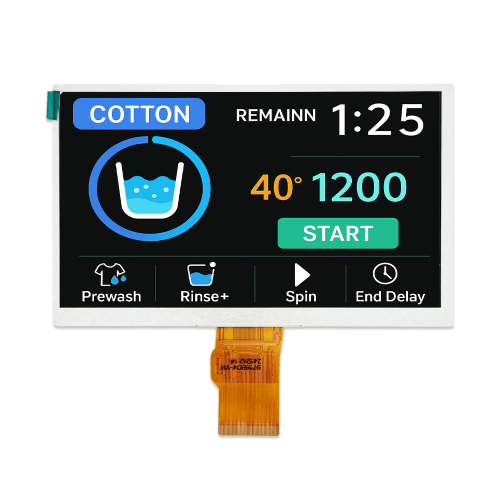

7 inch LCD Panel

Ideal for dental equipment and medical terminals.

Main Features

  • Part No. MX-H70HL40-IS311K
  • 7.0" TFT LCD Display
  • 1024x600 resolution
  • High brightness 1000 cd/m²
  • Full viewing angles (IPS)
  • 40-pin LVDS interface
  • Built-in HX8282-A+HX8696-A driver IC

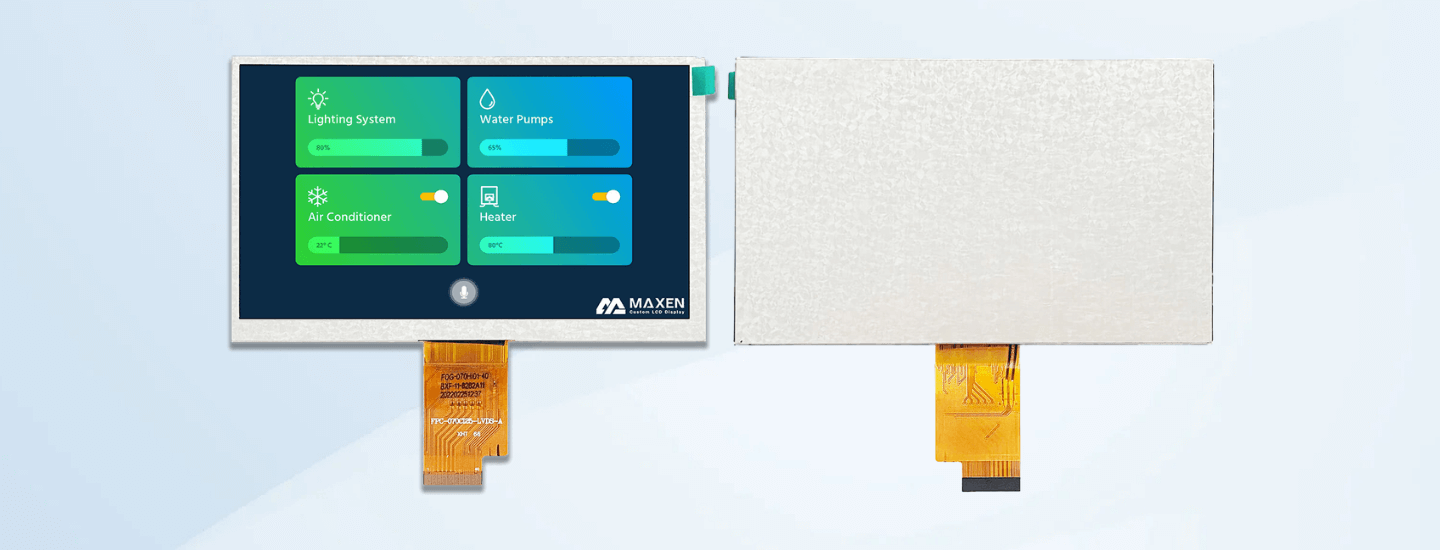

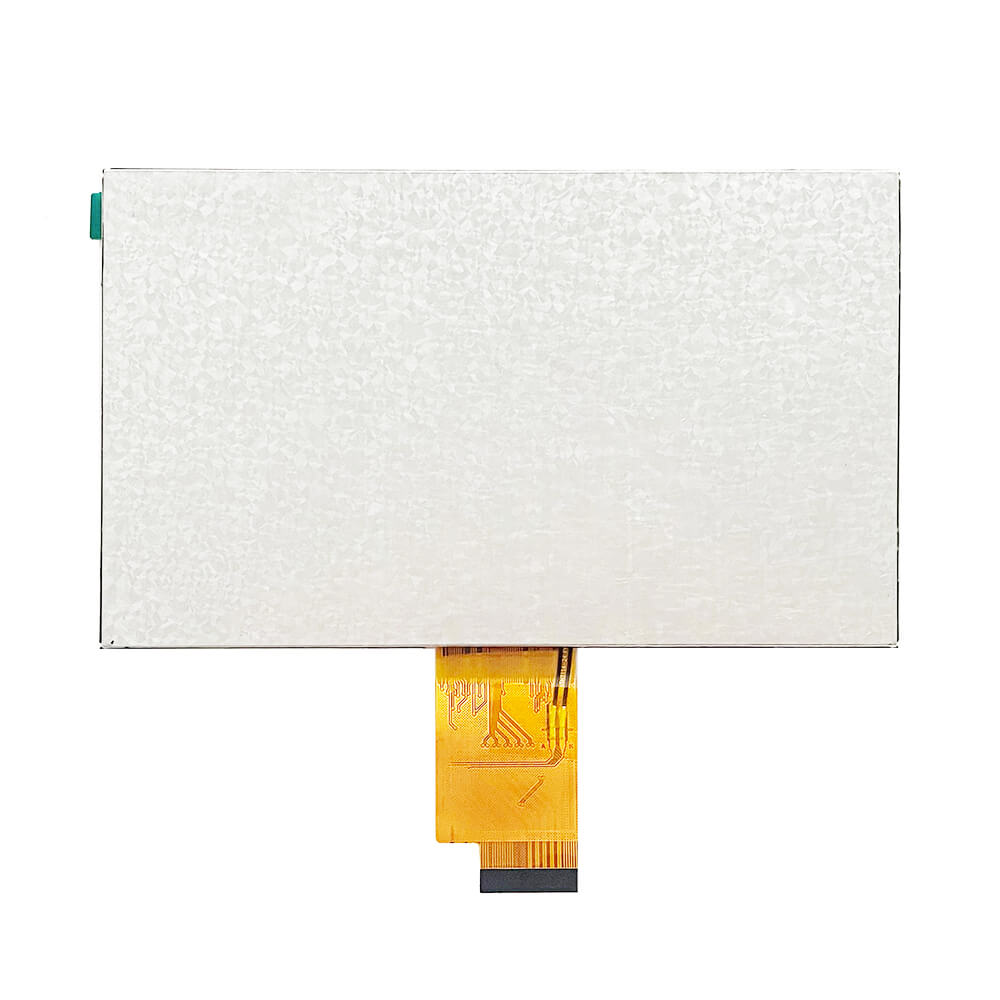

MX-H70HL40-IS311K

MX-H70HL40-IS311K is 7 inch TFT Display with IPS Technology that provides a wide viewing angle, true colors, and high brightness for sunlight readability. These 7" TFT displays feature 1024x600 pixels resolution and 1000cd/m2 brightness that helps in delivering brilliant images. The 7" TFT Displays come with an LVDS 6-bit/8-bit interface. These TFT displays operate at a 3.3V single supply voltage and a -20℃ to 70℃ temperature range.

  • High Brightness

    1000 nits

  • Working Temp Range

    -20°C to 70°C

  • Interface

    40-pin LVDS

  • IC

    HX8282-A+HX8696-A

Pin NO.

Symbol

Description

1

VCOM

Common voltage

2~3

VDD

Digital Power

4

NC

No connection

5

Reset

Global reset pin. Active Low to enter Reset State. Normally pull high.
It’s necessary to connecting with an RC delay circuit for stability.
(GRB delay VDD larger than 1ms)

6

STBYB

Standby mode, normally pull high
STBYB=”1”, Normal Operation
STBYB=”0”, Timing control, source driver will turn off, all output are high-Z

7

GND

Ground level for analog block

8

NIND0

Negative LVDS Differential Data Inputs

9

PIND0

Positive LVDS Differential Data Inputs

10

GND

Ground

11

NIND1

Negative LVDS Differential Data Inputs

12

PIND1

Positive LVDS Differential Data Inputs

13

GND

Ground

14

NIND2

Negative LVDS Differential Data Inputs

15

PIND2

Positive LVDS Differential Data Inputs

16

GND

Ground

17

NINC

Negative LVDS Differential Clock Inputs

18

PINC

Positive LVDS Differential Clock Inputs

19

GND

Ground

20

NIND3

Negative LVDS Differential Data Inputs

21

PIND3

Positive LVDS Differential Data Inputs

22

GND

Ground

23~24

NC

No connection

25

GND

Ground

26~27

NC

No connection

28

SELB

6bit/8bit mode select

29

AVDD

Power for Analog Circuit

30

GND

Ground

31~32

LED-

LED Cathode

33

SHLR

Horizontal Inversion

34

UPDN

Vertical Inversion

35

VGL

Negative Power for TFT

36~37

NC

No connection

38

VGH

Positive Power for TFT

39~40

LED+

LED Anode

Parameter

Symbol

Spec.

Unit

Min.

Typ.

Max.

Power supply voltage 1

VDD

-0.5

-

3.96

V

Power supply voltage 2

AVDD

-0.5

-

14.85

V

Logic output voltage

VOUT

-0.5

-

5

V

Input voltage

VIN

-0.5

-

AVDD+0.5

V

Operation temperature

TOPR

-20

-

85

Storage temperature

TSTG

-55

-

125

Item

Symbol

Min.

Typ.

Max.

Unit

Digital Supply Voltage

VDD

3

3.3

3.6

V

Analog Supply Voltage

AVDD

8.9

9

9.1

V

TFT Gate ON Voltage

VGH

17

18

19

V

TFT Gate OFF Voltage

VGL

-6.5

-6

-5.5

V

TFT Common Electrode Voltage

VCOM

3

3.15

3.3

V

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Note

Supply voltage

-

-

9

9.6

10.8

V

1

Supply current

If

-

-

220

-

mA

2

LED Life Time

Hr

-

-

50000

-

Hr





Note:

1: VLED=VLED(+)-VLED(-).

2: The current of LED is 20mA.

A LED drive in constant current mode is recommended.

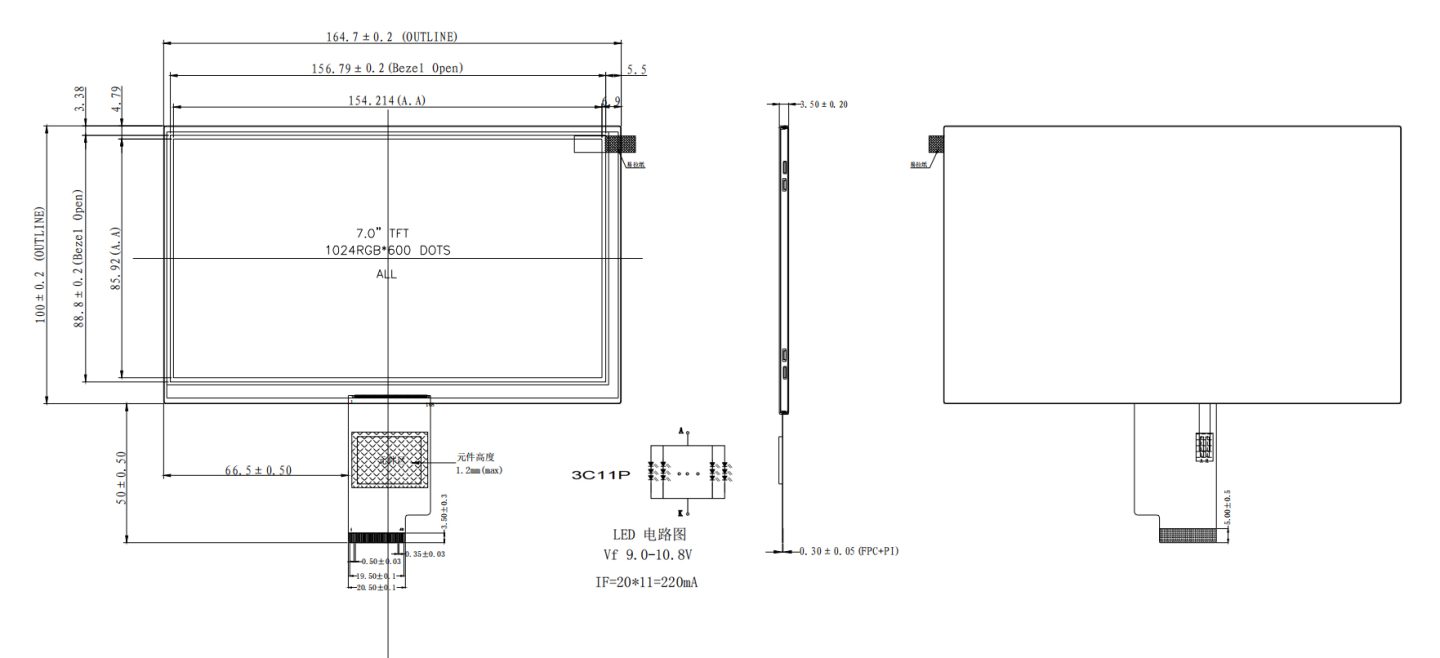

7 inch LCD Panel Product Drawing
