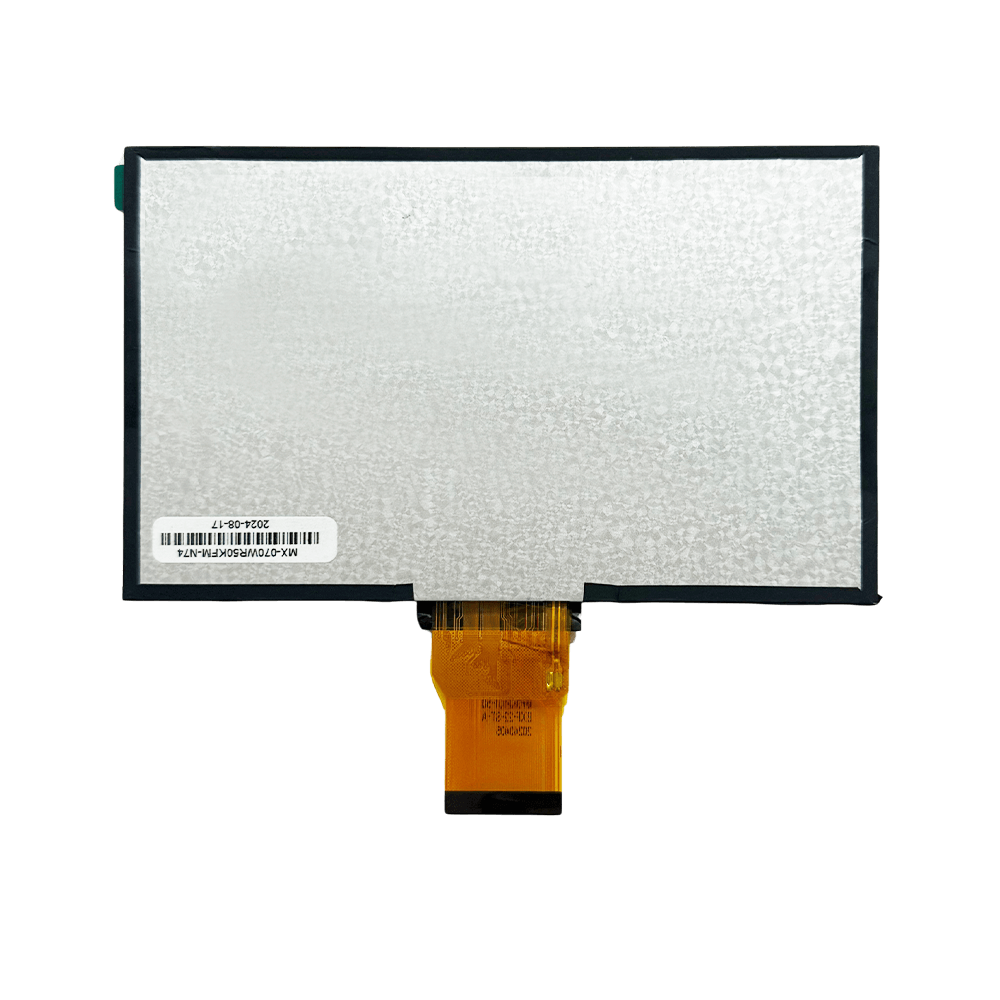

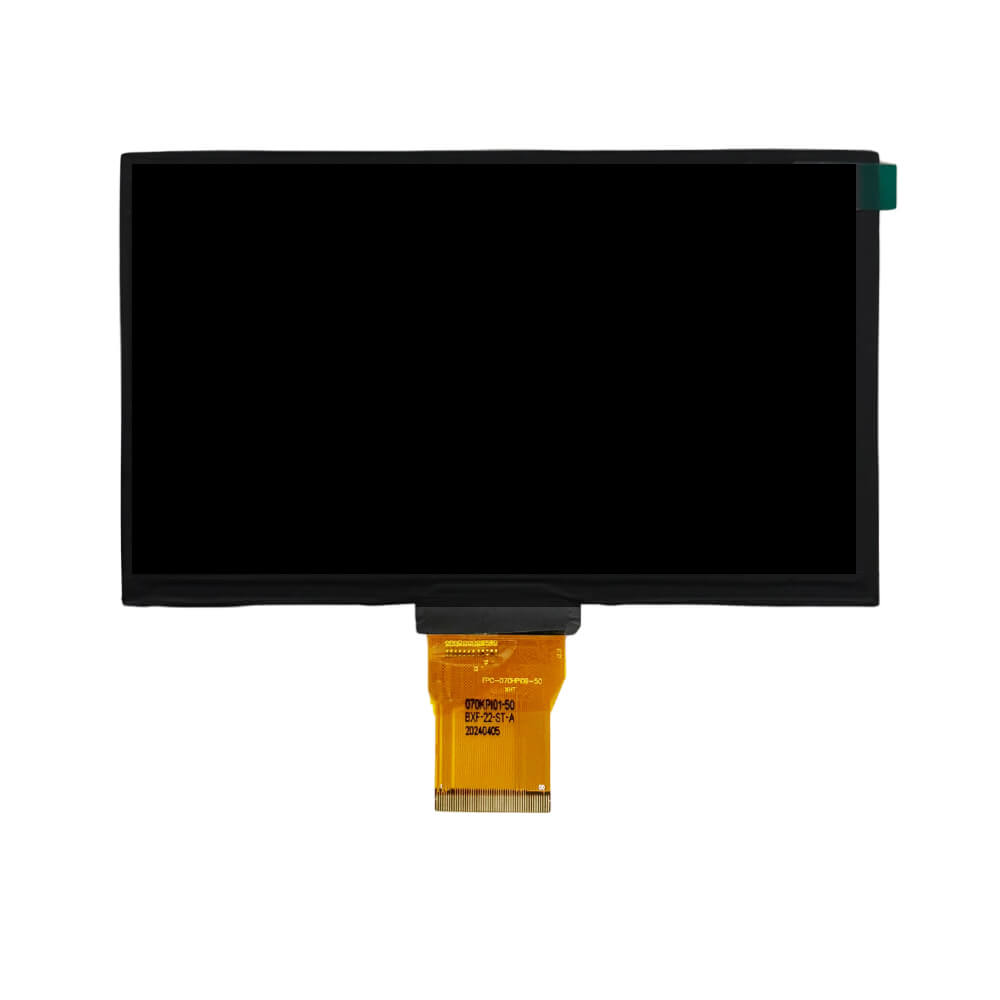

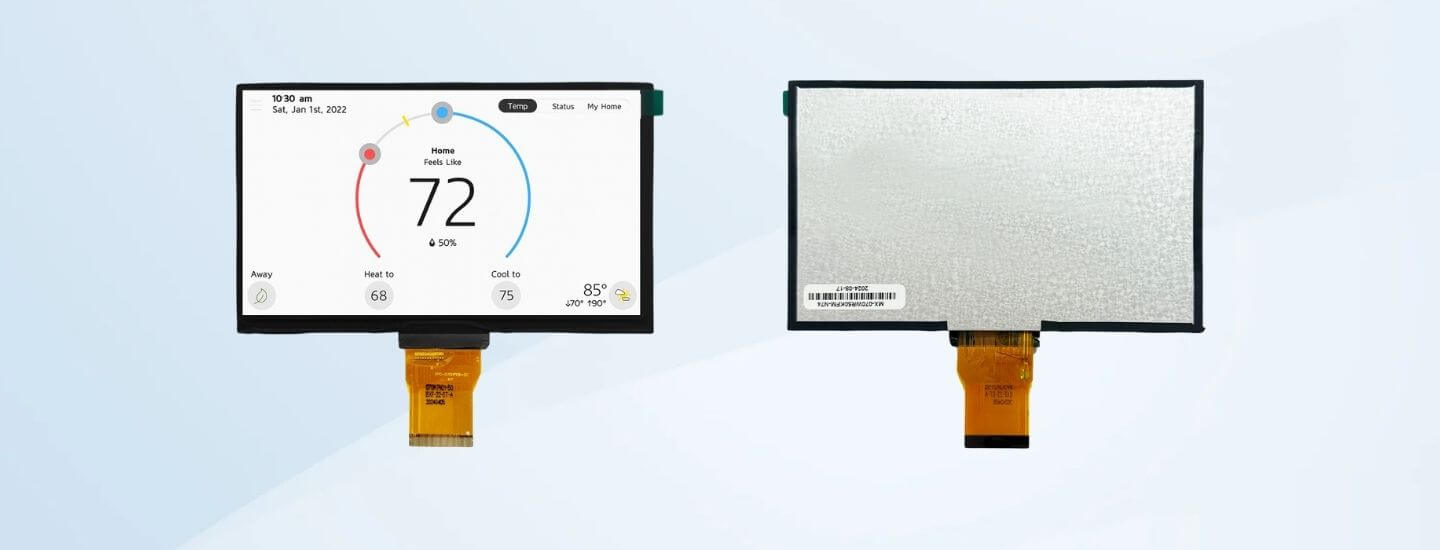

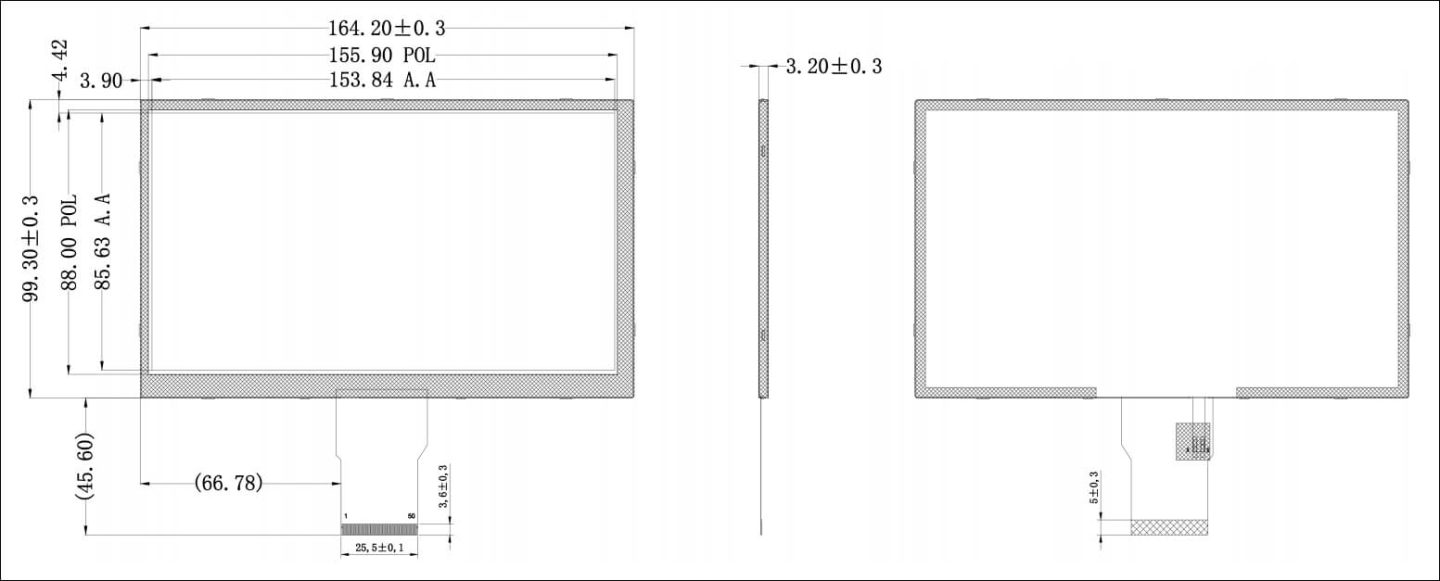

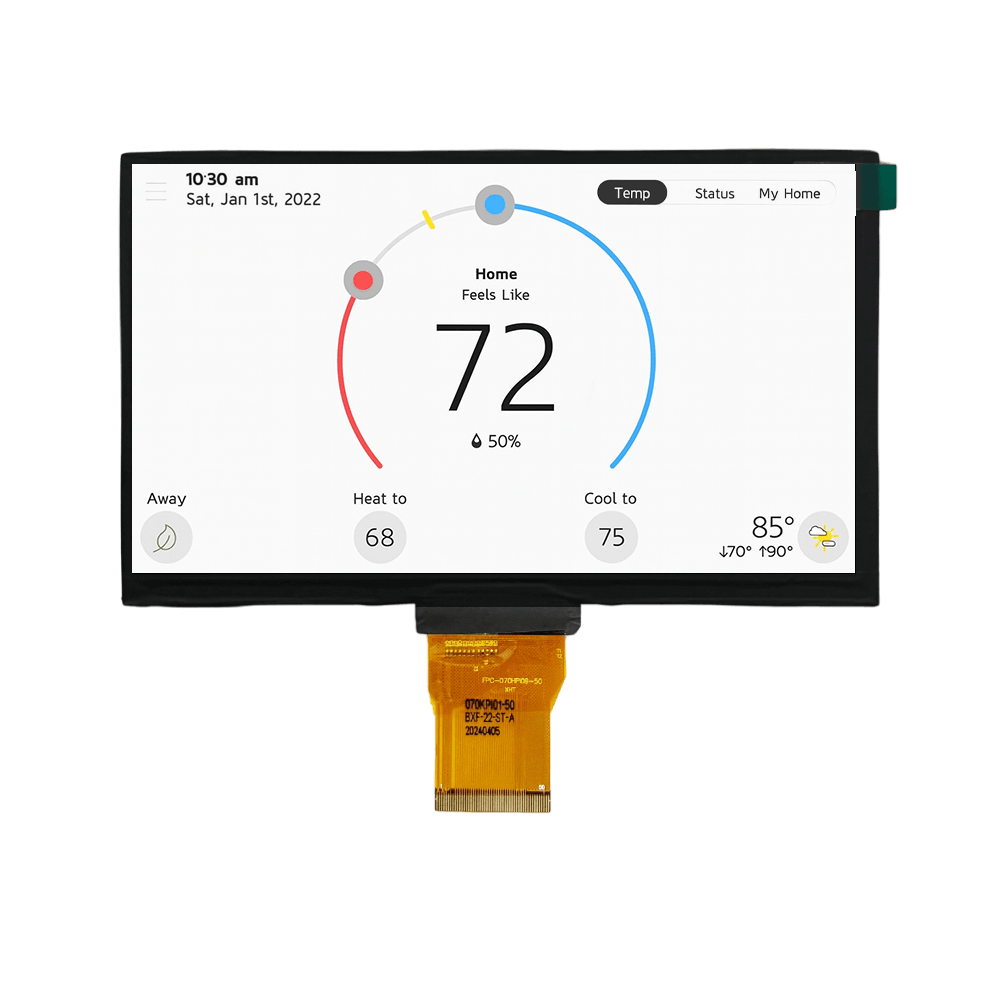

| PIN NO. | Symbol | Function |
| 1-2 | VLED+ | Power for LED backlight (Anode) |
| 3-4 | VLED- | Power for LED backlight (Cathode) |
| 5 | GND | Power Ground |
| 6 | NC | Not connected |
| 7 | DVDD | Digital power |
| 8 | NC | Not connected |
| 9 | DE | Data input enable |
| 10 | VSYNC | Vertical Sync input |
| 11 | HSYNC | Horizontal Sync input |
| 12~19 | B7~BO | Blue data |
| 20~27 | G7~G0 | Green data |
| 28~35 | R7~RO | Red data |
| 36 | GND | Power Ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power ground |
| 39 | SHLR | Left/right selection |
| 40 | UPDN | Up/Down selection |
| 41 | NC | Not connected |
| 42 | NC | Not connected |
| 43 | NC | Not connected |
| 44 | RESET | Global reset pin |
| 45 | DISPLAY | Display on/off |
| 46 | NC | Not connected |
| 47 | NC | Not connected |
| 48 | GND | Power ground |
| 49-50 | NC | No connection |
| Parameter | Symbol | Min | Typ | Max | Unit |
| Power Supply | DVDD | 0.3 | — | 3.96 | V |
| Operating Temperature | TOP | -20 | — | 70 | ℃ |
| Storage Temperature | TST | -30 | — | 80 | ℃ |
| Parameter | Symbol | Min | Typ | Max | Unit | |
| Power Supply | DVDD | 3.0 | 3.3 | 3.6 | V | |
| Input Voltage | ‘H’ |
VIH |
0.7
VDVDD |
— |
VDVDD |
V |
| ‘L' |
VIL |
0 | — | 0.3
VDVDD |
V | |
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| Supply voltage | Vf | — | 8.4 | 9.0 | 10.2 | V |
| Supply current | If | — | — | 180 | — | mA |
| Number of LED | — | 3Sx9P | — | 27 | — | Piece |
| Power Consumption | — | — | — | 1620 | — | mW |
| LED life time | — | — | 30000 | 50000 | — | Hrs |
