7 inch Capacitive Touch Panel

Compatibility with 800x480/1024x600 pixel TFT LCDs.

Main Features

  • Part NO. HCT775GG070B-V0
  • Size: 7.0"
  • Touch Structure: Glass+Glass
  • Touch Driver IC: GT911
  • Touch Interface: I²C
  • Light Transmission: >85%
  • Glass Surface Hardness: 6H
  • Custom Touch Solutions Available

HCT775GG070B-V0

HCT775GG070B-V0 is a G+G structure 7 inch Capacitive Touch Panel constructed from ITO on a 0.70 mm glass substrate. This touch sensor is typically optically bonded to a 1.10 mm glass cover boasting a surface hardness of 6H, accompanied by a light transmission rate exceeding 85%. The flexible cable is meticulously integrated with the GT911 touch IC, capable of accommodating 5-point touch interactions. The interface employs an I2C 6-Pin connection. This capacitive touch screen seamlessly interfaces with a 7 inch TFT LCD display boasting a resolution of 800*480.

7 inch Capacitive Touch Panel - banner
Item Specification
Touch Screen Size 7.0"
Touch controller Goodix GT911
Touch Interface I²C
Pin Number 6pin
Structure Glass+Glass
Glass thickness 1.10 mm
Sensor thickness 0.70 mm
Outline Dimension 188.08x121.92x2.40 mm
Valid Area 154.08x85.92 mm
Working Voltage 2.8-3.3V
Custom Touch Available
Working Temperature -10℃~ 60℃
Storage Temperature -20℃~ 70℃

PIN NO. Definition
1 GND
2 SDA
3 SCL
4 INT
5 RESET
6 VDD

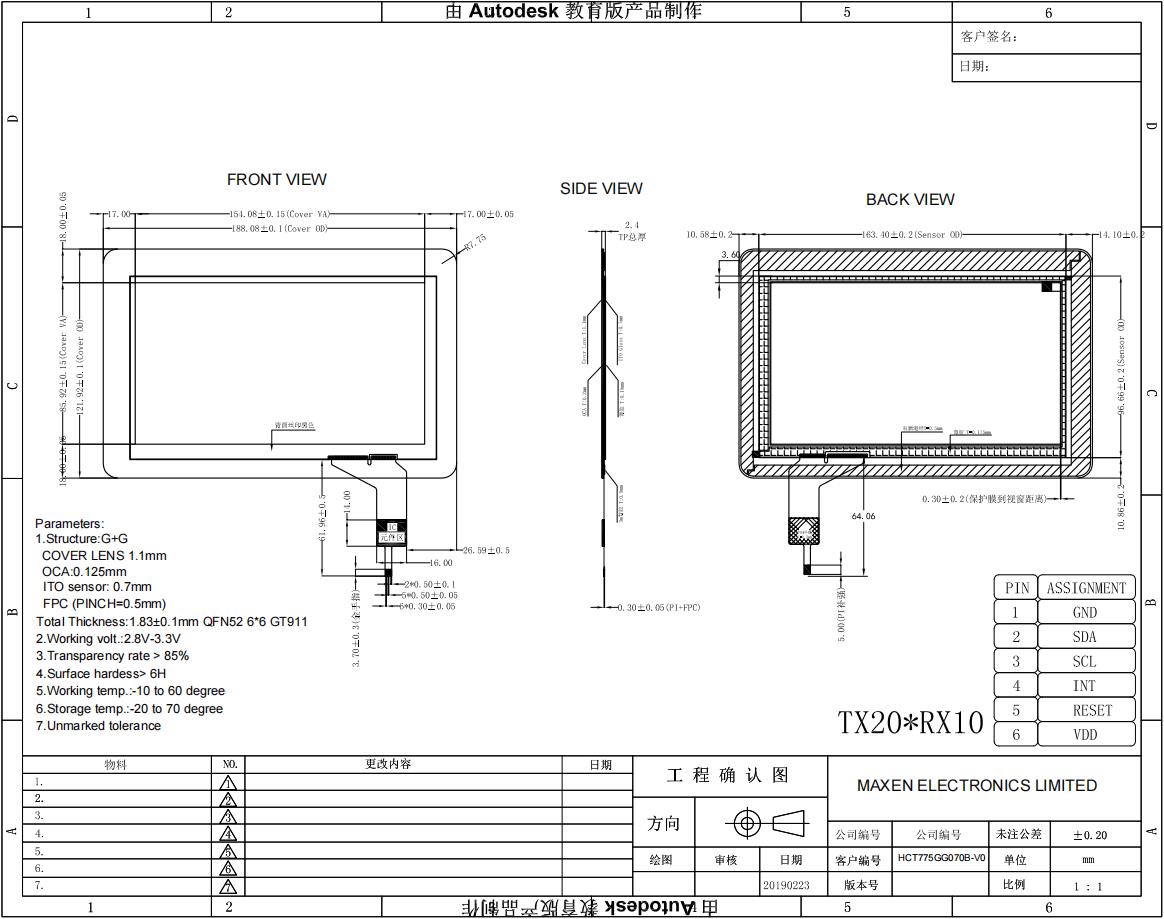

7 inch Capacitive Touch Panel Product Drawing
