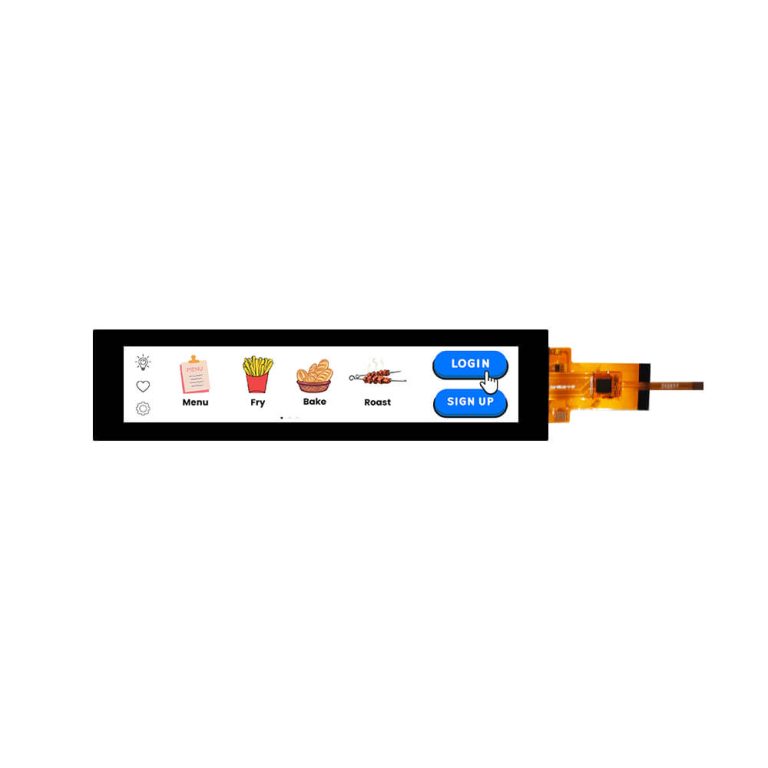

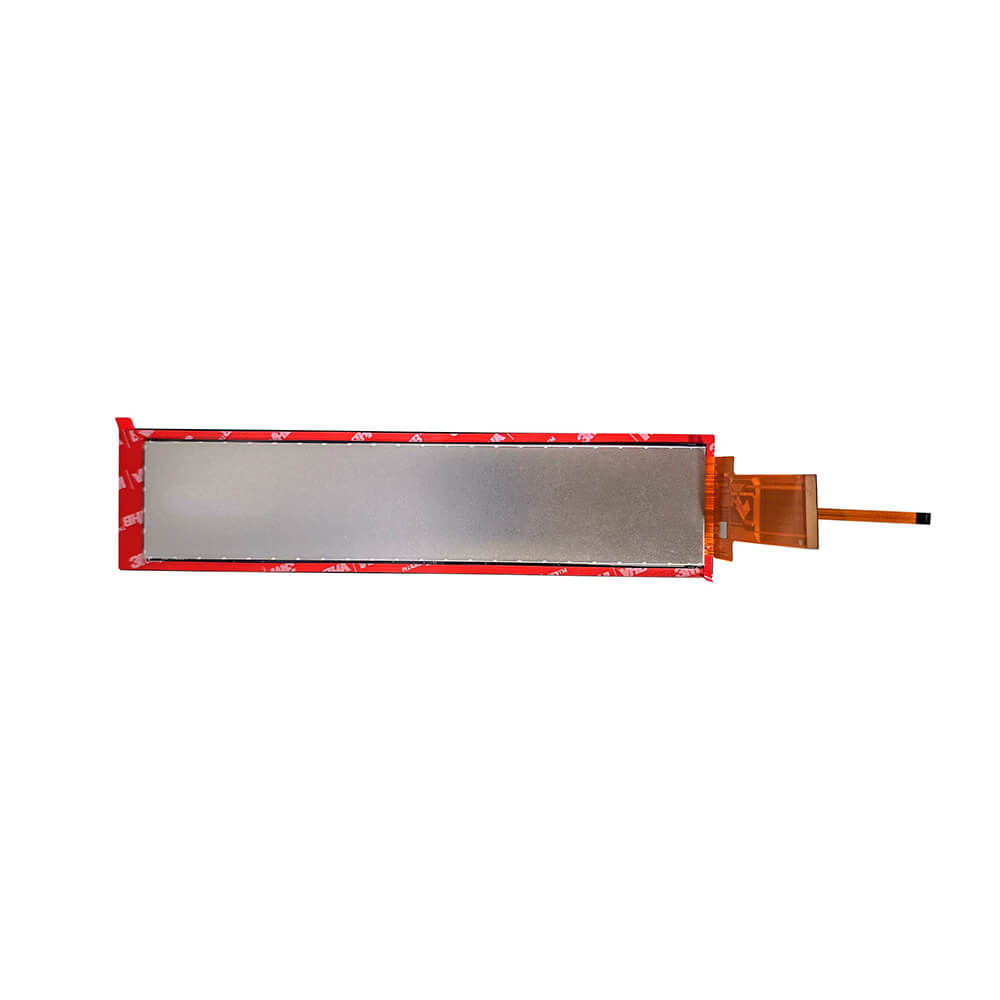

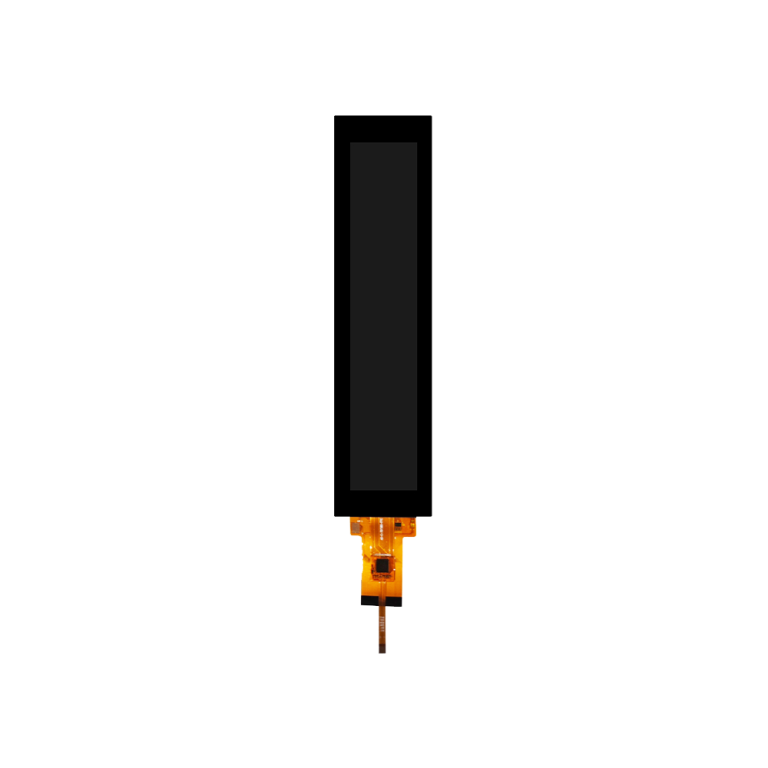

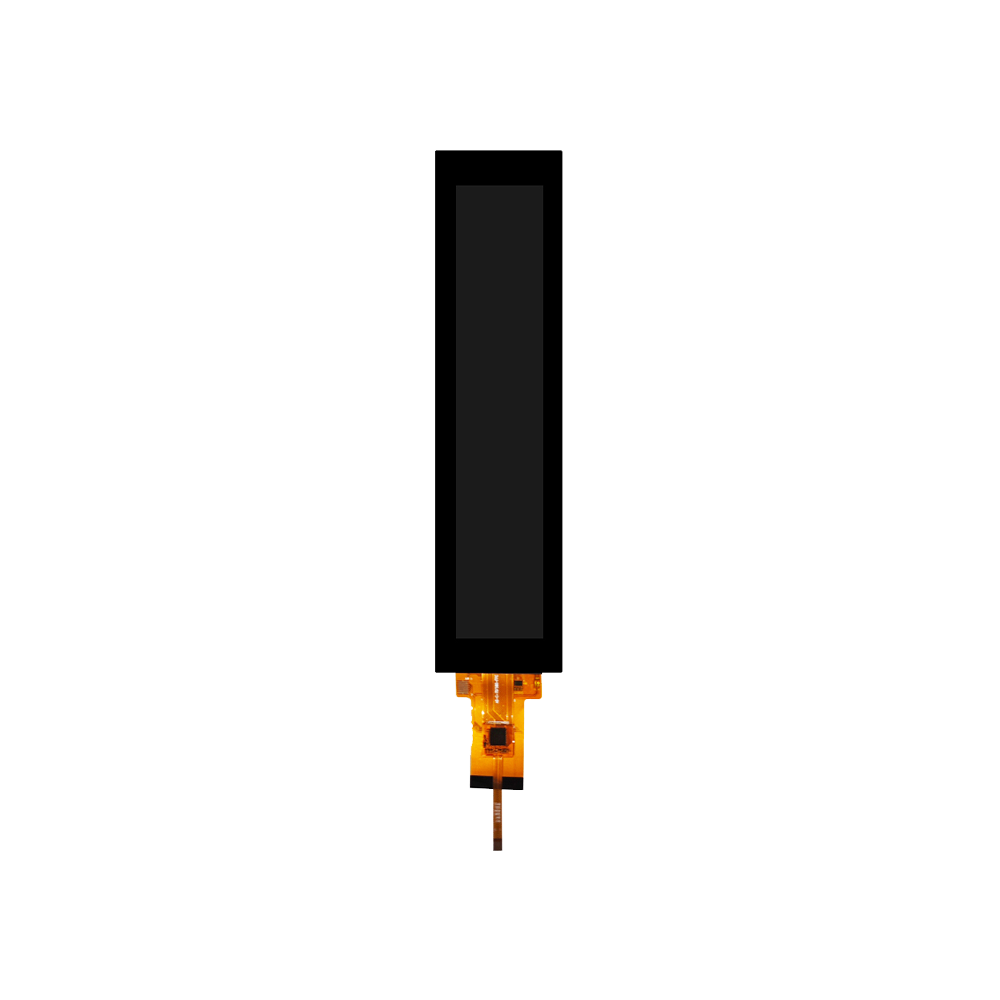

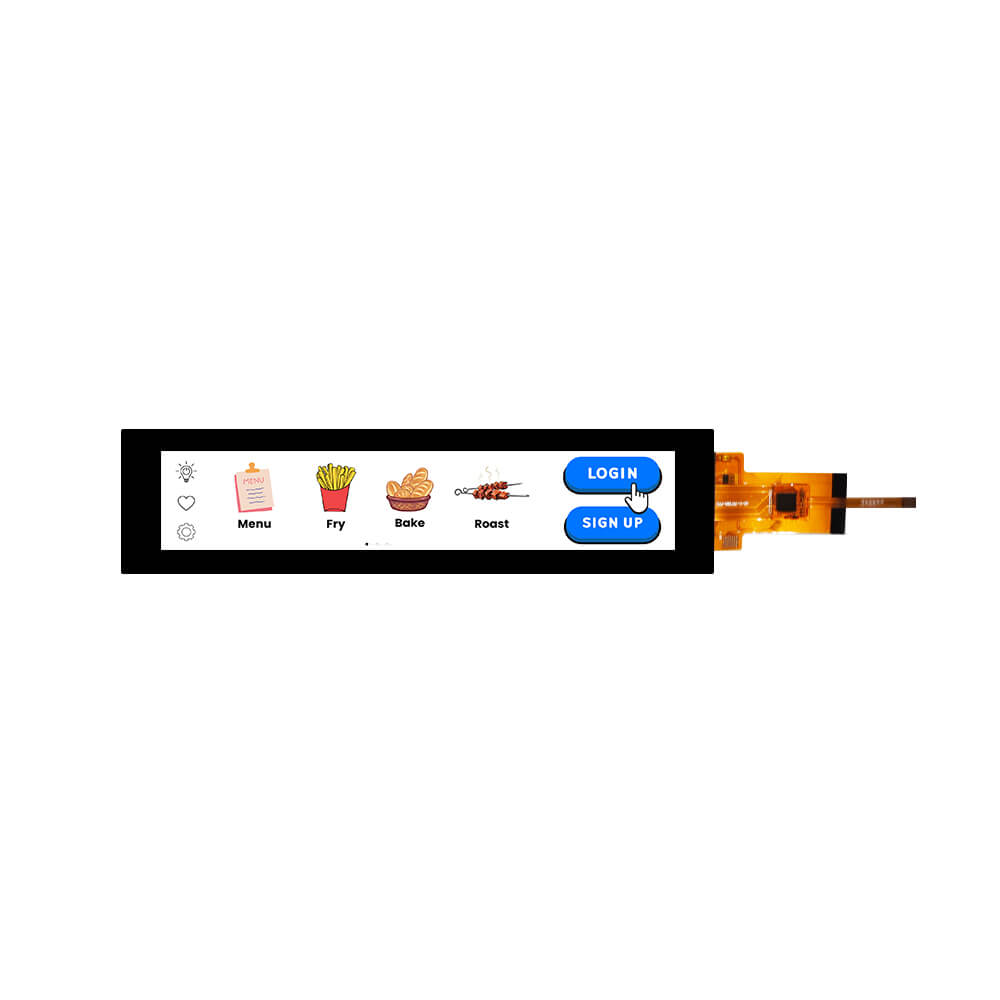

6.9 inch Bar-type TFT LCD Display

Perfect for smart home panels, control terminals, automotive displays, and handheld devices.

Main Features

  • Part No. MX-069NR40BFS-N01
  • 6.9" TFT LCD Display (Bar-type)
  • 280*1424 resolution
  • Standard brightness 350 cd/m²
  • Full viewing angles (IPS)
  • 40-pin RGB interface
  • Built-in NV3052 driver IC
  • With PCAP touch panel

MX-069NR40BFS-N01

6.9 inch Bar-type TFT LCD Display (Part No. MX-069NR40BFS-N01) features a 280x1424 high-resolution IPS panel in an ultra-slim vertical layout. Equipped with a 40-pin RGB interface and NV3052 driver IC, it delivers 350 cd/m² brightness and wide viewing angles. The integrated PCAP touch panel enhances interactivity, making it ideal for sleek, space-saving designs.

6.9 inch Bar-type TFT LCD Display - banner
  • Standard Brightness

    350 nits

  • Working Temp Range

    -20°C to 70°C

  • Interface

    40-pin RGB

  • Driver IC

    NV3052

Pin No. Symbol Description
LEDA LED backlight anode
LEDK LED backlight cathode
LEDK LED backlight cathode
GND Power ground
VCI Analog power supply
RESET Reset signal(low active)
NC NC
NC NC
SDA Serial data input pin in serial bus system interface
10  SCK Pixel clock signal input pin
11  CS Chip select
12  PCLK Pixel clock signal in RGB interface
13  DE Data enable signal in RGB I/F mode
14  VSYNC Vertical synchronizing signal input pin
15  HSYNC Horizontal synchronizing signal input pin
16~21 R0~R5 Data bus
22~27 G0~G5 Data bus
28~33 B0~B5 Data bus
34  GND Power ground
35  TP_INT INT pin for CTP
36  TP_SDA SDA pin for CTP
37  TP_SCL SCL pin for CTP
38  TP_RESET Reset pin for CTP
39  TP_VCl Power supply for CTP
40  GND Power ground

Parameter Symbol Min Max Unit
Power Supply voltage 1 VCl~GND -0.3  +4.6  V
Power Supply voltage 2 IOVCC~GND -0.3  +4.6  V
Logic Input Voltage Range Vin -0.3  IOVCC+0.5 V
Logic Output Voltage Range Vo -0.3  IOVCC+0.5 V
Operating temperature Topr -20  +70
Storage temperature Tstg -30  +80

Parameter Symbol Min Typ Max Unit
Supply voltage for analog circuit VCI 2.5  2.8  3.6  V
Supply voltage for logic circuit IOVCC 2.5  2.8  3.6  V
Input voltage 'H' level VIH 0.7*IOVCC IOVCC V
Input voltage 'L' level VIL GND 0.3*IOVCC V
Output voltage 'H' level VOH 0.8*IOVCC IOVCC V
Output voltage 'L' level VOL GND 0.2*IOVCC V

Item Symbol Min Typ Max  Unit Condition
Forward voltage Vf 21  25.6  27.5  V If=20
mA
Luminance LV 350  cd/m²
Number of LED 8X1 Piece
Connection mode S/P 8Serial/1Parallel

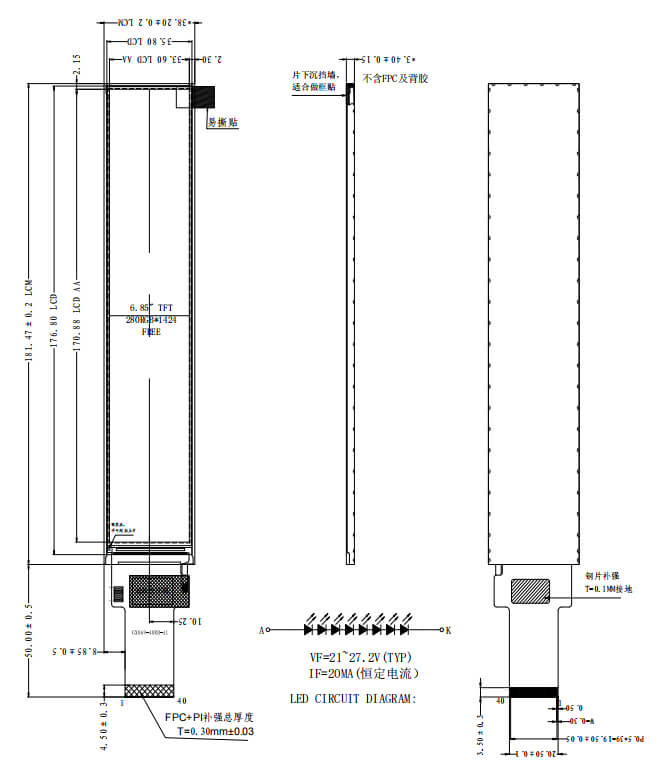

6.9 inch Bar-type TFT LCD Display Product Drawing
Tags:

IPS Display

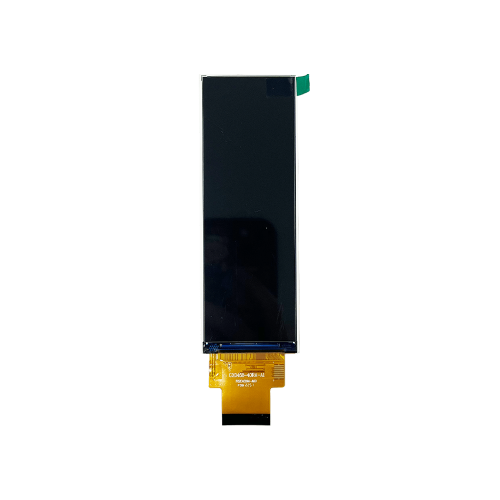

4.6 inch bar type lcd screen
