Part No. MX-050WR40BFH-N15
5.0" TFT LCD Display
800x480 resolution
High brightness 1000 cd/m²
Full viewing angles (IPS)
40-pin RGB interface

Get a Quote Download Specs.

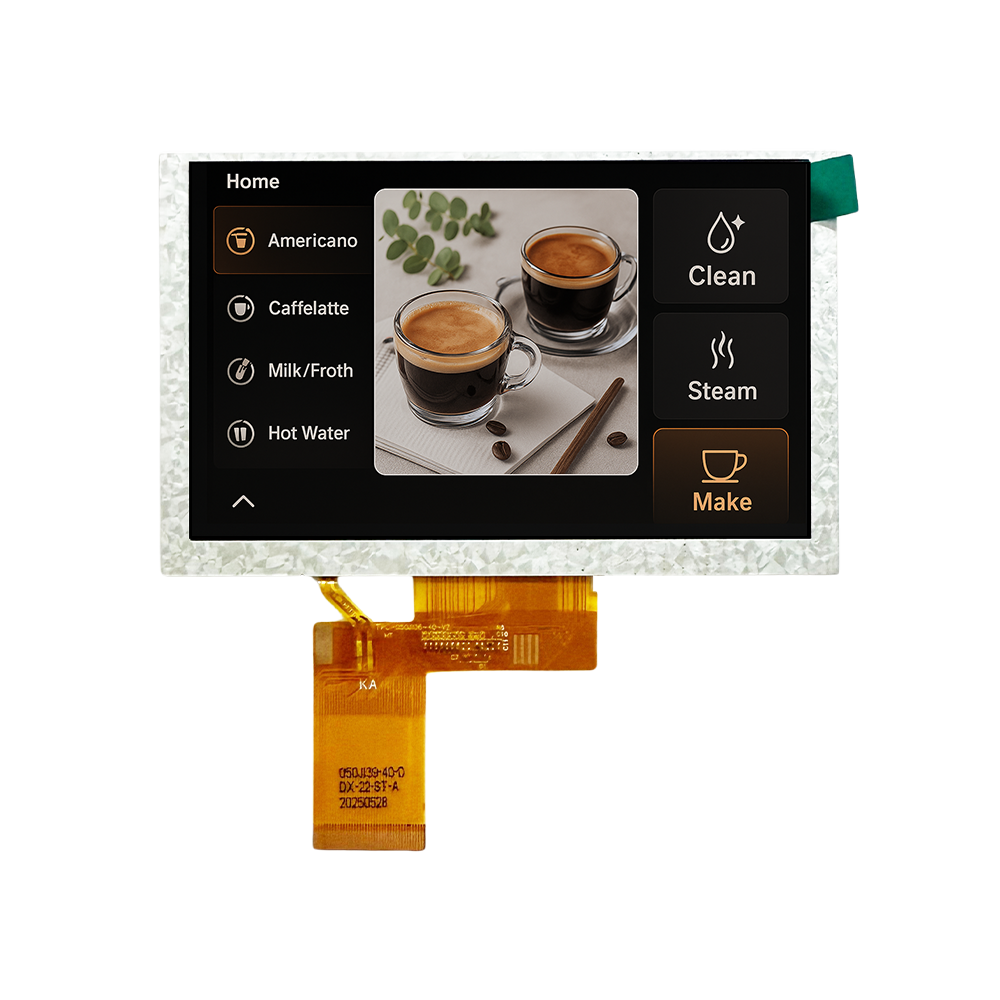

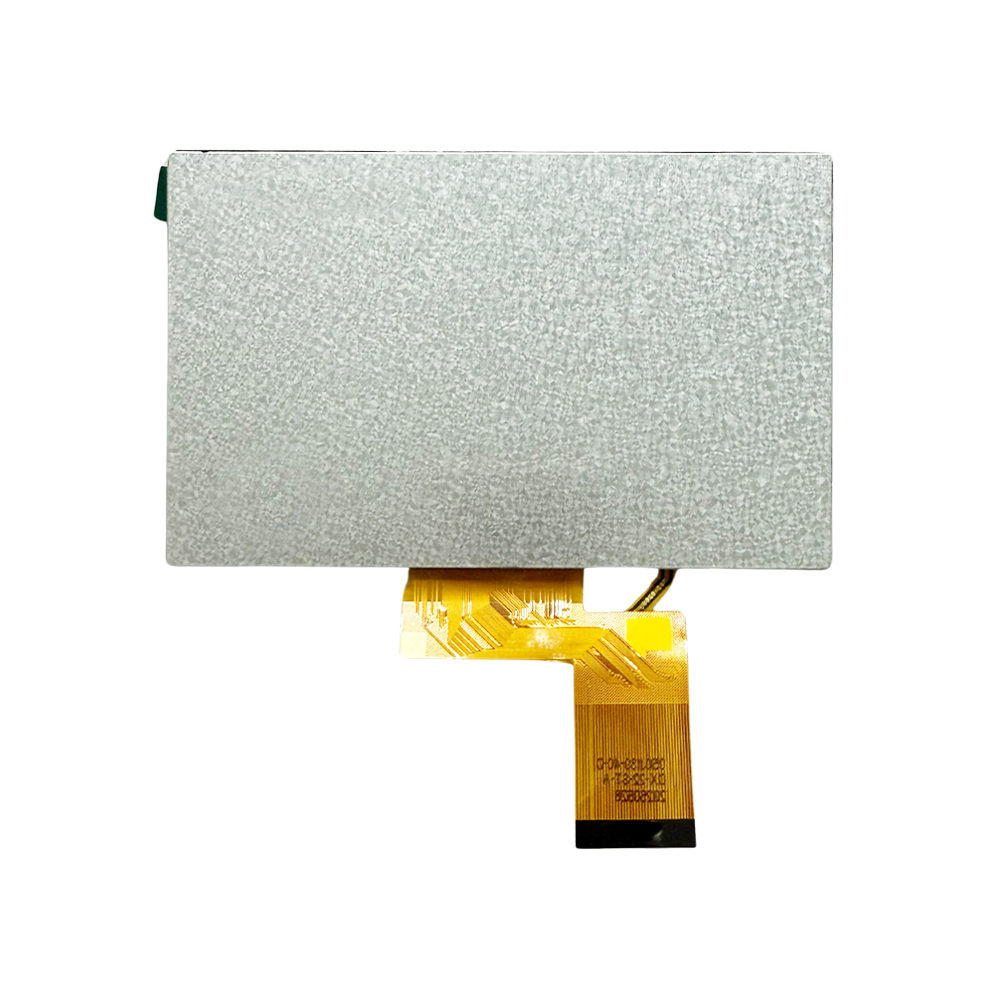

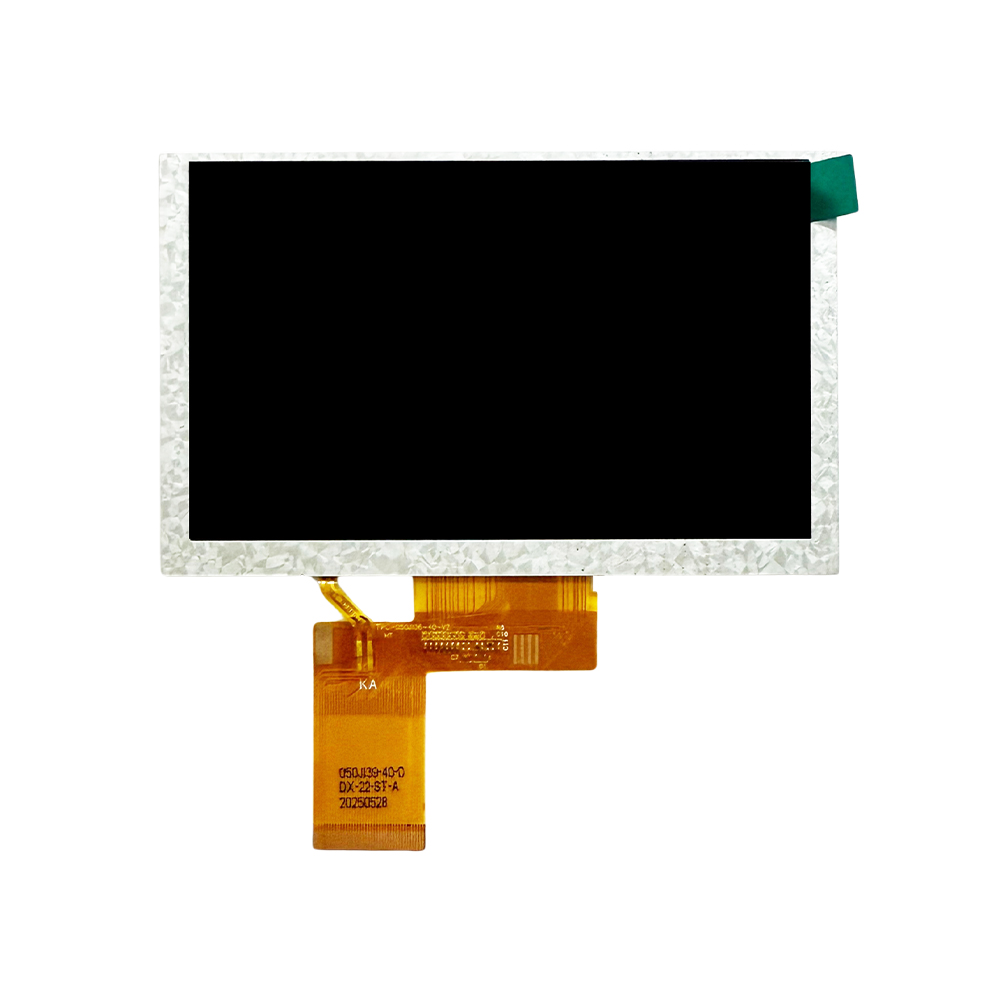

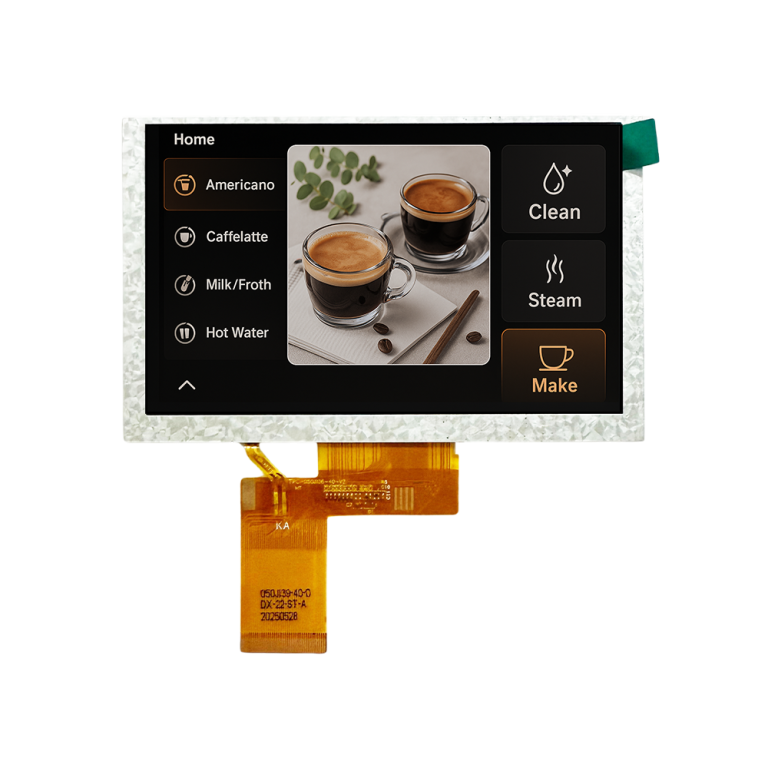

MX-050WR40BFH-N15

5 inch TFT LCD screen MX-050WR40BFH-N15 features 800x480 resolution, 1000 cd/m² high brightness, and IPS wide viewing angles. With its 40-pin RGB interface, this 5 inch LCD display module delivers clear and stable performance. It is ideal for coffee machines, smart home appliances, and other intelligent devices.

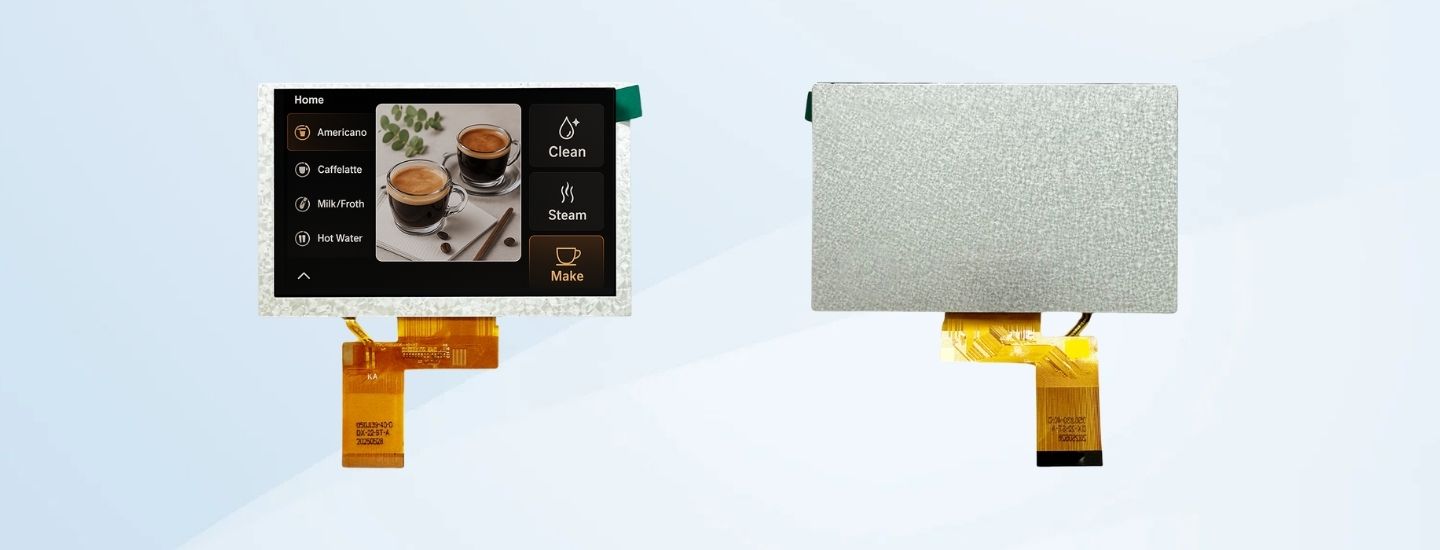

5 inch tft lcd screen 800x480 ips display

High Brightness

1000 nits
Temperature Range

Operates from -20°C to 70°C
Interface

40-pin RGB
Cost-Effective

G8.5 process, single chip

LCD PIN Function (RGB 40PIN)
Absolute Maximum Ratings
Electrical Characteristics
LED Backlight Characteristics

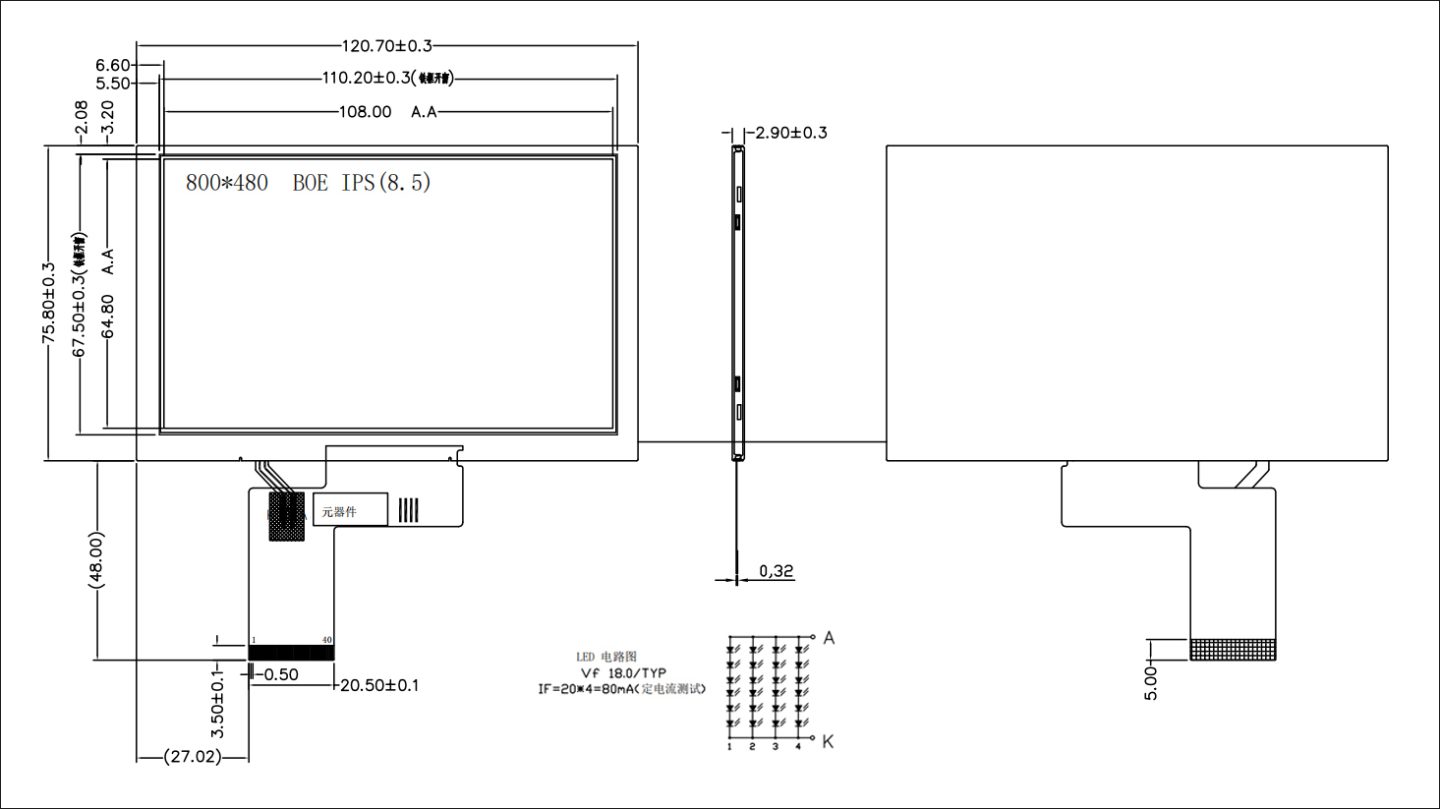

Product Drawing

PIN NO.	Symbol	Description
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Standby mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin

Item	Symbol	Min.	Max.	Unit
Power Supply Voltage	VDD	-0.3	3.6	V
Input Voltage	V_IN	-0.3	VDD+0.5	V
Current of LED	I_LED	0	20	mA

Parameter		Symbol	Condition	Min	Typ	Max	Unit
Power supply		VDD	Ta=25℃	2.8	3.3	3.6	V
Input voltage	'H'	V_IH	VDD=3.3V	0.7VDD	—	VDD	V
Input voltage	'L'	V_IL	VDD=3.3V	0	—	0.3VDD	V
Current Consumption		I_CC1	Normal mode	—	—	—	mA
Current Consumption		l_CC₂	Sleep mode	—	0.03	0.09	mA

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply voltage	Vf	—	16.8	18.6	20.4	V
Supply current	If	—	—	80	—	mA
Number of LED	—	6Sx4P	—	24	—	Piece
LED life time	—	—	—	50000	—	Hrs
