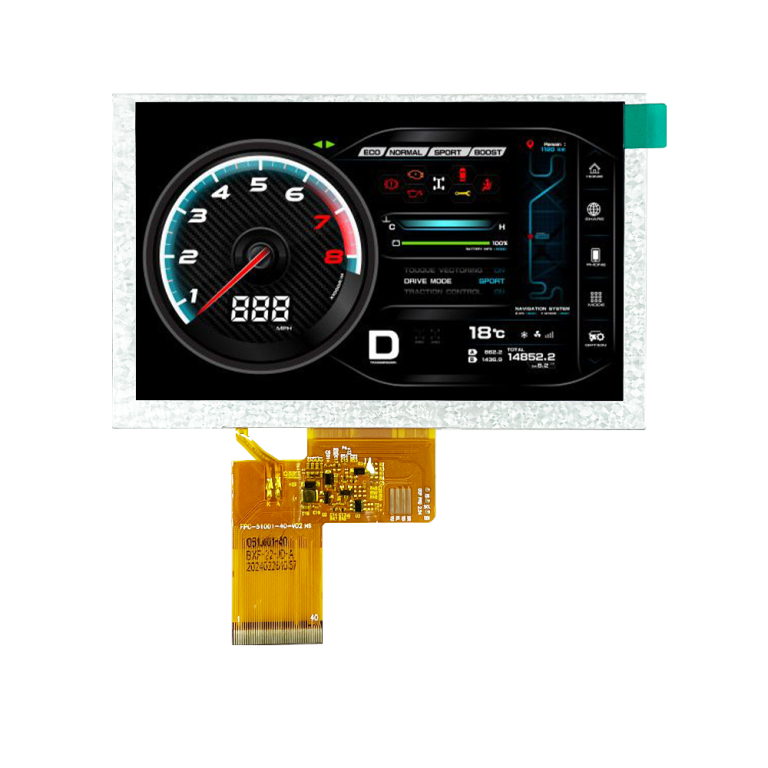

5 inch TFT Display

Ideal for e-bicycle/motorcycle navigation.

Main Features

Part No. MX-050HR40BFM-N18
5.0" TFT LCD Display
1024x600 resolution
High brightness 500 cd/m²
Full viewing angles (IPS)
40-pin RGB interface

Get a Quote Download Specs.

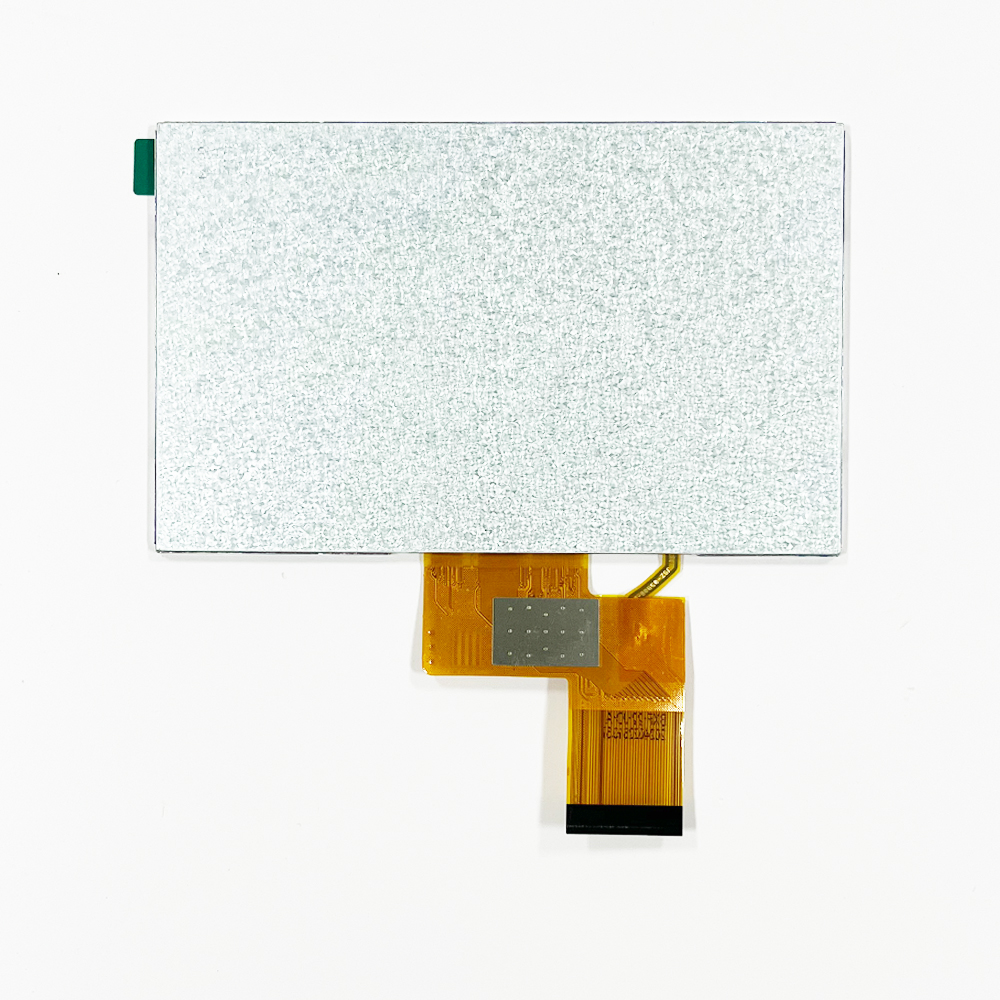

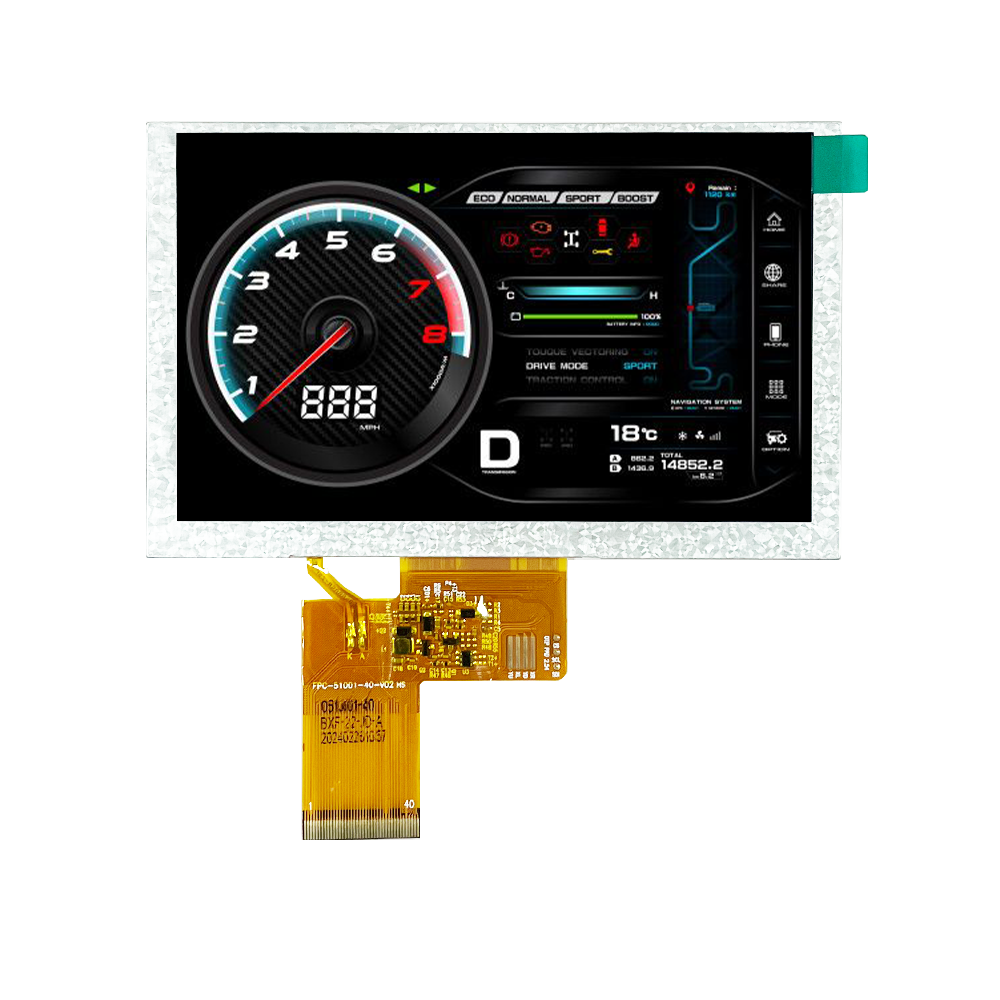

MX-050HR40BFM-N18

5 inch TFT Display MX-050HR40BFM-N18 is designed for e-bicycle and motorcycle navigation systems, delivering a crisp 1024x600 resolution—sharper and more detailed than standard 480x272 or 800x480 screens. With IPS technology for full viewing angles and 500 cd/m² brightness, it ensures clear visibility in various lighting conditions. An optional 1000 nits high brightness version is also available for enhanced sunlight readability. Featuring a 40-pin RGB interface, this display offers stable performance and consistent image quality, making it ideal for outdoor applications that demand durability and clarity.

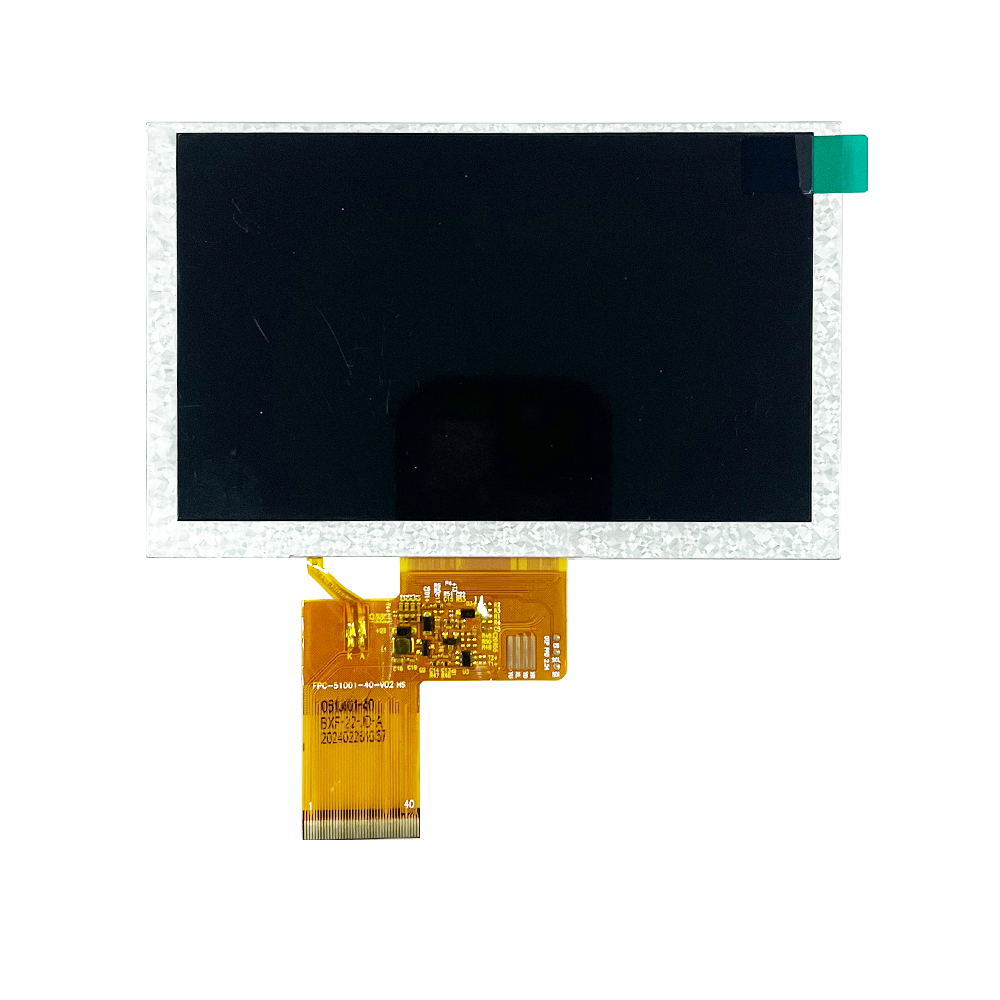

5 inch tft display for e-bicycle motorcycle navigation systems

High Brightness

Up to 2000+nits for outdoor use.
Wide Temp Range

Operates from -30°C to 85°C.
Multiple Interfaces

Supports RGB, LVDS, MIPI.
Cost-Effective

G8.5 process, single chip.

LCD PIN Function (RGB 40PIN)
Absolute Maximum Ratings
Electrical Characteristics
LED Backlight Characteristics

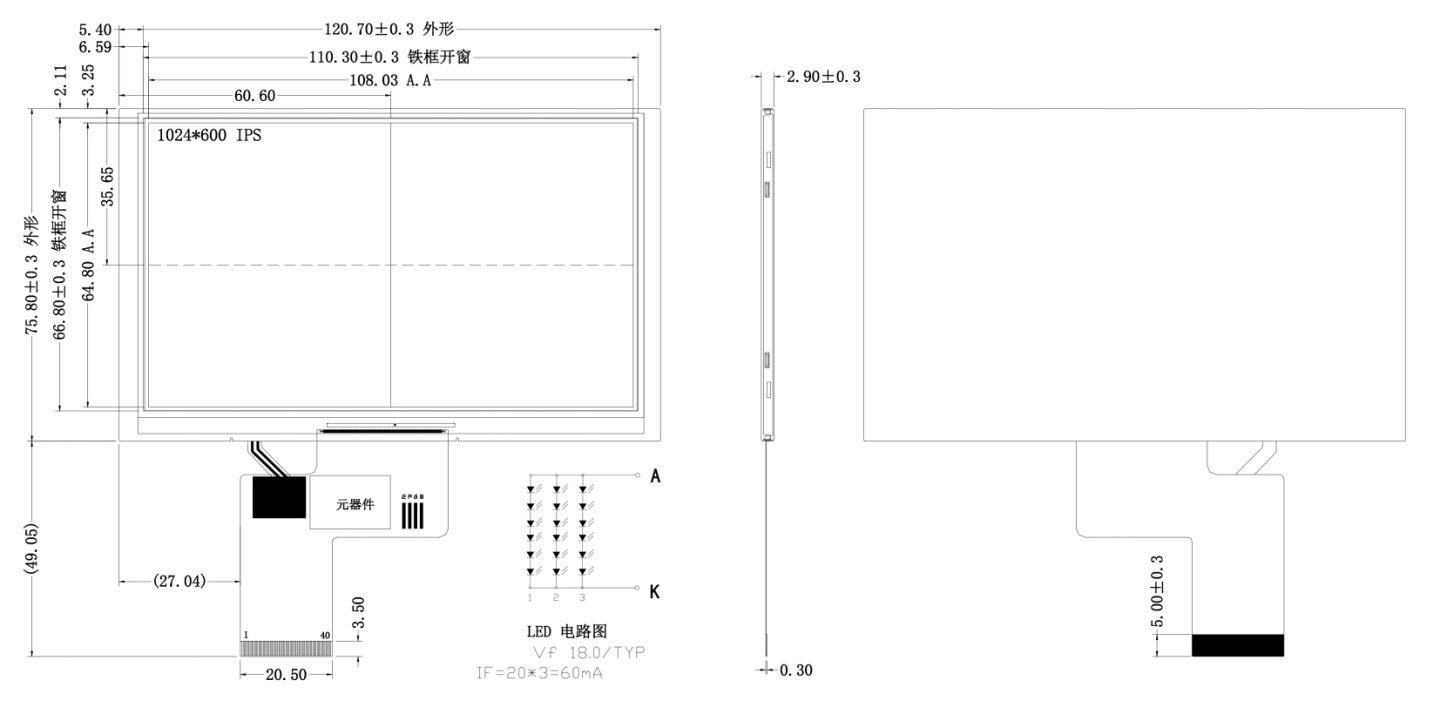

Product Drawing

No.	Symbol	Function
1	LED_K	Backlight cathode
2	LED_A	Backlight anode
3	GND	Power ground
4	DVDD	Power Supply for Analog Circuit 3.3V
5~12	R0~R7	Red data bus
13~20	G0~G7	Green data bus
21~28	B0~B7	Blue dat abus
29	GND	Power ground
30	DCLK	TTL clock input pin
31	DISP	Stand by mode select pin, Normal mode=H
32	HSYNC	Horizontal SYNC signal
33	VSYNC	Vertical SYNC signal
34	DE	Date enable signal
35	NC	No connection
36	GND	Power ground
37	XR	Touch panel control pin
38	YD	Touch panel control pin
39	XL	Touch panel control pin
40	YU	Touch panel control pin

Parameter	Symbol	Min	Typ	Max	Unit
Power supply	DVDD	-0.3	-	3.96	V
Operating Temperature	TOP	-20	-	70	°C
Storage Temperature	TST	-30	-	80	°C

Parameter		Symbol	Min	Typ	Max	Unit
Power supply		DVDD	2.8	3.3	3.6	V
Input voltage	‘H’	VIH	0.8VDVDD	-	VDVDD	V
Input voltage	‘L’	VIL	VSS	-	0.2VDVDD	V
Output voltage	‘H’	VOH	0.9VDVDD	-	VDVDD	V
Output voltage	‘L’	VOL	VSS	-	0.1VDVDD	V

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply voltage	Vf	-	16.8	18	20.4	V
Supply current	If	-	-	60	-	mA
Number of LED	-	6Sx3P	-	18	-	Piece
Power Consumption	-	-	-	1080	-	mW
LED life time	-	-	30000	-	-	Hrs
