5 inch Capacitive Touch Screen

Compatible with 800x480 resolution TFT display.

Main Features

  • Part NO. MX-GG050H023-1.0
  • Size: 5.0"
  • Touch Interface: I²C
  • Touch Driver IC: Goodix GT911
  • Touch Structure: Glass+Glass
  • Light Transmission: >80%
  • Glass Surface Hardness: 6H
  • Custom Touch Solutions Available

MX-GG050H023-1.0

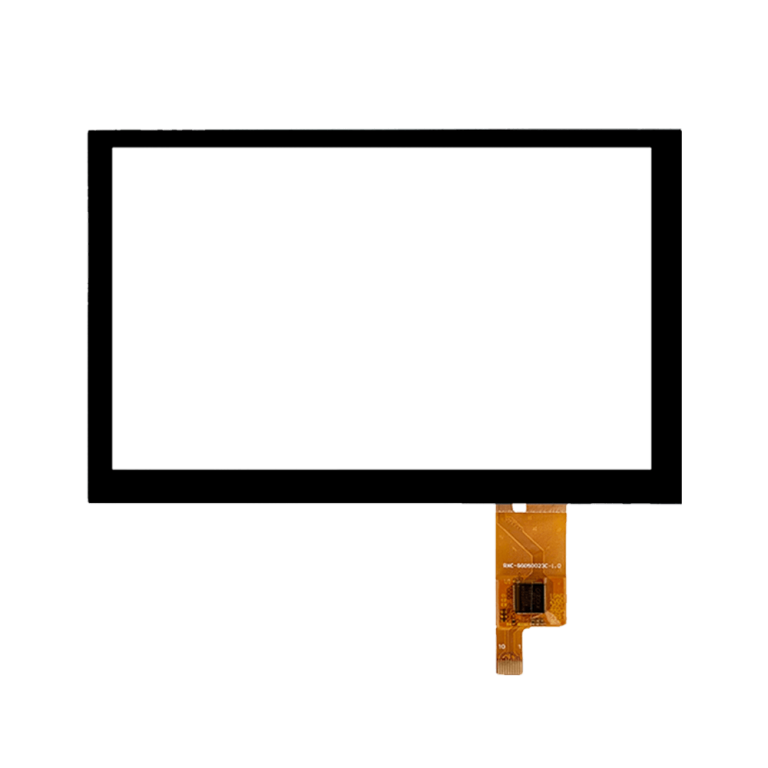

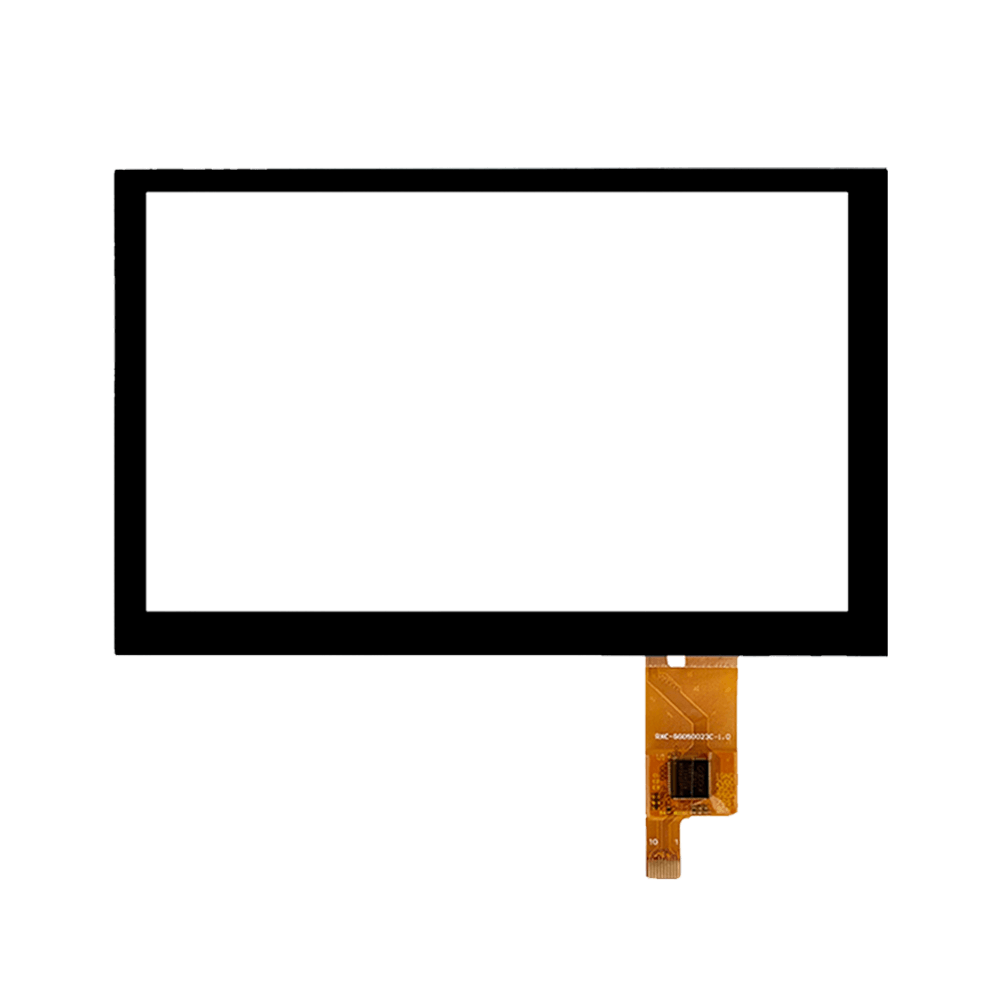

MX-GG050H023-1.0 is a standard 5 inch capacitive touch screen constructed from ITO on 0.55 mm glass substrate, providing excellent optical properties. This touch sensor is typically optically bonded to a 1.10mm glass cover with surface hardness 6H with light transmission of over 80%. The flex cable is assembled with GT911 touch IC that can support 5 points touch. The interface is an I²C 10 Pin connection. This capacitive touch screen is compatible with a 5 inch TFT LCD with 480x272 or 800x480 resolution.

5 inch capacitive touch screen - banner
Item Specification
Touch Screen Size 5.0"
Touch controller Goodix GT911
Touch Interface I²C
Pin Number 10pin
Structure Glass+Glass
Glass thickness 1.10 mm
Sensor thickness 0.55 mm
Outline Dimension 120.70x76.30x1.85 mm
Valid Area 109.00x65.80 mm
Working Voltage 2.8-3.3V
Custom Touch Available
Working Temperature -10℃~ 60℃
Storage Temperature -20℃~ 70℃

PIN NO. Definition
1 VSS
2 VDD
3 SCL
4 VSS
5 SDA
6 VSS
7 RST
8 NC
9 INT
10 VSS

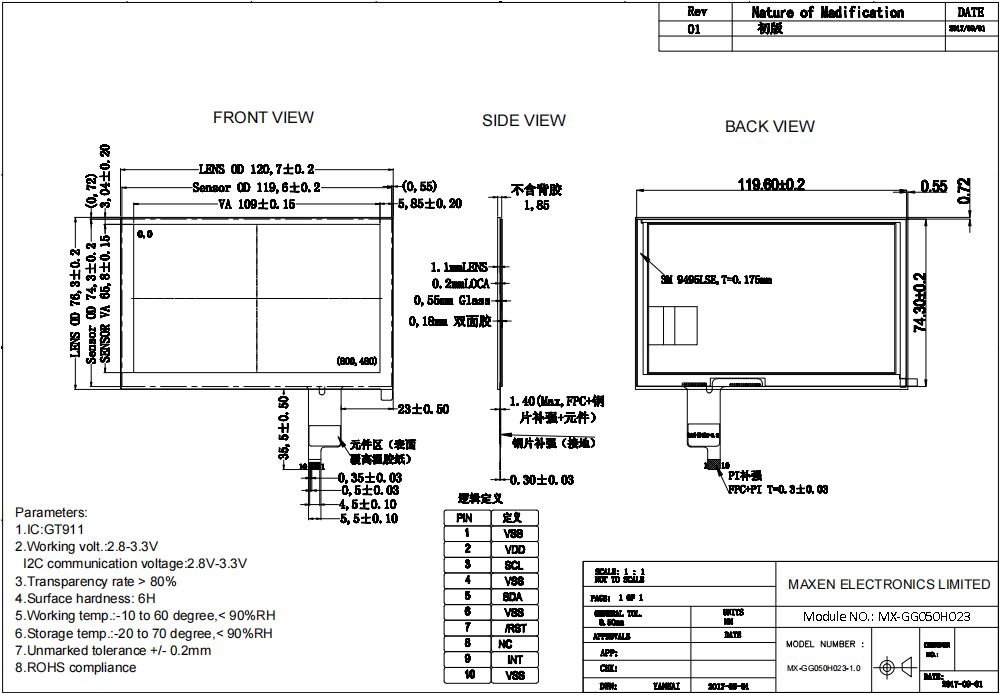

5 inch Capacitive Touch Screen Product Drawing
