4 inch Round LCD Screen

Ideal for high-resolution smart interfaces, round dashboards, and modern embedded devices.

Main Features

  • Part No. MX-R040WM30FS-N01
  • 4" Diagonal | 720x720 Pixels
  • Standard brightness 320 cd/m²
  • Full viewing angles (IPS)
  • 30-pin MIPI interface
  • Built-in JD9365DA driver IC

MX-R040WM30FS-N01

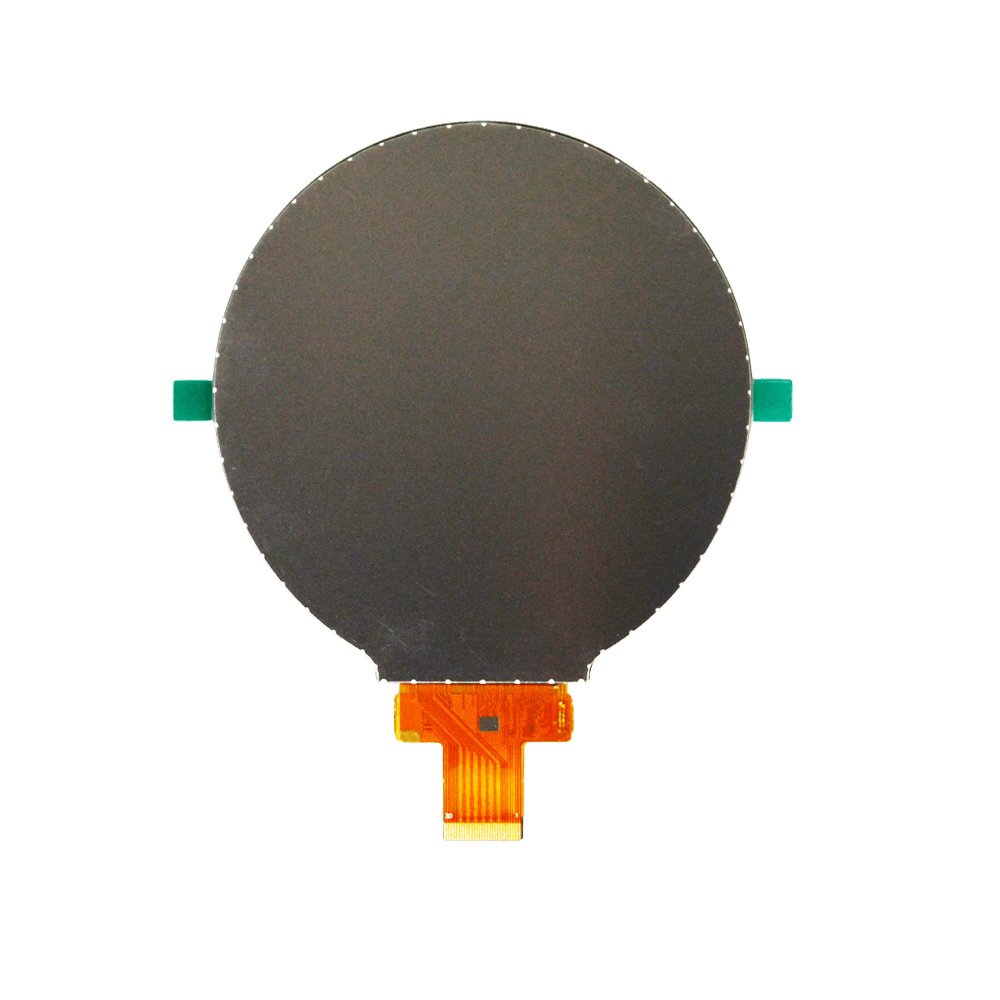

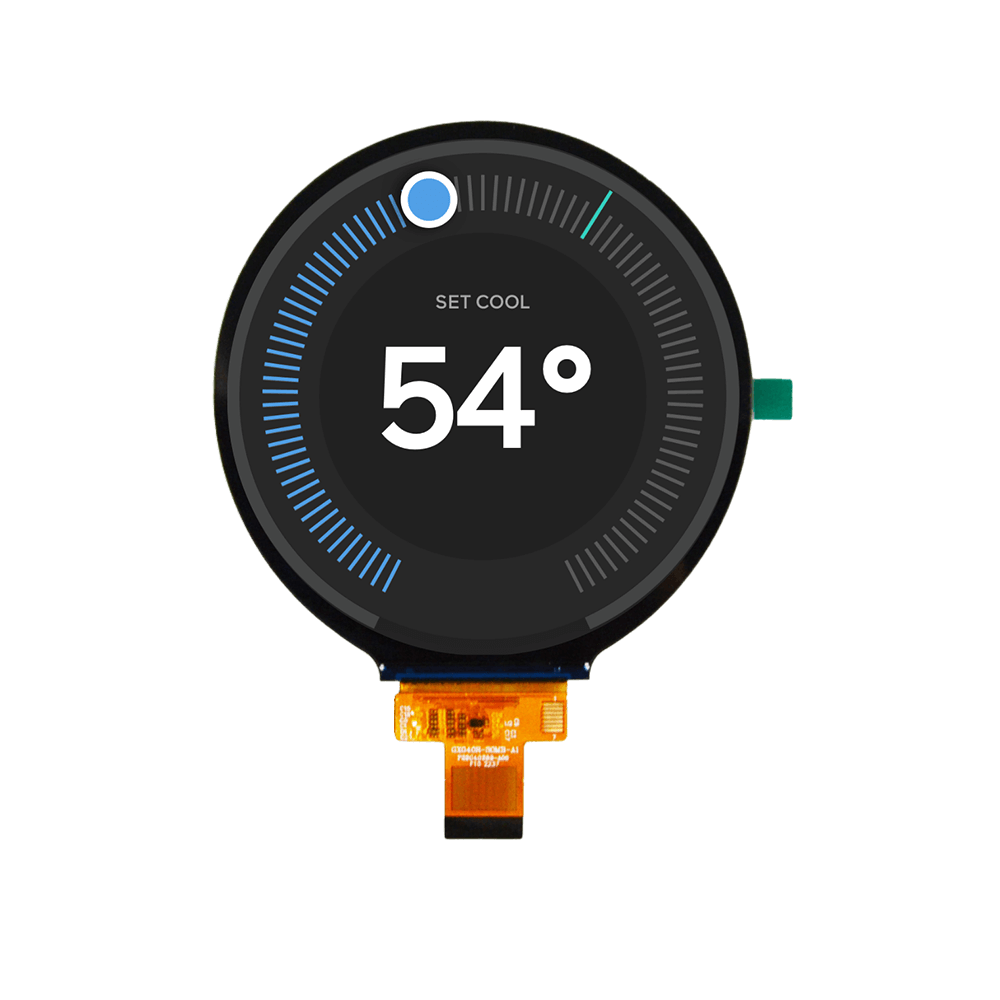

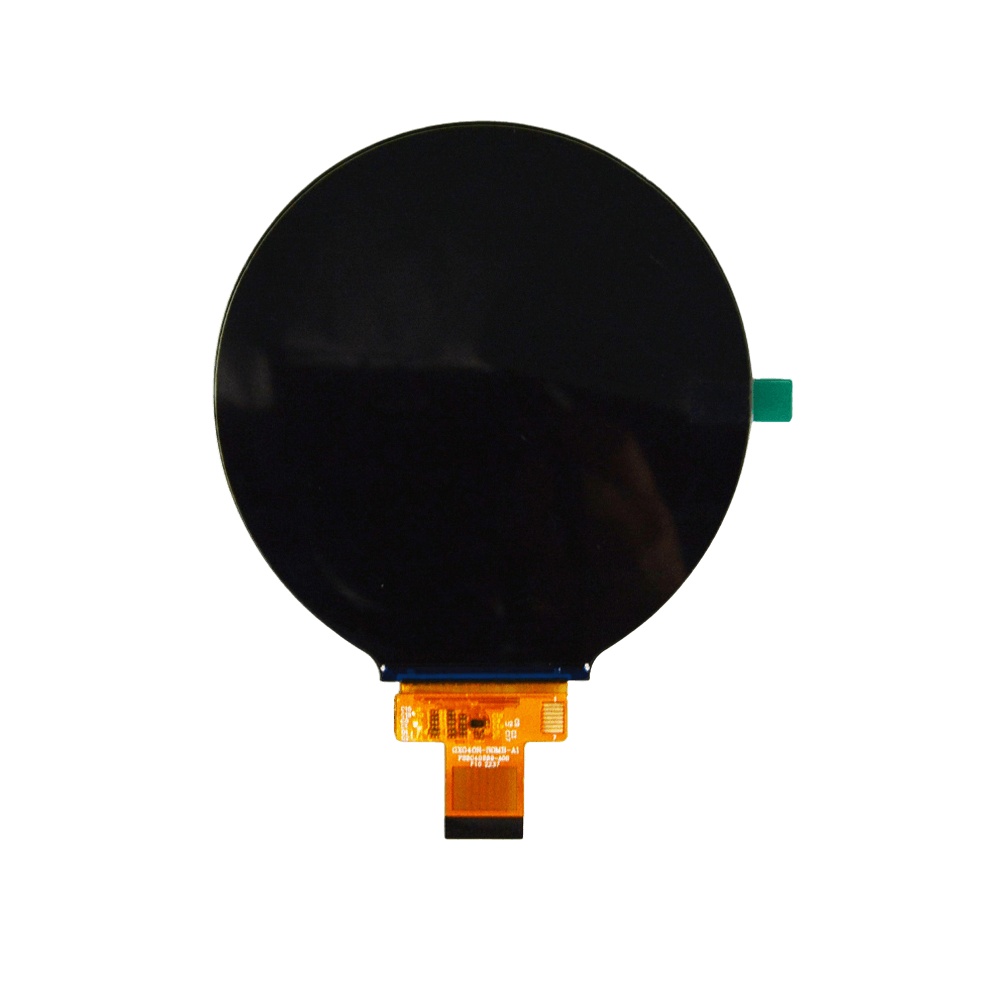

MX-R040WM30FS-N01 is a 4 inch round LCD screen with 720×720 resolution, 320 cd/m² brightness, and IPS full viewing angles. It features a 30-pin MIPI interface and JD9365DA driver IC, offering stable performance in compact designs. Ideal for smart home devices, circular control panels, and embedded applications. Touch panel customization is available on request.

4 inch 720x720 ips round tft lcd screen - banner
  • Standard Brightness

    320 nits (Optional with 1000 nits)

  • Working Temp Range

    -20°C to 70°C

  • Interface

    30-pin MIPI

  • Driver IC

    JD9365DA

PIN NO. Symbol Description
1 LEDA LED backlight anode
2 LEDK LED backlight cathode
3 LEDK LED back light cathode
4 VCI Power supply for the analog power.
5 IOVCC Power supply for the logic power and I/O circuit.
6 RESET Reset signal (low active)
7 TE Tearing effect output
8 PWM The PWM frequency output for LCD driver control.
9 GND Power ground
10 TDP0 MIPI-DSI data lane 0 posivtve input pin.
11 TDN0 MIPI-DSI data lane 0 negtive input pin.
12 GND Power ground
13 TDP1 MIPI-DSI data lane 1 posivtve input pin.
14 TDN1 MIPI-DSI data lane 1 negtive input pin.
15 GND Power ground
16 TCP MIPI-DSI data lane posivtve input pin.
17 TCN MIPI-DSI data lane negtive input pin.
18 GND Power ground
19 TDP2 MIPI-DSI data lane 2 posivtve input pin.
20 TDN2 MIPI-DSI data lane 2 negtive input pin.
21 GND Power ground
22 TDP3 MIPI-DSI data lane 3 posivtve input pin.
23 TDN3 MIPI-DSI data lane 3 negtive input pin.
24 GND Power ground
25 TP_INT INT pin for CTP
26 TP_SDA SDA pin for CTP
27 TP_SCL SCL pin for CTP
28 TP_RESET Reset pin for CTP
29 TP_VCI VCI pin for CTP
30 TP_IOVCC IOVCC pin for CTP

Parameter Symbol Min. Max. Unit
Operating temperature Topr -20 70
Storage temperature Tstg -30 80

Parameter Symbol Min Typ Max Unit
Supply voltage for analog circuit VCI 2.5 2.8 3.6 V
Supply voltage for logic circuit IOVCC 1.65 1.8 3.6 V
Input voltage 'H' level VIH 0.7*IOVCC IOVCC V
Input voltage 'L' level VIL GND 0.3*IOVCC V
Output voltage 'H' level VOH 0.8*IOVCC IOVCC V
Output voltage 'L' level VOL GND 0.2*IOVCC V
LED forward voltage Vf 24 V
LED forward current If 40 mA
LCM Luminance Lv 320 cd/㎡
Number of LED 4X2 Piece
Connection mode S/P 4Serial/2Parallel

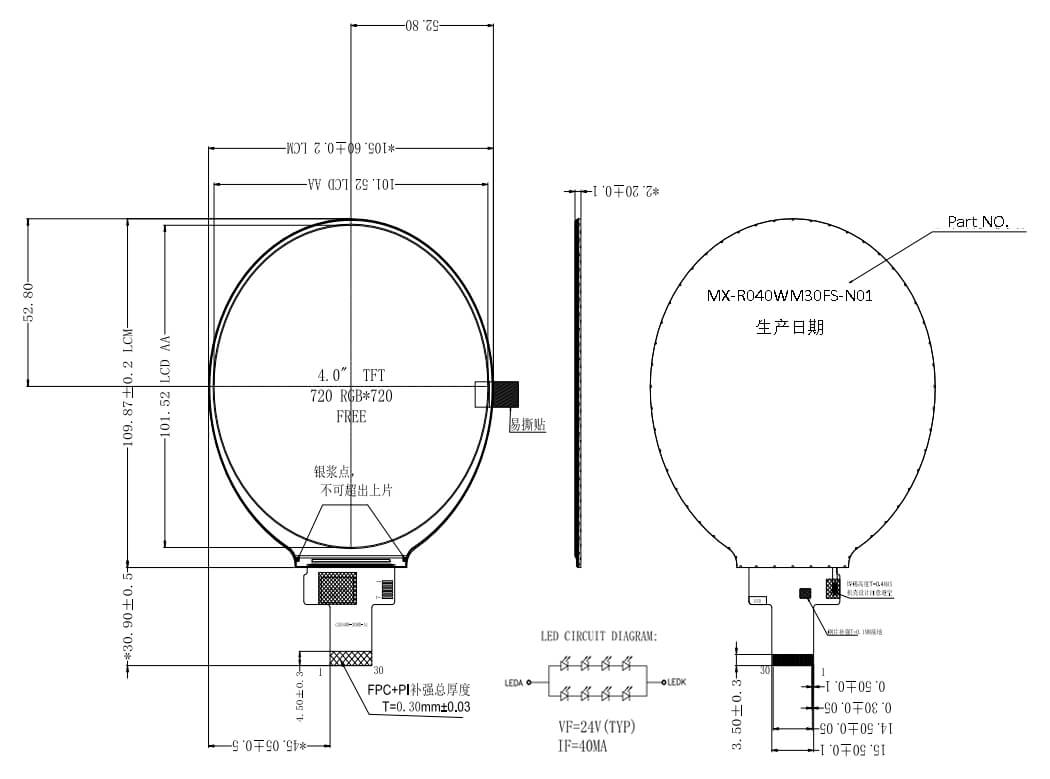

4 inch Round LCD Screen Product Drawing
