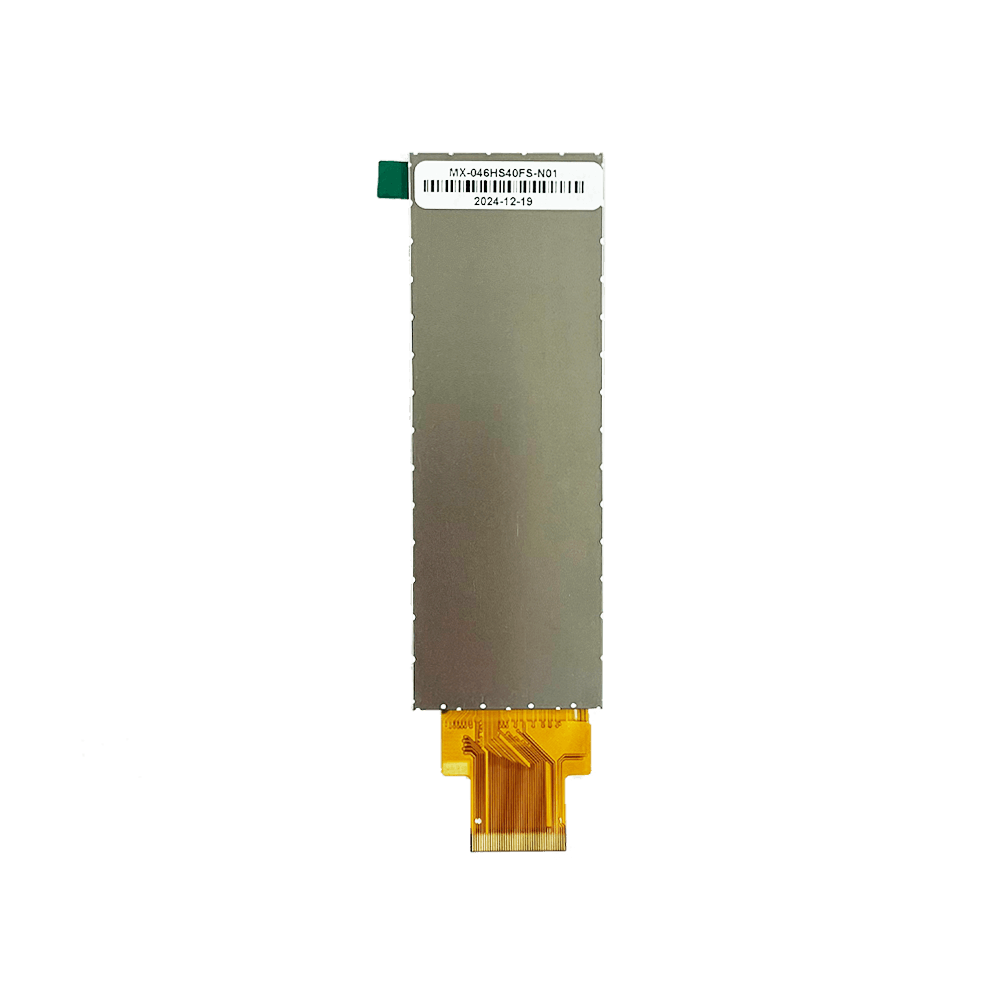

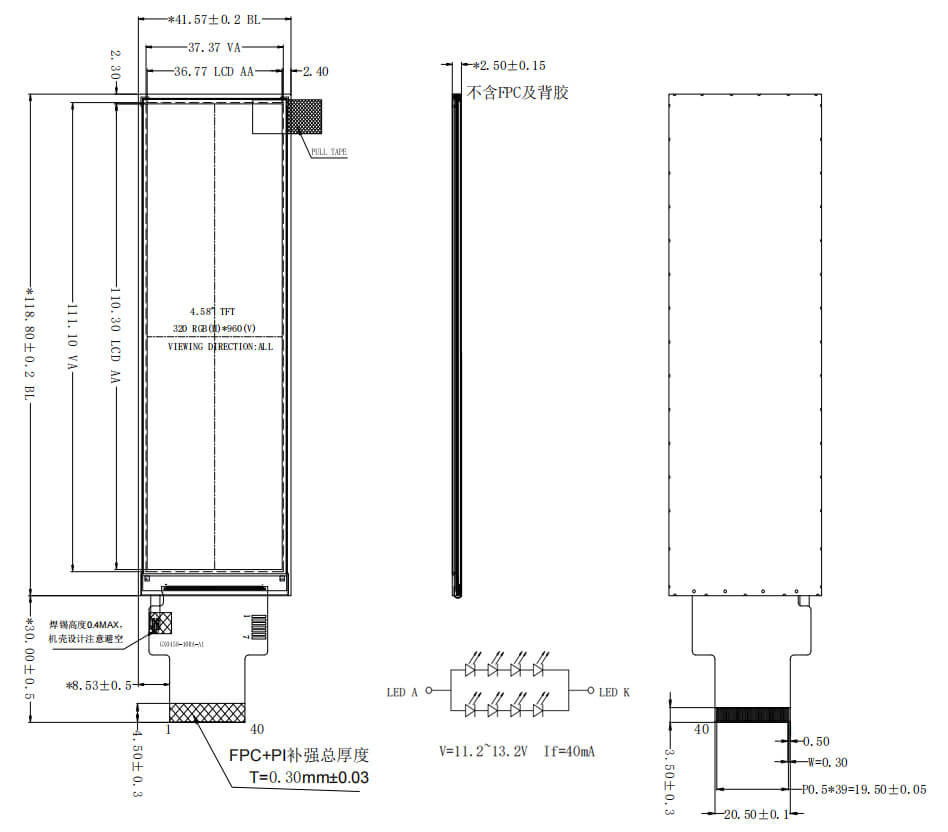

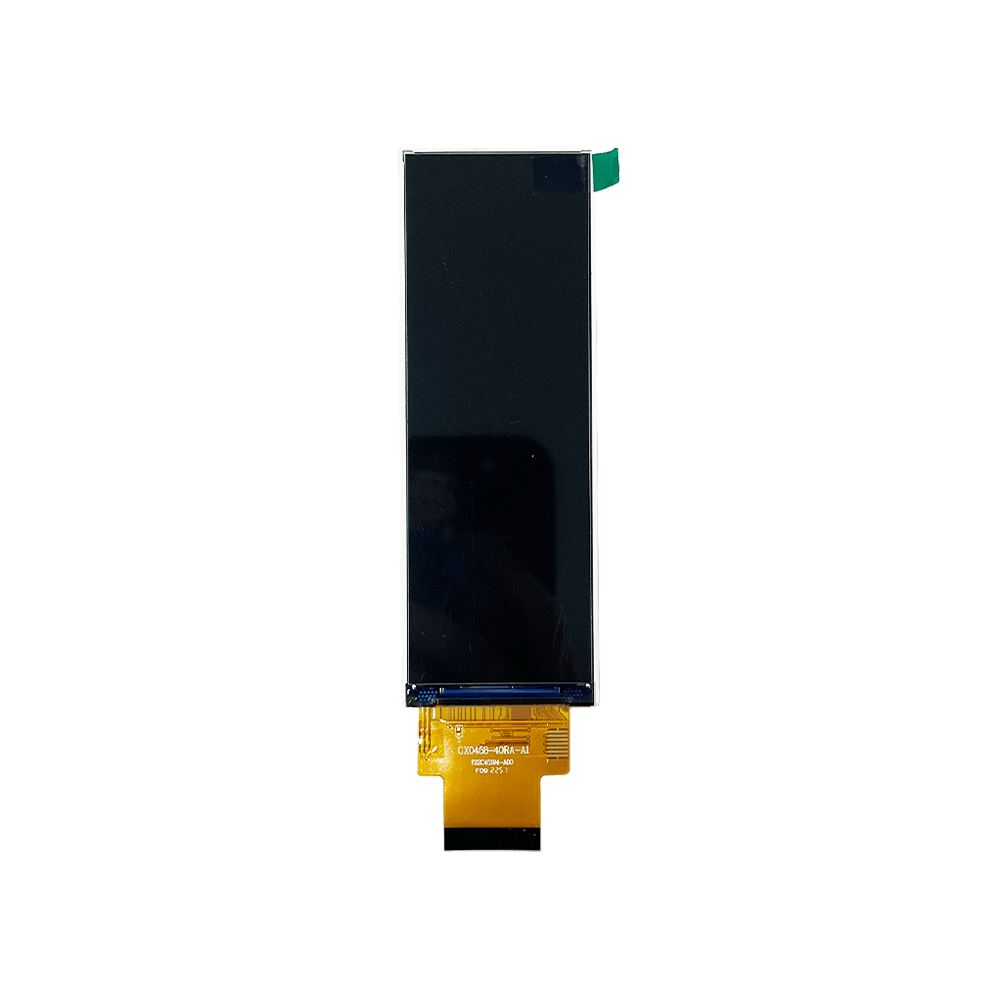

Pin No. | Symbol | Description |
1 | LEDA | LED backlight anode |
2~3 | LEDK | LED backlight cathode |
4 | GND | Power ground |
5 | VCC | Analog power supply |
6 | RESET | Reset signal(low active) |
7~8 | NC | NC |
9 | SDA | Serial data input pin in serial bus system interface |
10 | SCK | Pixel clock signal input pin |
11 | CS | Chip select |
12 | PCLK | Pixel clock signal in RGB interface |
13 | DE | Data enable signal in RGB I/F mode |
14 | VSYNC | Vertical synchronizing signal input pin |
15 | HSYNC | Horizontal synchronizing signal input pin |
16~33 | DB0~DB17 | RGB data signal (DB0: BLUE LSB; DB5: BLUE MSB; DB6: GREEN LSB; DB11: GREEN MSB; DB12: RED LSB; DB17: RED MSB) |
34 | GND | Power ground |
35 | TP_INT | INT pin for CTP |
36 | TP_SDA | SDA pin for CTP |
37 | TP_SCL | SCL pin for CTP |
38 | TP_RESET | Reset pin for CTP |
39 | TP_VCl | Power supply for CTP |
40 | GND | Power ground |
Parameter | Symbol | Min | Max | Unit |
Power Supply voltage 1 | VCl~GND | -0.3 | +4.6 | V |
Power Supply voltage 2 | IOVCC~GND | -0.3 | +4.6 | V |
Logic Input Voltage Range | Vin | -0.3 | IOVCC+0.5 | V |
Logic Output Voltage Range | Vo | -0.3 | IOVCC+0.5 | V |
Operating temperature | Topr | -20 | +70 | ℃ |
Storage temperature | Tstg | -30 | +80 | ℃ |
Parameter | Symbol | Min | Typ | Max | Unit |
Supply voltage for analog circuit | VCI | 2.5 | 2.8 | 3.6 | V |
Supply voltage for logic circuit | IOVCC | 2.5 | 2.8 | 3.6 | V |
Input voltage 'H'level | VIH | 0.7*IOVCC | 一 | IOVCC | V |
Input voltage 'L'level | VIL | GND | 一 | 0.3*IOVCC | V |
Output voltage 'H'level | VoH | 0.8*IOVCC | 一 | IOVCC | V |
Output voltage 'L'level | VoL | GND | 一 | 0.2*IOVCC | V |
Item | Symbol | Min | Typ | Max | Unit | Condition |
Forward voltage | Vf | - | 12.8 | - | V | If=40 mA |
Luminance | LV | - | 300 | - | cd/m² | |
Number of LED | - | 4X2 | Piece | - | ||
Connection mode | S/P | 4Serial/2Parallel | - | - |
