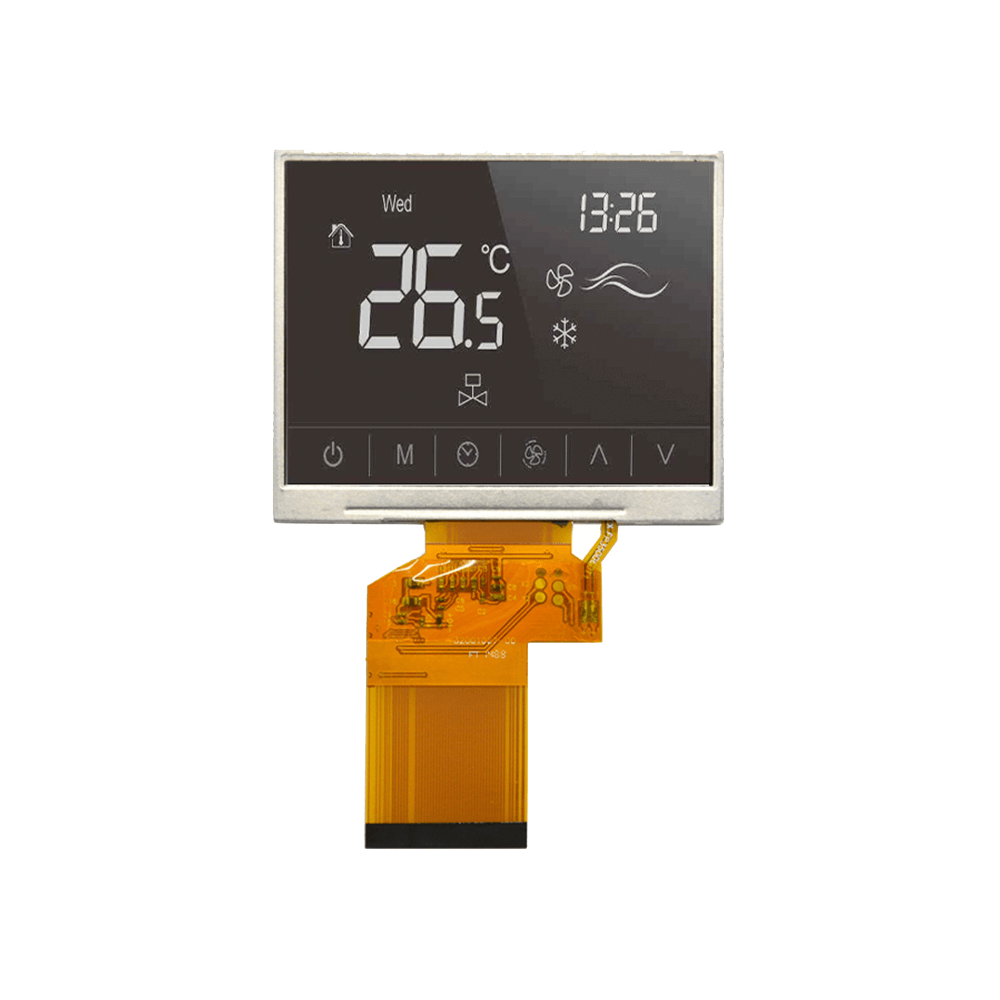

3.5 inch LCD Display

Ideal for handheld devices, smart home panels, industrial controllers.

Main Features

  • Part No. MX-35T5432024006L01T
  • 3.5" TFT LCD Display
  • 320x240 resolution
  • Standard brightness 350 cd/m²
  • 6 o'clock viewing direction (TN)
  • 54-pin RGB interface
  • Built-in HX8238-D driver IC

The MX-35T5432024006L01T

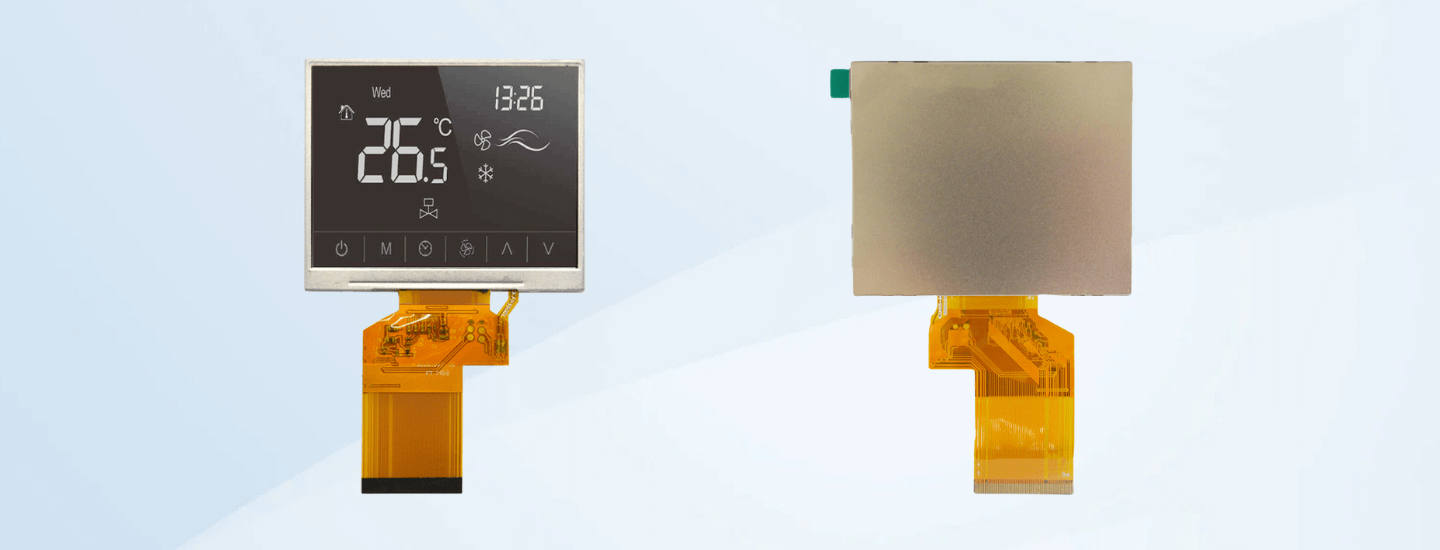

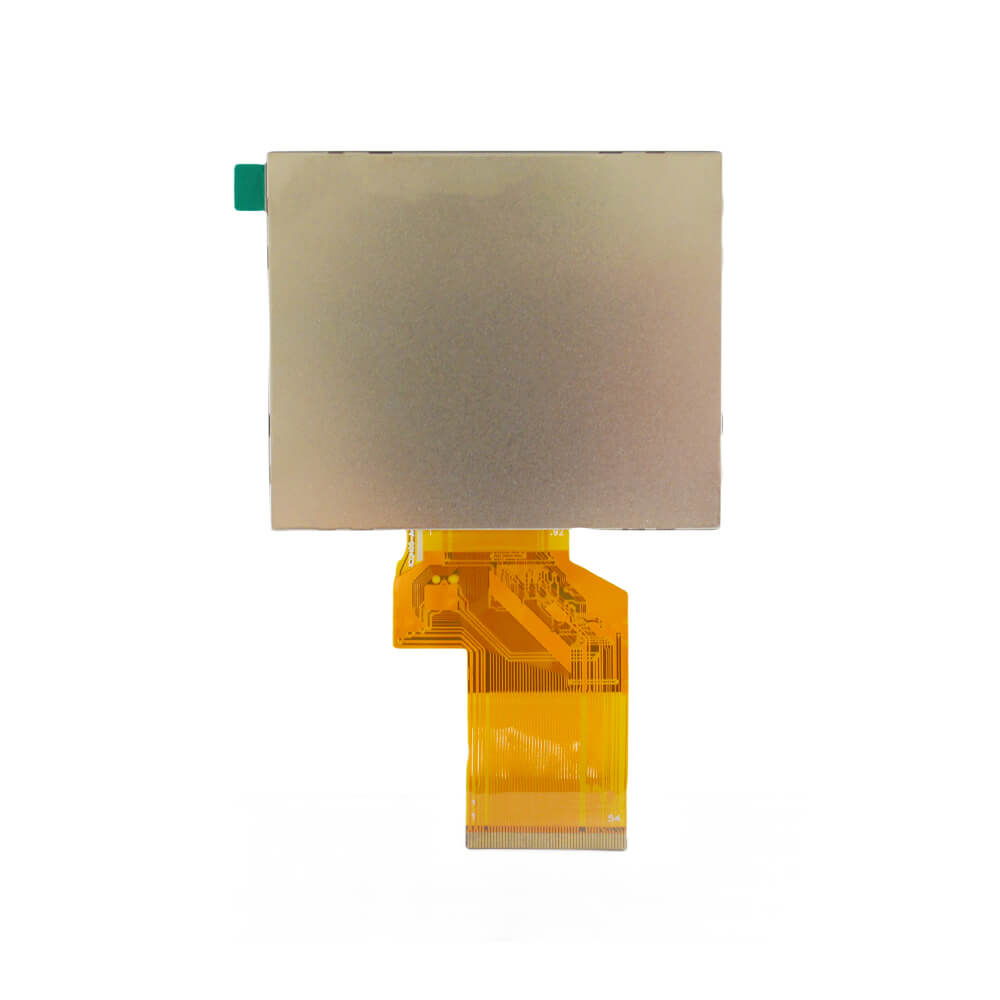

The MX-35T5432024006L01T is a 3.5 inch TFT LCD display module with a 320×240 resolution, 350 cd/m² brightness, and TN panel with 6 o’clock viewing angle. It features a 54-pin RGB interface and integrates the HX8238-D driver IC, making it suitable for handheld devices, smart control panels, and various embedded applications.

  • Standard Brightness

    350 nits

  • Working Temp Range

    -20°C to 70°C

  • Interface

    54-pin RGB

  • IC

    HX8238-D

PIN NO. PIN NAME DESCRIPTION
1~2 LEDK LED backlight cathode
3~4 LEDA LED backlight cathode
5 YU RTP (No connection)
6 XR RTP (No connection)
7 NC No connection
8 RESET Reset signal input terminal, active at ‘L’.
9 CS Chip select signal input terminal, active at ‘L’.
10 SCK Write signal input terminal, Active at ‘L’.
Synchronizing clock signal in SPI mode.
11 SDA SPI interface input pin
12~19 B0~B7 Data bus
20~27 G0~G7 Data bus
28~35 R0~R7 Data bus
36 HSYNC Line synchronizing signal for RGB interface operation.
37 VSYNC Frame synchronizing signal for RGB interface operation.
38 DCLK Dot clock signal for RGB interface operation.
39~40 NC No connection
41~42 VCC System power supply.
43 YD RTP (No connection)
44 XL RTP (No connection)
45~47 NC No connection
48~50 IF2~IF0 Define the input interface
51 NC No connection
52 DE Data ENEABLE signal for RGB interface operation.
53~54 GND Power ground



Item

Symbol

Min.

Max.

Unit

Analog Supply Voltage

VCC

-0.3

4

V

Input Voltage

Vin

GND-0.3

5

V

Operating Temperature

TOP

-20

70

°C

Storage Temperature

TST

-30

80

°C

Storage Humidity

HD

-

90

%RH

Item

Symbol

Min.

Typ.

Max.

Unit

Analog Supply Voltage

VCC

2.5

-

3.6

V

Input High Voltage

VIH

0.8

-

-

V

Input Low Voltage

VIL

0

-

0.2

V

Output High Voltage

VOH

0.9

-

-

V

Output Low Voltage

VOL

0

-

0.1

V

Logic Input Current

IIL/IIH

-1

-

1

uA

Item

Symbol

MIN.

TYP.

MAX.

UNIT

Test Condition

Supply Voltage

Vf

18.6

19.2

21

V

If=20mA

Supply Current

If

15

20

25

mA

-

Luminous Intensity

For LCM

-

300

350

-

Cd/m2

If=20mA

Power consumption

-

0.279

0.384

0.525

W

If=20mA

Uniformity for LCM

-

80

-

-

If=20mA

Life time

-

30,000

50,000

-

Hr

-

Backlight Color

White

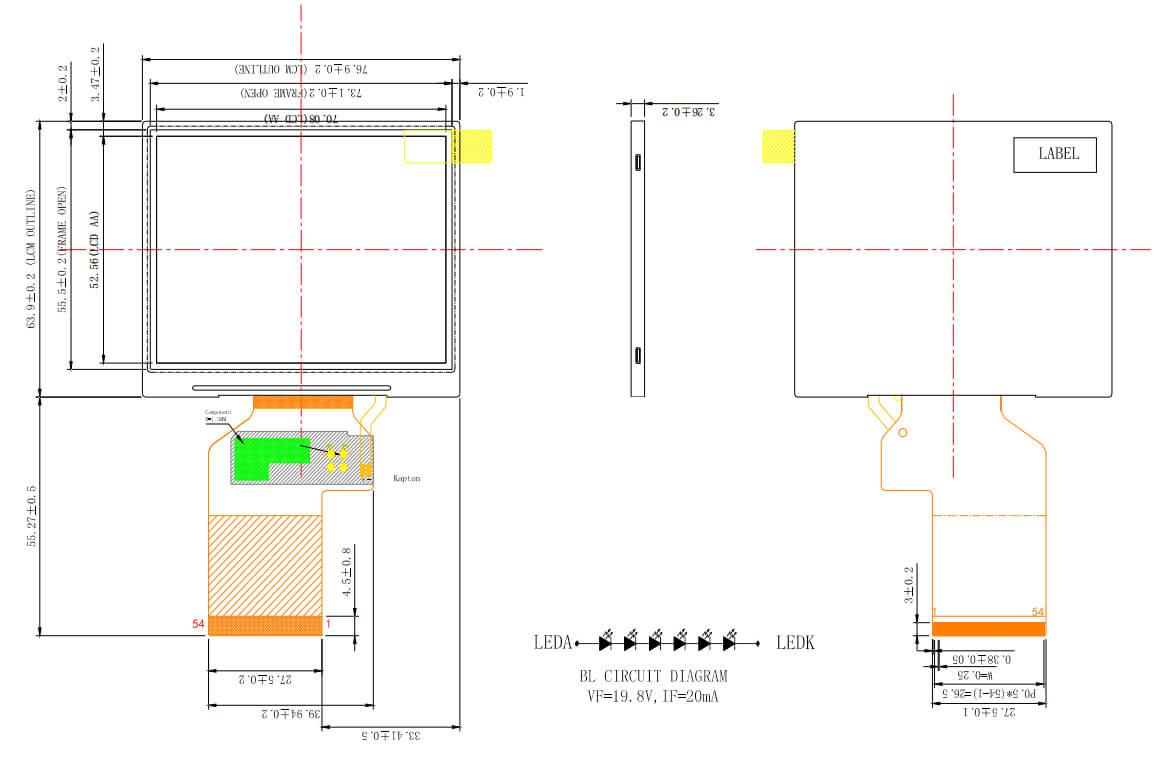

3.5 inch LCD Display Product Drawing
