3.5 inch Capacitive Touch Screen

Compact, Responsive, and Customizable

Main Features

  • Size: 3.5"
  • Touch Interface: I²C
  • Touch Driver IC: FT5216
  • Touch Structure: PET+Glass
  • High Light Transmission: >87%
  • Glass Surface Hardness: 3H
  • Custom Touch Solutions Available

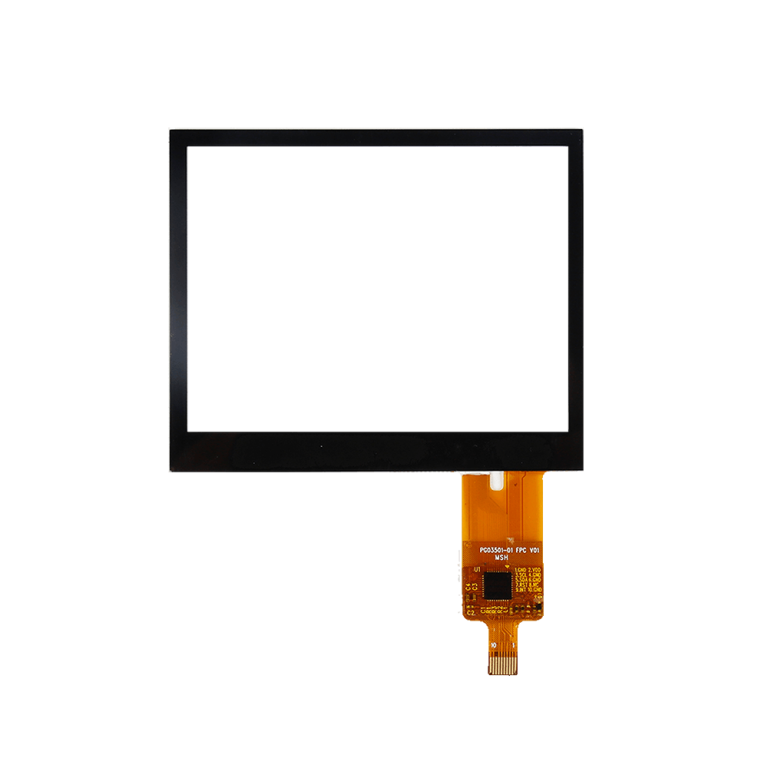

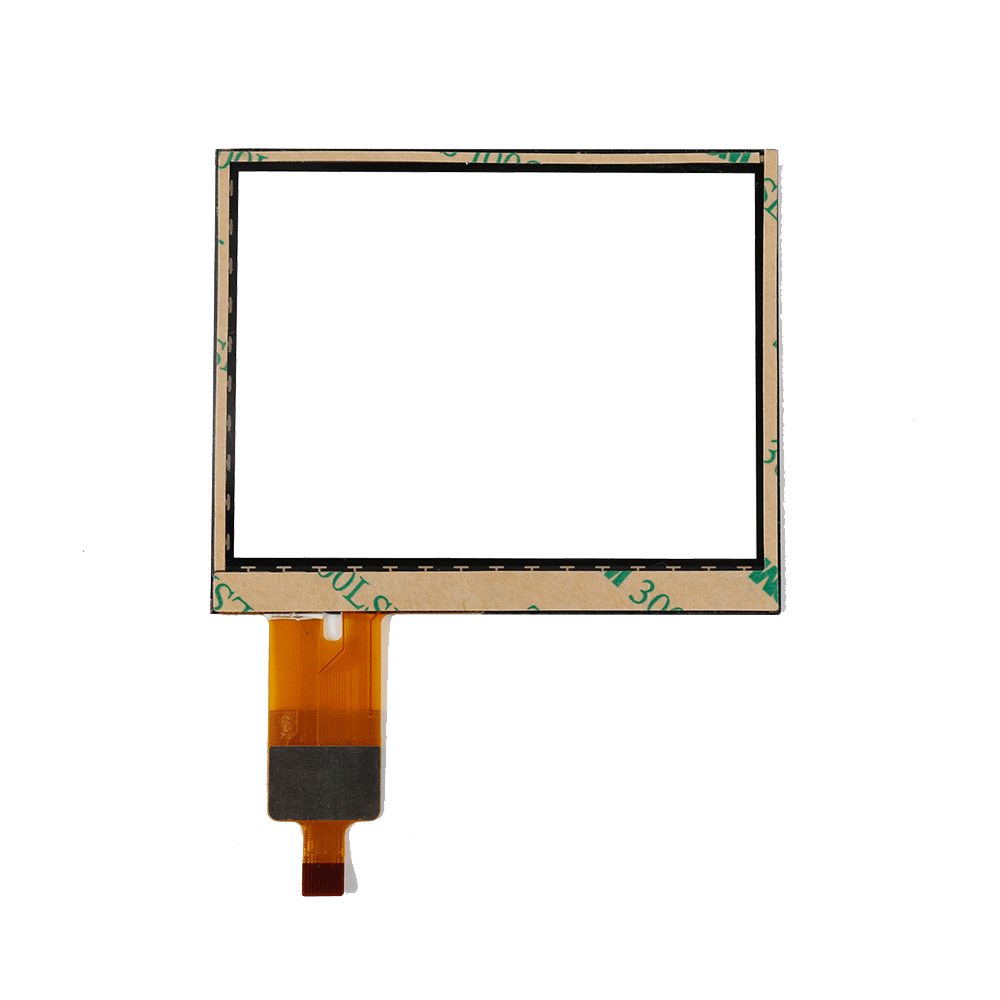

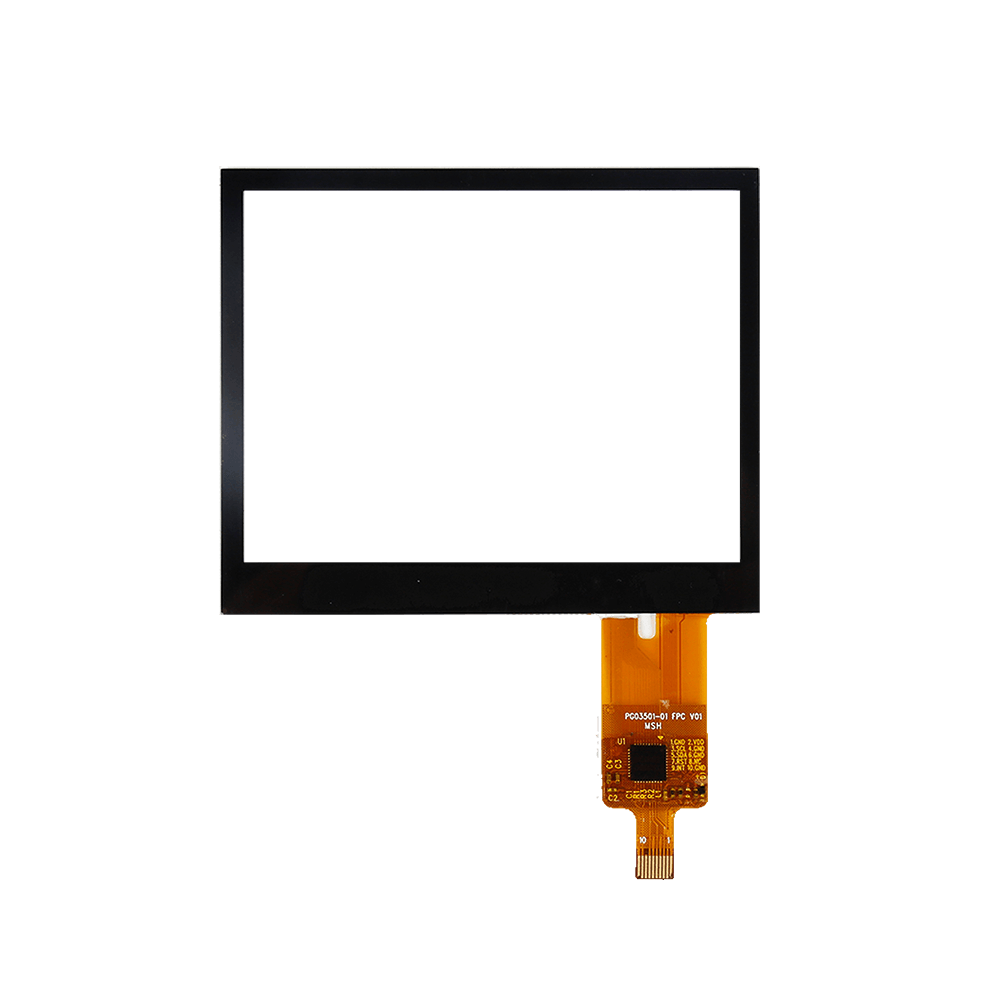

MX-CTP3503

MX-CTP3503 is a standard 3.5 inch capacitive touch screen with PET+Glass structure with surface hardness 3H with light transmission of over 87%. The flex cable is assembled with FT5216 touch IC that can support multi-touch points. The interface is an I2C 10 Pin connection. This capacitive touch screen is compatible with a 3.5 inch TFT LCD with 320x240 or 640x480 resolution.

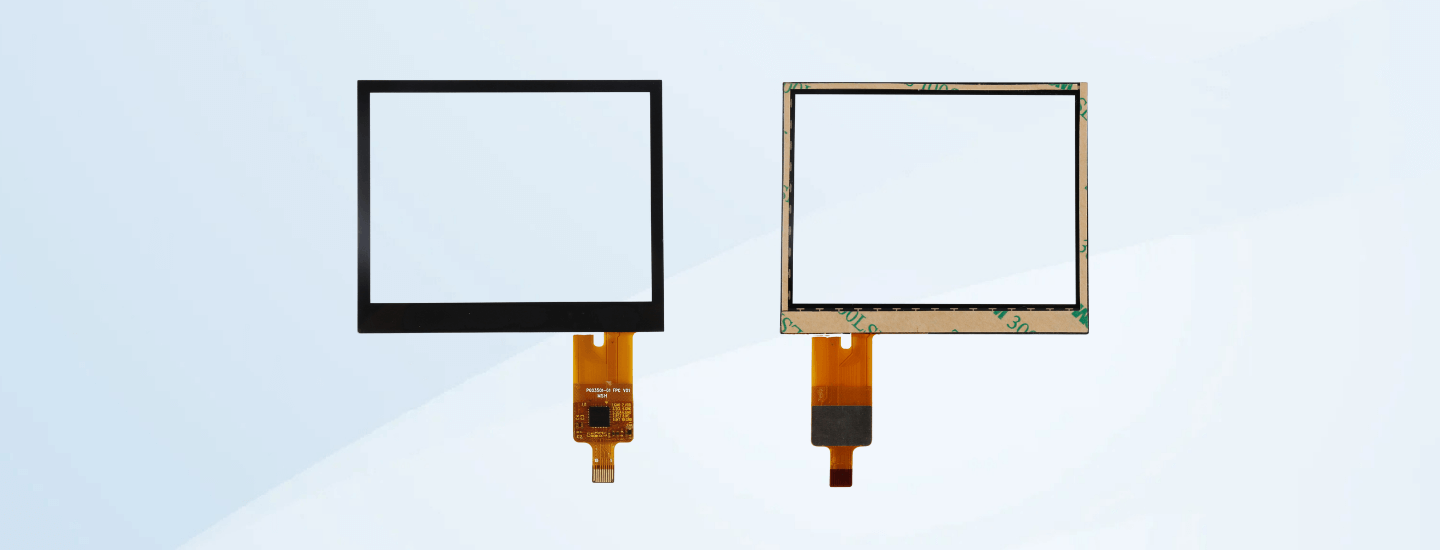

3.5 inch Capacitive Touch Screen - banner
Item Specification
Touch Screen Size 3.5"
Touch controller FT5216
Touch Interface I²C
Pin Number 10 pin
Structure PET+Glass
Glass thickness /
Sensor thickness 0.70 mm
Outline Dimension 76.40*63.40*1.08 mm
Valid Area 70.08*52.56 mm
Supply Voltage 2.8-3.3V
Custom Touch Available
Working Temperature -10℃~ 60 ℃
Storage Temperature -20℃~ 70 ℃

PIN NO. Definition
1 VSS
2 VDD
3 SCL
4 VSS
5 SDA
6 VSS
7 RST
8 WAKE
9 INT
10 VSS

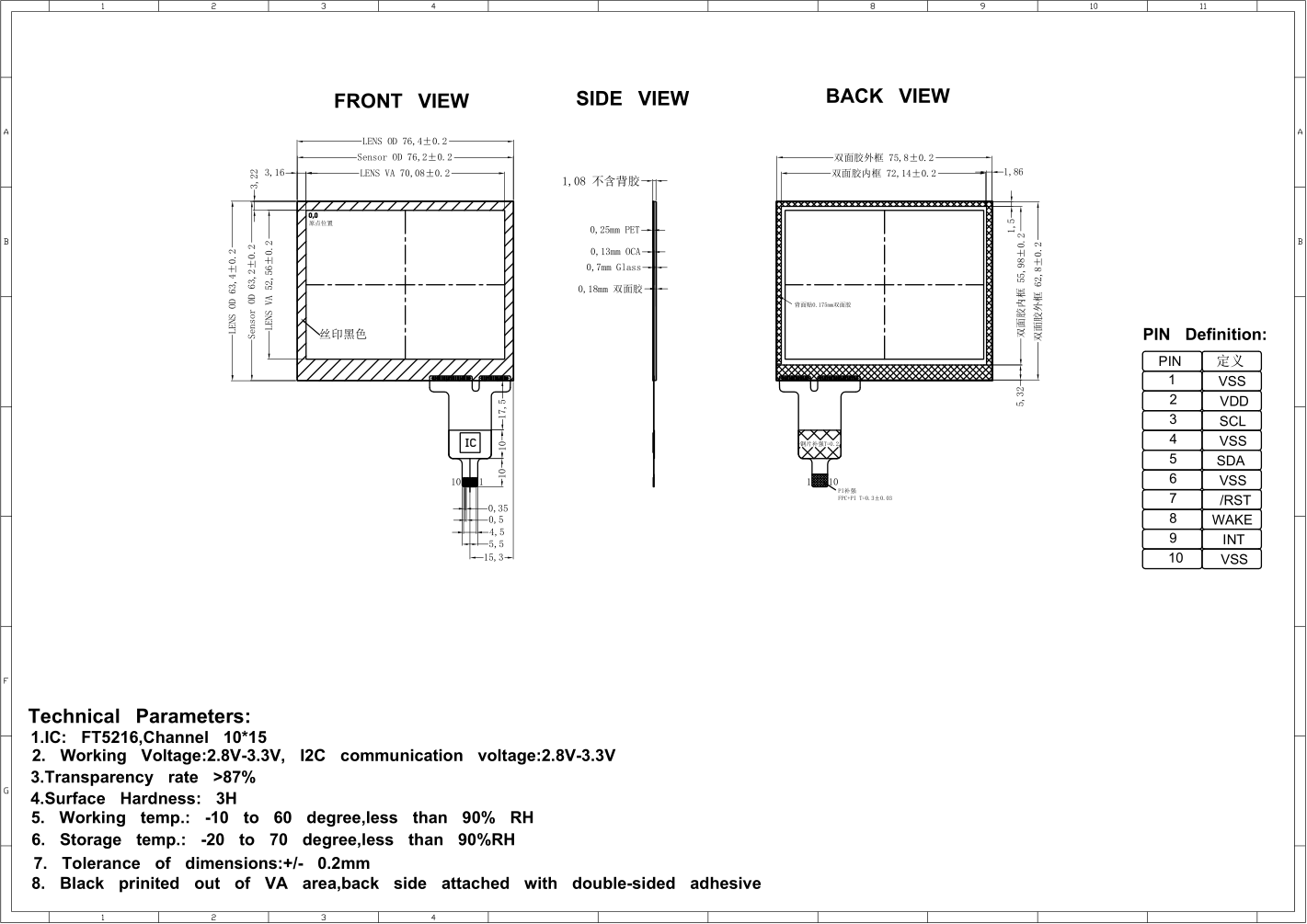

3.5 inch Capacitive Touch Screen Product Drawing
