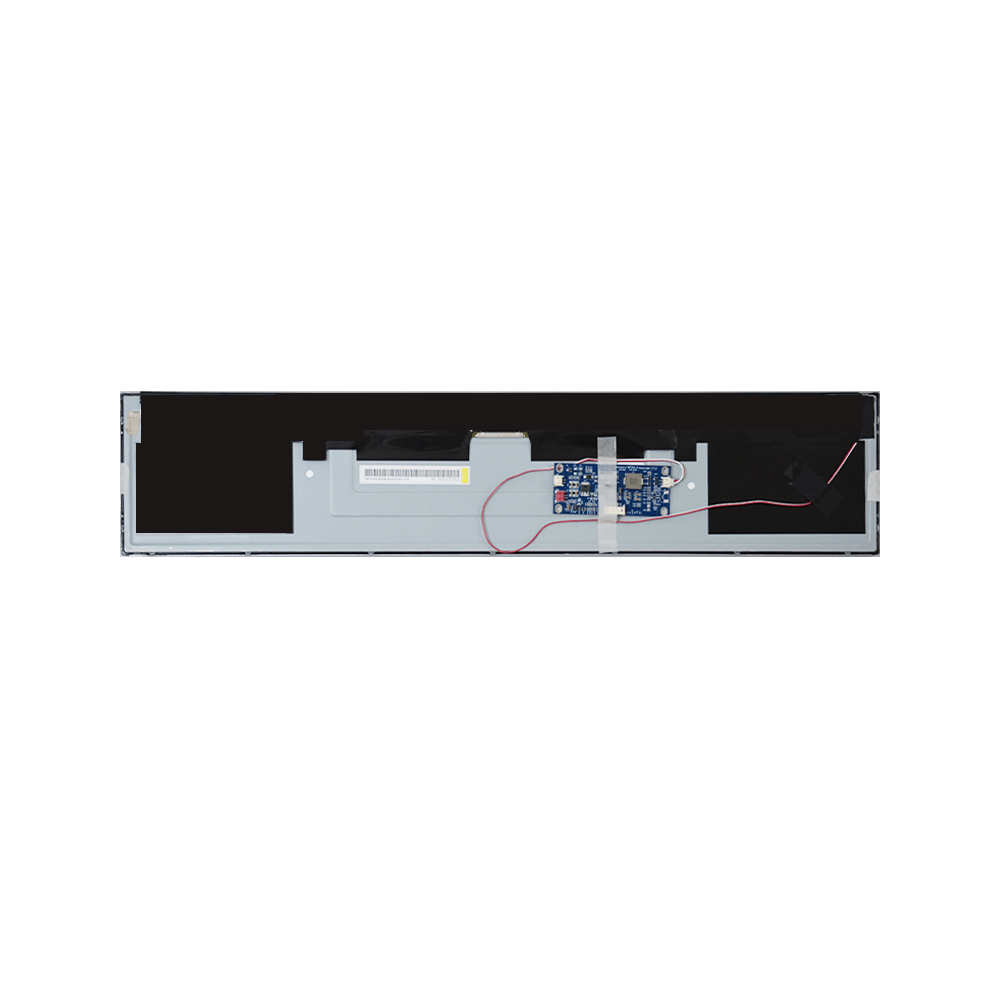

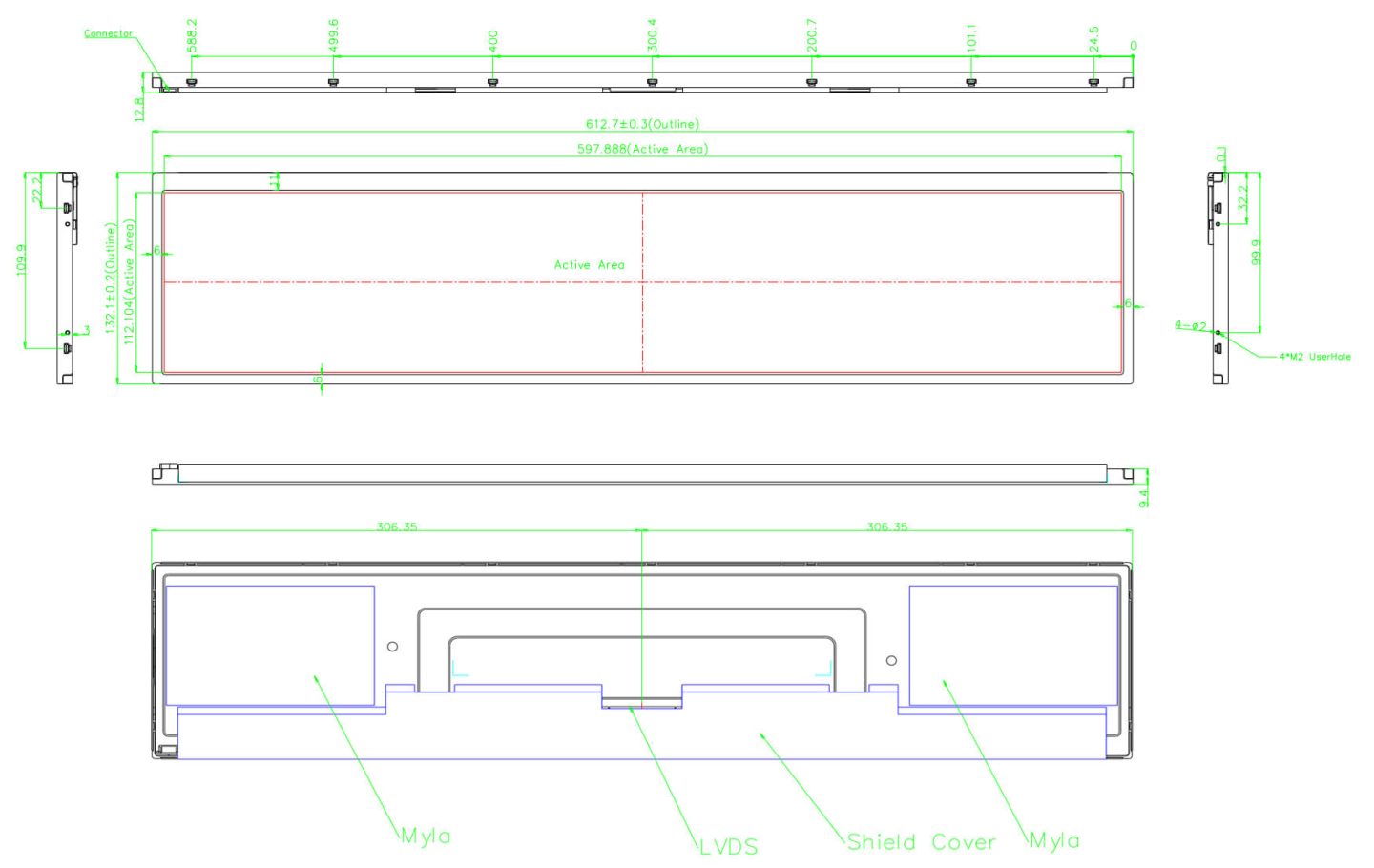

| Pin No. | Symbol | Function |
| l | RXO0- | Negative Transmission data of Pixel 0 (ODD) |
| 2 | RXO0+ | Positive Transmission data of Pixel 0 (ODD) |
| 3 | RXO1- | Negative Transmission data of Pixel 1 (ODD) |
| 4 | RXO1+ | Positive Transmission data of Pixel 1 (ODD) |
| 5 | RXO2- | Negative Transmission data of Pixel 2 (ODD) |
| 6 | RXO2+ | Positive Transmission data of Pixel 2 (ODD) |
| 7 | GND | Power Ground |
| 8 | RXOC- | Negative Transmission Clock (ODD) |
| 9 | RXOC+ | Positive Transmission Clock (ODD) |
| 10 | RXO3- | Negative Transmission data of Pixel 3 (ODD) |
| 11 | RXO3+ | PositiveTransmission data of Pixel 3 (ODD) |
| 12 | RXE0- | Negative Transmission data of Pixel 0 (EVEN) |
| 13 | RXE0+ | Positive Transmission data of Pixel 0 (EVEN) |
| 14 | GND | Power Ground |
| 15 | RXE1- | Negative Transmission data of Pixel 1 (EVEN) |
| 16 | RXE1+ | Positive Transmission data of Pixel 1 (EVEN) |
| 17 | GND | Power Ground |
| 18 | RXE2- | Negative Transmission data of Pixel 2 (EVEN) |
| 19 | RXE2+ | Positive Transmission data of Pixel 2 (EVEN) |
| 20 | RXEC- | Negative Transmission Clock (EVEN) |
| 21 | RXEC+ | Positive Transmission Clock (EVEN) |
| 22 | RXE3- | Negative Transmission data of Pixel 3 (EVEN) |
| 23 | RXE3+ | Positive Transmission data of Pixel 3 (EVEN) |
| 24 | GND | Power Ground |
| 25 | CTL | CTL_DVR for LCD manufacturer |
| 26 | CE | CE_DVR for LCD manufacturer |
| 27 | NC | Not connection |
| 28 | VDD1 | Power Supply: +5V |
| 29 | VDD2 | |
| 30 | VDD3 |
| Parameter | Symbol | Min. | Max. | Unit |
| Power Supply Voltage | VDD | -0.3 | 7 | V |
| Logic Supply Voltage | VIN | VSS-0.3 | VDD+0.3 | V |
| LED Channel Current | IBL | — | 85 | mA |
| Operating Temperature | Top | 0 | +50 | ℃ |
| Storage Temperature | Tst | -20 | +60 | ℃ |
| Parameter | Min. | Typ. | Max. | Unit | Remarks | |
| Power Supply Voltage | VDD | 4.5 | 5.0 | 5.5 | V | Note l |
| Power Supply Current | IDD | — | 600 | 800 | mA | |
| In-Rush Current | IRUSH | — | 2 | 3 | A | Note 2 |
| Permissible Input Ripple Voltage | VRF | — | — | 300 | mV | Note 1,3 |
| High Level Differential Input Threshold Voltage |
VIH | — | — | +100 | mV | — |
| Low Level Differential Input Threshold Voltage |
VIL | -100 | — | — | mV | |
| Differential input voltage | |VID| | 200 | — | 600 | mV | — |
| Differential input common mode voltage | Vcm | 1.0 | 1.2 | 1.5 | — | VIH=100mV, VIL=-100mV. |
| LED Channel Voltage | VL | 50.4 | 54 | 55.8 | V | — |
| LED Channel Current | IL | — | 30 | 40 | mA | — |
| LED Lifetime | / | 30,000 | — | — | Hrs | — |
| Power Consumption | PD | — | 3.0 | 4.0 | W | @60Hz |
| PBL | — | 8.1 | 11.2 | W | — | |
| Ptotal | — | 11.1 | 15.2 | W | — | |
Notes:
1. The supply voltage is measured and specified at the interface connector of LCM. The current draw and power consumption specified is for VDD=5.0V, Frame rate=60Hz and Clock frequency=75.4MHz.
2. Duration of rush current is about 2ms and rising time of VDD is 520μs±20%.
3. Ripple Voltage should be covered by input voltage Spec.
4. Calculated value for reference (VL×VL)×5(channel) excluding driver loss. (LED Light bar: 18S5P)
| Parameter | Min. | Typ. | Max. | Unit | |
| LEDLight Bar Input Voltage Per Input Pin |
VPIN | 50.4 | 54 | 55.8 | V |
| LEDLight Bar Input Current Per Input Pin |
IPIN | — | 30 | 40 | mA |
| LED Power Consumption | PBL | — | 8.1 | 11.2 | W |
| LED Life-Time | — | 30,000 | — | — | Hrs |
