21.2 inch Stretched Bar LCD Display

Ideal for transportation info systems, shelf-edge displays, digital signage.

Main Features

  • Part No. MX-B212FL30-IBZ02
  • 21.2" TFT LCD Display (Bar-type)
  • 1920x360 resolution
  • High brightness 600 cd/m²
  • Full viewing angles (IPS)
  • 30-pin LVDS interface
  • Resizing Display (Aspect Ratio of 16:3)

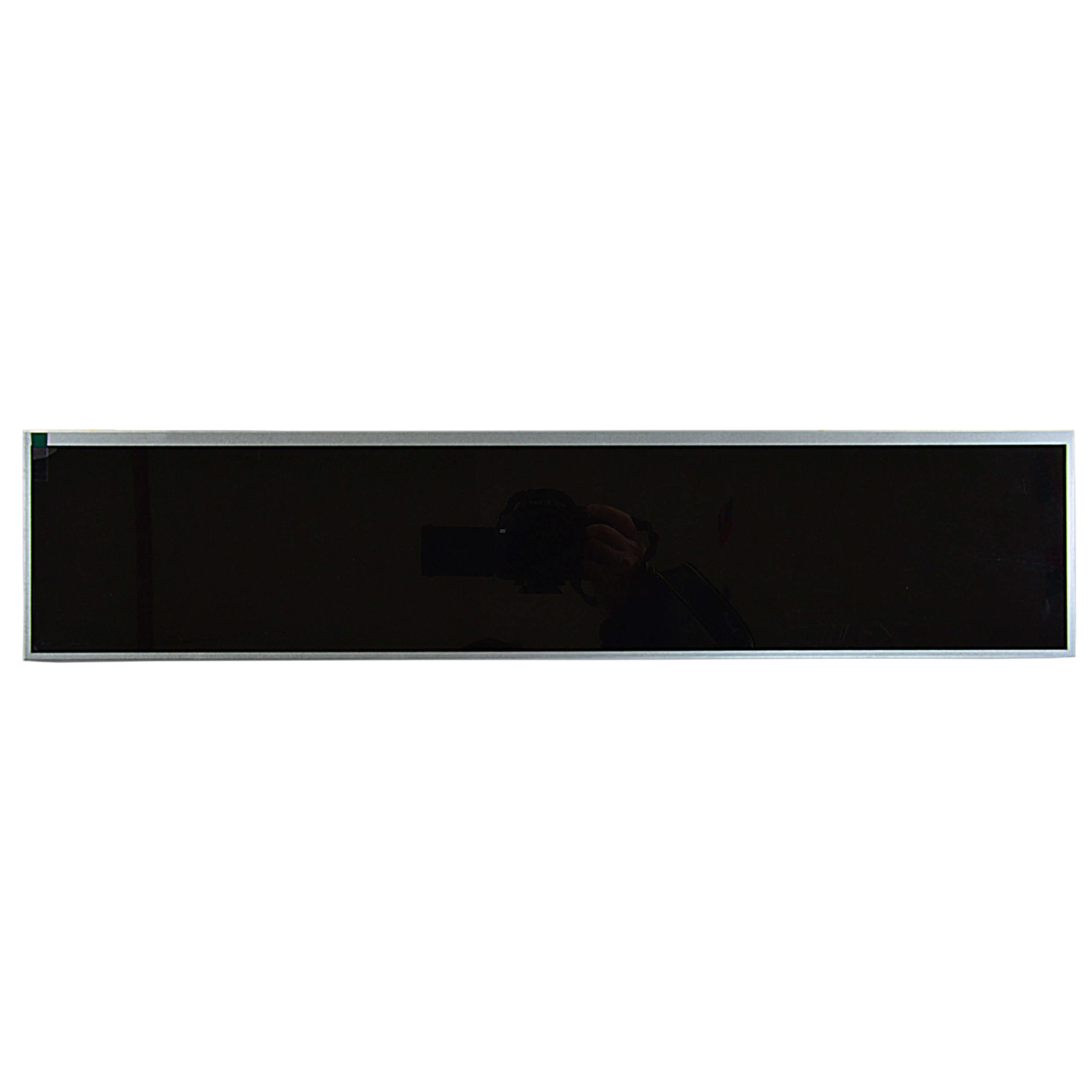

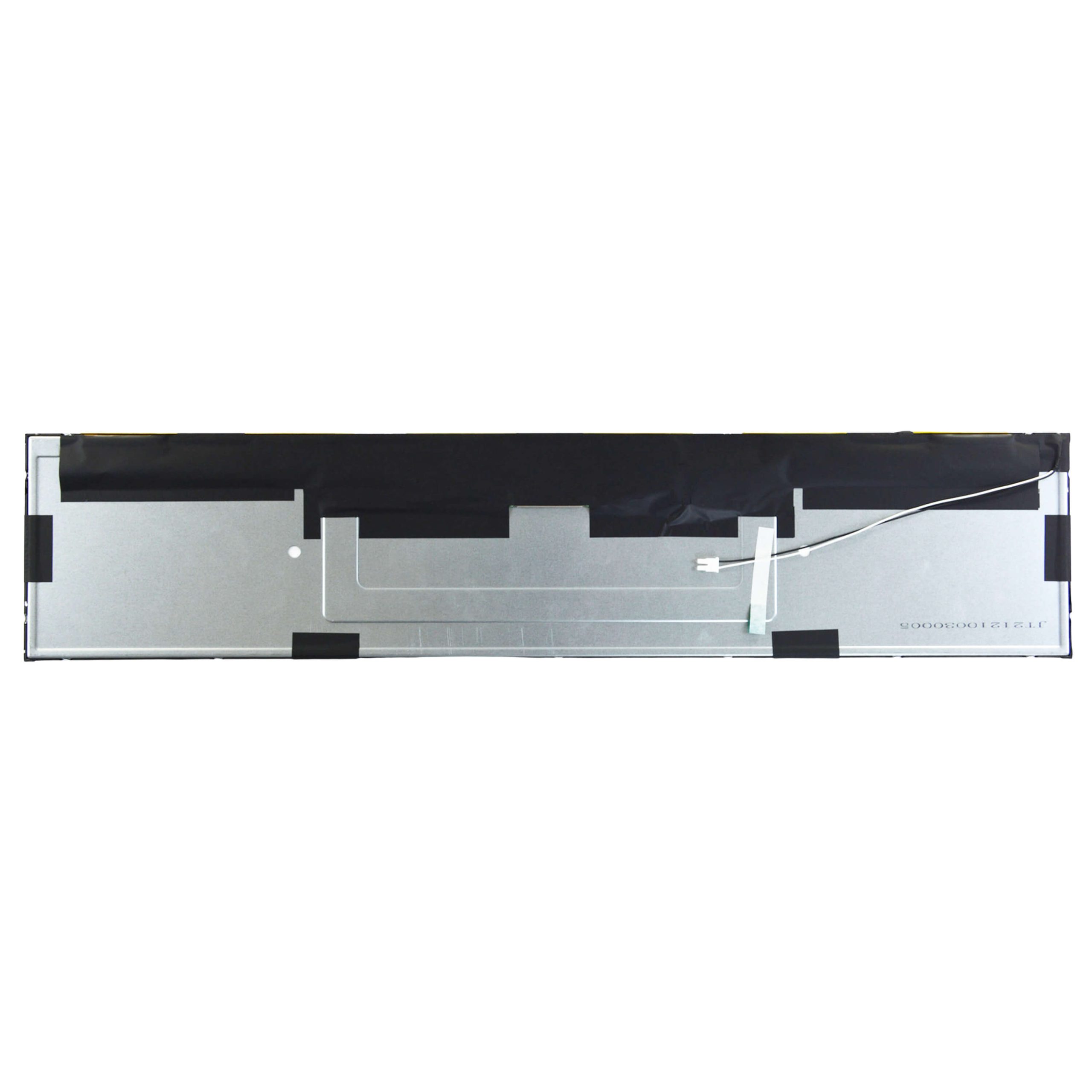

MX-B212FL30-IBZ02

21.2 inch Stretched Bar LCD Display (Part No. MX-B212FL30-IBZ02) features an ultra-wide 16:3 aspect ratio with a crisp 1920×360 resolution. Designed as a resizing display for space-constrained, horizontally stretched applications, it offers 600 cd/m² brightness, IPS full viewing angles, and a reliable 30-pin LVDS interface — making it ideal for industrial signage, public transportation info boards, and smart shelf displays.

21.2 inch Stretched Bar LCD Display - banner
  • Resolution

    21.2" 1920x360

  • High brightness

    600 nits

  • Interface

    30-pin LVDS

  • Operation Temp.

    0~50 ℃

PIN No. Symbol Description
RXO0- Negative Transmission data of Pixel 0 (ODD)
RXO0+ Positive Transmission data of Pixel 0 (ODD)
RXO1- Negative Transmission data of Pixel 1 (ODD)
RXO1+ Positive Transmission data of Pixel 1 (ODD)
RXO2- Negative Transmission data of Pixel 2 (ODD)
RXO2+ Positive Transmission data of Pixel 2 (ODD)
BIST BIST function
RXOC- Negative Transmission Clock (ODD)
RXOC+ Positive Transmission Clock (ODD)
10  RXO3- Negative Transmission data of Pixel 3 (ODD)
11  RXO3+ Positive Transmission data of Pixel 3 (ODD)
12  RXE0- Negative Transmission data of Pixel 0 (EVEN)
13 RXEO+ Positive Transmission data of Pixel 0 (EVEN)
14  GND Power Ground
15  RXE1- Negative Transmission data of Pixel 1 (EVEN)
16  RXE1+ Positive Transmission data of Pixel 1 (EVEN)
17  GND Power Ground
18  RXE2- Negative Transmission data of Pixel 2 (EVEN)
19  RXE2+ Positive Transmission data of Pixel 2 (EVEN)
20  RXEC- Negative Transmission Clock (EVEN)
21  RXEC+ Positive Transmission Clock (EVEN)
22  RXE3- Negative Transmission data of Pixel 3 (EVEN)
23  RXE3+ Positive Transmission data of Pixel 3 (EVEN)
24  GND Power Ground
25  SCL CTL_DVR for LCD manufacturer
26  SDA CE_DVR for LCD manufacturer
27  NC Not connection
28-30 VDD Power Supply: +12V

Parameter Symbol Min. Max. Unit Remar
Power Supply Voltage VDD 13.2  V Ta=25℃
Operating Temperature Top +50  Note 1
Storage Temperature Tsur -20  +60
Tst -20  +60
Operating
Ambient
Hop 10  80  %RH
Storaae Humidity Hst 10  80  %RH

Note 1: Temperature and relative humidity ranges are shown in the figure below.

Wet bulb temperature should be 39 ℃ max. and no condensation of water.

Parameter Symbol Values Unit
Min Typ Max
Power Supply Input Voltage VDD 10.8  12  13.2  Vdc
Power Supply Ripple Voltage VRP  —  — 300  mV
Power Supply Current IDD  — 250  530  mA
Power Consumption PDD  — Watt
Rush current IRUSH  —  — A
LVDS Interface Differential Input High Threshold Voltage VLVTH 100   — 300  mV
Differential Input Low Threshold Voltage VLVTL -300   — -100  mV
Common Input Voltage VLVC 1.2  1.4  V
CMOS Interface Input High Threshold Voltage VIH 2.7   — 3.3  V
Input Low Threshold Voltage VIL  — 0.6  V

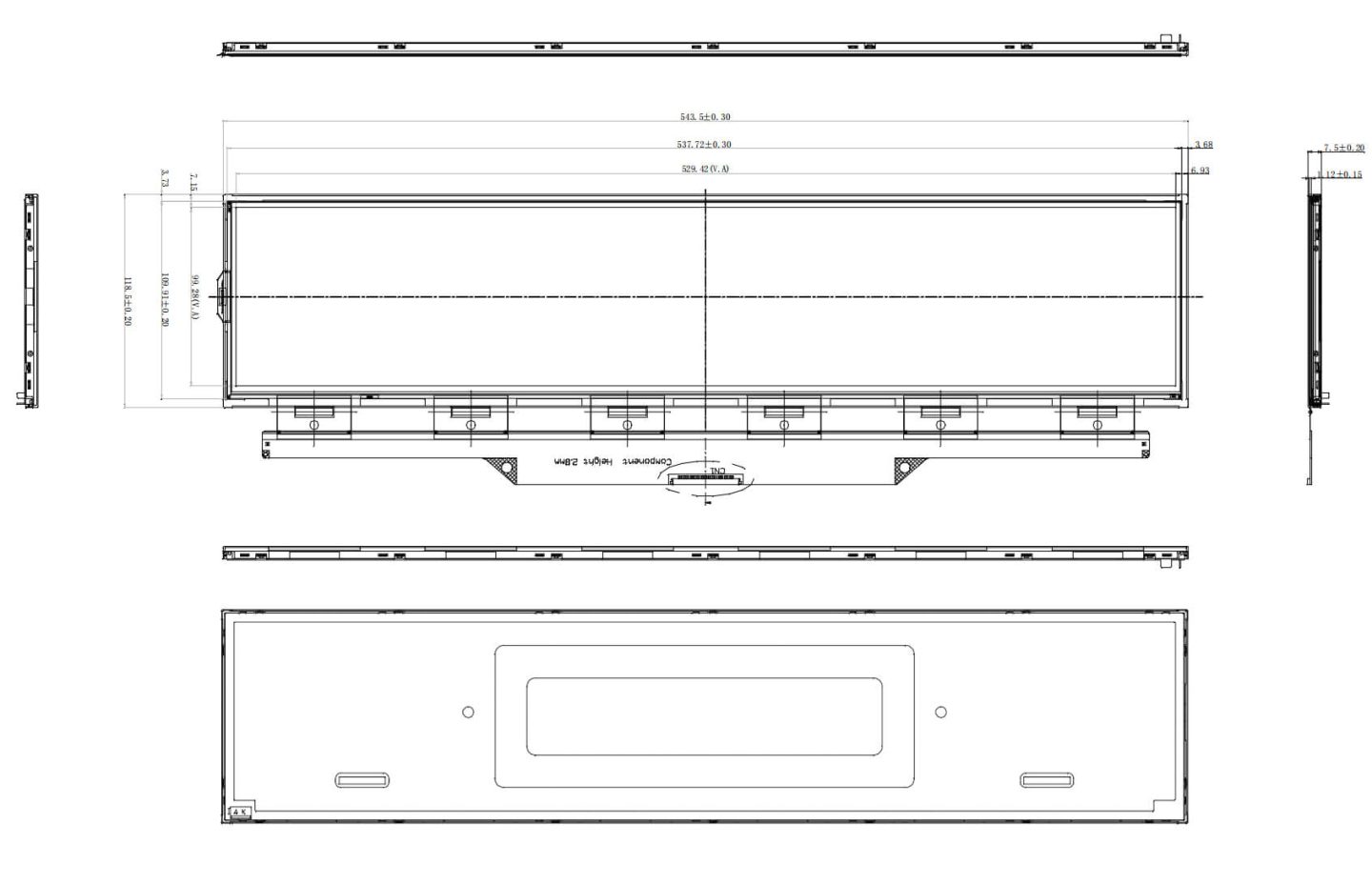

21.2 inch Stretched Bar LCD Display Product Drawing
