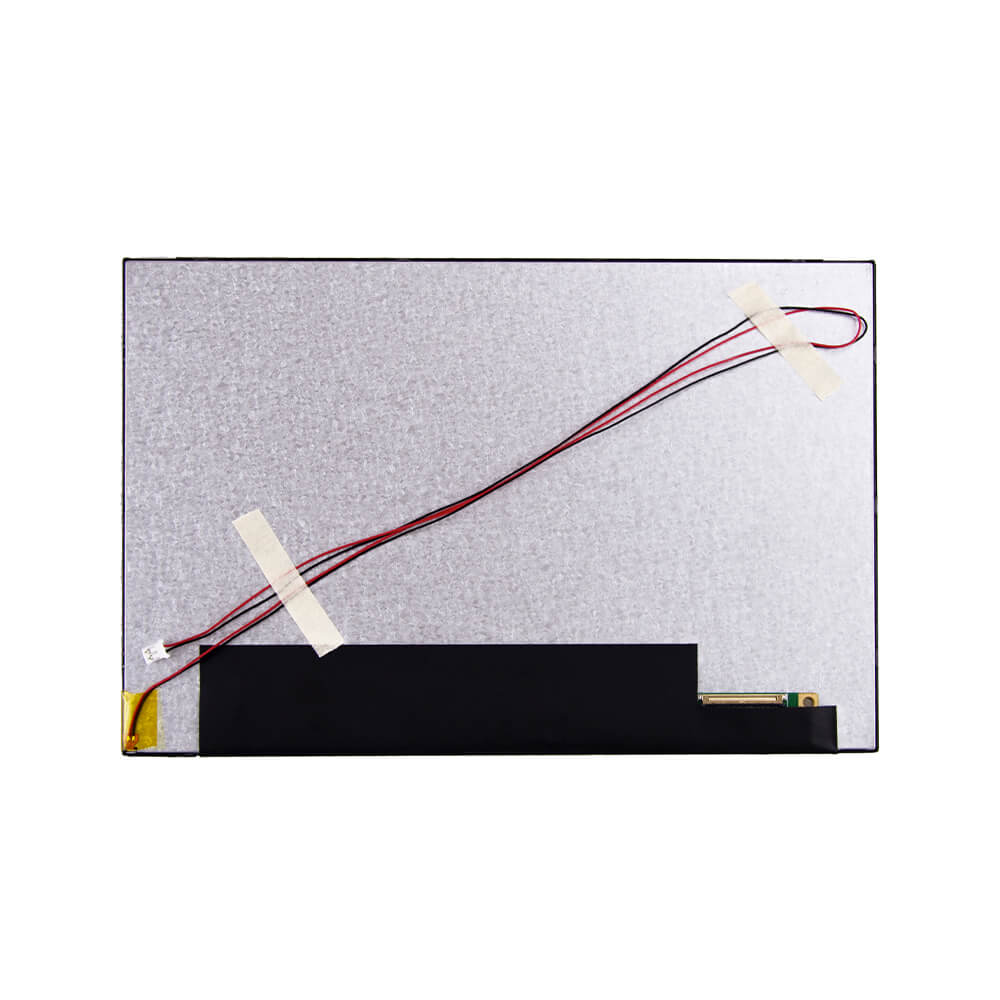

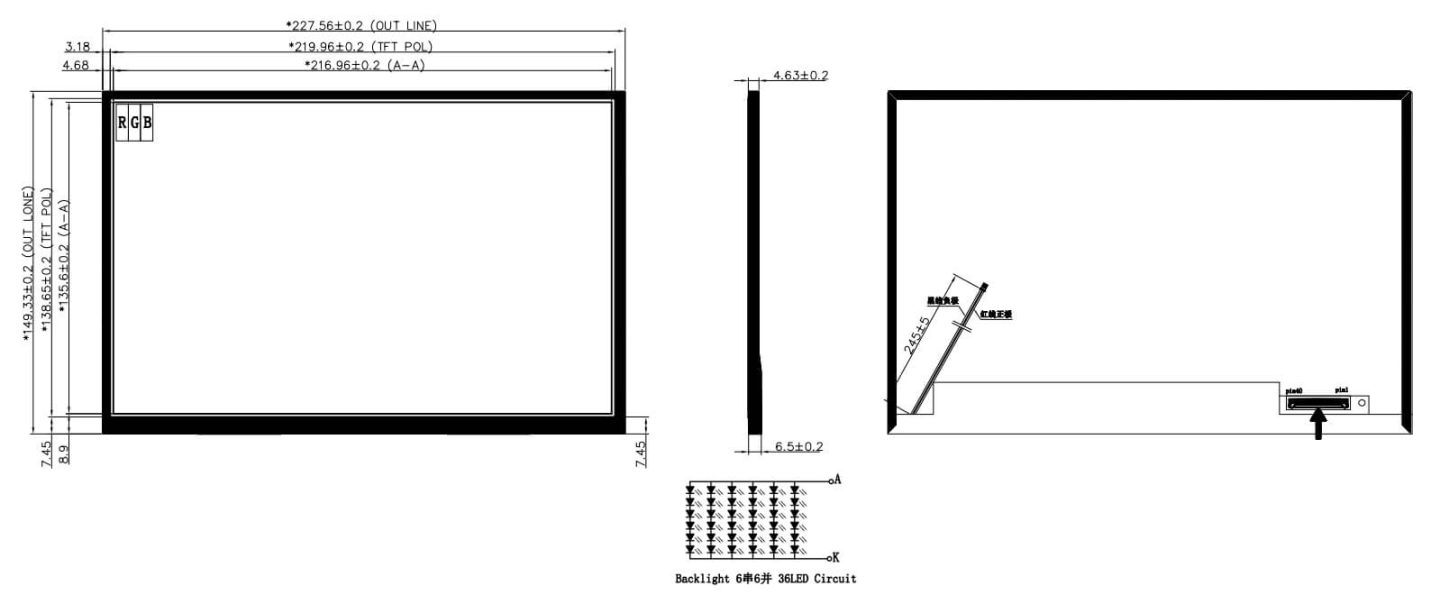

Pin No. | Symbol | Description | I/O |
1 | NC | Non Connection | - |
2~4 | VDDIN | Power supply VDDIN=3.3V(Typ.) | P |
5 | NC | Non Connection | - |
6~7 | GND | GROUND | P |
8 | RINO- | LVDS Negative data signal (-) | I |
9 | RINO+ | LVDS Positive data signal(+) | I |
10 | GND | GROUND | P |
11 | RIN1- | LVDS Negative data signal (-) | I |
12 | RIN1+ | LVDS Positive data signal(+) | I |
13 | GND | GROUND | P |
14 | RIN2- | LVDS Negative data signal (-) | I |
15 | RIN2+ | LVDS Positive data signal(+) | I |
16 | GND | GROUND | P |
17 | LVDS_CLK- | LVDS Negative CLK signal (-) | I |
18 | LVDS_CLK+ | LVDS Positive CLK signal(+) | I |
19 | GND | GROUND | P |
20 | RIN3- | LVDS Negative data signal (-) | I |
21 | RIN3+ | LVDS Positive data signal(+) | I |
22 | GND | GROUND | P |
23~24 | NC | Non Connection | - |
25 | GND | GROUND | P |
26 | SCL_S | Reserved for LCD manufacturer's use, not connection | - |
27 | SDA_S | Reserved for LCD manufacturer’s use, not connection | - |
28 | GND | GROUND | P |
29 | NC | Non Connection | - |
30 | NC | Non Connection | - |
31~33 | GND | GROUND | P |
34 | NC | Non Connection | - |
35 | LED_PWM | LED PWM signal pin | O |
36~37 | NC | Non Connection | - |
38~40 | LED+ | LED Anode | P |
Parameter | Symbol | Min. | Max. | Unit | Remarks |
Power Supply | VDD | VSS-0.3 | 3.6 | V | Ta =25℃ Note 1&2 |
Operating Temperature | Top | -20 | +70 | ℃ | _ |
Storage Temperature |
TsT | -30 | +80 | ℃ |
Note:
1. These range above is maximum value not the actual operating temperature. Actual Operating temperature is no more than 40℃ and temperature refers to the LCM surface temperature;
2.MAXEN is not responsible for product problems beyond the use conditions.
Parameter | Symbol | Values | Unit | Notes | |||
Min. | Typ. | Max. | |||||
Power Supply Voltage | VDD | 3.0 | 3.3 | 3.6 | V | - | |
VRP | - | - | 360 | mV | Ripple | ||
Power Supply Current | IDD | - | 127 | 343 | mA | Note 1 | |
Power Consumption | PLCD | - | 0.42 | 1.13 | W | ||
Rush current | IRUSH | - | - | 3.0 | A | - | |
CMOS Interface |
Input Voltage |
VIH | 2.7 | - | 3.3 | V | - |
VIL | 0 | - | 0.5 | V | - | ||
Output Voltage |
VOH | 2.7 | - | 3.3 | V | - | |
VOL | 0 | - | 0.5 | V | - |
Notes:
1. The supply voltage is measured and specified at the interface connector of LCM.
The current draw and power consumption specified is for VDD=3.3V, Frame rate fV=60Hz and Clock frequency=72.4MHz.
Test Pattern of power supply current
a) Typ : Mosaic 6 x 6 Pattern(L0/L255)
b) Max : skip subPixel(L255)
Parameter | Symbol | Values | Unit | |||
Min. | Typ. | Max. | ||||
Power supply voltage for Backlight | VLED | 16.8 | 18.0 | 19.8 | V | |
Power supply current for Backlight | ILED | - | 280 | 360 | mA |
