MAXEN has launched a new 10.1 inch custom HMI touch display, created for embedded and industrial applications that call for a reliable and flexible front-end interface.
This 10.1 inch HMI Touch display module combines a 1280x800 IPS LCD, a customizable capacitive touch panel, and a three-layer housing for easy mechanical integration.
The 10.1 inch IPS screen provides sharp images, full viewing angles, and 500 nits brightness, ensuring visibility in bright or dim environments.
Its consistent color and contrast make it ideal for control panels, instruments, and operator interfaces.
| ITEM | STANDARD VALUES |
| LCD Size | 10.1" |
| Model NO. | MX-101FL40BFS-N84 |
| Resolution | 1280x800 |
| TFT Type | IPS |
| Interface Type | 6bit LVDS |
| Pin Number | 40pin |
| Outline Dimension | 228.20x148.85x2.80 mm |
| Active Area | 216.96x135.60 mm |
| Consumption | 2.8V/20mA |
| Luminance | 500 Nits |
| LED Life Time | 50,000 hours (Typ.) |
| Operating Temperature | -20~70 ℃ |
The capacitive touch panel - HCT2537GG101A1-V1 can be customized for different shapes, logo printing, or camera holes, making it easy to match your product design.
With G+G structure and high-accuracy ILITEK ILI2511 controller, it delivers fast and reliable touch response.

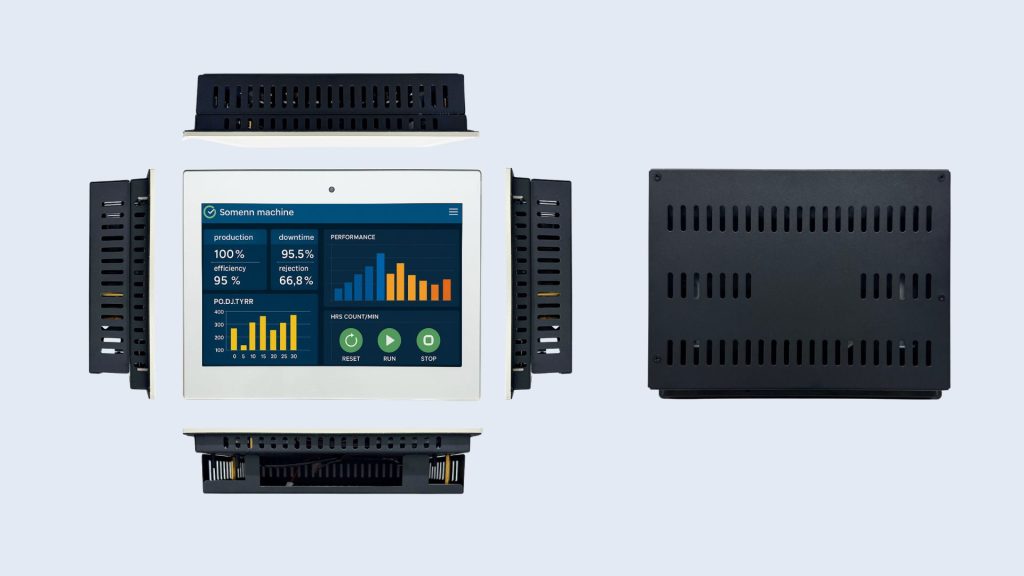

The module uses a three-layer housing — including the front bezel, middle frame, and back cover — providing strong support and simple assembly.
This design keeps the display stable and well-protected during installation or daily operation.
Delivered without a system board, the module can connect to your own control board or processor.
It supports air or optical bonding, and optional AG, AR, or AF coatings to meet different usage environments.
From the display and touch panel to the mechanical housing, every part can be tailored to your exact project requirements.
Provide us with your outline drawing, mechanical constraints, or interface specification, and our engineering team will assist you in creating a custom-fit HMI module — ready for seamless integration into your system.
Contact us today to discuss your project or request a custom solution.
